2013 Peugeot 308 SW BL Owner's Manual

6
111
FITTINGS
ILLUMINATED GLOVE BOX
This has areas for storing a bottle of wa-
ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.


)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit automat-
ically.
This sun visor is also equipped with a
ticket holder.
TOLL CARD / CAR PARK TICKET WINDOWS
Facility for affi xing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the rear view mirror.
They are two non-refl ective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun's rays (ultra-violet). It consists
of a refl ective layer, which also
blocks certain radio-electric signals
(toll card payments, ...).

)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
If your vehicle is fi tted with air condition-
ing, the glove box has an air vent A
,
which can be opened or closed. This
distributes the same conditioned air as
the vents in the passenger compart-
ment.

6
11 2
FITTINGS
12 V ACCESSORY SOCKET


)
To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.
ILLUMINATED ASHTRAY



)
Pull the drawer for access to the
ashtray.

)
To empty the ashtray, after opening,
press the tab and remove the ash-
tray.

BAG HOOK



)
Press the lower part of the hook to
unfold it.

)
Hang the strap of your bag on the
hook to secure it.
PEUGEOT CONNECT USB


This connection box, consisting of a
USB port, is located in the front arm-
rest.
It permits the connection of portable
equipment, such as an iPod
® digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the use of this
equipment, refer to the "Audio and Tele-
matics" section.

6
113
FITTINGS
FRONT ARMREST
Comfort and storage device for the driv-
er and front passenger.
The height and length of the armrest
cover can be adjusted for greater com-
fort.

Height adjustment



)
Raise the cover to the required posi-
tion (low, intermediate or high).

)
If you raise the cover slightly beyond
the high position, guide it when low-
ering it to the low position.

STORAGE BOX

Storage area, built into the rear of the
front armrest, for the rear passengers.


)
To empty the box, after opening,
press the tab and remove it.


Storage

The armrest's compartment can hold up
to 6 CDs.


)
Raise the lever 1
.

)
Raise the cover fully.



Longitudinal adjustment



)
Slide the cover fully forwards or
rearwards.

6
11 4
FITTINGS

To avoid any risk of jamming of the
pedals:


- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must
be used,

- never fi t one mat on top of an-
other.
The use of mats not approved by
PEUGEOT may interfere with ac-
cess to the pedals and hinder the
operation of the cruise control /
speed limiter.

MATS

Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured cor-
rectly.


Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)
move the seat as far back as pos-
sible,

)
unclip the fi xings,

)
remove the mat.

STORAGE DRAWER

Opening



)
Raise the front of the drawer and pull it.


Do not place heavy objects in the
drawer.


Removal



)
Bring the drawer to the end of its
travel.

)
Press the ends of the slides.

)
Raise the drawer and pull it fully.



Refitting



)
Engage the drawer in its slides.

)
At the end of its travel, press on the
top of the drawer to secure it. The storage drawer is located under the
front passenger's seat.

6FITTINGS
REAR ARMRESTSKI FLAP

Opening



)
Lower the rear armrest.

)
Pull the fl ap handle downwards.

)
Lower the fl ap.

)
Load the objects from inside the
boot.


)
Lower the rear armrest for a more
comfortable position.

)
Raise the cover to gain access to its
storage compartment.
This has a storage tray, two cup holders
and two pen holders.
"AIRCRAFT" TYPE TABLES


)
To use the table, raise it fully until it
locks in the high position.

)
To store the table, lower it, passing
the point of resistance, to the low
position.
On the passenger side, do not for-
get to fold the "aircraft" type table
before placing the seat in the table
position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event
of emergency braking or impact. Comfort and storage device for the rear
passengers. Arrangement for storing and transport-
ing long objects. Installed on the back of each front seat,
these allow you to set down objects and
each is equipped with a cup holder.

6
116
FITTINGS
BOOT FITTINGS



1.
Rear parcel shelf

(see details on following page)

2.
Hooks

(see details on following page)

3.
Stowing rings


4.
Luggage retaining strap


5.
Enclosed storage tray


6.
Open storage tray


7.
Storage box

(see details on following page)

6
11 7

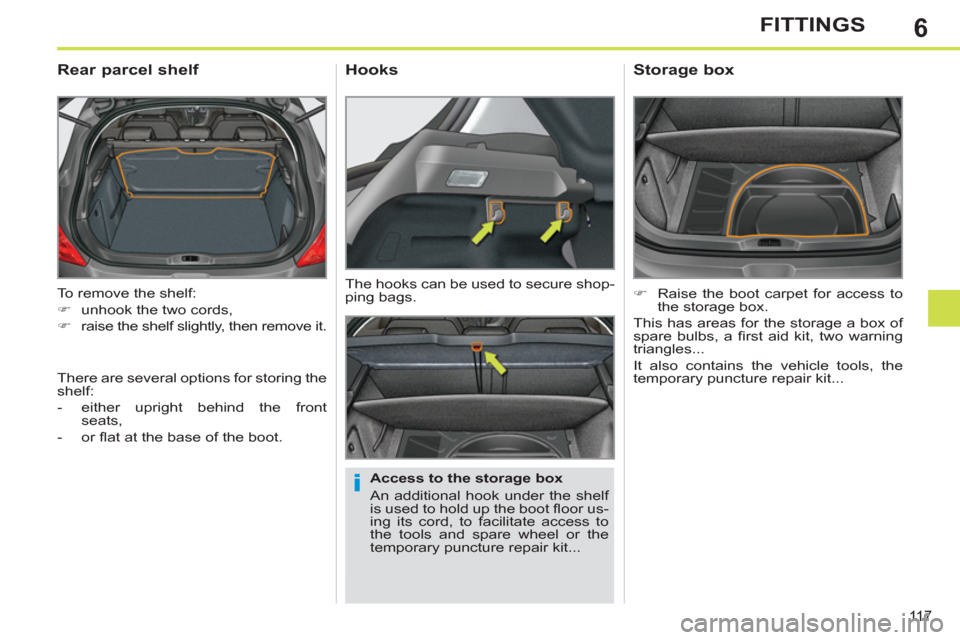

FITTINGS
To remove the shelf:


)
unhook the two cords,

)
raise the shelf slightly, then remove it.







Rear parcel shelf


Access to the storage box
An additional hook under the shelf
is used to hold up the boot fl oor us-
ing its cord, to facilitate access to
the tools and spare wheel or the
temporary puncture repair kit...
The hooks can be used to secure shop-
ping bags.






Hooks

There are several options for storing the
shelf:


- either upright behind the front
seats,

- or fl at at the base of the boot.


)
Raise the boot carpet for access to
the storage box.
This has areas for the storage a box of
spare bulbs, a fi rst aid kit, two warning
triangles...
It also contains the vehicle tools, the
temporary puncture repair kit...







Storage box

6
118
FITTINGS

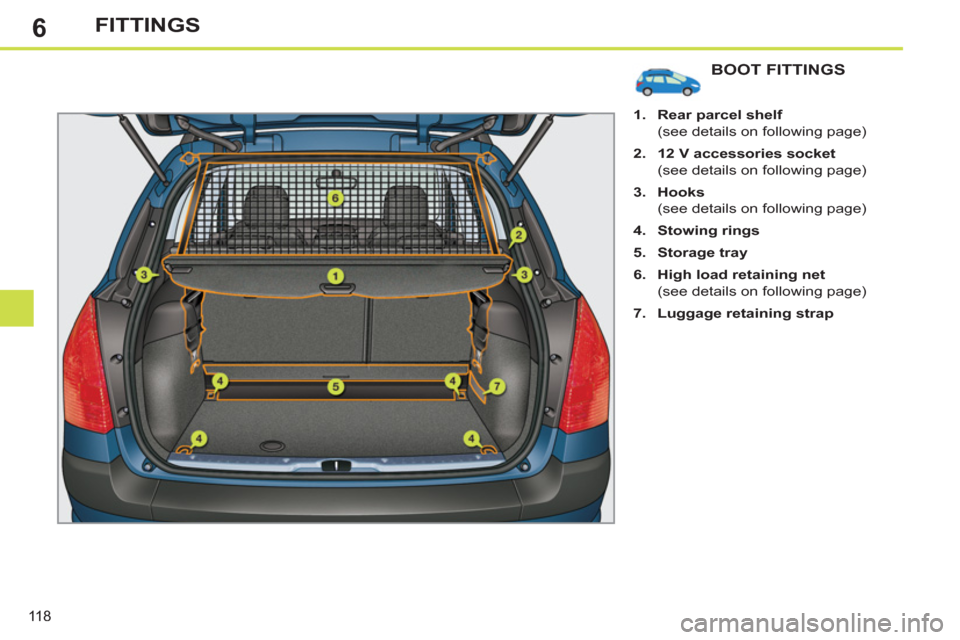

BOOT FITTINGS


1.
Rear parcel shelf

(see details on following page)

2.
12 V accessories socket

(see details on following page)

3.
Hooks

(see details on following page)

4.
Stowing rings


5.
Storage tray


6.
High load retaining net

(see details on following page)

7.
Luggage retaining strap
