2013 Peugeot 308 SW BL Owner's Manual

11
199
PRACTICAL INFORMATION

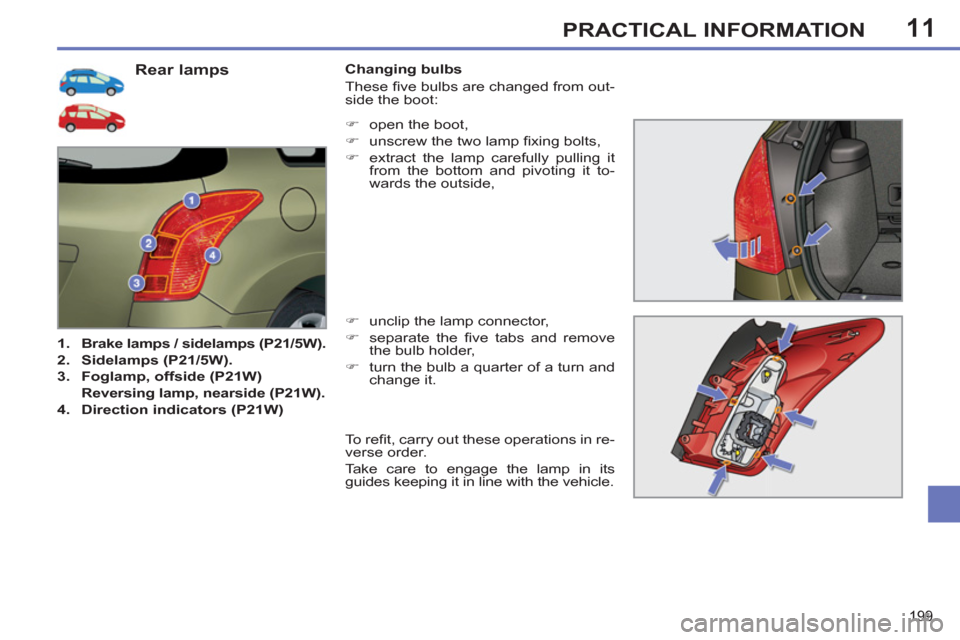

Rear lamps



1.
Brake lamps / sidelamps (P21/5W).


2.
Sidelamps (P21/5W).


3.
Foglamp, offside (P21W)

Reversing lamp, nearside (P21W).


4.
Direction indicators (P21W)


Changing bulbs
These fi ve bulbs are changed from out-
side the boot:

)
unclip the lamp connector,

)
separate the fi ve tabs and remove
the bulb holder,

)
turn the bulb a quarter of a turn and
change it.

)
open the boot,

)
unscrew the two lamp fi xing bolts,

)
extract the lamp carefully pulling it
from the bottom and pivoting it to-
wards the outside,
To r efi t, carry out these operations in re-
verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.

11PRACTICAL INFORMATION

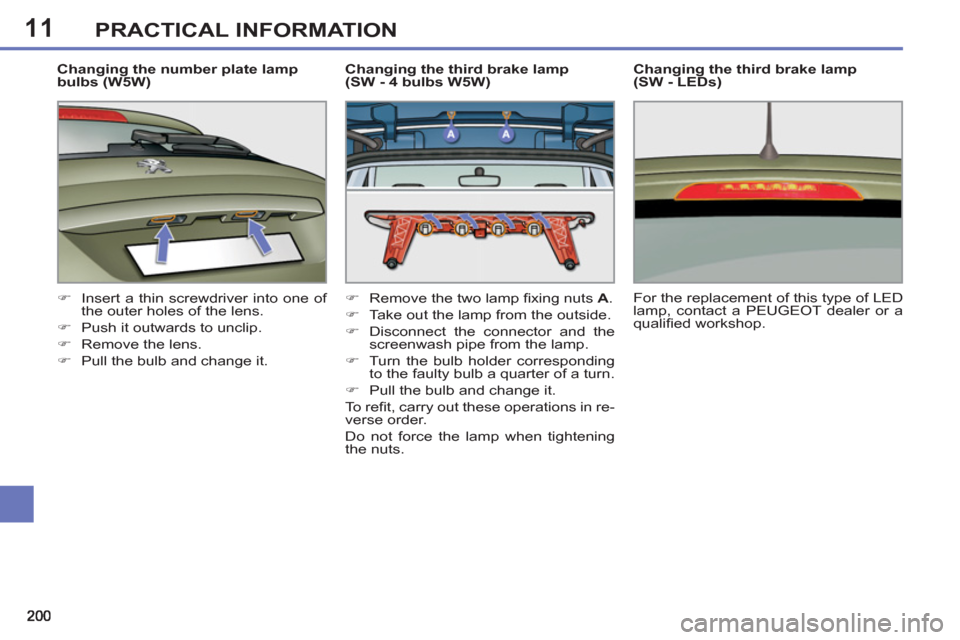

Changing the number plate lamp
bulbs (W5W)


)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb and change it.

















Changing the third brake lamp
(SW - 4 bulbs W5W)


)
Remove the two lamp fi xing nuts A
.

)
Take out the lamp from the outside.

)
Disconnect the connector and the
screenwash pipe from the lamp.

)
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.

)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Do not force the lamp when tightening
the nuts.


Changing the third brake lamp
(SW - LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.

11
201
PRACTICAL INFORMATION

PEUGEOT will not accept responsi-bility for the cost incurred in repairing your vehicle or for rectifying mal-
functions resulting from the installa-
tion of accessories not supplied and
not recommended by PEUGEOT
and not installed in accordance with
its instructions, in particular when
the combined consumption of all of
the additional equipment connected
exceeds 10 milliamperes.

Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer
or a qualifi ed workshop.
CHANGING A FUSE

Access to the tools

The extraction tweezer is fi tted on the
back of the dashboard fusebox cover.
To gain access to it:


)
turn the screw a quarter of a turn to
the left,

)
unclip the cover by pulling the top
right,

)
remove the cover completely and
turn it over,

)
remove the carrier, on the back of
which is fi tted the tweezer.



Changing a fuse

Before changing a fuse:


)
the cause of the failure must be
identifi ed and rectifi ed,

)
all electric consumers must be
switched off,

)
the vehicle must be immobilised
with the ignition off,

)
identify the failed fuse using the al-
location tables and drawings in the
following pages.
To replace a fuse, you must:


)
use the special tweezer to extract
the fuse from its housing and check
its fi lament,

)
always replace the failed fuse with
a fuse of the same rating (same col-
our); use of a different rating may
cause malfunctions (risk of fi re).
If the fault recurs soon after changing
the fuse, have the electrical system
checked by a PEUGEOT dealer or a
qualifi ed workshop.

Good

Failed

Tweezer

11
202
PRACTICAL INFORMATION

Dashboard fuses

The fusebox is placed in the lower section
of the dashboard (left-hand side).

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse tables


Fuse N°



Rating


Functions



F1



15 A

Rear wiper.


F2



30 A

Locking and deadlocking earth.


F3



5 A

Airbags and pretensioners control unit.


F4



10 A

Clutch pedal and dual-function brake switches,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, automatic gearbox,
switching and protection unit.


F5



30 A

Front one-touch electric windows, folding mirrors
supply, panoramic sunroof blind.


F6



30 A

Rear one-touch electric windows, trailer fusebox.


F7



5 A

Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor illumination, glove
box illumination, torch.


F8



20 A

Audio equipment, audio/telephone, multifunction
screen, tyre under-infl ation detection.


F9



30 A

Front 12 V socket.


F10



15 A

Steering mounted controls, alarm siren, alarm
control unit.


F11



15 A

Low current ignition switch.

11
203
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F12



15 A

Instrument panel, seat belt and passenger's front
airbag warning lamps display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.


F13



5 A

Engine fusebox, airbags, electronic gear control
gearbox gear lever, trailer fusebox.


F14



15 A

Multifunction screen, amplifi er, Bluetooth system,
rain / sunshine sensor, parking sensors control unit.


F15



30 A

Locking and deadlocking.


F17



40 A

Rear screen and door mirrors demist/defrost.


SH



-

PARC shunt.


Fuse N°



Rating


Functions



G36



30 A

Driver and passenger heated seats.


G37



5 A

Driving position memory unit, lighting dimmer.


G38



30 A

Driver's seat memory unit.


G39



30 A

Trailer fusebox supply.


G40



30 A

Hi-Fi amplifi er.

11
204
PRACTICAL INFORMATION

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Fuse N°



Rating


Functions



F1



20 A

Engine control unit supply, injection pump and EGR
electrovalves (2 litre HDI), injectors (2 litre HDI).


F2



15 A

Horn.


F3



10 A

Front / rear wash-wipe.


F4



20 A

Headlamp wash.


F5



15 A

Canister purge, turbine discharge and Turbo
pressure regulation electrovalves (1.6 litre THP),
oil vapour heater (1.6 litre THP), Diesel heater
(1.6 litre HDI).


F6



10 A

Vehicle speed sensor, ABS/ESP control unit.


F7



10 A

Power steering control unit, automatic gearbox,
engine coolant level detector.


F8



25 A

Starter motor control.


F9



10 A

Diagnostic socket, directional headlamps, air fl ow
sensor (Diesel), particle emission fi lter pump
(Diesel).


F10



30 A

Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).


F11



40 A

Air conditioning blower.
Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure sealing of
the fusebox.

Fuse table

11
205
PRACTICAL INFORMATION


Fuse N°



Rating


Functions



F12



30 A

Windscreen wipers slow / fast speed.


F13



40 A

Built-in systems interface supply (ignition positive).


F14



30 A

Air pump.


F15



10 A

Right-hand main beam headlamp.


F16



10 A

Left-hand main beam headlamp.


F17



15 A

Left-hand dipped headlamp.


F18



15 A

Right-hand dipped headlamp.


F19



15 A

Oil vapour heater (1.4 litre and 1.6 litre VTi),
canister purge electrovalve (1.4 litre
and 1.6 litre VTi), oxygen sensors (petrol),
air cooling electrovalves (Diesel).


F20



10 A

Electronic thermostat, variable timing electrovalves,
airfl ow sensor (1.6 litre THP 200),Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).


F21



5 A

Fan assembly relay supply, Valvetronic relay
control (1.4 litre and 1.6 litre VTi ), Turbo cooling
(1.6 litre THP), Valvetronic motor (1.6 litre
THP 200), air fl ow sensor (1.6 litre HDI).

11
206
PRACTICAL INFORMATION

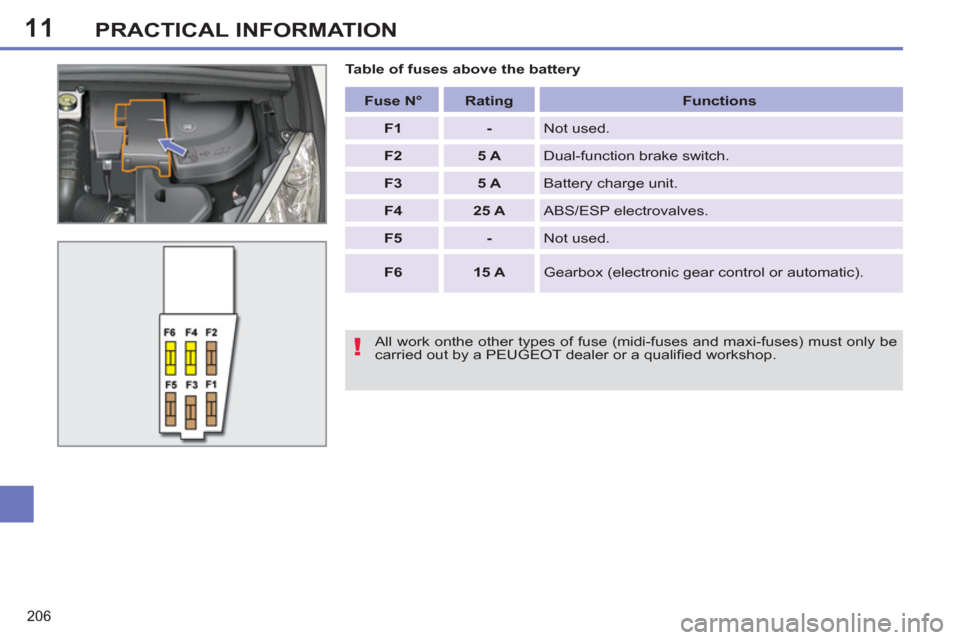

All work onthe other types of fuse (midi-fuses and maxi-fuses) must only be
carried out by a PEUGEOT dealer or a qualifi ed workshop.


Fuse N°



Rating


Functions



F1



-

Not used.


F2



5 A

Dual-function brake switch.


F3



5 A

Battery charge unit.


F4



25 A

ABS/ESP electrovalves.


F5



-

Not used.


F6



15 A

Gearbox (electronic gear control or automatic).
Table of fuses above the battery
