2013 NISSAN LEAF Owners Manual

When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. The smoke
is not harmful and does not indicate a fire. Care
should be taken not to inhale it, as it may cause
irritation and choking. Those with a history of a
breathing condition should get fresh air promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest.
The supplemental air bag warning light
is
used to indicate malfunctions in the pretensioner
system. (See Supplemental air bag warning
light for more details.) If the supplemental air bag
warning light indicates there is a malfunction,
have the system checked by a NISSAN certified
LEAF dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
1SRS air bag
The warning labels are located on the surface of
the sun visors.
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the Air bag Control Unit (ACU) , satel-
lite sensors, crash zone sensor, occupant classi-
fication sensors, the supplemental front-impact
air bag, front seat-mounted side-impact supple-
mental air bag, roof-mounted curtain side-impact
supplemental air bag and seat belt pretensioner
systems. The monitored circuits include air bag
systems, pretensioners and all related wiring.
1-48Safety–Seats, seat belts and supplemental restraint system

When the power switch is in the ON position, the
supplemental air bag warning light illuminates for
about 7 seconds and then turns off. This means
the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:
The supplemental air bag warning light remainson after approximately 7 seconds.
The supplemental air bag warning light flashes intermittently.
The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag and pretensioner systems
may not operate properly. They must be checked
and repaired. Take your vehicle to the nearest
NISSAN certified LEAF dealer.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or pre-
tensioner systems will not operate in an
accident. To help avoid injury to yourself
or others, have your vehicle checked by a NISSAN certified LEAF dealer as soon as
possible.
REPAIR AND REPLACEMENT
PROCEDURE
The front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these systems
should be done only by a NISSAN certified LEAF
dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags and pretensioners and related parts should
be pointed out to the person performing the
maintenance. The power switch should always
be in the LOCK position when working under the
hood or inside the vehicle.
WARNING
Once a front air bag, side air bag or curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the ac-
tivated pretensioners must also be re-
placed. The air bag module and pre-
tensioner should be replaced by a
NISSAN certified LEAF dealer. The air
bag modules and pretensioner system
cannot be repaired.
The front air bag, side air bag and curtain air bag systems, and preten-
sioner system should be inspected by
a NISSAN certified LEAF dealer if there
is any damage to the front end or side
portion of the vehicle.
If you need to dispose of a supplemen- tal air bag or pretensioner or scrap the
vehicle, contact a NISSAN certified
LEAF dealer. Correct supplemental air
bag and pretensioner system disposal
procedures are set forth in the appro-
priate NISSAN Service Manual. Incor-
rect disposal procedures could cause
personal injury.
Safety–Seats, seat belts and supplemental restraint system1-49

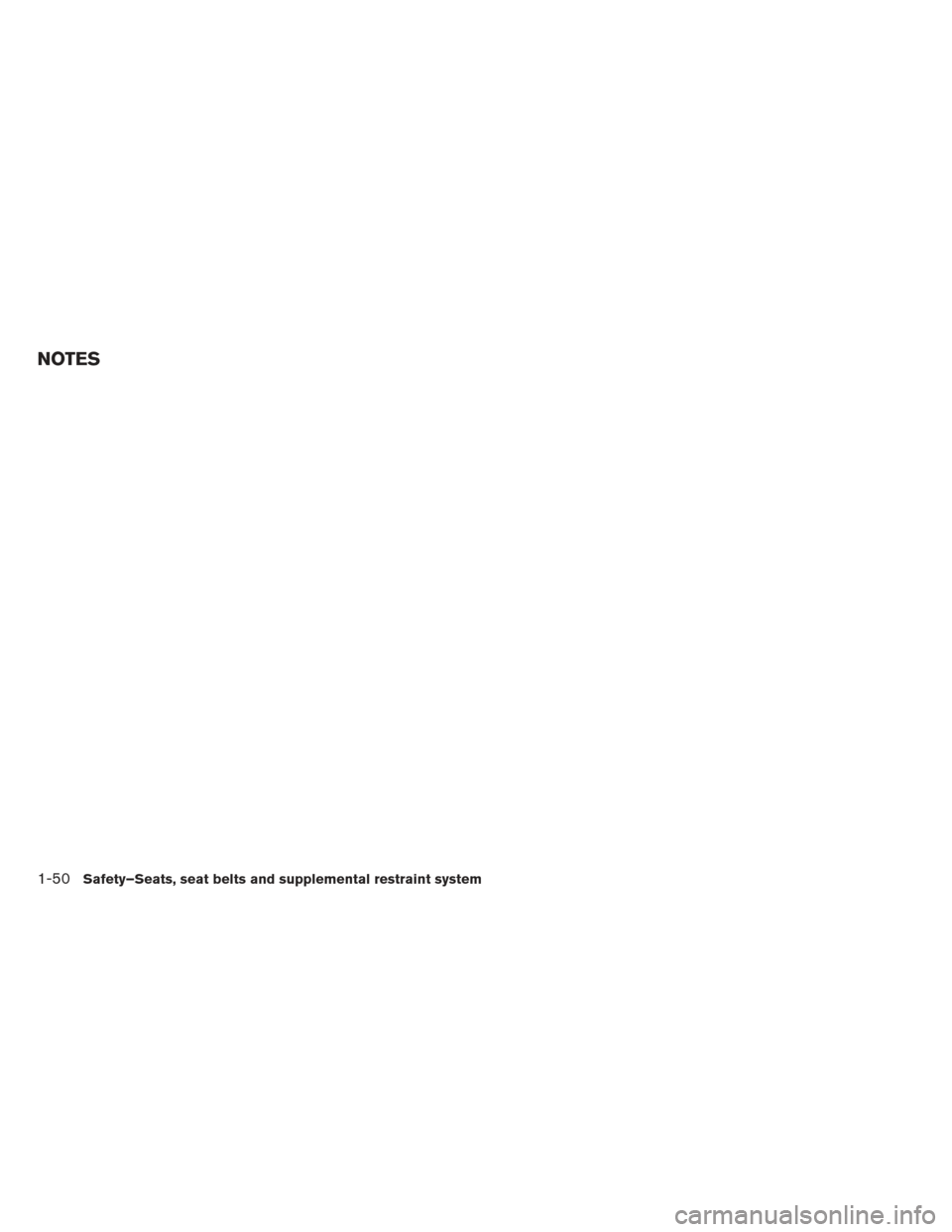

NOTES
1-50Safety–Seats, seat belts and supplemental restraint system

2 Instruments and controls
Cockpit............................ .2-3
Instrument panel ....................... .2-4
Meters and gauges ..................... .2-5
Speedometer and odometer ...............2-6
Li-ion battery temperature gauge ............2-7
Power meter ....................... .2-7
Driving range ....................... .2-8
Li-ion battery available charge gauge .........2-9
Li-ion battery capacity level gauge ..........2-10
Outside air temperature ................2-10
ECO indicator ..................... .2-10
Clock .......................... .2-11
Warning/indicator lights and audible reminders .....2-12
Checking bulbs .................... .2-13
Warning lights ..................... .2-13
Indicator lights ..................... .2-19
Audible reminders ................... .2-21
Dot matrix liquid crystal display ..............2-22
Indicators for operation ................ .2-23
Trip computer ..................... .2-27
Warning information displays .............2-32
Indicators for maintenance ...............2-34
Indicator for timer ................... .2-35
Security systems ..................... .2-35Vehicle security system
................ .2-36
NISSAN Vehicle Immobilizer System .........2-37
Windshield wiper and washer switch ...........2-38
Washer operation ................... .2-39
Rear window wiper and washer switch .........2-40
Rear window and outside mirror defroster switch . . .2-41
Instrument brightness control ...............2-41
Headlight and turn signal switch .............2-42
Headlight switch .................... .2-42
Turn signal switch ................... .2-44
Fog light switch (if so equipped) .............2-45
Heated

steering wheel switch .............. .2-45
Horn ............................. .2-46
ECO switch ........................ .2-46
Heated seat switch .................... .2-47
Vehicle Dynamic Control (VDC) OFF switch ......2-48
Charge port lid switch .................. .2-49
Charge connector lock switch ...............2-49
Charge timer OFF switch .................2-49
Power outlet ........................ .2-50
Storage ........................... .2-50
Cup holders ...................... .2-50
Sunglasses holder ................... .2-51
Glove box ........................ .2-52
Console box ...................... .2-52

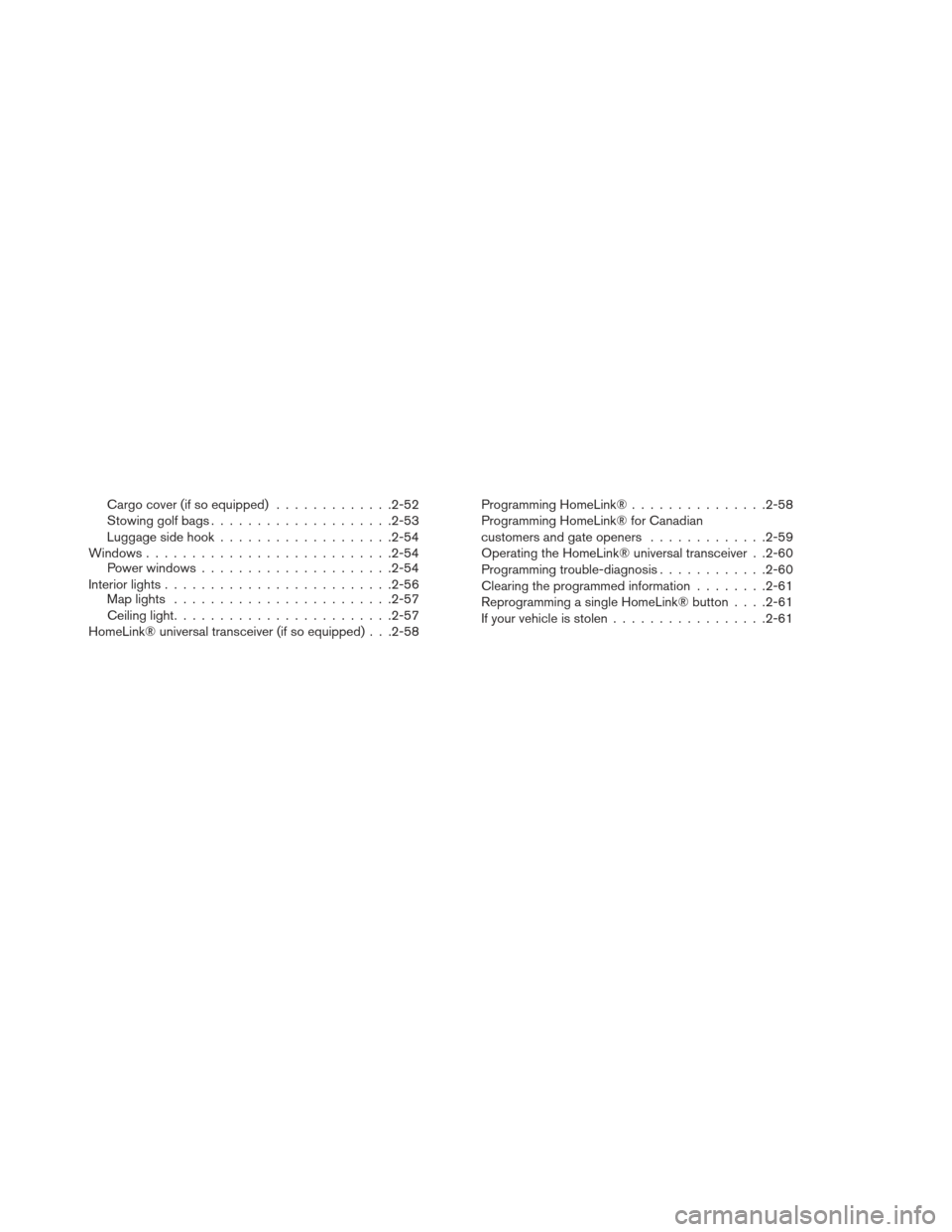

Cargo cover (if so equipped).............2-52
Stowing golf bags ................... .2-53
Luggage side hook .................. .2-54
Windows .......................... .2-54
Power windows .................... .2-54
Interior lights ........................ .2-56
Map lights ....................... .2-57
Ceiling light ....................... .2-57
HomeLink® universal transceiver (if so equipped) . . .2-58 Programming HomeLink®
...............2-58
Programming HomeLink® for Canadian
customers and gate openers .............2-59
Operating the HomeLink® universal transceiver . .2-60
Programming trouble-diagnosis ............2-60
Clearing the programmed information ........2-61
Reprogramming a single HomeLink® button . . . .2-61
If your vehicle is stolen ................ .2-61

1. TRIP switch for twin trip odometer
2. Trip computer switch
3. Instrument brightness control switch
4. Headlight, fog light (if so equipped) and turnsignal switch
— Headlight
— Turn signal light — Fog light (if so equipped)
5. Steering-wheel-mounted controls (left side) (See LEAF Navigation System Owner’s
Manual.)
—
Driving range button (if so
equipped)
— Audio control — Bluetooth® Hands-Free Phone System
control
6. Steering wheel — Electric power steering system
— Horn
— Driver’s supplemental air bag
7. Wiper and washer switch
8. Steering-wheel-mounted controls (right side)
— Cruise control switches
— ECO button (if so equipped)
9. Fuse box cover
10. Charge timer OFF switch
11. Vehicle Dynamic Control (VDC) OFF switch
12. Charge connector lock switch
13. Charge port lid opener switch
14. Heated steering wheel (if so equipped)
15. Tilting steering wheel lever
16. Heated seat switch
17. Shift lever
18. Storage tray
COCKPIT
Instruments and controls2-3

1. Side ventilator
2. Meters and gauges
3. Center multi-function control panel (SeeLEAF Navigation System Owner’s Manual.)
— Navigation system
— Vehicle information and setting buttons
— Bluetooth® Hands-Free Phone System — Audio system
4. Hazard warning flasher switch
5. Center ventilator
6. Rear window defroster switch
7. Front passenger supplemental air bag
8. Hood release handle
9. Power switch 10. iPod® connector/USB connector (See
LEAF Navigation System Owner’s Manual.)
11. Power outlet
12. Auxiliary input jack (See LEAF Navigation System Owner’s Manual.)
13. Front passenger air bag status light/ Approaching Vehicle Sound for Pedestri-
ans (VSP) system warning light
14. Heater and air conditioner control
15. Glove box
INSTRUMENT PANEL
2-4Instruments and controls

1. Master warning lights
2. ECO indicator
3. Speedometer
4. Clock
5. Outside air temperature
6. Turn signal/Hazard indicator light7. Li-ion battery temperature gauge
8. Warning/Indicator lights
9. Power meter
10. ECO indicator
11. READY to drive indicator light
12. Dot matrix liquid crystal display — Odometer/twin trip odometer
— Trip computer
— Shift position indicator
— Indicator for timer
13. Driving range
14. Li-ion battery available charge gauge
15. Li-ion battery capacity level gauge
Upper display and lower display
METERS AND GAUGES
Instruments and controls2-5
