2013 NISSAN LEAF Owners Manual

To start charging:
1. Push the P (Park) position switch to place thevehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position. When the
power switch is in the ON position, the Li-ion
battery will not start charging.
3. Open the charge port lid and charge port cap. See Charge port lid andCharge port cap
in the Pre-driving checks and adjustments
section. 4. Align1with the groove of the charge port
and insert the charge connector.
CAUTION
Be sure to insert the charge connector
straight into the quick charge port right
up to the base. Failure to do so may
result in the Li-ion battery not charging
or could cause damage to the charging
equipment.
CH-16Charging

5. Grasp the lock lever and lock the chargeconnector.
6. Follow the instructions on the quick charge equipment to start charging. When the equip-
ment is properly installed and ready to charge
a beep sounds twice and the charging status
indicator light will change. See Charge sta-
tus indicator light in thePre-driving checks
and adjustments section.
Charging ends in the following situations.
When charging is complete
When charging time has exceeded 60 minutes
When the possible charge time set for the quick charger is exceeded
NOTE:
Charging may automatically stop even if it
is not completed.
If charging stops mid-charge, you can re-
start charging by pressing the start button
on the quick charger again.
The charge connector is locked to the
charge port during charging and cannot
be disconnected. Follow the instructions
on the quick charge equipment to stop
charging. Confirm charging is stopped by
looking at the indicators on the dash. The
charge connector can be disconnected
from the vehicle when charging is
stopped.
When quick charging, the Li-ion battery
charging rate is slower as the percentage
available battery charge available in-
creases. To finish charging:
1. Confirm charging is stopped by looking at the
indicators on the dash. The charge connector
can be disconnected from the vehicle when
charging is stopped.
2. Unlock the charge connector and remove from the vehicle and properly store it.
3. Close the quick charge port cap.
4. Shut the charge port lid.
ChargingCH-17

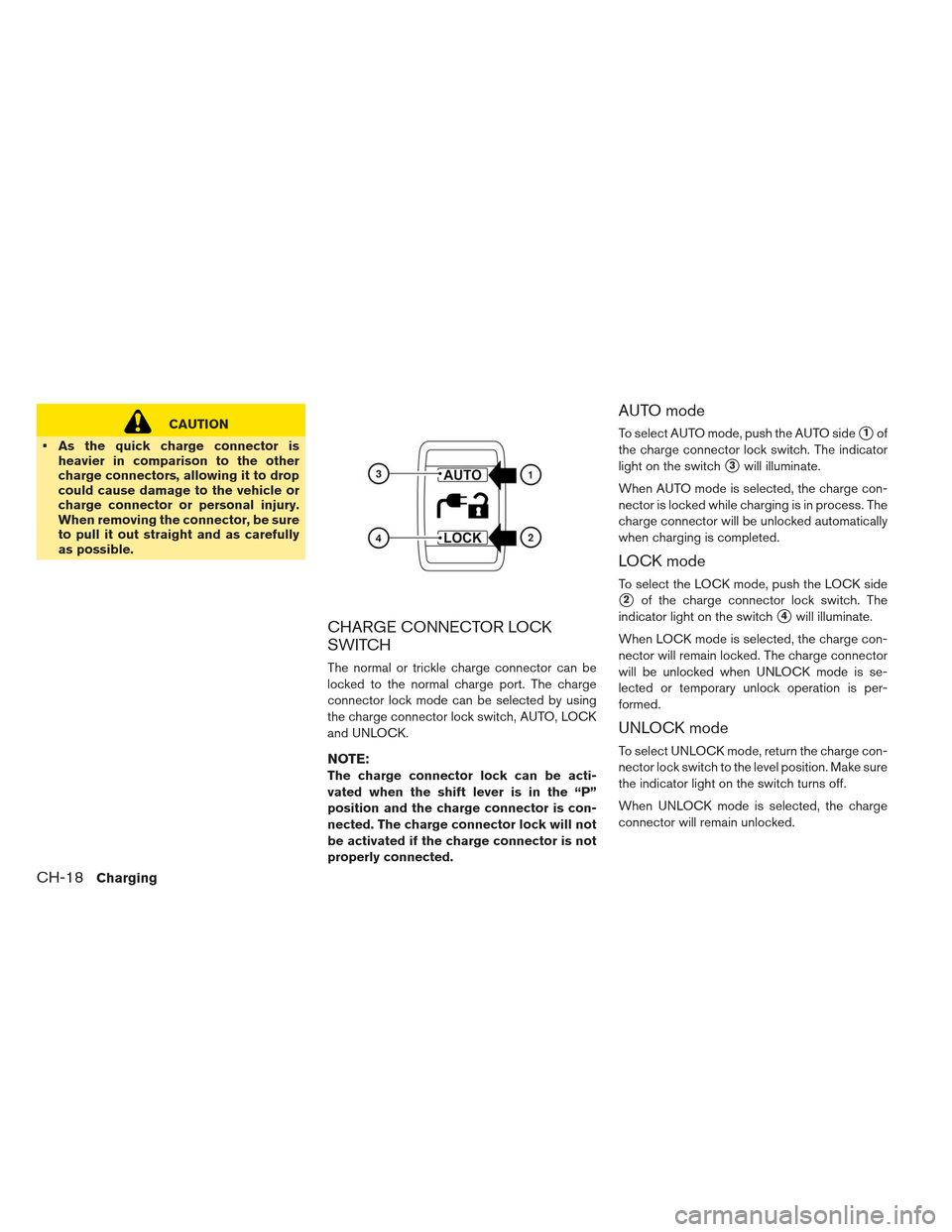

CAUTION
As the quick charge connector is heavier in comparison to the other
charge connectors, allowing it to drop
could cause damage to the vehicle or
charge connector or personal injury.
When removing the connector, be sure
to pull it out straight and as carefully
as possible.
CHARGE CONNECTOR LOCK
SWITCH
The normal or trickle charge connector can be
locked to the normal charge port. The charge
connector lock mode can be selected by using
the charge connector lock switch, AUTO, LOCK
and UNLOCK.
NOTE:
The charge connector lock can be acti-
vated when the shift lever is in the “P”
position and the charge connector is con-
nected. The charge connector lock will not
be activated if the charge connector is not
properly connected.
AUTO mode
To select AUTO mode, push the AUTO side1of
the charge connector lock switch. The indicator
light on the switch
3will illuminate.
When AUTO mode is selected, the charge con-
nector is locked while charging is in process. The
charge connector will be unlocked automatically
when charging is completed.
LOCK mode
To select the LOCK mode, push the LOCK side
2of the charge connector lock switch. The
indicator light on the switch
4will illuminate.
When LOCK mode is selected, the charge con-
nector will remain locked. The charge connector
will be unlocked when UNLOCK mode is se-
lected or temporary unlock operation is per-
formed.
UNLOCK mode
To select UNLOCK mode, return the charge con-
nector lock switch to the level position. Make sure
the indicator light on the switch turns off.
When UNLOCK mode is selected, the charge
connector will remain unlocked.
CH-18Charging

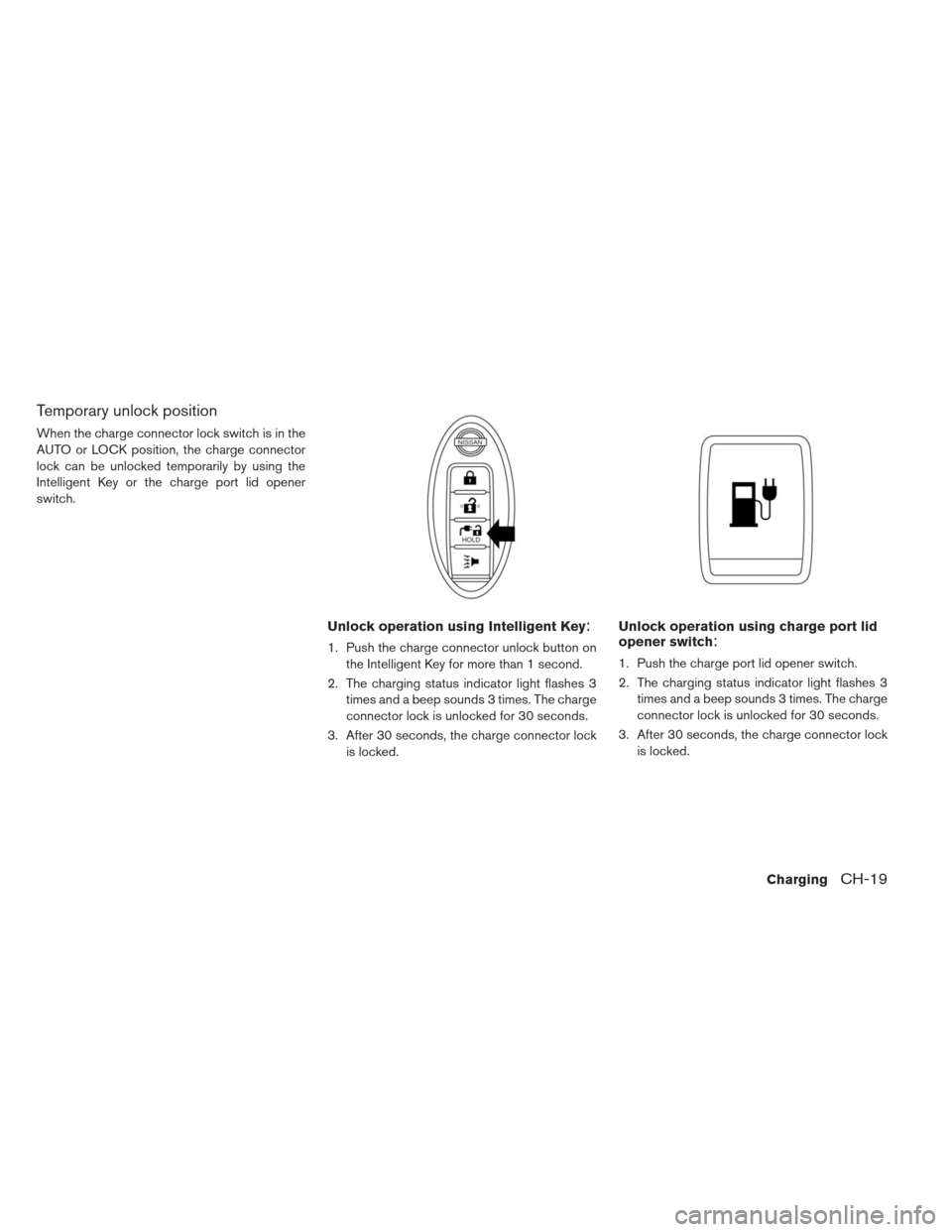

Temporary unlock position
When the charge connector lock switch is in the
AUTO or LOCK position, the charge connector
lock can be unlocked temporarily by using the
Intelligent Key or the charge port lid opener
switch.
Unlock operation using Intelligent Key:
1. Push the charge connector unlock button onthe Intelligent Key for more than 1 second.
2. The charging status indicator light flashes 3 times and a beep sounds 3 times. The charge
connector lock is unlocked for 30 seconds.
3. After 30 seconds, the charge connector lock is locked.
Unlock operation using charge port lid
opener switch:
1. Push the charge port lid opener switch.
2. The charging status indicator light flashes 3times and a beep sounds 3 times. The charge
connector lock is unlocked for 30 seconds.
3. After 30 seconds, the charge connector lock is locked.
ChargingCH-19

NOTE:
Depending on the charging station, the
lock mechanism established by local
standards may not be compatible with
your vehicle. It may not be possible for the
charge connector to lock to your vehicle.
When the power source is cut off while
charging in AUTO mode, the connector
will be continuously locked for 5 minutes,
then it will be released.
When timer charging is set with AUTO
mode, the connector will not lock until
charging is started.
In AUTO mode, the charge connector lock
will only lock during normal charging-
.When the following systems are operated
individually or the 12-volt battery is being
charged, the charging connector lock will
not lock:
Climate Ctrl. Timer
Remote climate control (if so equipped)
Li-ion battery warmer
IF THE CHARGE CONNECTOR CAN
NOT BE UNLOCKED
1. Place power switch in the OFF position.
2. Open the hood.
3. Remove the jack rod from the tool set that is
located in the cargo area. See “Tools” in the
“In Case of Emergency” section.
4. Insert the suitable tool into the screw that is located on the front of hood lock.
5. Turn it clockwise to release the charge con- nector lock.
6. Remove the charge connector.
CH-20Charging

CHARGING TIMER
Use charging timer to schedule when the Li-ion
battery charges. The vehicle automatically begins
charging at the scheduled times when the charge
connector is connected to the vehicle. The timers
do not need to be reset each time the Li-ion
battery needs charging.
With navigation system
The charging timer can save two timer settings
that include the charging start time and end time.
The charging timer can be applied to one of the
timer settings for each day of the week.1. Push the Zero Emission button
and
touch [Charging Timer]. 2. Touch [Set Timer 1] or [Set Timer 2]. The
following procedure explains Timer 1 setting.
CHARGING METHODS
ChargingCH-21

3. Enter the Li-ion battery charge start time.Touch [% Charge] to change the amount of
charging. Touch [END Time] to change the
time to stop charging.
NOTE:
Charging timer is performed according to
the current time setting on the bottom
right of the display. When setting the
charging timer function, be sure to check
that the current time displayed is correct.
In the default setting, [100% Charge
(Maximizes Driving Range)] is selected.
This is called long distance mode. To ex-
tend the life span of the Li-ion battery, use
long life mode by selecting [80% Charge
(Improves Battery Longevity)]. See Long
life charge. 4. Touch [Assign Days] to set the charging timer
for different days of the week. Either Timer 1
or Timer 2 or OFF can be set for each day of
the week. Touch [OK] when the settings are
complete.
5. Touch [OK] when the settings are complete and a settings confirmation screen is
displayed.
NOTE:
If OFF is selected for a day of the week,
the charging timer will not operate on
that day. The system will wait until the
next charging timer set to perform
charging. 6. Touch [Yes] if the settings shown on the
screen are correct.
CH-22Charging

7. The [Timer 1] indicator illuminates after thecharging timer is set. Use the same procedure
to set the Timer 2 setting.
8. Place the power switch in the OFF position, and then connect the charge connector to the
vehicle.
NOTE:
Always place the power switch in the OFF
position after setting the charging timers.
When the power switch is in the ON posi-
tion, the Li-ion battery will not start charg-
ing.
The Li-ion battery may not be charged to
the expected level if the charging timer start time and end time are set so there is
not enough time to charge the Li-ion bat-
tery.
When either the charge start time or
charge end time is set, the charging timer
function is activated.
When only the charging timer end time is
set, the system automatically determines
when to begin charging based on the Li-
ion battery charge level. The Li-ion battery
may not be charged to the expected level
in the following conditions: – The Li-ion battery is charged in cold weather.
– The charge connector is connected to the vehicle too close to the scheduled
charging end time.
When only the charging timer end time is
set, the system automatically stops charg-
ing when the Li-ion battery charges to the
selected level. Charging may stop before
the scheduled end time.
Touch [Timer 1] or [Timer 2] to turn off the
charging timer function. Touch [Yes] if the
settings shown on the screen are correct.
After this operation has been performed,
the indicator disappears and the charging timer function is turned off. The start and
stop time settings are not deleted, even if
the charging timer function is turned off.
If charging timer and the Climate Ctrl.
Timer are operating at the same time due
to an overlap of the timer settings, you can
prioritize which function receives electri-
cal power first. See LEAF Navigation Sys-
tem Owner’s Manual.
When charging is set as the first priority,
the Climate Ctrl. Timer does not start until
10 segments of the Li-ion battery avail-
able charge gauge are illuminated.
When the climate control is set as the first
priority, the climate control system will be
turned on as scheduled by the Climate
Ctrl. Timer regardless of the remaining
battery energy.
Even when the climate control is set as
the first priority, the climate control sys-
tem will be turned off when the electric
demands of the climate control system is
more than can be provided to the Li-ion
battery for charging.
Some charging stations used to perform
normal charge are equipped with timer
functions. If the charger timer function
ChargingCH-23
