2013 NISSAN LEAF Owners Manual

SymptomPossible cause Possible solution
Normal charge stops in the
middle of charging. There is no power coming from the outlet. There may have been a electrical power failure, or the breaker may have failed. Charging will resume
when the power source is reset.
The charge cable has been disconnected. Check that the charge cable has not been disconnected.
The release switch has been pressed. If the charge connector button is pressed for a long period of time, charging will be stopped.
Both the normal charge connector and the quick
charge connector were connected at the same
time. If the normal charge connector and the quick charge connector are connected at the same time,
charging will be stopped.
Charging timer end time has been reached. When charging timer is set and the charge end time is reached, charging will be stopped, even if the Li-ion battery is not fully charged.
The temperature of the Li-ion battery is too hot
or too cold to charge. Confirm the Li-ion battery temperature by checking the Li-ion battery temperature gauge. If the
gauge indicates the Li-ion battery is too hot (red zone) or too cold (blue zone) , charging is not pos-
sible. Allow the Li-ion battery to cool or warm up before charging. See
Li-ion battery temperature
gauge in the2 Instruments and controls
section.
Quick charge cannot be performed. Incorrect charge connector connection, not fully
inserted or may not be locked.
Check that the charge connector is connected correctly and that it is locked.
The self-diagnostic function of the quick charge
device returns a negative result. There is a possibility that the vehicle has a malfunction. Stop charging and contact a NISSAN certified
LEAF dealer.
Charging does not start because the charge
amount has been set to 80% and the Li-ion battery
is already charged to more than 80%. When the charge percentage in the long life mode is set to 80%, the Li-ion battery cannot be charged
more than 80%. Confirm the charge percentage set in the long life mode. Change the charging
percentage the desired charge setting.
The power switch of the quick charger is off. Check the power switch of the quick charger.
Quick charge stops in the middle of charging Charging is stopped by the quick charge timer. Charging will stop depending on the timer function setting of the quick charge device. If you need to
charge the Li-ion battery more, start the charging procedure again.
The maximum time for quick charge is 30–60 minutes. If you need to charge the Li-ion battery for longer
than this, start the charging procedure again.
The power supply for the quick charger is off. Check whether the power supply for the quick charger is off.
CH-40Charging

1 Safety–Seats, seat belts and
supplemental restraint system
Seats............................. .1-2
Front seats ........................ .1-3
Rear seats ........................ .1-4
Head restraints ..................... .1-4
Seat belts .......................... .1-7
Precautions on seat belt usage .............1-7
Pregnant women ................... .1-10
Injured persons .................... .1-10
Three-point type seat belt with retractor .......1-10
Seat belt extenders .................. .1-14
Seat belt maintenance ................ .1-14
Child safety ......................... .1-15
Infants .......................... .1-15
Small children ..................... .1-15
Larger children ..................... .1-16
Child restraints ....................... .1-17
Precautions on child restraints ............1-17
Rear-facing child restraint installation using latch. .1-21
Rear-facing child restraint installation using the seat
belts ........................... .1-23Forward-facing child restraint installation using
latch
........................... .1-25
Forward-facing child restraint installation using
the seat belts ...................... .1-27
Installing top tether strap ................1-30
Booster seats ....................... .1-31
Precautions on booster seats .............1-31
Booster seat installation ................1-32
Supplemental restraint system ...............1-34
Precautions on supplemental restraint system . . .1-34
NISSAN Advanced Air Bag System (front seats) . .1-40
Front seat-mounted side-impact supplemental air
bag and roof-mounted curtain side-impact
supplemental air bag systems .............1-45
Seat belts with pretensioners (front seats) ......1-47
Supplemental air bag warning labels .........1-48
Supplemental air bag warning light ..........1-48
Repair and replacement procedure ..........1-49

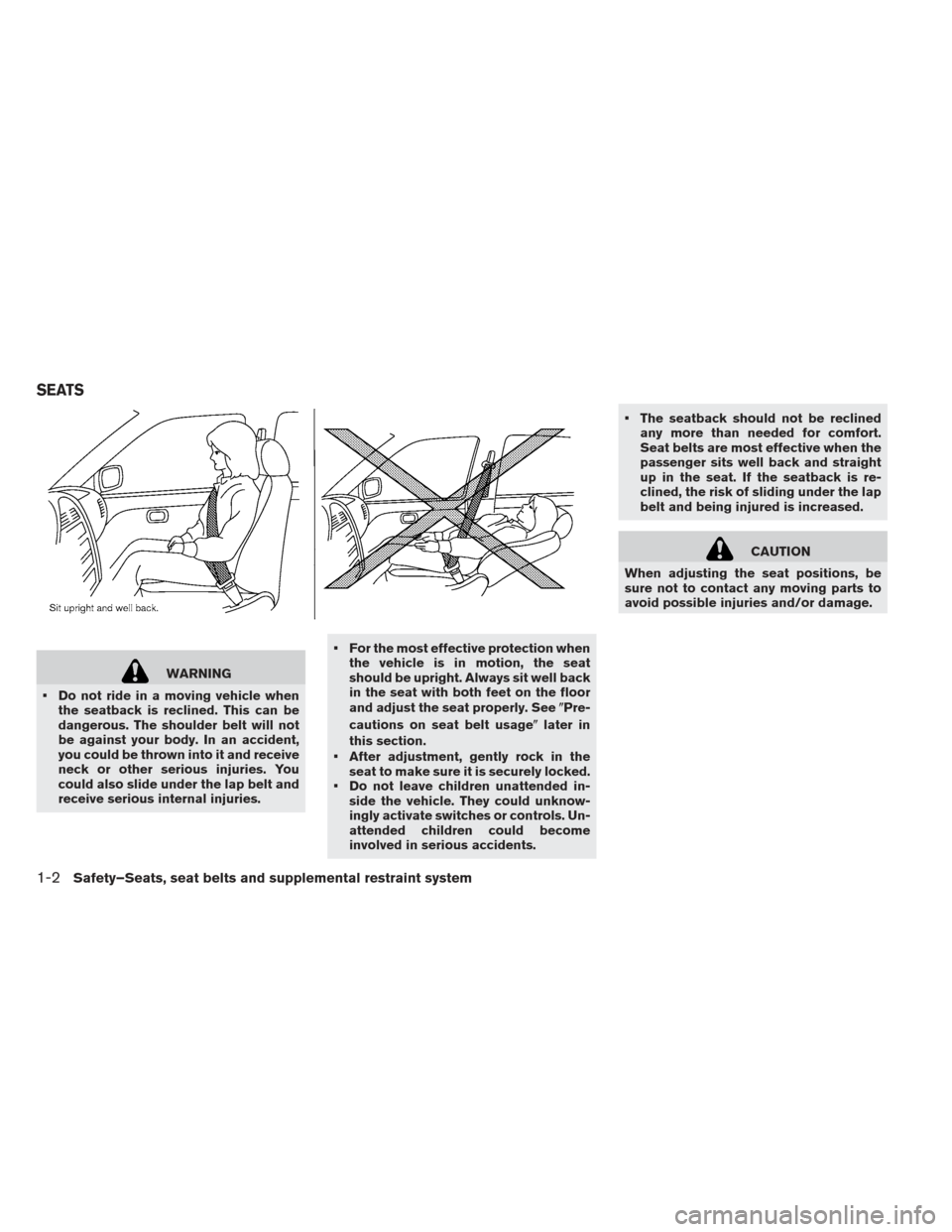

WARNING
Do not ride in a moving vehicle when the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. For the most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well back
in the seat with both feet on the floor
and adjust the seat properly. See Pre-
cautions on seat belt usage later in
this section.
After adjustment, gently rock in the seat to make sure it is securely locked.
Do not leave children unattended in- side the vehicle. They could unknow-
ingly activate switches or controls. Un-
attended children could become
involved in serious accidents. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SEATS
1-2Safety–Seats, seat belts and supplemental restraint system

FRONT SEATS
Front manual seat adjustment
Forward and backward:
Pull the bar up and hold it while sliding the seat
forward or backward to the preferred position.
Release the bar to lock the seat in position.Reclining:
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See
Precautions on seat belt usage.
Also, the seatback can be reclined to allow oc-
cupants to rest when the vehicle is stopped and
the vehicle is in the P (Park) position or N (Neu-
tral) position with the parking brake applied. Seat lifter (for driver’s seat):
Pull up or push down the adjusting lever to adjust
the seat height to the preferred position.
Safety–Seats, seat belts and supplemental restraint system1-3

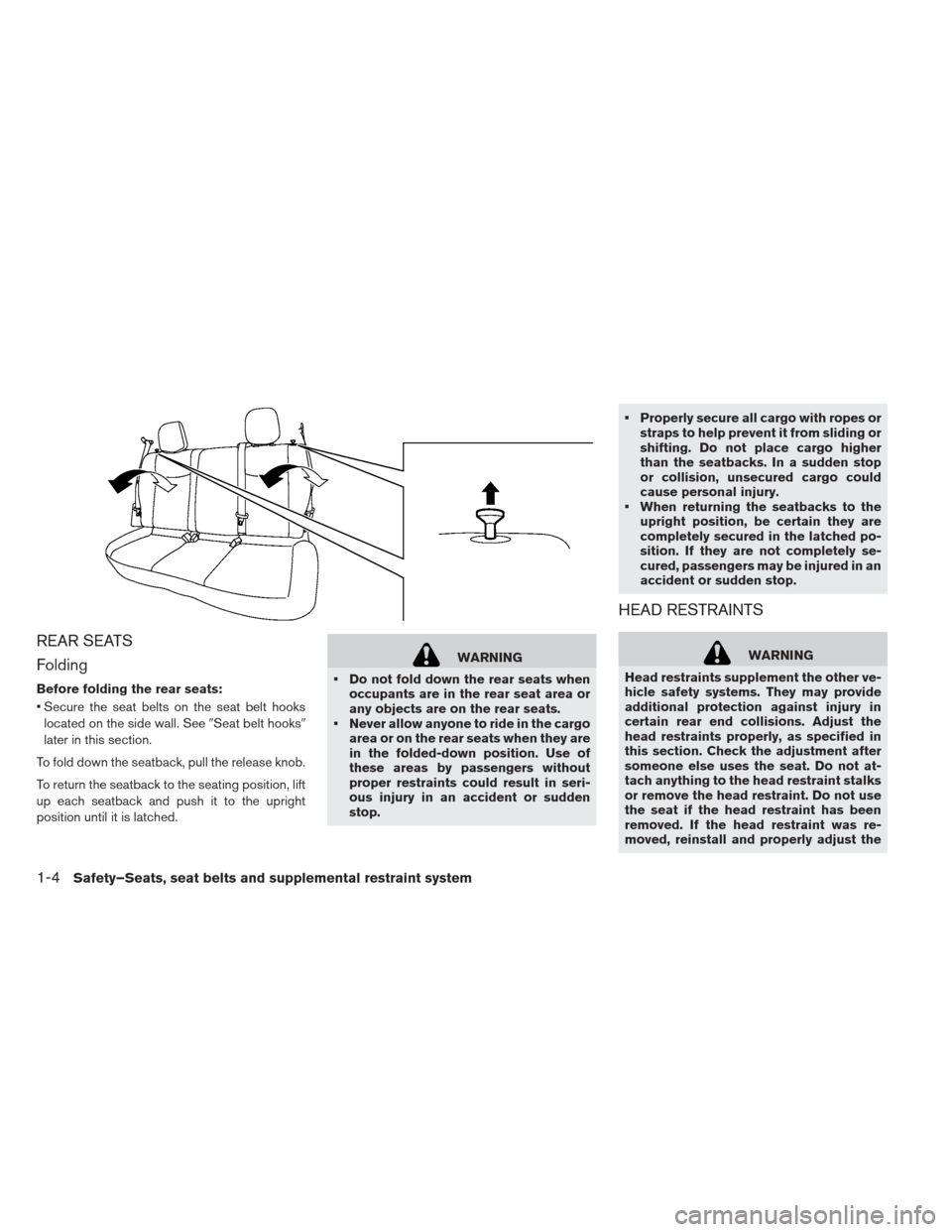

REAR SEATS
Folding
Before folding the rear seats:
Secure the seat belts on the seat belt hookslocated on the side wall. See Seat belt hooks
later in this section.
To fold down the seatback, pull the release knob.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
WARNING
Do not fold down the rear seats when occupants are in the rear seat area or
any objects are on the rear seats.
Never allow anyone to ride in the cargo area or on the rear seats when they are
in the folded-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury in an accident or sudden
stop. Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in an
accident or sudden stop.
HEAD RESTRAINTS
WARNING
Head restraints supplement the other ve-
hicle safety systems. They may provide
additional protection against injury in
certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not at-
tach anything to the head restraint stalks
or remove the head restraint. Do not use
the seat if the head restraint has been
removed. If the head restraint was re-
moved, reinstall and properly adjust the
1-4Safety–Seats, seat belts and supplemental restraint system

head restraint before an occupant uses
the seating position. Failure to follow
these instructions can reduce the effec-
tiveness of the head restraints. This may
increase the risk of serious injury or

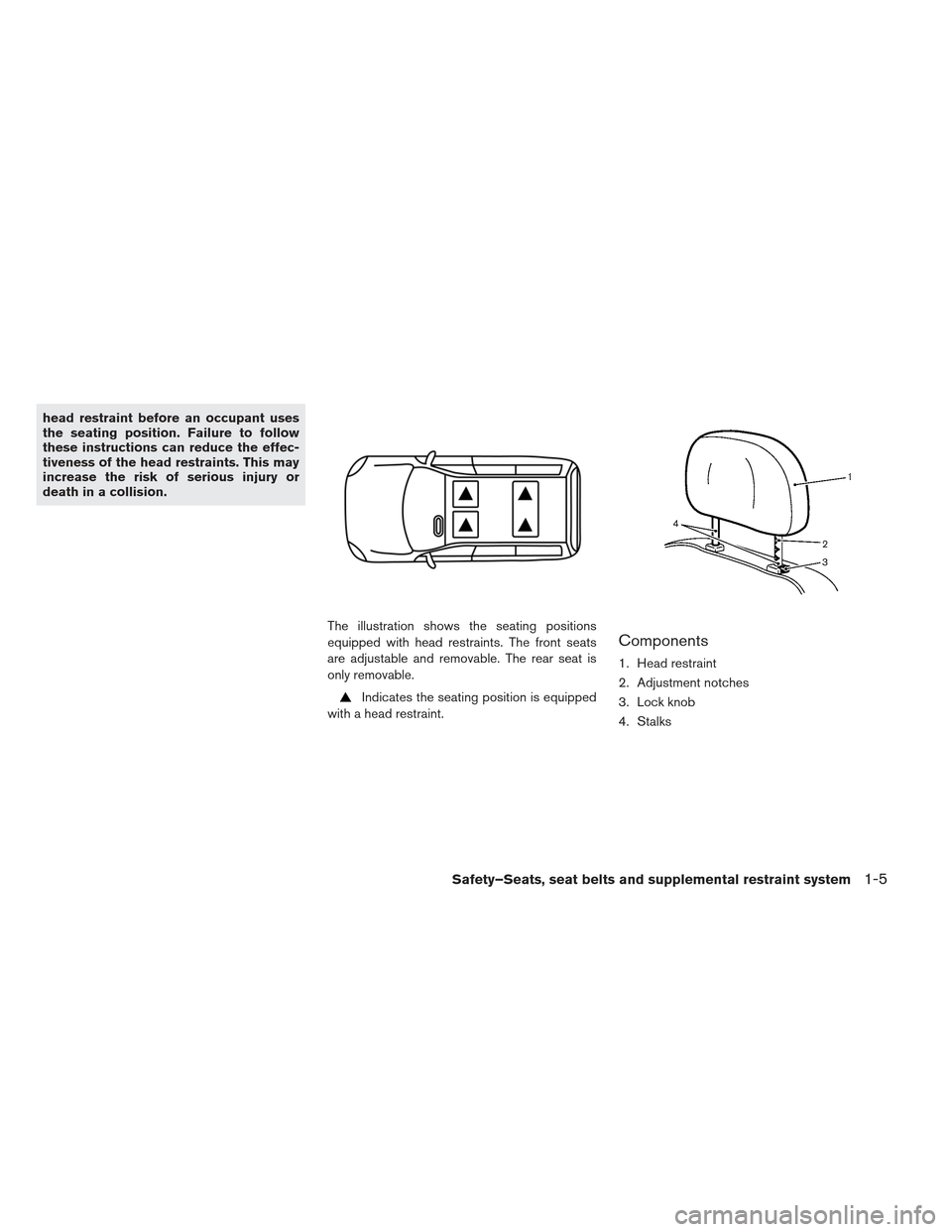

death in a collision.The illustration shows the seating positions
equipped with head restraints. The front seats
are adjustable and removable. The rear seat is
only removable.
Indicates the seating position is equipped
with a head restraint.
Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
Safety–Seats, seat belts and supplemental restraint system1-5

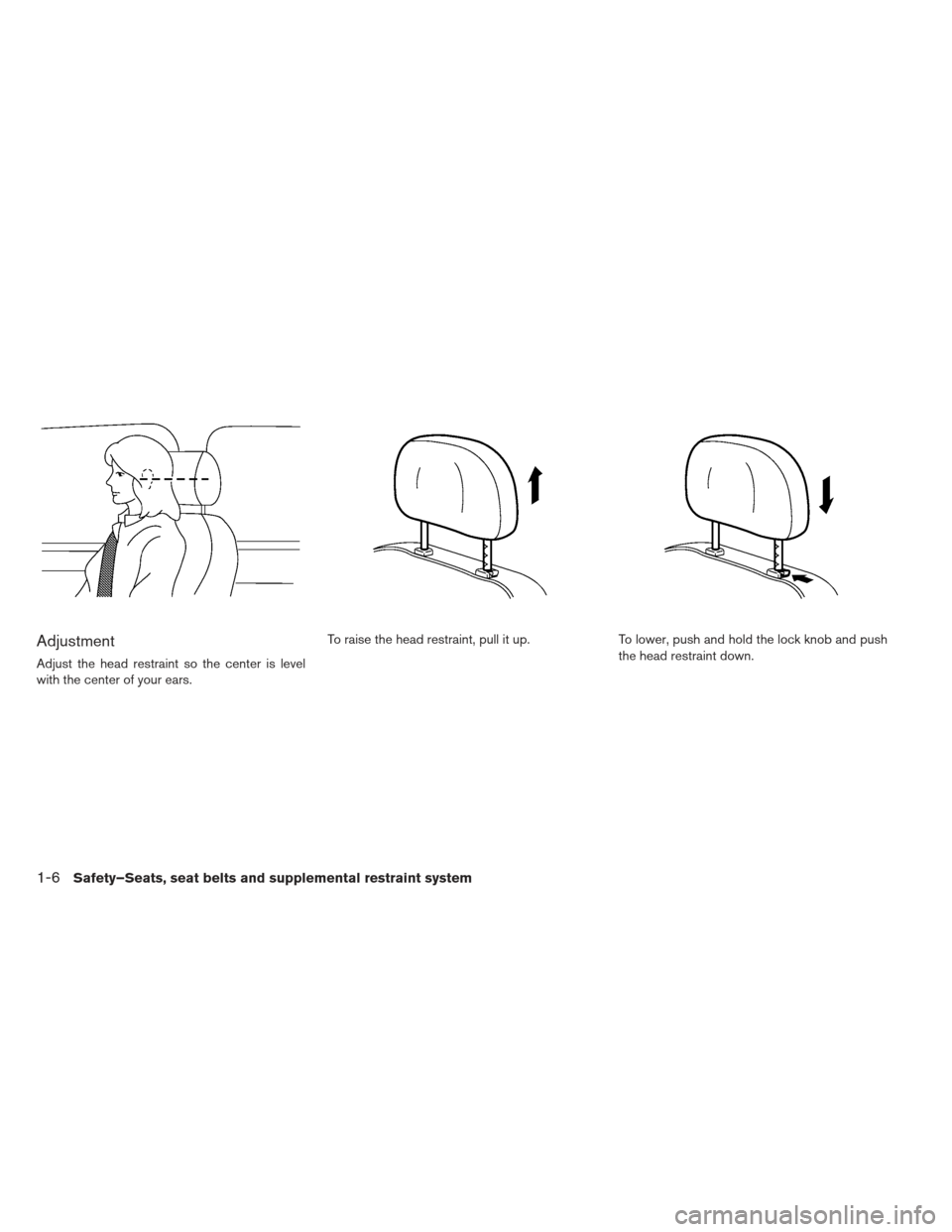

Adjustment
Adjust the head restraint so the center is level
with the center of your ears.To raise the head restraint, pull it up.
To lower, push and hold the lock knob and push
the head restraint down.
1-6Safety–Seats, seat belts and supplemental restraint system

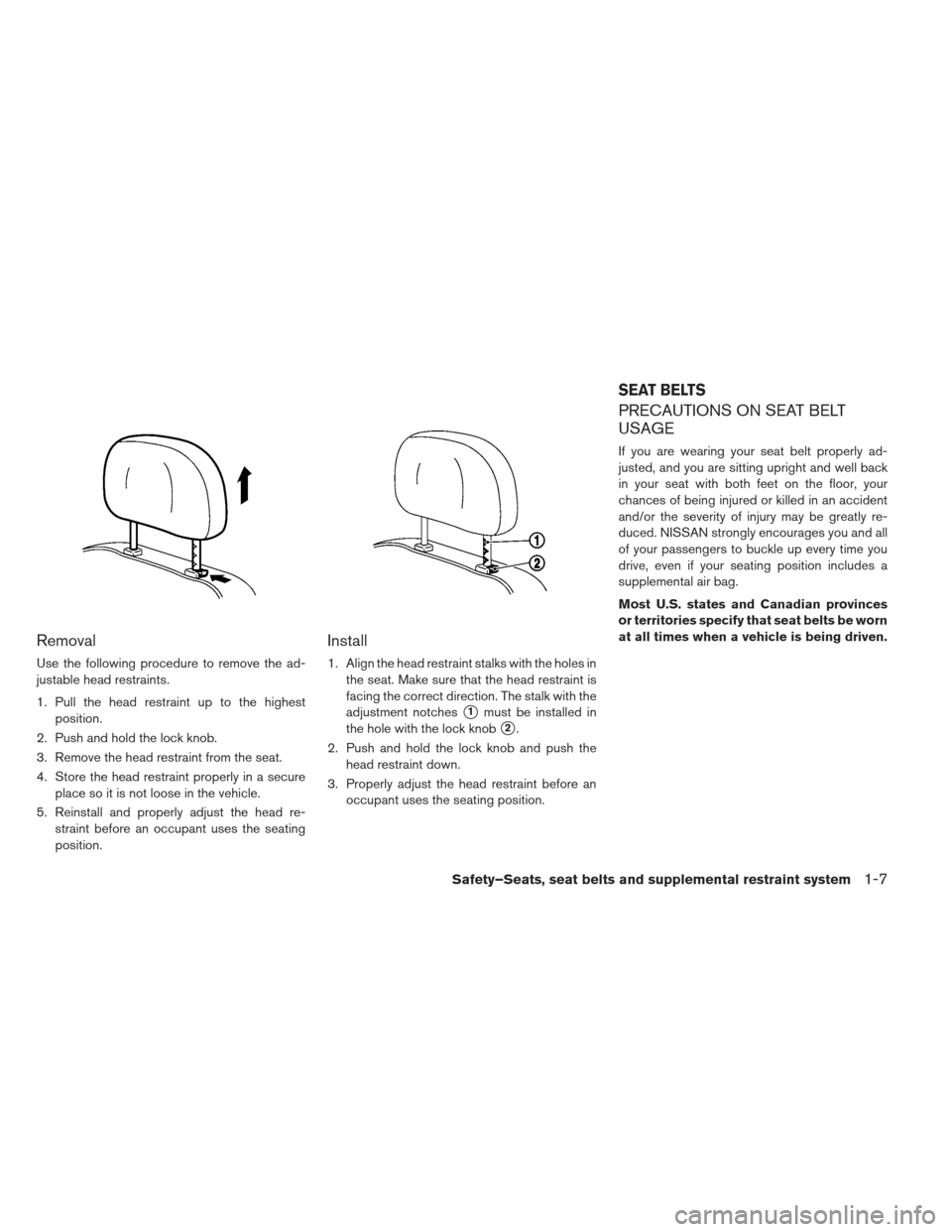

Removal
Use the following procedure to remove the ad-
justable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head re- straint before an occupant uses the seating
position.
Install
1. Align the head restraint stalks with the holes inthe seat. Make sure that the head restraint is
facing the correct direction. The stalk with the
adjustment notches
1must be installed in
the hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly ad-
justed, and you are sitting upright and well back
in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly re-
duced. NISSAN strongly encourages you and all
of your passengers to buckle up every time you
drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be worn
at all times when a vehicle is being driven.
SEAT BELTS
Safety–Seats, seat belts and supplemental restraint system1-7
