2013 NISSAN LEAF Owners Manual

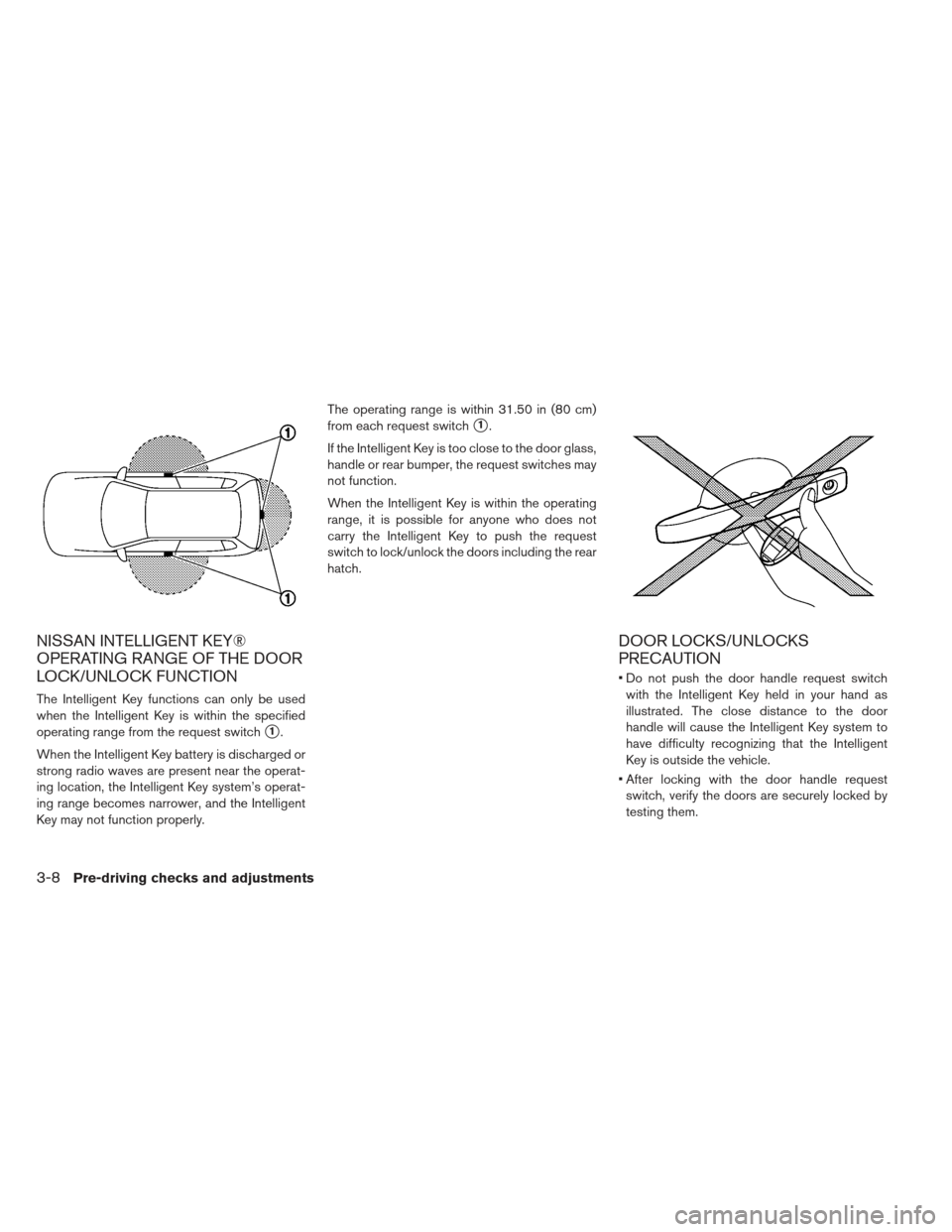

NISSAN INTELLIGENT KEY®
OPERATING RANGE OF THE DOOR
LOCK/UNLOCK FUNCTION
The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
1.
When the Intelligent Key battery is discharged or
strong radio waves are present near the operat-
ing location, the Intelligent Key system’s operat-
ing range becomes narrower, and the Intelligent
Key may not function properly. The operating range is within 31.50 in (80 cm)
from each request switch
1.
If the Intelligent Key is too close to the door glass,
handle or rear bumper, the request switches may
not function.
When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors including the rear
hatch.
DOOR LOCKS/UNLOCKS
PRECAUTION
Do not push the door handle request switch with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system to
have difficulty recognizing that the Intelligent
Key is outside the vehicle.
After locking with the door handle request switch, verify the doors are securely locked by
testing them.
3-8Pre-driving checks and adjustments

To prevent the Intelligent Key from being leftinside the vehicle, make sure you carry the key
with you and then lock the doors.
Do not pull the door handle before pushing the door handle request switch. The door will be
unlocked but will not open. Release the door
handle once and pull it again to open the door.

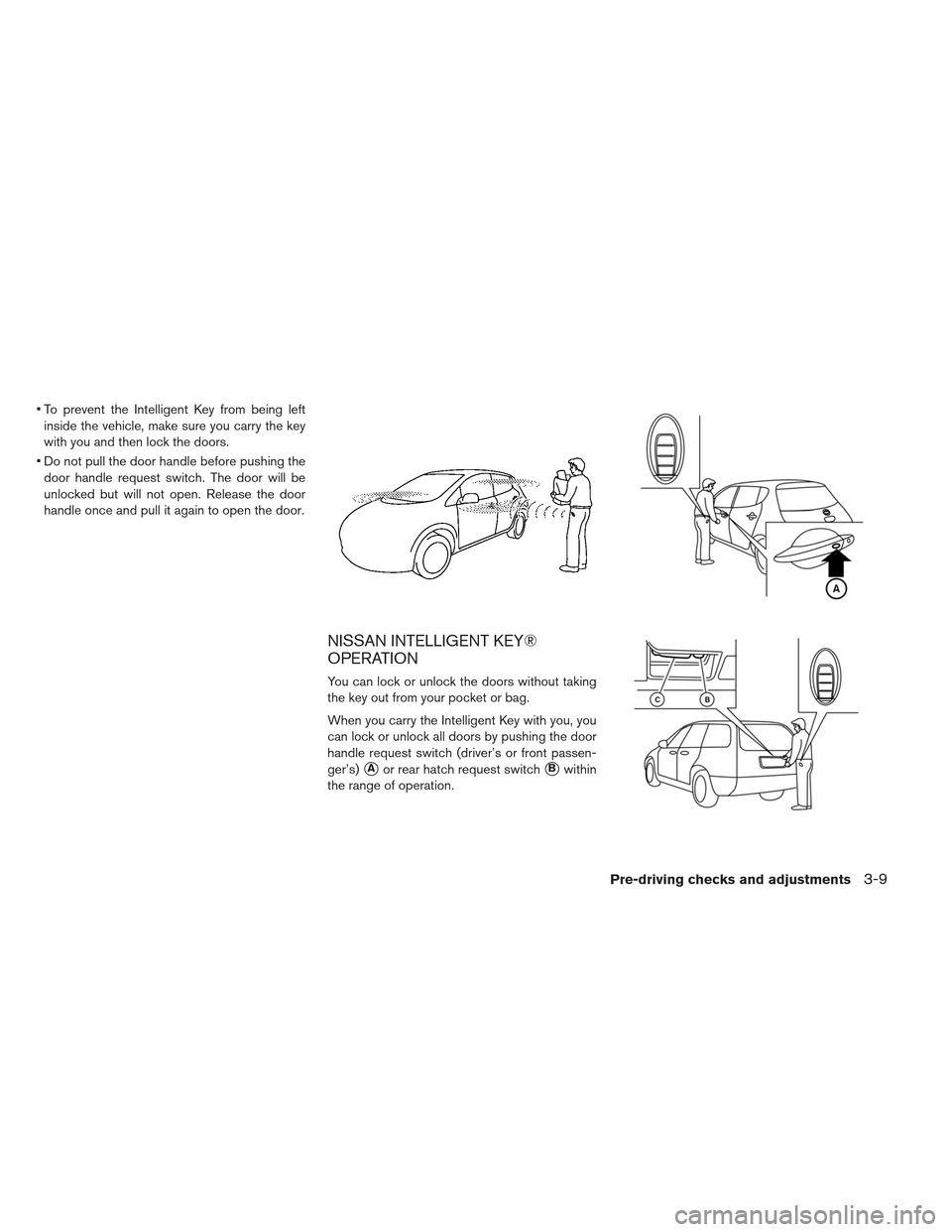

NISSAN INTELLIGENT KEY®
OPERATION
You can lock or unlock the doors without taking
the key out from your pocket or bag.
When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch (driver’s or front passen-
ger’s)
Aor rear hatch request switchBwithin
the range of operation.
Pre-driving checks and adjustments3-9

When you lock or unlock the doors or the rear
hatch, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, seeSetting hazard indicator
and horn mode.
Locking doors
1. Push the power switch into the OFF position and make sure you carry the Intelligent Key
with you.*1
2. Close all the doors and the rear hatch.
3. Push the door handle request switch (driver’s or front passenger’s)
Aor the rear hatch
request switch
Bwhile carrying the Intelli-
gent Key with you.*2
4. All the doors and the rear hatch will lock.
5. The hazard indicator flashes twice and the outside chime sounds twice.
*1: Doors will not lock with the Intelligent Key
while the power switch is in the ACC or ON
position.
*2: Doors will not lock by pushing the door handle
request switch when the Intelligent Key is left
inside the vehicle. However, when an Intelligent
Key is inside the vehicle, doors can be locked
with another registered Intelligent Key.
CAUTION
After locking the door using the re- quest switch, make sure that the doors
have been securely locked by operat-
ing the door handles.
When locking the doors using the re- quest switch, make sure to have the
Intelligent Key in your possession be-
fore operating the request switch to
prevent the Intelligent Key from being
left in the vehicle.
The request switch is operational only when the Intelligent Key has been de-
tected by the Intelligent Key system.
Unlocking doors
1. Push the door handle request switchAor
the rear hatch request switch
Bonce while
carrying the Intelligent Key with you.
2. The hazard indicator flashes once and the outside chime sounds once. The correspond-
ing door or the rear hatch will unlock.
3. Push the door handle request or the rear hatch request switch again within 1 minute.
4. The hazard indicator flashes once and the outside chime sounds once again. All the
doors and the rear hatch will unlock. All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the request switch while the
doors are locked.
Opening any door.
Pushing the power switch.
During this 1-minute time period, if the UNLOCK
button on the Intelligent Key is pushed, all
doors will be locked automatically after another 1
minute.
Opening rear hatch
1. Carry the Intelligent Key.
2. Push the rear hatch opener switch
C.
3. The rear hatch will unlock and open.
12-VOLT BATTERY SAVER SYSTEM
When all the following conditions are met for a
period of time, the battery saver system will cut
off the power supply to prevent 12-volt battery
discharge.
The power switch is in the ACC position,
All doors are closed, and
The vehicle is in the P (Park) position.
3-10Pre-driving checks and adjustments

WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelligent
Key listed on the following chart or to help pre-
vent the vehicle from being stolen, chime or beep
sounds inside and outside the vehicle and a
warning displays in the dot matrix liquid crystal
display.
When a chime or beep sounds or the warning
displays, be sure to check the vehicle and Intelli-
gent Key.
SeeTroubleshooting guide andDot matrix liq-
uid crystal display in theInstruments and con-
trols section.
Pre-driving checks and adjustments3-11

TROUBLESHOOTING GUIDE
SymptomPossible causeAction to take
When opening the driver’s door to
get out of the vehicleThe inside warning chime sounds continuously. The power switch is pushed to the OFF po-
sition while the driver’s door is open.
Close the driver’s door.
The power switch is in the ACC position. Push the power switch to the OFF position then
close the driver’s door.
When closing the door after getting
out of the vehicle The KEY is not detected warning appears on the
display, the outside chime sounds 3 times and the
inside warning chime sounds for a few seconds. The power switch is in the ACC or ON posi-
tion.
Push the power switch to the OFF position.
When closing the door with the in-
side lock knob turned to LOCK The outside chime sounds for a few seconds and
all the doors unlock. The Intelligent Key is inside the vehicle or
cargo area.
Carry the Intelligent Key with you.
When pushing the request switch or
the “LOCK”
button on the Intel-
ligent Key to lock the door The outside chime sounds for a few seconds. The Intelligent Key is inside the vehicle or a
cargo area.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When pushing the power switch in
the READY to drive position The Intelligent Key battery discharge indicator ap-
pears on the display.
The Intelligent Key battery charge is low.Replace the battery with a new one. See
Key
battery replacement in the Maintenance and
do-it-yourself
section.
The Key is not detected warning appears on the
display and the inside warning chime sounds for a
few seconds. The Intelligent Key is not in the vehicle. Carry the Intelligent Key with you.
When pushing the power switch The Intelligent Key system warning indicator ap-
pears on the display. It warns of a malfunction with the Intelligent
Key system.
Contact a NISSAN certified LEAF dealer.
3-12Pre-driving checks and adjustments

HOW TO USE REMOTE KEYLESS
ENTRY FUNCTION
WARNING
Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
The Intelligent Key transmits radio waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and
communication systems. Do not oper-
ate the Intelligent Key while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
CAUTION
Do not allow the Intelligent Key, which contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.
Do not drop the Intelligent Key. Do not strike the Intelligent Key
sharply against another object.
Do not change or modify the Intelli- gent Key.
Wetting may damage the Intelligent Key. If the Intelligent Key gets wet,
immediately wipe until it is completely
dry.
Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C) .
Do not attach the Intelligent Key with a key holder that contains a magnet.
Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment,
personal computers or cellular phone.
The remote keyless entry function can operate all
door locks using the remote keyless entry func-
tion of the Intelligent Key. The remote keyless
entry function can operate at a distance of ap-
proximately 33 ft (10 m) from the vehicle. (The
operating distance depends upon the conditions
around the vehicle.)
The remote keyless entry function will not oper-
ate:
When the Intelligent Key is not within the opera- tional range. When the doors are open or not closed se-
curely.
When the Intelligent Key battery is discharged.
The remote keyless entry function can also oper-
ate the vehicle alarm.
Pre-driving checks and adjustments3-13

Locking doors
1LOCKbutton
2UNLOCKbutton
3CHARGE PORT UNLOCK
4PANICbutton
When you lock or unlock the doors, the hazard
indicator will flash and the horn will sound as a
confirmation. For details, see Setting hazard in-
dicator and horn mode.
1. Push the power switch to the OFF position and make sure you carry the Intelligent Key
with you.*1
2. Carry the Intelligent Key with you. 3. Close all the doors.
4. Push the LOCK
button1on the
Intelligent Key.
5. All the doors and the rear hatch will lock.
6. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will not lock with the Intelligent Key
while the power switch is in the ACC or ON
position.
Operate the door handles to confirm that the
doors have been securely locked.
Unlocking doors
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driv- er’s door will unlock.
3. Push the UNLOCK
button on the Intel-
ligent Key again within 1 minute.
4. The hazard indicator flashes once again. All the doors and the rear hatch will unlock.
All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the UNLOCK
button
while the doors are locked.
Opening any door (including the rear hatch) . Pushing the power switch.
During this 1-minute time period, if the UNLOCK
button on the Intelligent Key is pushed, all
doors will be locked automatically after another 1
minute.
Opening charge port lid
The charge port lid may be opened by pressing
and holding the charge port unlock
button
3.
For additional information see Opening charge
port lid in this section.
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button4on the
Intelligent Key for more than 1 second.
2. The theft warning alarm and headlights will stay on for a period of time.
3. The panic alarm stops when: It has run for a period of time, or
Any of the buttons on the Intelligent Key ispushed. (Note: The PANIC button must be
pushed for more than 1 second.)
3-14Pre-driving checks and adjustments

Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.In hazard indicator and horn mode, when the
LOCK
button1is pushed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button2is pushed,
the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode. In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator flashes
twice. When the UNLOCK
button is
pushed, neither the hazard indicator nor the horn
operates.
Hazard indicator and horn mode:
Operation DOOR LOCK DOOR UNLOCK
Pushing door handle request switch or rear hatch request switch HAZARD -
twice
OUTSIDE CHIME - twice HAZARD -
once
OUTSIDE CHIME - once
Pushing
orbutton HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:
Operation DOOR LOCK DOOR UNLOCK
Pushing door handle request switch or rear hatch request switch HAZARD -
twice
OUTSIDE CHIME - none HAZARD - none
OUTSIDE CHIME - none
Pushing
orbutton HAZARD -
twice
HORN - none HAZARD - none
HORN - none
Pre-driving checks and adjustments3-15
