2013 NISSAN LEAF parking brake

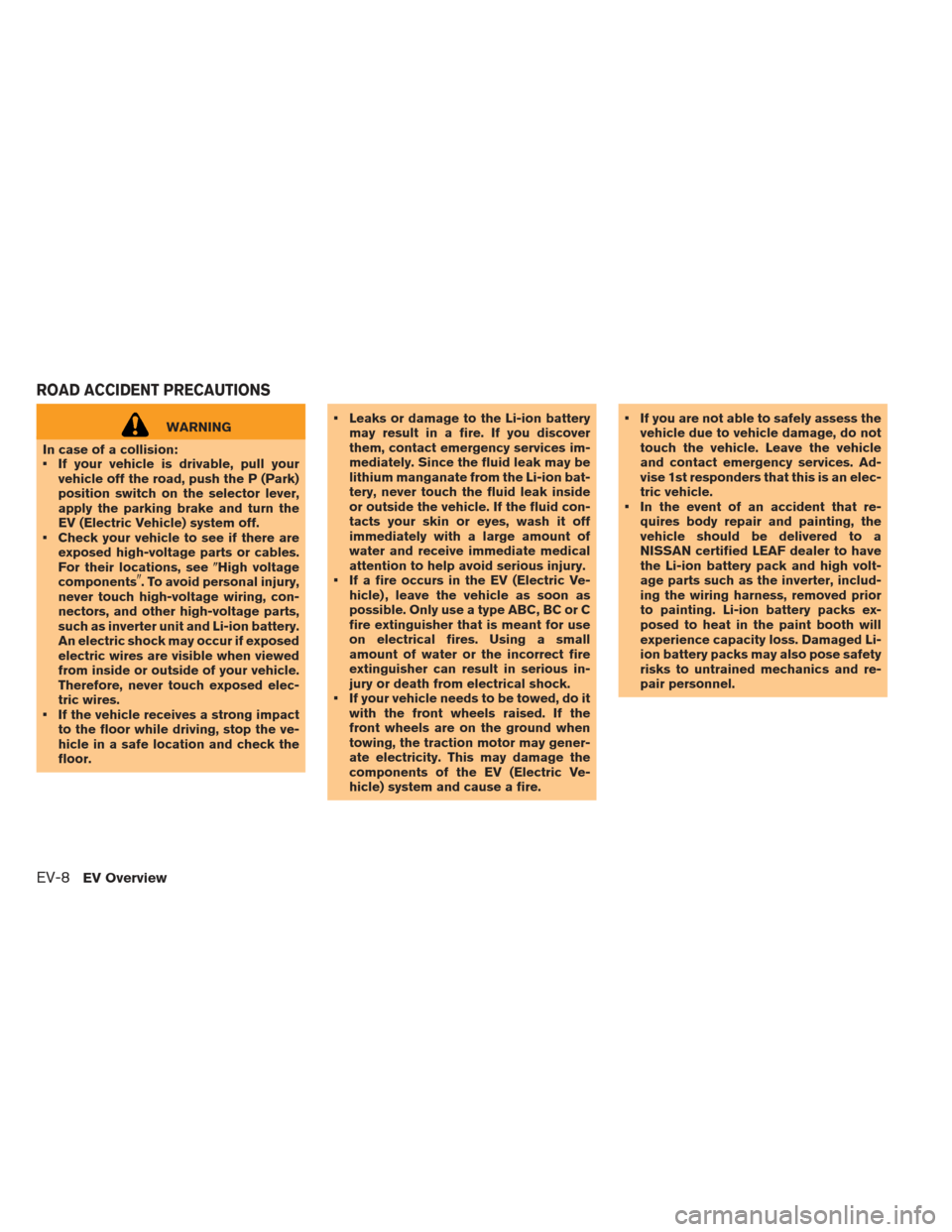

WARNING
In case of a collision:
If your vehicle is drivable, pull your vehicle off the road, push the P (Park)
position switch on the selector lever,
apply the parking brake and turn the
EV (Electric Vehicle) system off.
Check your vehicle to see if there are exposed high-voltage parts or cables.
For their locations, see High voltage
components
. To avoid personal injury,
never touch high-voltage wiring, con-
nectors, and other high-voltage parts,
such as inverter unit and Li-ion battery.
An electric shock may occur if exposed
electric wires are visible when viewed
from inside or outside of your vehicle.
Therefore, never touch exposed elec-
tric wires.
If the vehicle receives a strong impact to the floor while driving, stop the ve-
hicle in a safe location and check the
floor. Leaks or damage to the Li-ion battery
may result in a fire. If you discover
them, contact emergency services im-
mediately. Since the fluid leak may be
lithium manganate from the Li-ion bat-
tery, never touch the fluid leak inside
or outside the vehicle. If the fluid con-
tacts your skin or eyes, wash it off
immediately with a large amount of
water and receive immediate medical
attention to help avoid serious injury.
If a fire occurs in the EV (Electric Ve- hicle) , leave the vehicle as soon as
possible. Only use a type ABC, BC or C
fire extinguisher that is meant for use
on electrical fires. Using a small
amount of water or the incorrect fire
extinguisher can result in serious in-
jury or death from electrical shock.
If your vehicle needs to be towed, do it with the front wheels raised. If the
front wheels are on the ground when
towing, the traction motor may gener-
ate electricity. This may damage the
components of the EV (Electric Ve-
hicle) system and cause a fire. If you are not able to safely assess the
vehicle due to vehicle damage, do not
touch the vehicle. Leave the vehicle
and contact emergency services. Ad-
vise 1st responders that this is an elec-
tric vehicle.
In the event of an accident that re- quires body repair and painting, the
vehicle should be delivered to a
NISSAN certified LEAF dealer to have
the Li-ion battery pack and high volt-
age parts such as the inverter, includ-
ing the wiring harness, removed prior
to painting. Li-ion battery packs ex-
posed to heat in the paint booth will
experience capacity loss. Damaged Li-
ion battery packs may also pose safety
risks to untrained mechanics and re-
pair personnel.
ROAD ACCIDENT PRECAUTIONS
EV-8EV Overview

EMERGENCY SHUT-OFF SYSTEM
The emergency shut-off system is activated and
the high-voltage system automatically turns off in
the following conditions:
- Front and side collisions in which the air bags
are deployed.
- Certain rear collisions.
- Certain EV (Electric Vehicle) system malfunc-
tions
For the above collisions and certain other EV
(Electric Vehicle) system malfunctions, the
READY to drive indicator light will turn off. See
Warning/indicator lights and audible reminders
in theInstruments and controls section.
The emergency shut-off activates for the above
collisions to minimize risk of an event that could
cause injury or an accident. If the emergency
shut-off system activates, the EV system may not
be switched to READY to drive position, contact
a NISSAN certified LEAF dealer. Even if the
power switch is switched to READY to drive
position, the system may shut-off suddenly.
Therefore, drive cautiously to the nearest
NISSAN certified LEAF dealer or contact a
NISSAN certified LEAF dealer as soon as pos-
sible.WARNING
Pay special attention to pedestrians. Because there is no engine noise, pe-
destrians may not know the vehicle is
approaching, moving or about to
move, and may step into the path of
vehicle travel.
When leaving the vehicle, be sure to turn off the EV (Electric Vehicle) sys-
tem.
Be sure to push the P (Park) position switch on the shift lever and apply the
parking brake when parking because
the vehicle can move when the READY
to drive indicator light is ON. When the
READY to drive indicator light is ON,
do not leave your vehicle in a shift
position other than the P (Park) posi-
tion.
Keep the brake pedal depressed until you are ready to drive. When the ve-
hicle is in the D (Drive) position or ECO
or R (Reverse) position, if you release
the brake pedal and do not depress
accelerator, the vehicle will creep and
may start abruptly. This may cause se-
rious injury or death.
NOTE:
The vehicle cannot run with a discharged
Li-ion battery. Repeated acceleration con-
sumes more power from the Li-ion battery
than driving at a steady speed.
This vehicle is equipped with a regenera-
tive brake system. The primary purpose of
regenerative brake system is to provide
some power to recharge the Li-ion battery
and extend driving range. A secondary
benefit is “engine braking” that operates
based on Li-ion battery conditions.
In the D (Drive) position, when the accel-
erator pedal is released, the regenerative
brake system provides some decelera-
tion.
When you put the shift lever in the ECO
position (models without navigation sys-
tem) or B position (models with naviga-
tion system) and take your foot off the
accelerator pedal, more regenerative
brake is applied than in the D (Drive) po-
sition.
Less deceleration is provided by the re-
generative brake system when the Li-ion
battery is fully charged. Regenerative
brake is automatically reduced when the
EV (ELECTRIC VEHICLE)
CHARACTERISTICS
EV OverviewEV-9

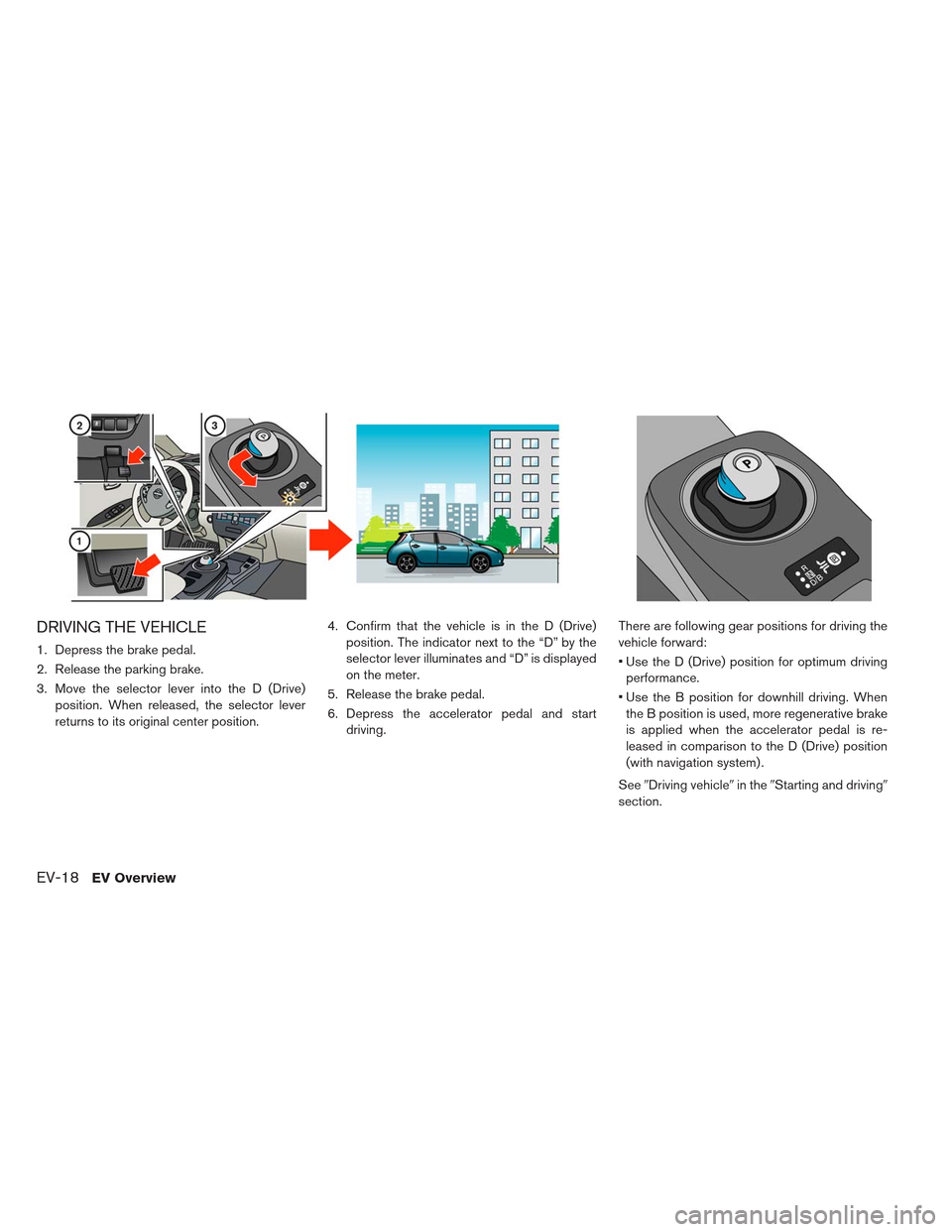

DRIVING THE VEHICLE
1. Depress the brake pedal.
2. Release the parking brake.
3. Move the selector lever into the D (Drive)position. When released, the selector lever
returns to its original center position. 4. Confirm that the vehicle is in the D (Drive)
position. The indicator next to the “D” by the
selector lever illuminates and “D” is displayed
on the meter.
5. Release the brake pedal.
6. Depress the accelerator pedal and start driving. There are following gear positions for driving the
vehicle forward:
Use the D (Drive) position for optimum driving
performance.
Use the B position for downhill driving. When the B position is used, more regenerative brake
is applied when the accelerator pedal is re-
leased in comparison to the D (Drive) position
(with navigation system) .
See Driving vehicle in theStarting and driving
section.
EV-18EV Overview

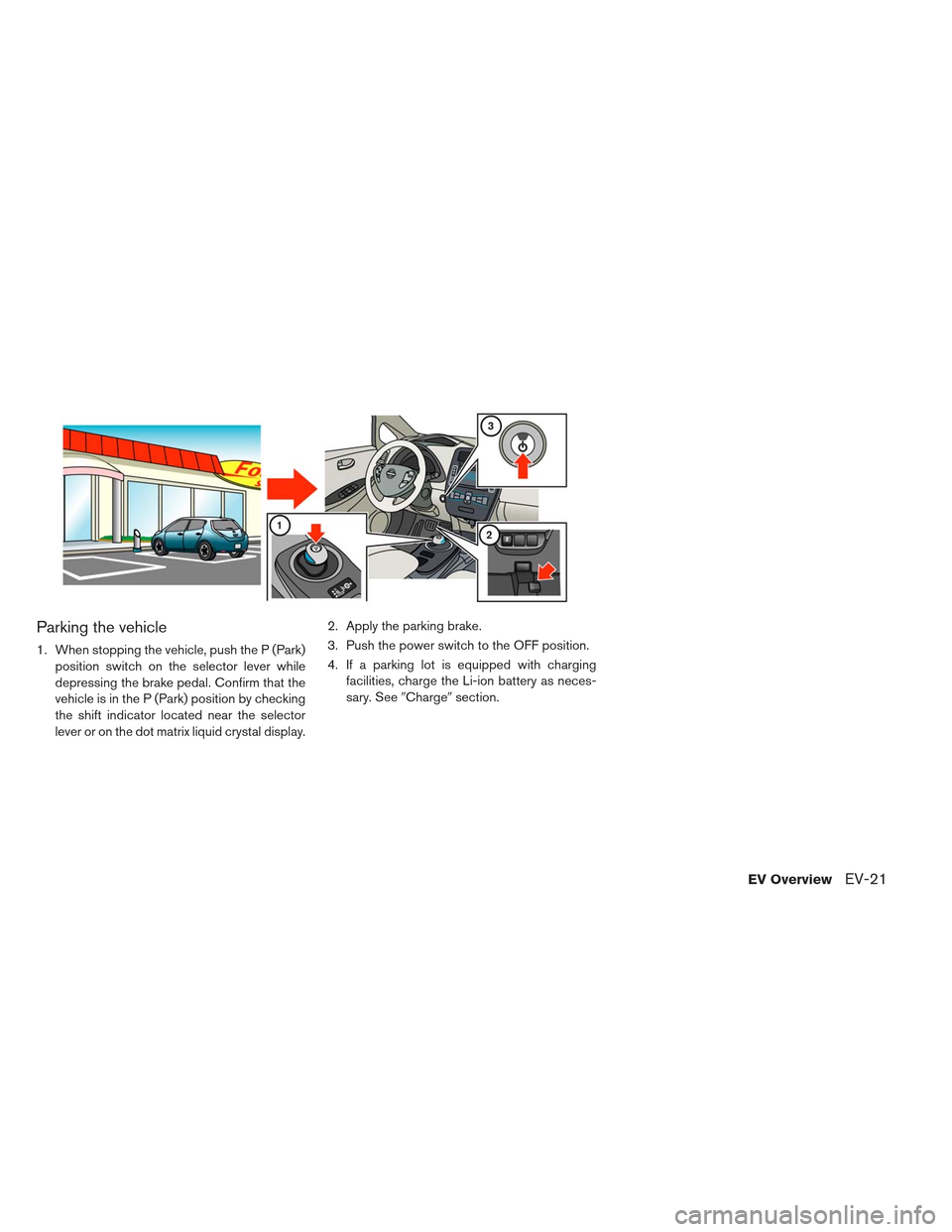

Parking the vehicle
1. When stopping the vehicle, push the P (Park)position switch on the selector lever while
depressing the brake pedal. Confirm that the
vehicle is in the P (Park) position by checking
the shift indicator located near the selector
lever or on the dot matrix liquid crystal display. 2. Apply the parking brake.
3. Push the power switch to the OFF position.
4. If a parking lot is equipped with charging
facilities, charge the Li-ion battery as neces-
sary. See Chargesection.
EV OverviewEV-21

The Genuine NISSAN charging equipmentcommunicates with the vehicle before Li-ion
battery charging starts. If this communication
does not occur because other equipment is
used, the Li-ion battery will not charge.
NISSAN recommends that you connect the normal charge cable when getting out of the
vehicle, even if it is not going to be used. By
doing this, you can get the most out of the
remote climate control (models with navigation
system) and Climate Ctrl. Timer functions the
next time you use the vehicle.
To start normal charge:
1. Push the P (Park) position switch to place the vehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position. When the
power switch is in the ON position, the Li-ion
battery will not start charging.
3. Open the charge port lid and charge port cap. See Charge port lid andCharge port cap
in the Pre-driving checks and adjustments
section. 4. Connect the charge connector to the charge
port. If it is connected normally, a beep will
sound once.
5. If charging has started or if the battery is waiting for charging timer, a beep will sound
twice and the charging status indicator light
display will change. See Charging status in-
dicator light. To stop normal charge:
1. Ensure that the charge connector lock is not
engaged. For more information, see “Charge
connector lock switch” in this section.
2. Press the button on the charge connector, release the lock and remove the charge con-
nector from the charge port and properly
store it.
3. After closing the charge port cap on the charge port, close the charge port lid.
CH-10Charging

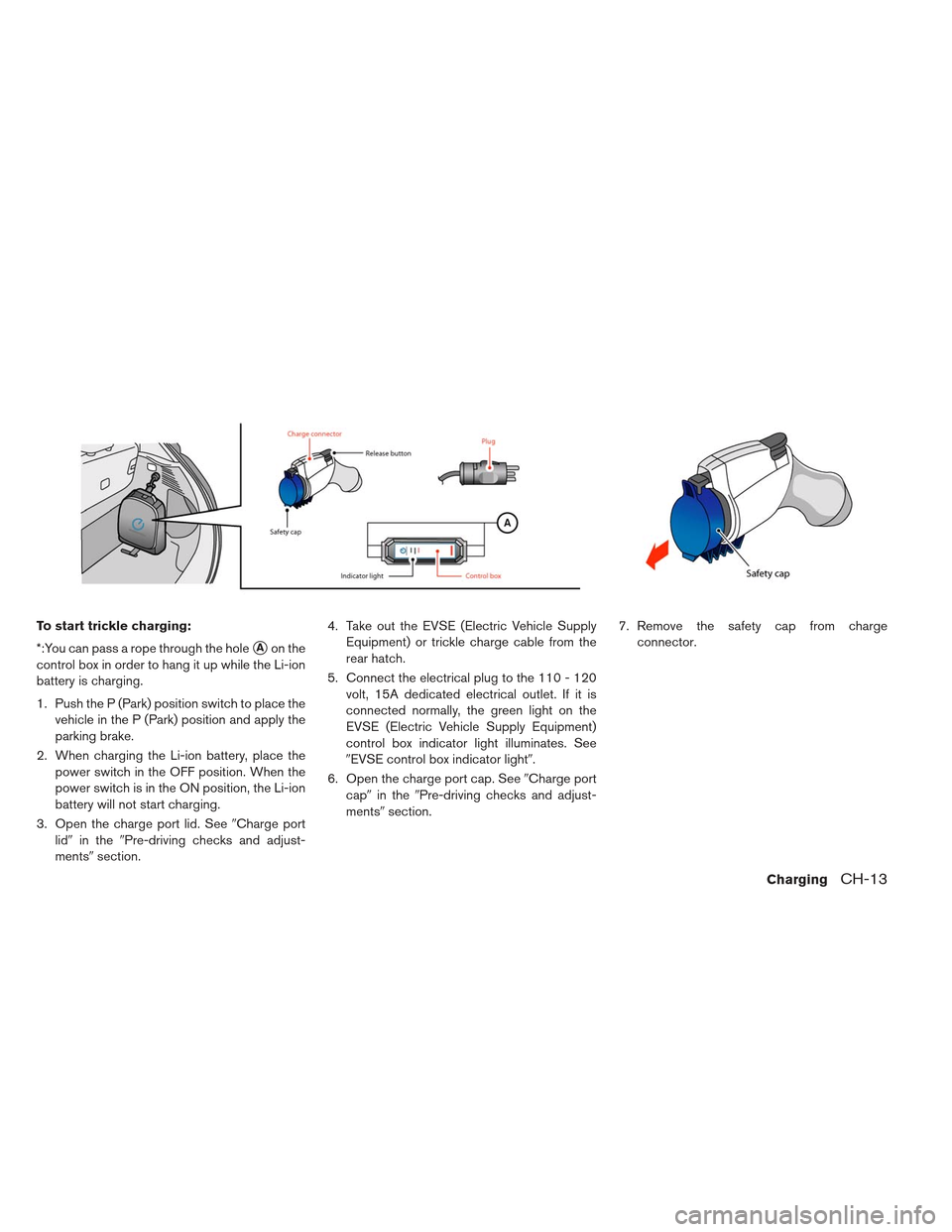

To start trickle charging:
*:You can pass a rope through the hole
Aon the
control box in order to hang it up while the Li-ion
battery is charging.
1. Push the P (Park) position switch to place the vehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position. When the
power switch is in the ON position, the Li-ion
battery will not start charging.
3. Open the charge port lid. See Charge port
lid in the Pre-driving checks and adjust-
ments section. 4. Take out the EVSE (Electric Vehicle Supply
Equipment) or trickle charge cable from the
rear hatch.
5. Connect the electrical plug to the 110 - 120 volt, 15A dedicated electrical outlet. If it is
connected normally, the green light on the
EVSE (Electric Vehicle Supply Equipment)
control box indicator light illuminates. See
EVSE control box indicator light.
6. Open the charge port cap. See Charge port
cap in the Pre-driving checks and adjust-
ments section. 7. Remove the safety cap from charge
connector.
ChargingCH-13

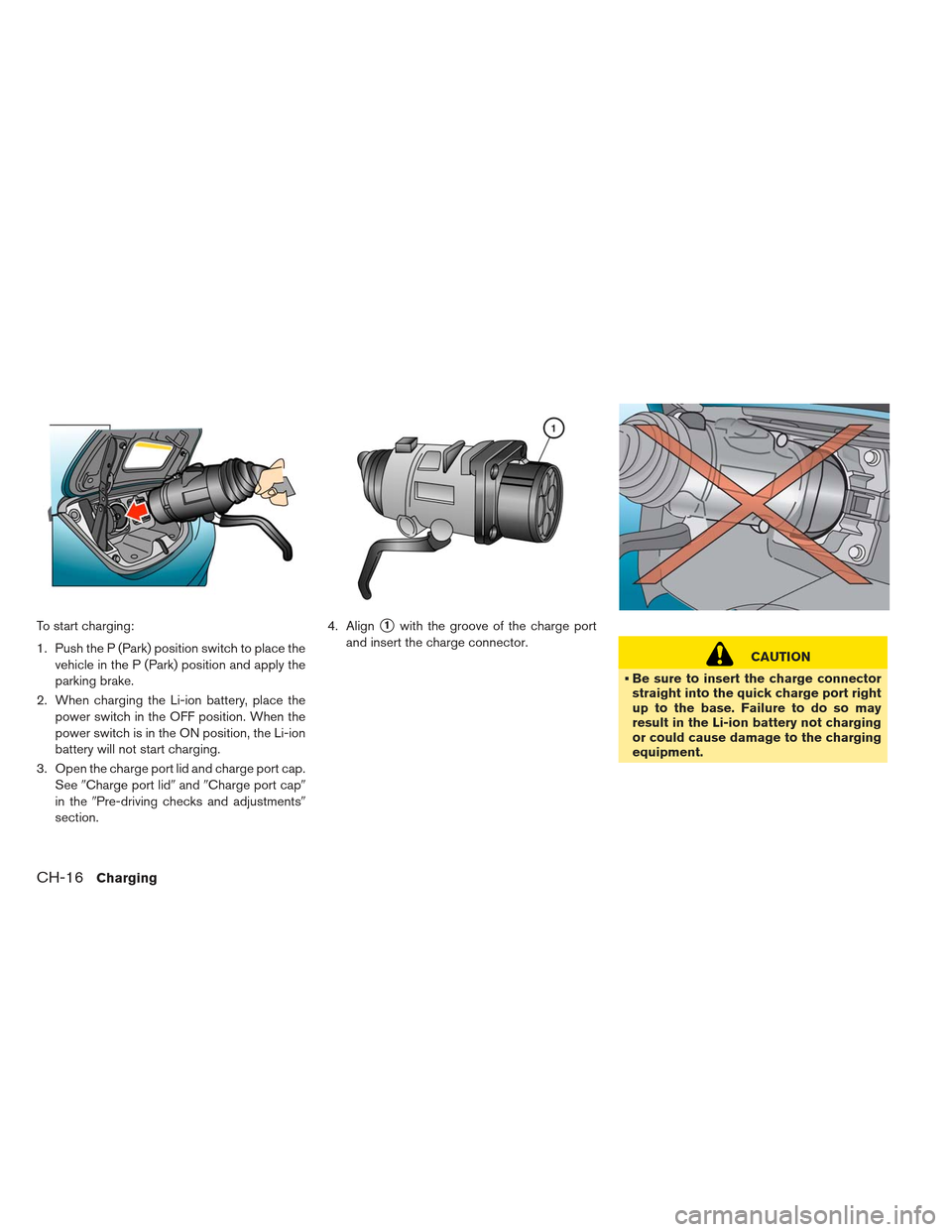

To start charging:
1. Push the P (Park) position switch to place thevehicle in the P (Park) position and apply the
parking brake.
2. When charging the Li-ion battery, place the power switch in the OFF position. When the
power switch is in the ON position, the Li-ion
battery will not start charging.
3. Open the charge port lid and charge port cap. See Charge port lid andCharge port cap
in the Pre-driving checks and adjustments
section. 4. Align1with the groove of the charge port
and insert the charge connector.
CAUTION
Be sure to insert the charge connector
straight into the quick charge port right
up to the base. Failure to do so may
result in the Li-ion battery not charging
or could cause damage to the charging
equipment.
CH-16Charging

FRONT SEATS
Front manual seat adjustment
Forward and backward:
Pull the bar up and hold it while sliding the seat
forward or backward to the preferred position.
Release the bar to lock the seat in position.Reclining:
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See
Precautions on seat belt usage.
Also, the seatback can be reclined to allow oc-
cupants to rest when the vehicle is stopped and
the vehicle is in the P (Park) position or N (Neu-
tral) position with the parking brake applied. Seat lifter (for driver’s seat):
Pull up or push down the adjusting lever to adjust
the seat height to the preferred position.
Safety–Seats, seat belts and supplemental restraint system1-3
