2013 NISSAN LEAF navigation

3-28Navigation
INFO:
As maintenance of data for charging station
information is carried out periodically, detailed
information for a charging station selected may
not always be displayed.
SEARCHING FROM ADDRESS
BOOK
Storing frequently used destinations in the
Address Book makes it easy for the system to
set and calculate a route. To utilize this function
more effectively, destinations that are often
traveled to should be stored in advance.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Address Book].
3. Touch the preferred location from the list.
INFO:
Selecting [Sort] displays a list of various sort
functions. To use the sort functions, stored
locations must be set in advance.
“Storing location” (page 3-38).[Sorted By Number]: The Address Book entries are displayed
in ascending numerical order.
.[Sorted By Name]:The Address Book entries are displayed
in alphabetic order.
.[Sorted By Icon]:
By selecting a particular icon, a list that
contains only the Address Book entries
associated with that icon is displayed.
.[Sorted By Group]:By selecting a particular group (family,
friends, leisure, etc.), the selected group
is displayed at the top of the list.
4. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To set the destination from the Address Book:
"Navigation" "Address Book"

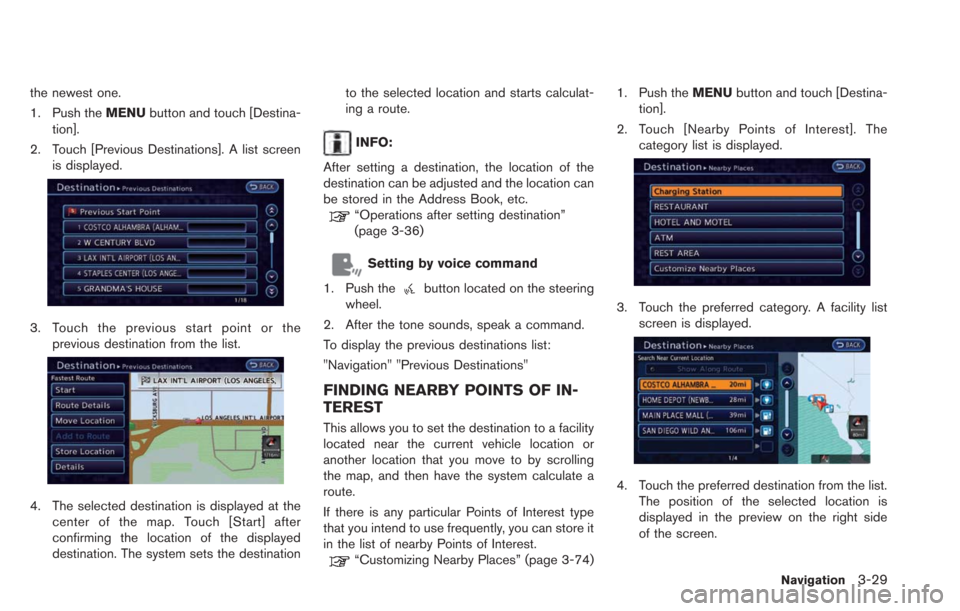

SEARCHING FROM HISTORY
It is possible to set destinations using the former
route guide starting location, as well as destina-
tion lists that were set in the past. Up to 100
previous destinations will be automatically
stored. If the number of previous destinations
exceeds 100, the oldest one will be replaced by

the newest one.
1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Previous Destinations]. A list screen is displayed.
3. Touch the previous start point or theprevious destination from the list.
4. The selected destination is displayed at thecenter of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To display the previous destinations list:
"Navigation" "Previous Destinations"
FINDING NEARBY POINTS OF IN-
TEREST
This allows you to set the destination to a facility
located near the current vehicle location or
another location that you move to by scrolling
the map, and then have the system calculate a
route.
If there is any particular Points of Interest type
that you intend to use frequently, you can store it
in the list of nearby Points of Interest.
“Customizing Nearby Places” (page 3-74) 1. Push the
MENUbutton and touch [Destina-
tion].
2. Touch [Nearby Points of Interest]. The category list is displayed.
3. Touch the preferred category. A facility list
screen is displayed.
4. Touch the preferred destination from the list.The position of the selected location is
displayed in the preview on the right side
of the screen.
Navigation3-29

3-30Navigation

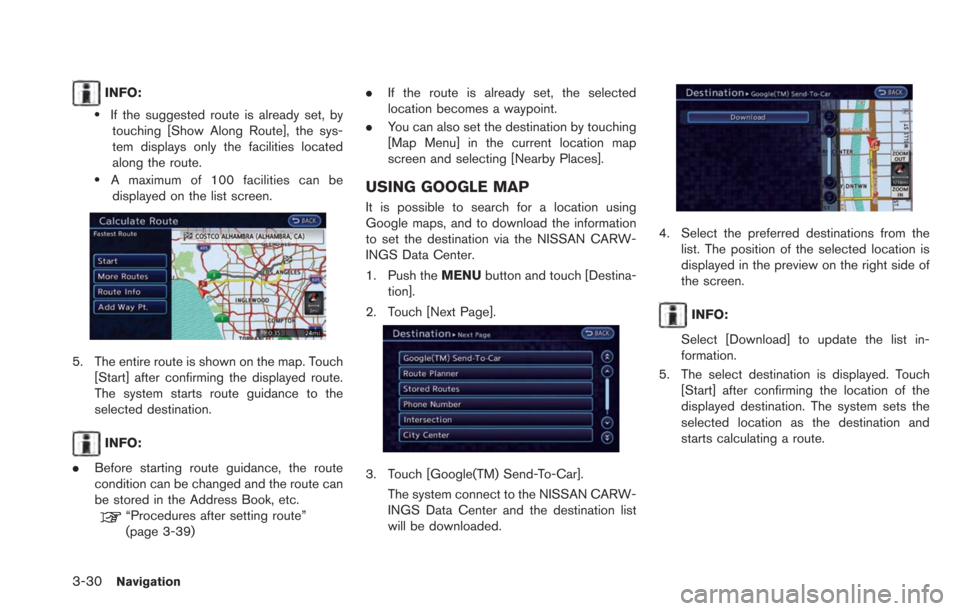

INFO:
.If the suggested route is already set, bytouching [Show Along Route], the sys-
tem displays only the facilities located
along the route.
.A maximum of 100 facilities can bedisplayed on the list screen.
5. The entire route is shown on the map. Touch [Start] after confirming the displayed route.
The system starts route guidance to the
selected destination.
INFO:
. Before starting route guidance, the route
condition can be changed and the route can
be stored in the Address Book, etc.
“Procedures after setting route”
(page 3-39) .
If the route is already set, the selected
location becomes a waypoint.
. You can also set the destination by touching
[Map Menu] in the current location map
screen and selecting [Nearby Places].
USING GOOGLE MAP
It is possible to search for a location using
Google maps, and to download the information
to set the destination via the NISSAN CARW-
INGS Data Center.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Google(TM) Send-To-Car]. The system connect to the NISSAN CARW-
INGS Data Center and the destination list
will be downloaded.
4. Select the preferred destinations from thelist. The position of the selected location is
displayed in the preview on the right side of
the screen.
INFO:
Select [Download] to update the list in-
formation.
5. The select destination is displayed. Touch [Start] after confirming the location of the
displayed destination. The system sets the
selected location as the destination and
starts calculating a route.

INFO:
Refer to the NISSAN Owner’s Portal Website
for details on destination setting using Google
maps.

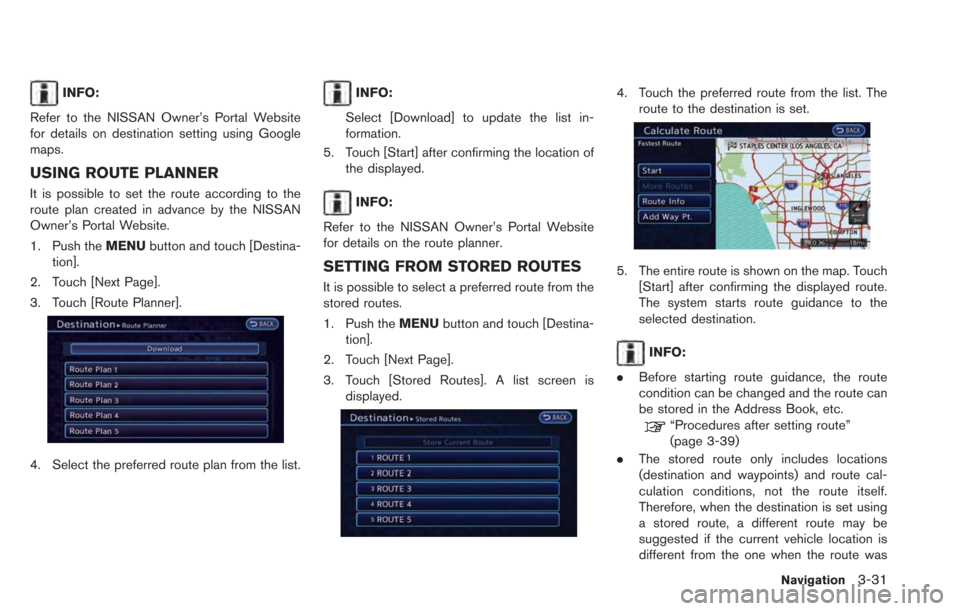

USING ROUTE PLANNER
It is possible to set the route according to the
route plan created in advance by the NISSAN
Owner’s Portal Website.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Route Planner].
4. Select the preferred route plan from the list.
INFO:
Select [Download] to update the list in-
formation.
5. Touch [Start] after confirming the location of the displayed.
INFO:
Refer to the NISSAN Owner’s Portal Website
for details on the route planner.
SETTING FROM STORED ROUTES
It is possible to select a preferred route from the
stored routes.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Stored Routes]. A list screen is displayed.
4. Touch the preferred route from the list. Theroute to the destination is set.
5. The entire route is shown on the map. Touch[Start] after confirming the displayed route.
The system starts route guidance to the
selected destination.
INFO:
. Before starting route guidance, the route
condition can be changed and the route can
be stored in the Address Book, etc.
“Procedures after setting route”
(page 3-39)
. The stored route only includes locations
(destination and waypoints) and route cal-
culation conditions, not the route itself.
Therefore, when the destination is set using
a stored route, a different route may be
suggested if the current vehicle location is
different from the one when the route was
Navigation3-31

3-32Navigation
stored.
SETTING BY PHONE NUMBER
If the phone number of a facility is known, it is
possible to search for a facility by entering the
phone number, and have the system calculate a
route.
INFO:
. If the area code of the specified telephone
number does not exist in the map data, the
system cannot search for the location.
. Only the locations included in the database
in the map data can be searched by the
phone number. Residential phone numbers
cannot be used to search for a location.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Phone Number]. The telephone number input screen is displayed.4. Enter the telephone number including thearea code. After finishing the entry, touch
[List].
“Phone number input screen”
(page 1-8)
INFO:
A list screen is displayed if there are two or
more search results. Touch the preferred
destination from the list.
A confirmation screen for the place name
and the location is displayed, and the system
starts calculating.
5. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)

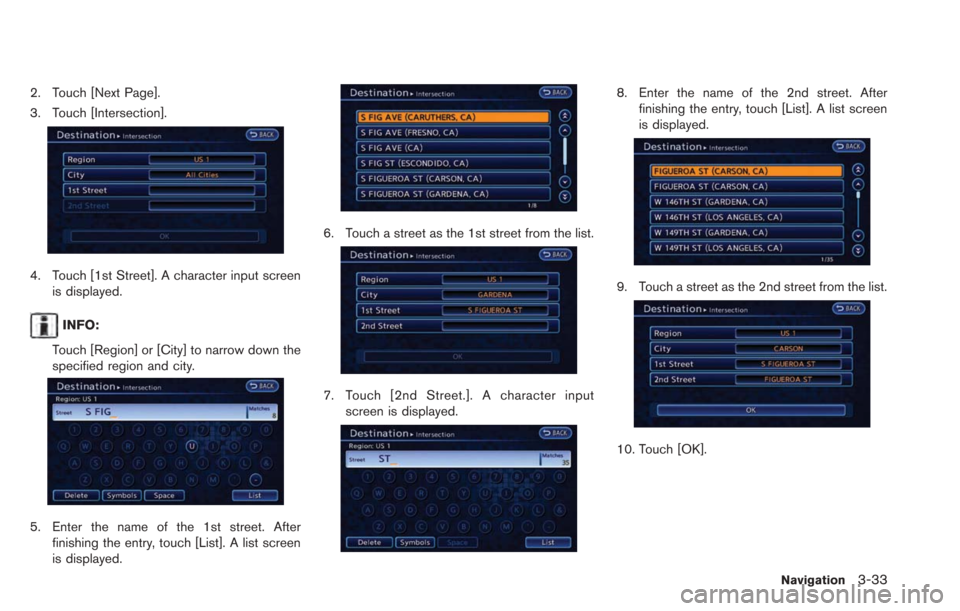

SETTING INTERSECTION
It is possible to set an intersection of any two
streets as the destination and have the system
calculate a route.
1. Push the MENUbutton and touch [Destina-
tion].

2. Touch [Next Page].
3. Touch [Intersection].
4. Touch [1st Street]. A character input screenis displayed.
INFO:
Touch [Region] or [City] to narrow down the
specified region and city.
5. Enter the name of the 1st street. After finishing the entry, touch [List]. A list screen
is displayed.
6. Touch a street as the 1st street from the list.
7. Touch [2nd Street.]. A character inputscreen is displayed.
8. Enter the name of the 2nd street. Afterfinishing the entry, touch [List]. A list screen
is displayed.
9. Touch a street as the 2nd street from the list.
10. Touch [OK].
Navigation3-33

3-34Navigation

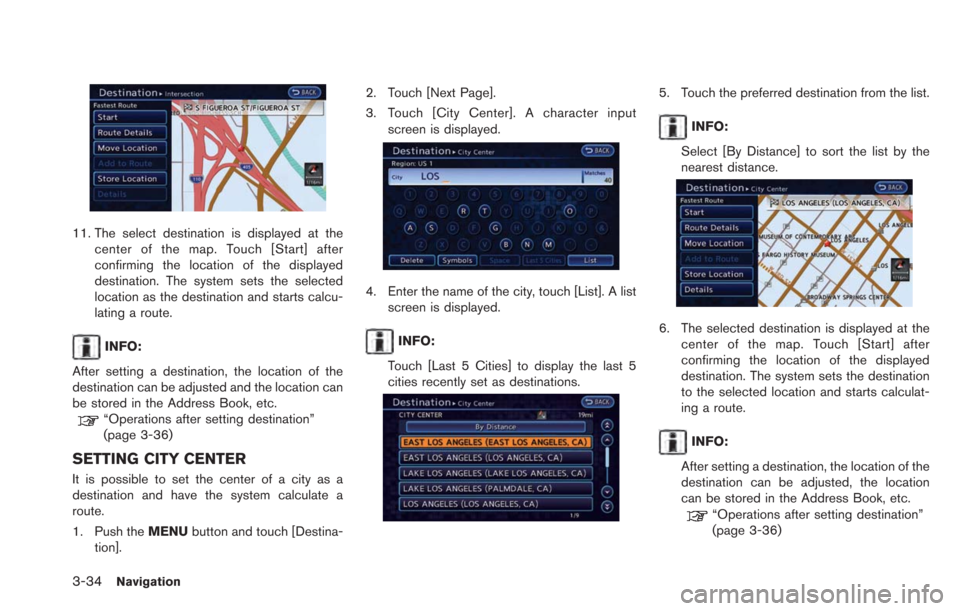

11. The select destination is displayed at thecenter of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the selected
location as the destination and starts calcu-
lating a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
SETTING CITY CENTER
It is possible to set the center of a city as a
destination and have the system calculate a
route.
1. Push the MENUbutton and touch [Destina-
tion]. 2. Touch [Next Page].
3. Touch [City Center]. A character input
screen is displayed.
4. Enter the name of the city, touch [List]. A listscreen is displayed.
INFO:
Touch [Last 5 Cities] to display the last 5
cities recently set as destinations.
5. Touch the preferred destination from the list.
INFO:
Select [By Distance] to sort the list by the
nearest distance.
6. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted, the location
can be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)

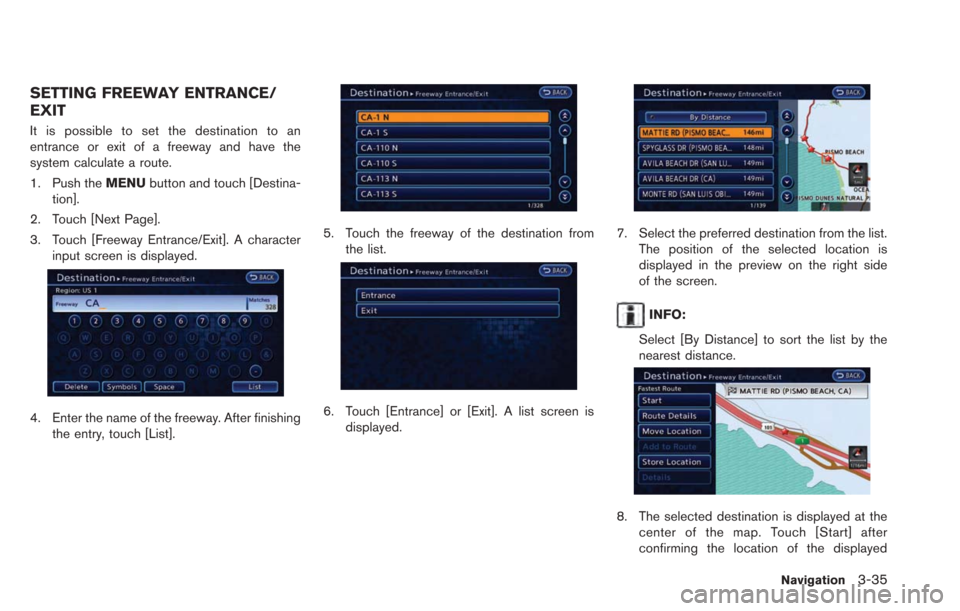

SETTING FREEWAY ENTRANCE/
EXIT
It is possible to set the destination to an
entrance or exit of a freeway and have the
system calculate a route.
1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Freeway Entrance/Exit]. A character input screen is displayed.
4. Enter the name of the freeway. After finishingthe entry, touch [List].
5. Touch the freeway of the destination fromthe list.
6. Touch [Entrance] or [Exit]. A list screen isdisplayed.
7. Select the preferred destination from the list.The position of the selected location is
displayed in the preview on the right side
of the screen.
INFO:
Select [By Distance] to sort the list by the
nearest distance.
8. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
Navigation3-35
