2013 NISSAN LEAF navigation

3-60Navigation

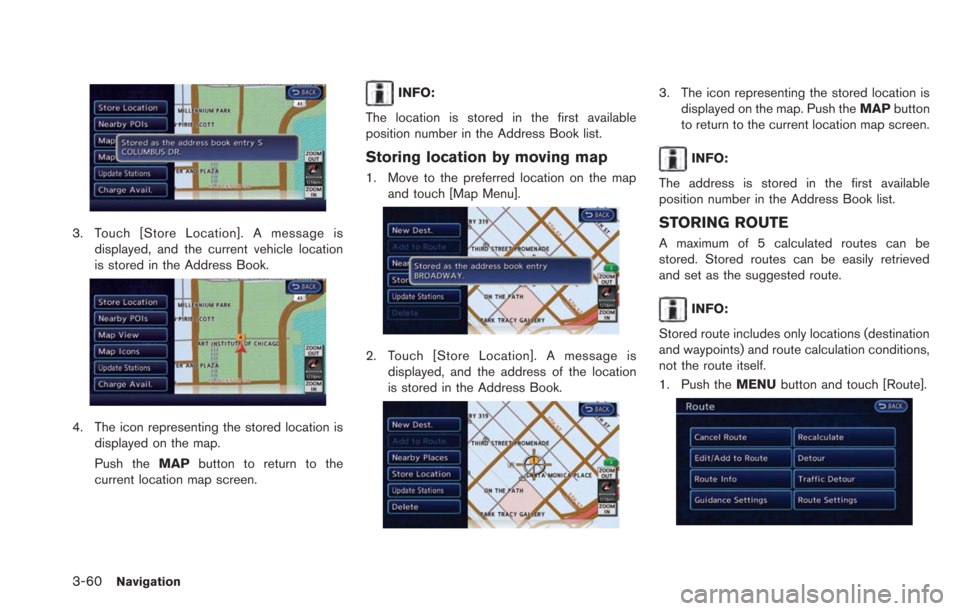

3. Touch [Store Location]. A message isdisplayed, and the current vehicle location
is stored in the Address Book.
4. The icon representing the stored location isdisplayed on the map.
Push the MAPbutton to return to the
current location map screen.
INFO:
The location is stored in the first available
position number in the Address Book list.
Storing location by moving map
1. Move to the preferred location on the map and touch [Map Menu].
2. Touch [Store Location]. A message isdisplayed, and the address of the location
is stored in the Address Book.
3. The icon representing the stored location isdisplayed on the map. Push the MAPbutton
to return to the current location map screen.
INFO:
The address is stored in the first available
position number in the Address Book list.
STORING ROUTE
A maximum of 5 calculated routes can be
stored. Stored routes can be easily retrieved
and set as the suggested route.
INFO:
Stored route includes only locations (destination
and waypoints) and route calculation conditions,
not the route itself.

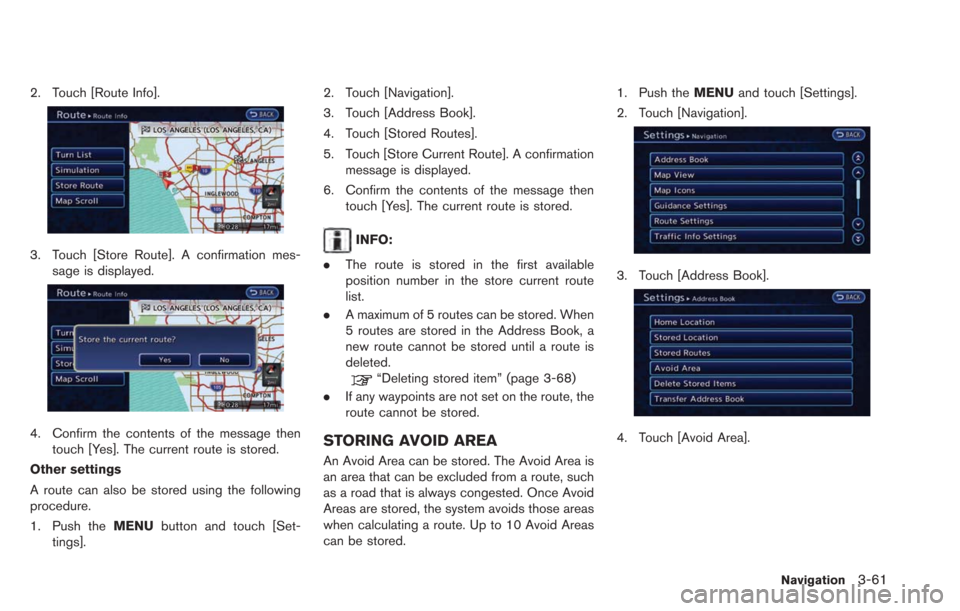

1. Push the MENUbutton and touch [Route].

2. Touch [Route Info].
3. Touch [Store Route]. A confirmation mes-sage is displayed.
4. Confirm the contents of the message thentouch [Yes]. The current route is stored.
Other settings
A route can also be stored using the following
procedure.
1. Push the MENUbutton and touch [Set-
tings]. 2. Touch [Navigation].
3. Touch [Address Book].
4. Touch [Stored Routes].
5. Touch [Store Current Route]. A confirmation
message is displayed.
6. Confirm the contents of the message then touch [Yes]. The current route is stored.
INFO:
. The route is stored in the first available
position number in the store current route
list.
. A maximum of 5 routes can be stored. When
5 routes are stored in the Address Book, a
new route cannot be stored until a route is
deleted.
“Deleting stored item” (page 3-68)
. If any waypoints are not set on the route, the
route cannot be stored.
STORING AVOID AREA
An Avoid Area can be stored. The Avoid Area is
an area that can be excluded from a route, such
as a road that is always congested. Once Avoid
Areas are stored, the system avoids those areas
when calculating a route. Up to 10 Avoid Areas
can be stored. 1. Push the
MENUand touch [Settings].
2. Touch [Navigation].
3. Touch [Address Book].
4. Touch [Avoid Area].
Navigation3-61

3-62Navigation

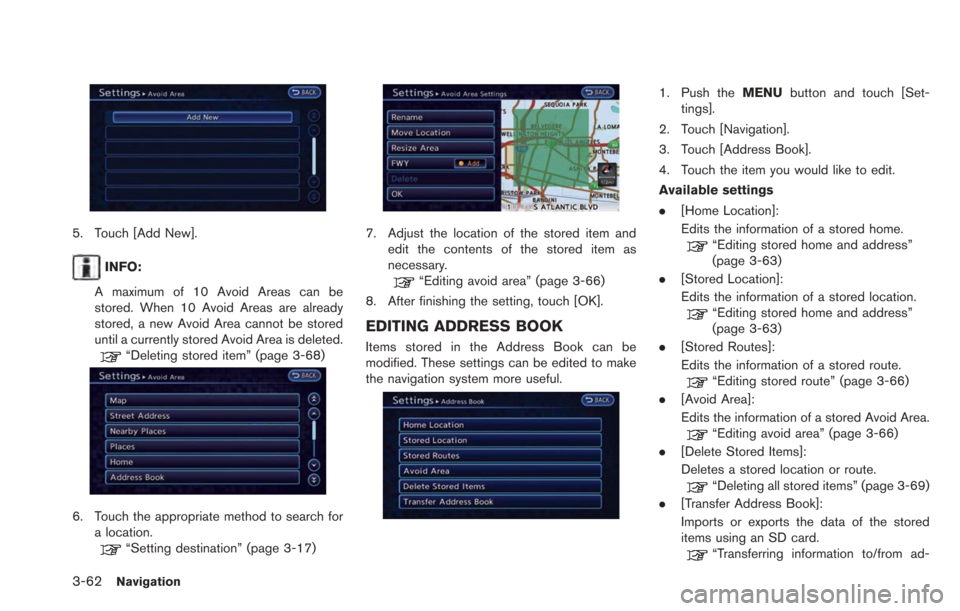

5. Touch [Add New].
INFO:
A maximum of 10 Avoid Areas can be
stored. When 10 Avoid Areas are already
stored, a new Avoid Area cannot be stored
until a currently stored Avoid Area is deleted.
“Deleting stored item” (page 3-68)
6. Touch the appropriate method to search for a location.
“Setting destination” (page 3-17)
7. Adjust the location of the stored item andedit the contents of the stored item as
necessary.
“Editing avoid area” (page 3-66)
8. After finishing the setting, touch [OK].
EDITING ADDRESS BOOK
Items stored in the Address Book can be
modified. These settings can be edited to make
the navigation system more useful.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Address Book].
4. Touch the item you would like to edit.
Available settings
. [Home Location]:
Edits the information of a stored home.
“Editing stored home and address”
(page 3-63)
. [Stored Location]:
Edits the information of a stored location.
“Editing stored home and address”
(page 3-63)
. [Stored Routes]:
Edits the information of a stored route.
“Editing stored route” (page 3-66)
. [Avoid Area]:
Edits the information of a stored Avoid Area.
“Editing avoid area” (page 3-66)
. [Delete Stored Items]:
Deletes a stored location or route.
“Deleting all stored items” (page 3-69)
. [Transfer Address Book]:
Imports or exports the data of the stored
items using an SD card.
“Transferring information to/from ad-

dress book” (page 3-70)

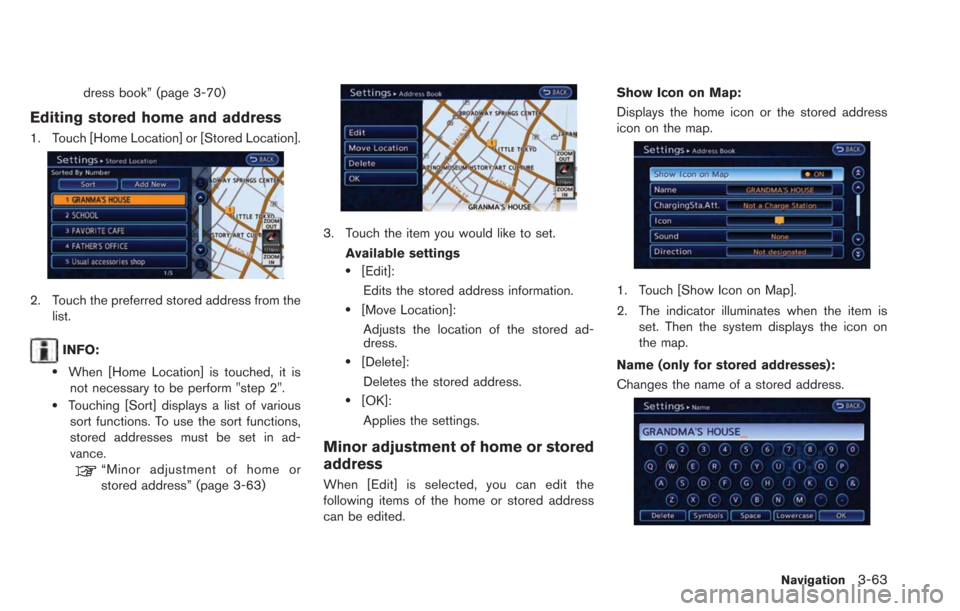

Editing stored home and address
1. Touch [Home Location] or [Stored Location].
2. Touch the preferred stored address from thelist.
INFO:
.When [Home Location] is touched, it isnot necessary to be perform "step 2".
.Touching [Sort] displays a list of varioussort functions. To use the sort functions,
stored addresses must be set in ad-
vance.
“Minor adjustment of home or
stored address” (page 3-63)
3. Touch the item you would like to set.
Available settings
.[Edit]:Edits the stored address information.
.[Move Location]:Adjusts the location of the stored ad-
dress.
.[Delete]:
Deletes the stored address.
.[OK]:Applies the settings.
Minor adjustment of home or stored
address
When [Edit] is selected, you can edit the
following items of the home or stored address
can be edited. Show Icon on Map:
Displays the home icon or the stored address
icon on the map.
1. Touch [Show Icon on Map].
2. The indicator illuminates when the item is
set. Then the system displays the icon on
the map.
Name (only for stored addresses):
Changes the name of a stored address.
Navigation3-63

3-64Navigation

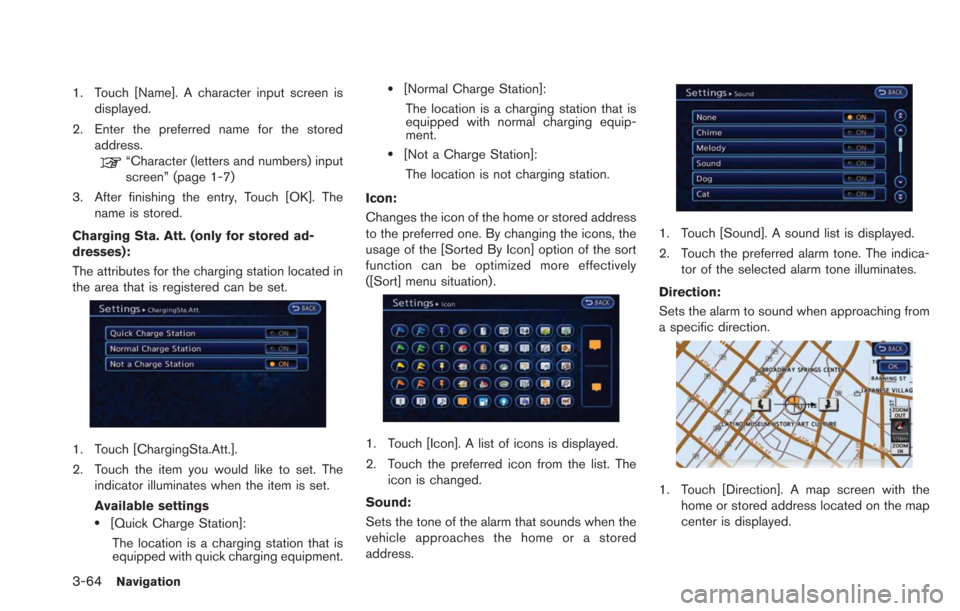

1. Touch [Name]. A character input screen isdisplayed.
2. Enter the preferred name for the stored address.
“Character (letters and numbers) input
screen” (page 1-7)
3. After finishing the entry, Touch [OK]. The name is stored.
Charging Sta. Att. (only for stored ad-
dresses):
The attributes for the charging station located in
the area that is registered can be set.
1. Touch [ChargingSta.Att.].
2. Touch the item you would like to set. The indicator illuminates when the item is set.
Available settings
.[Quick Charge Station]:
The location is a charging station that is
equipped with quick charging equipment.
.[Normal Charge Station]:The location is a charging station that is
equipped with normal charging equip-
ment.
.[Not a Charge Station]:
The location is not charging station.
Icon:
Changes the icon of the home or stored address
to the preferred one. By changing the icons, the
usage of the [Sorted By Icon] option of the sort
function can be optimized more effectively
([Sort] menu situation) .
1. Touch [Icon]. A list of icons is displayed.
2. Touch the preferred icon from the list. The icon is changed.
Sound:
Sets the tone of the alarm that sounds when the
vehicle approaches the home or a stored
address.
1. Touch [Sound]. A sound list is displayed.
2. Touch the preferred alarm tone. The indica- tor of the selected alarm tone illuminates.
Direction:
Sets the alarm to sound when approaching from
a specific direction.
1. Touch [Direction]. A map screen with the home or stored address located on the map
center is displayed.

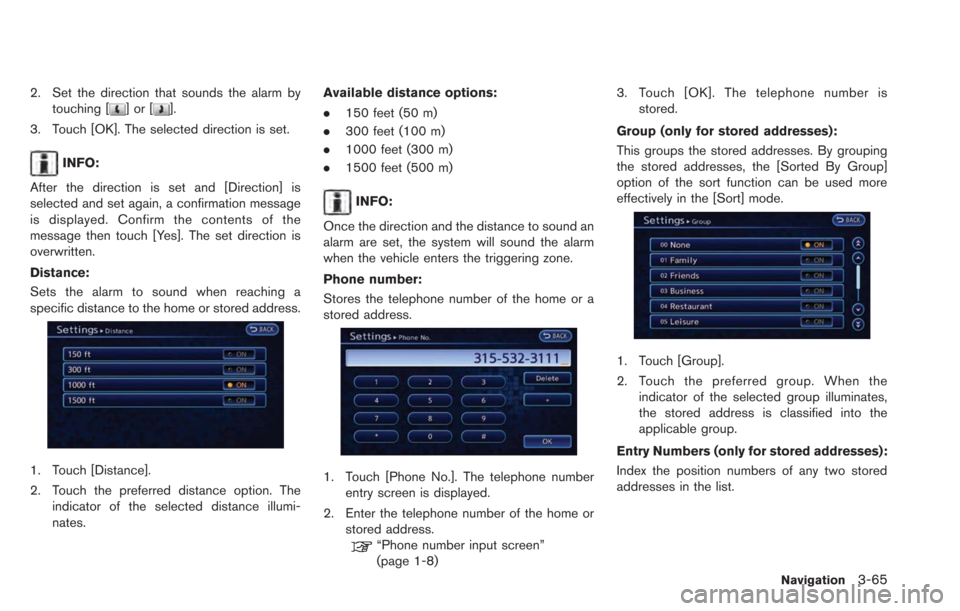

2. Set the direction that sounds the alarm bytouching []or[].
3. Touch [OK]. The selected direction is set.
INFO:
After the direction is set and [Direction] is
selected and set again, a confirmation message
is displayed. Confirm the contents of the
message then touch [Yes]. The set direction is
overwritten.
Distance:
Sets the alarm to sound when reaching a
specific distance to the home or stored address.
1. Touch [Distance].
2. Touch the preferred distance option. The indicator of the selected distance illumi-
nates. Available distance options:
.
150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m)
. 1500 feet (500 m)
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
Phone number:
Stores the telephone number of the home or a
stored address.
1. Touch [Phone No.]. The telephone number entry screen is displayed.
2. Enter the telephone number of the home or stored address.
“Phone number input screen”
(page 1-8) 3. Touch [OK]. The telephone number is
stored.
Group (only for stored addresses):
This groups the stored addresses. By grouping
the stored addresses, the [Sorted By Group]
option of the sort function can be used more
effectively in the [Sort] mode.
1. Touch [Group].
2. Touch the preferred group. When the indicator of the selected group illuminates,
the stored address is classified into the
applicable group.
Entry Numbers (only for stored addresses):
Index the position numbers of any two stored
addresses in the list.
Navigation3-65

3-66Navigation

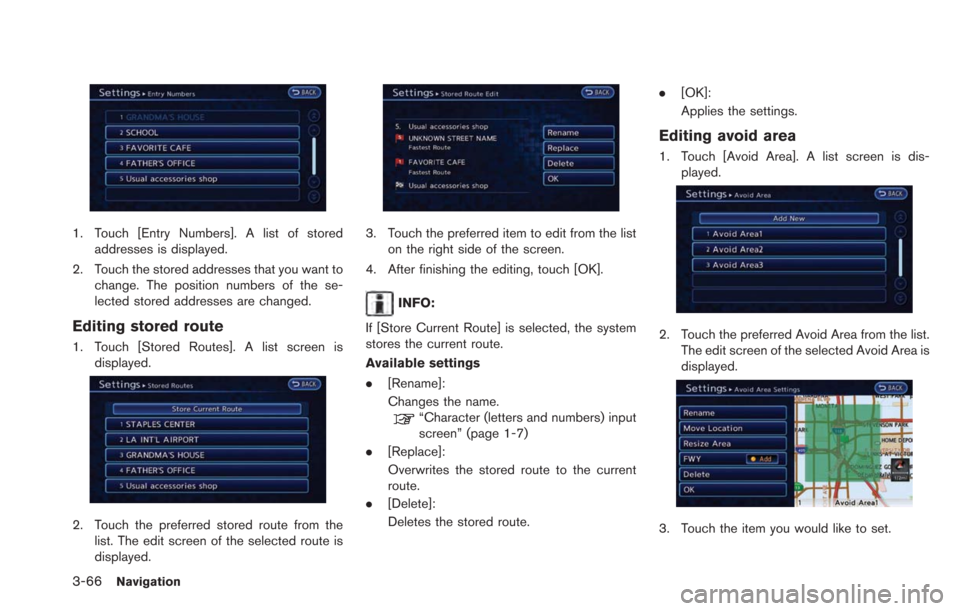

1. Touch [Entry Numbers]. A list of storedaddresses is displayed.
2. Touch the stored addresses that you want to change. The position numbers of the se-
lected stored addresses are changed.
Editing stored route
1. Touch [Stored Routes]. A list screen isdisplayed.
2. Touch the preferred stored route from thelist. The edit screen of the selected route is
displayed.
3. Touch the preferred item to edit from the liston the right side of the screen.
4. After finishing the editing, touch [OK].
INFO:
If [Store Current Route] is selected, the system
stores the current route.
Available settings
. [Rename]:
Changes the name.
“Character (letters and numbers) input
screen” (page 1-7)
. [Replace]:
Overwrites the stored route to the current
route.
. [Delete]:
Deletes the stored route. .
[OK]:
Applies the settings.
Editing avoid area
1. Touch [Avoid Area]. A list screen is dis-
played.
2. Touch the preferred Avoid Area from the list.
The edit screen of the selected Avoid Area is
displayed.
3. Touch the item you would like to set.

Available settings.[Rename]:Changes the name of an Avoid Area.
.[Move Location]:
Adjusts the location of the Avoid Area.
.[Resize Area]:Adjusts the range of the Avoid Area.
.[FWY]:Sets the route to avoid freeways.
.[Delete]:Deletes the Avoid Area.
.[OK]:Applies the setting.
4. After finishing the setting, touch [OK].
INFO:
An Avoid Area can be added by selecting [Add
New].
“Storing avoid area” (page 3-61) Rename:
1. Touch [Rename]. A character input screen is
displayed.
2. Enter the preferred name for the avoid area.
3. Touch [OK]. The name is stored.
Move location:
1. Touch [Move Location].
2. Adjust the location of the Avoid Area. 3. After adjusting the location, touch [OK].
Resize area:
1. Touch [Resize Area].
2. Touch the range from 5 available levels.
FWY:
1. To include freeways in the Avoid Area, touch
[FWY] to illuminate this indicator.
Navigation3-67
