2013 MERCEDES-BENZ SPRINTER MY13 Operator’s Manual

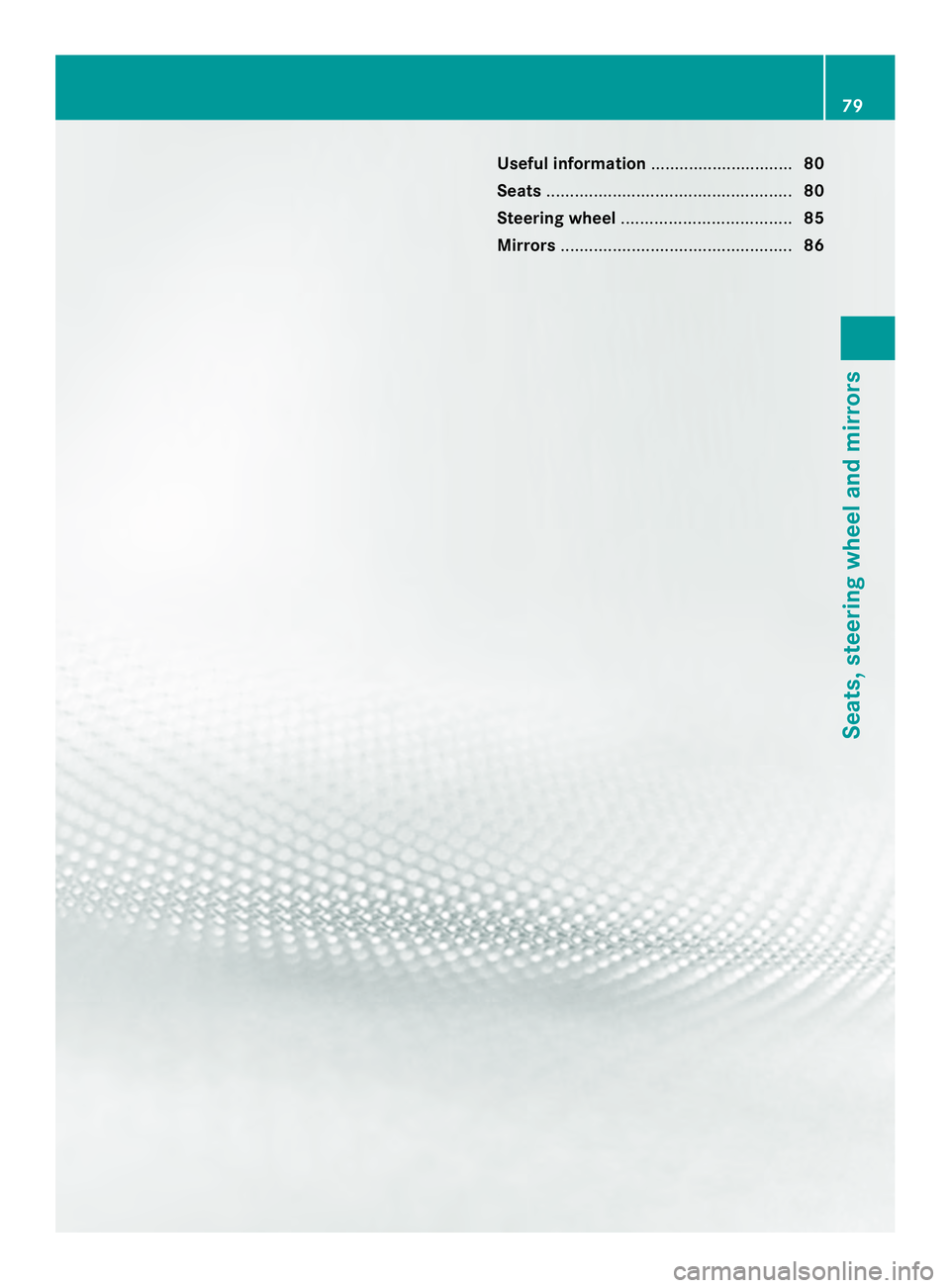

Useful information
..............................80
Seats .................................................... 80
Steering wheel .................................... 85
Mirrors ................................................. 86 79Seats, steering wheel and mirrors

Useful information
This Operator's Manual describes all models
as well as standard and optional equipment
of your vehicle that were available at the time
of going to print. Country-specific variations
are possible. Note that your vehicle may not
be equipped with all of the described
functions. This also applies to systems and
functions relevant to safety.
Read the information on qualified specialist
workshops (Y page 26). Seats
Important safety notes
G
WARNING
If the driver's seat is not engaged, it could
move unexpectedly while the vehicle is in
motion. This could cause you to lose control
of the vehicle. There is a risk of an accident.
Always make sure that the driver's seat is
engaged before starting the engine. G
WARNING
When you adjust a seat, you or other vehicle
occupants could become trapped, e.g. on the
seat guide rail. There is arisk of injury.
Make sure when adjusting aseat that no one
has any body parts in the sweep of the seat. G
WARNING
If head restraints are not installed and
adjusted correctly, they cannot provide
protection as intended. There is an increased
risk of injury in the head and neck area, e.g.
in the event of an accident or when braking.
Always drive with the head restraints
installed. Before driving off, make sure for
every vehicle occupant that the center of the
head restraint supports the back of the head
at about eye level. Observe also the safety notes in the sections
on "Air bags" (Y
page 44) and "Children in the
vehicle" ( Ypage 50).
Do not change over the head restraints for the
fron tand rea rseats. Otherwise, it will not be
possible to correctly adjust the height and
angle of the head restraints.
Use the head restraint pad to adjust the head
restraint so that it is as close as possible to
the back of your head.
Before the journey, make sure the head
restraints have been correctly set for each of
the vehicle's passengers (Y page 84). Driver's and co-driver's seat
0005
Seat fore-and-aft adjustment
0006 Lumbar support adjustment
0026 Seat backrest adjustment
0025 Seat height adjustment
0023 Seat cushion angle adjustment
0024 Seat suspension adjustment
0018 Seat suspension lock
i Depending on the seat model, some
adjustments may not be available.
You can find information on rotating the
fron tseats under "Swiveling fron tseats"
(Y page 81). 80
SeatsSeats, steering wheel and mirrors

X
To adjust the seat fore-and-aft
position: pull lever0005up.
X Slide the sea tforwards or back until you
can depress the pedals.
X Release lever 0005.
X Slide the seat forwards or back until you
hear it engage.
X To adjust the backrest: turn handwheel
0026 towards the front.
The seat backrest moves to a vertical
position.
X Turn handwheel 0026towards the rear.
The seat backrest tilts towards the rear.
X To adjust the seat height: press or pull
lever 0025repeatedly until you have reached
the desired seat height.
X To adjust the seat angle: turn handwheel
0023 towards the front.
The front of the seat cushion is lowered.
X Turn handwheel 0023towards the rear.
The front of the seat cushion is raised.
i The lumbar support allows you to use the
backrest to increase the support provided
to the lumbar spine.
When the lumbar support is correctly
adjusted, it reduces strain on your back
while driving.
X To adjust the lumbar support: turn
handwheel 0006upwards.
This increases the support provided to the
lumbar region.
X Turn handwheel 0006downwards.
This reduces the support provided to the
lumbar region. The seat suspension must be adapted to your
body weight. Adjust the seat suspension only
while the seat is unoccupied.
X
To adjust the seat suspension: take your
weight off the seat.
X Using handwheel 0024, set your body weight
(40 to 120 kg) for optimum seat
suspension.
The seat suspension will become more rigid
the higher you set the weight. It will then
not move as far.
If the seat moves up and down frequently and
to a great extent, you can lock the seat in the
lower movemen trange.
X To engage the seat suspension lock:
turn lever 0018downwards.
When it next moves, th eseat will lock in
position.
i The seat suspension lock will only engage
if your body weight equals or exceeds the
weight selected for the seat suspension.
X To release the seat suspension lock:
turn lever 0018upwards.
The seat can now move up and down again. Swiveling front seats
G
WARNING
You could lose control of your vehicle if you
do the following while driving:
R adjust the driver's seat, head restraint,
steering wheel or mirrors
R fasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before starting the engine. G
WARNING
If the driver's and co-driver's seats are not
engaged facing the direction of travel while
driving, the restraint systems may not be able Seats
81Seats, steering wheel and mirrors
Z

to provide the intended protection. There is
an increased ris kofinjury, possibly eve nfatal.
Engage the driver's and co-driver's seats so
they are facing th edirection of travel before
starting the engine.
! When rotating the seats, make sure that
there is sufficient space to do so.
Move the seat forward or back first. This
will help to avoid contac twith other parts
of the interior.
Push the handbrake lever down to the stop.
The parking brake or handbrake lever could
otherwise be damaged. Seat release (example: co-driver's seat)
The driver's seat and co-driver's seat can be
rotated by 50° and 180°.
The seats engage when facin
ginthe direction
of travel as well as when facing in the opposite
direction and also engage at an angle of 50°
to the door.
X Make sure that the parking brake has been
engaged and that the handbrake lever has
been pushed down to the stop
(Y page 146).
X Adjust the steering wheel to provide the
necessary space to rotate and adjust the
driver's seat (Y page 85).
X Before rotating, push the co-driver's seat
forwards (Y page 80).
X 2To rotatet he seat:push lever 0005on the
rear of the seat towards the center of the
vehicle and rotate the sea tslightly inwards.
The rotation device is released. X
Release lever 0005.
X Turn the seat about 50° towards the
outside or inside to the desired position. Twin co-driver's seat
X
To fold a seat cushion forwards: lift the
seat cushio nout of fron tanchorage 0005.
X Pull the sea tcushio nforwards slightly and
out of rear anchorage 0006.
X Fold the rear edge of the seat cushion up.
i You can stow various articles in the space
under the twin co-driver's seat.
X To fold the seat cushion back: fold down
the seat cushion by the rear edge.
X Slide the seat cushion under the seat
backrest into rear anchorage 0006.
X Push down on the seat cushion at the front
until it engages in front anchorage 0005. Folding seat
G
WARNING
If the key is inserted in the partition sliding
door, it may come into contact with the
person on the folding seat. There is a risk of
injury.
Always remove the key from the partition
sliding door before a person sits on the folding
seat. 82
SeatsSeats, steering wheel and mirrors

Folding sea
t(example with partition sliding door)
X Remove key 0005from the partition sliding
door.
X Pull grip 0006of the catch in the direction of
the arrow and fold seat cushion 0026up or
down.
X Release grip 0006of seat cushion 0026in the
corresponding end position.
X Move the seat cushion 0026until it engages.
Grip 0006of the catch must lie completely on
the seat frame. Rear bench seat (Passenger Vans)
G
WARNING
If the rear bench seat is not installed as
described or an unsuitable rear bench seat is
installed, the seat belts may not provide
protection as intended. There is an increased
risk of injury.
Install the rear bench seat as described. Only
use rear bench seats that are approved for
your vehicle by the distributor named on the
inside cover page.
! For safety reasons, the four-seat rear
bench must only be removed or installed at
a qualified specialist workshop.
Keep the seat bench mounting recesses in
the vehicle floor free from dirt and foreign
objects. Locking mechanism lever on the feet of the bench
seat
X
To remove the rear bench seat: swing all
levers 0005of the bench seat completely
upwards.
The bench seat moves back into the seat
mounting recesses on the vehicle floor.
X Lift the bench seat upwards out of the seat
mounting recesses. i
Do not exceed the maximum permissible
number of seats for models registered as
passenger vehicles.
X To install the rear bench seat: observe
the prescribed installation position of the
bench seat.
Install the two-seat bench seat only on the
driver's side.
X Check mounting shells 0006on the vehicle
floor.
Mounting shells 0006must be free from dirt
and foreign objects.
X Position the bench seat in the direction of
travel in corresponding mounting
shells 0006. Seats
83Seats, steering wheel and mirrors Z

X
Slide the bench sea tforwards until you
hear the locking mechanisms engage.
X Check levers 0005on the anchorages of the
bench seat.
All levers 0005must be flush to the vehicle
floor. Head restraints
G
WARNING
If head restraints are not installed and
adjusted correctly, they cannot provide
protection as intended. There is an increased
risk of injury in the head and neck area, e.g.
in the event of an accident or when braking.
Always drive with the head restraints
installed. Before driving off, make sure for
every vehicle occupant that the center of the
head restraint supports the back of the head
at about eye level.
Do not change over the head restraints for the
front and rear seats. Otherwise, it will not be
possible to correctly adjust the height and
angle of the head restraints.
Adjust the head restraint so that it is as close
as possible to the back of your head. Head restraint (example: luxury head restraint on
the co-driver's seat)
0005
Release button
0006 Head restraint height
0026 Head restraint angle (luxury head
restraints only) X
To raise: pull the head restraint up to the
desired position.
X To lower: press release button 0005and slide
the head restraint down to the desired
position.
X To adjust the angle: hold the head
restraint by the lower edge and tilt it to the
desired position.
X To remove:p ull the head restraint up to
the stop.
X Press release button 0005and pull out the
head restraint.
X To insert: insert the head restraint so that
the rod with the detents is on the left when
viewed in the direction of travel.
X Push the head restraint down until it
engages. Armrests
X
To set the armrest angle: fold the armrest
upwards 0006by more than 45°.
The armres tis released.
X Fold armrest 0026forwards to the stop.
X Slowly fold the armrest upwards to the
desired position.
X To fold the armrest up: if necessary, fold
the armrest upwards 0005by more than
90°. 84
SeatsSeats, steering wheel and mirrors

Seat heating
G
WARNING
Repeatedly switching on the seat heating can
cause the seat cushion and backrest pads to
become very hot. The health of persons with
limited temperature sensitivity or a limited
ability to react to excessively high
temperatures may be affected or they may
even suffer burn-like injuries. There is a risk
of injury.
Therefore, do not switch the seat heating on
repeatedly.
! When you leave your seat, do not place
anything on the seat and switch off the seat
heating. Do not switch the seat heating on
when the seat is not occupied, e.g. when
driving without a co-driver. The seat
heating may otherwise overheat, causing
damage to the seat. The three red indicator lamps in the
0007
button show the activated heating level 1to
3.
The system automatically switches down
from level 3to level 2after approximately
five minutes.
The system automatically switches down
from level 2to level 1after approximately
ten minutes.
At level 1, the seat heating remains in
continuous operation. X
Make sure that the key is in position 1or
2 in the ignition lock.
X To switch on: press the0007button
repeatedly until the desired heating level
has been set.
X To switch off: press the0007button
repeatedly until all indicator lamps go out.
If the indicator lamps of the current heating
level in the 0007button flash, the seat
heating has switched off automatically. In this
case, too many electrical consumers are
switched on or the battery charge is not
sufficient. The seat heating will automatically
switch back to the current heating level when
enough on-board voltage is available again. Steering wheel
G
WARNING
You could lose control of your vehicle if you
do the following while driving:
R adjust the driver's seat, head restraint,
steering wheel or mirrors
R fasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before starting the engine. G
WARNING
If the steering wheel is unlocked while the
vehicle is in motion, it could change position
unexpectedly. This could cause you to lose
control of the vehicle. There is a risk of an
accident.
Before starting off, make sure the steering
wheel is locked. Never unlock the steering
wheel while the vehicle is in motion. G
WARNING
Children could injure themselves if they
adjust the steering wheel. There is a risk of
injury. Steering wheel
85Seats, steering wheel and mirrors
Z

When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
The steering wheel can still be adjusted if the
key has been removed. 0005
Steering column fore-and-aft adjustment
0006 Steering column height
0026 Lever
X To set the steering wheel: swing lever
0026 down until it engages.
The steering wheel is unlocked.
X Move the steering wheel to the desired
position.
X Pull lever 0026up to the stop.
The steering wheel is locked again. Mirrors
Rear-view mirror
X
Anti-glare mode: push anti-glare lever 0005
in the direction of the arrow. Exterior mirrors
Important safety notes G
WARNING
The additional mirrors in the exterior mirrors
reduce the size of the image. Objects visible
in the mirrors are closer than they appear. You
could misjudge the distance from road users
driving behind you when changing lanes, for
instance. There is a risk of an accident.
You should therefore always determine the
actual distance from road users driving
behind you, e.g.:
R by looking over your shoulder
R by looking in the main mirror in the exterior
mirror.
Adjusting manually X
Before starting off, manually adjust the
exterior mirrors in such a way that you can
get a good overview of road and traffic
conditions. 86
MirrorsSeats, steering wheel and mirrors
