2013 LINCOLN MKZ HYBRID Owners Manual

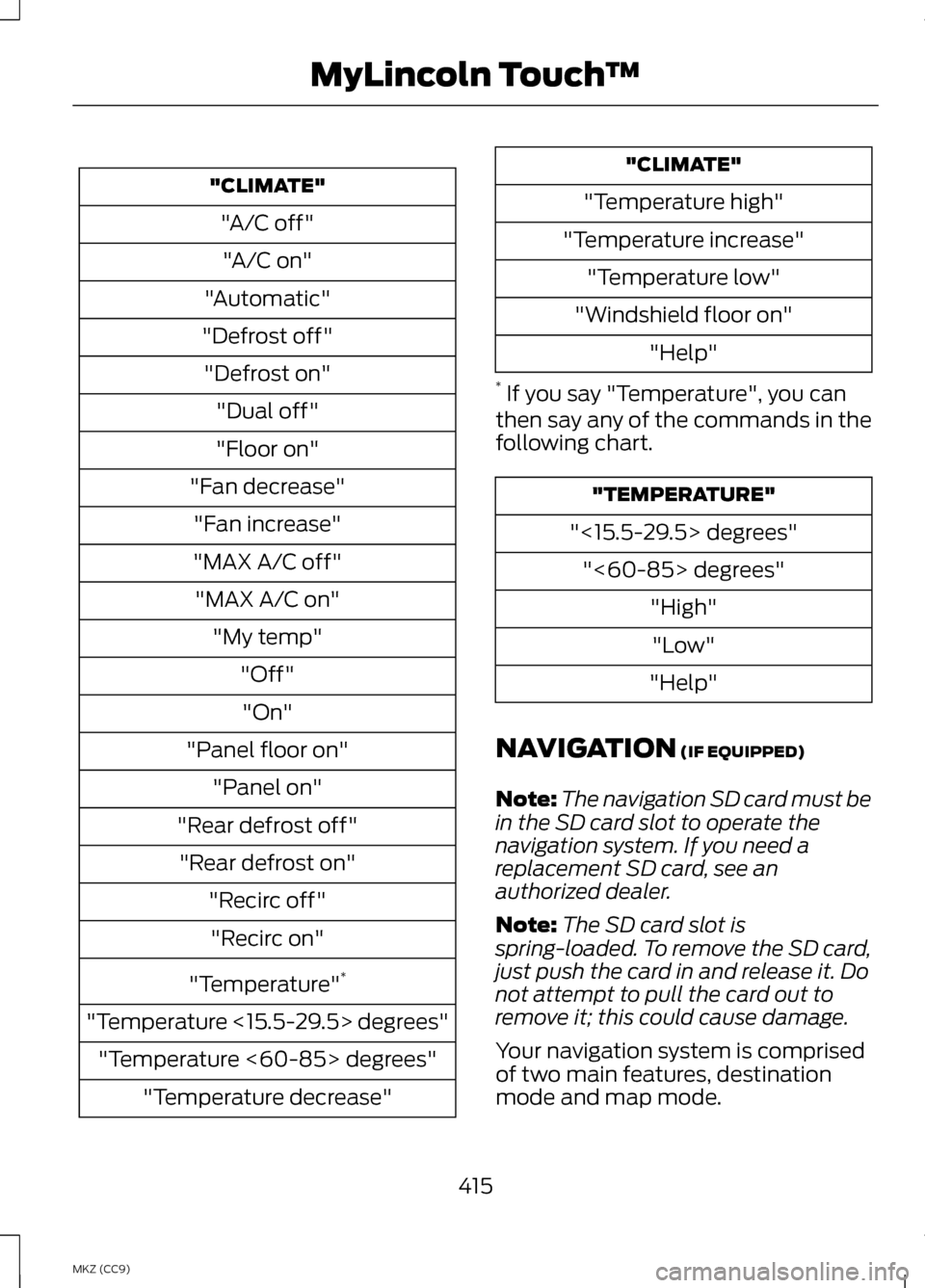

"CLIMATE"
"A/C off""A/C on"
"Automatic"
"Defrost off" "Defrost on" "Dual off"
"Floor on"
"Fan decrease" "Fan increase"
"MAX A/C off" "MAX A/C on" "My temp" "Off""On"
"Panel floor on" "Panel on"
"Rear defrost off" "Rear defrost on" "Recirc off""Recirc on"
"Temperature" *
"Temperature <15.5-29.5> degrees" "Temperature <60-85> degrees" "Temperature decrease" "CLIMATE"
"Temperature high"
"Temperature increase" "Temperature low"
"Windshield floor on" "Help"
* If you say "Temperature", you can
then say any of the commands in the
following chart. "TEMPERATURE"
"<15.5-29.5> degrees" "<60-85> degrees" "High""Low"
"Help"
NAVIGATION (IF EQUIPPED)
Note: The navigation SD card must be
in the SD card slot to operate the
navigation system. If you need a
replacement SD card, see an
authorized dealer.
Note: The SD card slot is
spring-loaded. To remove the SD card,
just push the card in and release it. Do
not attempt to pull the card out to
remove it; this could cause damage.
Your navigation system is comprised
of two main features, destination
mode and map mode.
415
MKZ (CC9) MyLincoln Touch
™

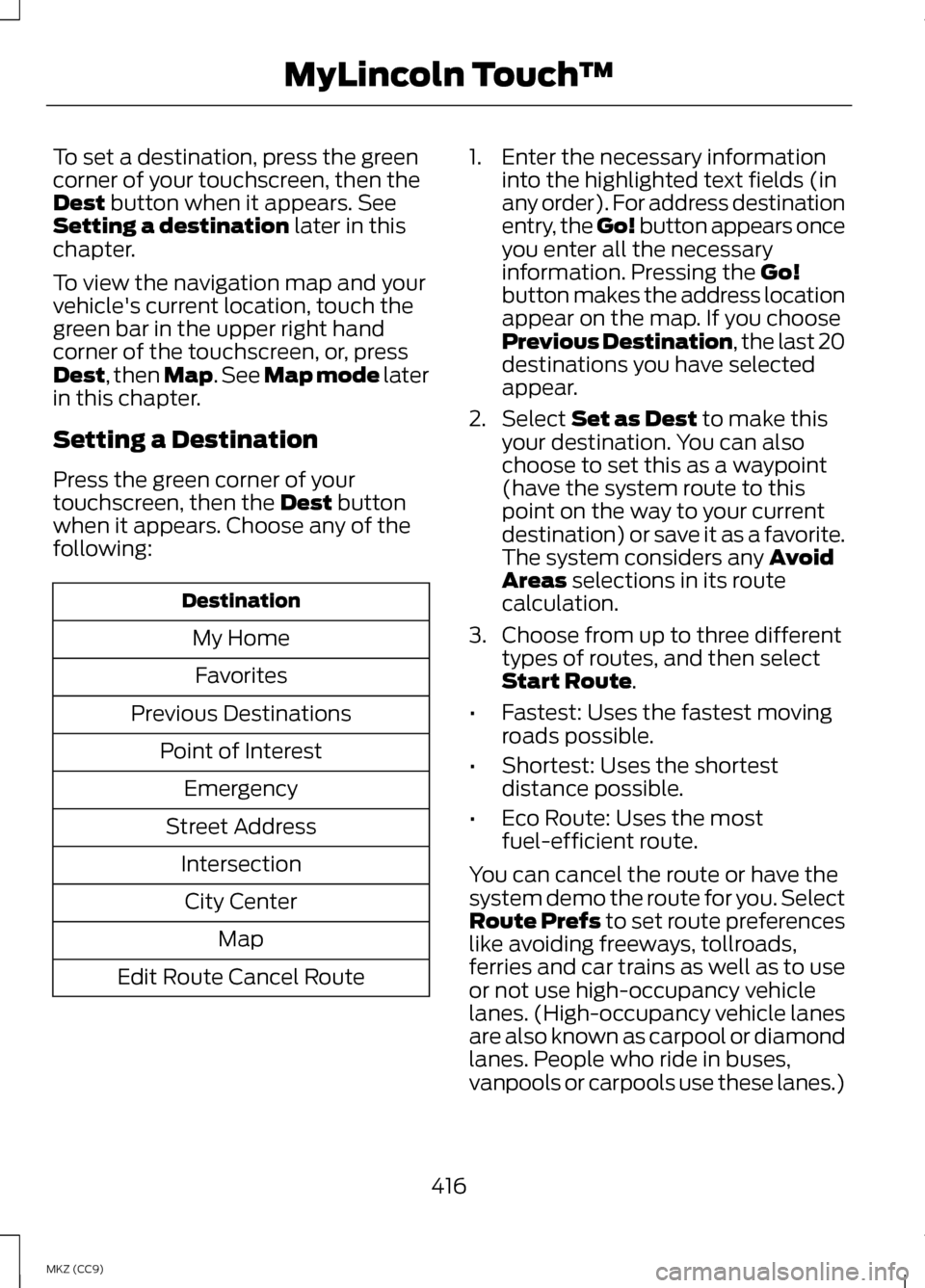

To set a destination, press the green
corner of your touchscreen, then the
Dest button when it appears. See
Setting a destination later in this
chapter.
To view the navigation map and your
vehicle's current location, touch the
green bar in the upper right hand
corner of the touchscreen, or, press
Dest
, then Map. See Map mode later
in this chapter.
Setting a Destination
Press the green corner of your
touchscreen, then the
Dest button
when it appears. Choose any of the
following: Destination
My HomeFavorites
Previous Destinations Point of InterestEmergency
Street Address IntersectionCity Center Map
Edit Route Cancel Route 1. Enter the necessary information
into the highlighted text fields (in
any order). For address destination
entry, the Go! button appears once
you enter all the necessary
information. Pressing the
Go!
button makes the address location
appear on the map. If you choose
Previous Destination, the last 20
destinations you have selected
appear.
2. Select
Set as Dest to make this
your destination. You can also
choose to set this as a waypoint
(have the system route to this
point on the way to your current
destination) or save it as a favorite.
The system considers any
Avoid
Areas selections in its route
calculation.
3. Choose from up to three different types of routes, and then select
Start Route
.
• Fastest: Uses the fastest moving
roads possible.
• Shortest: Uses the shortest
distance possible.
• Eco Route: Uses the most
fuel-efficient route.
You can cancel the route or have the
system demo the route for you. Select
Route Prefs to set route preferences
like avoiding freeways, tollroads,
ferries and car trains as well as to use
or not use high-occupancy vehicle
lanes. (High-occupancy vehicle lanes
are also known as carpool or diamond
lanes. People who ride in buses,
vanpools or carpools use these lanes.)
416
MKZ (CC9) MyLincoln Touch
™

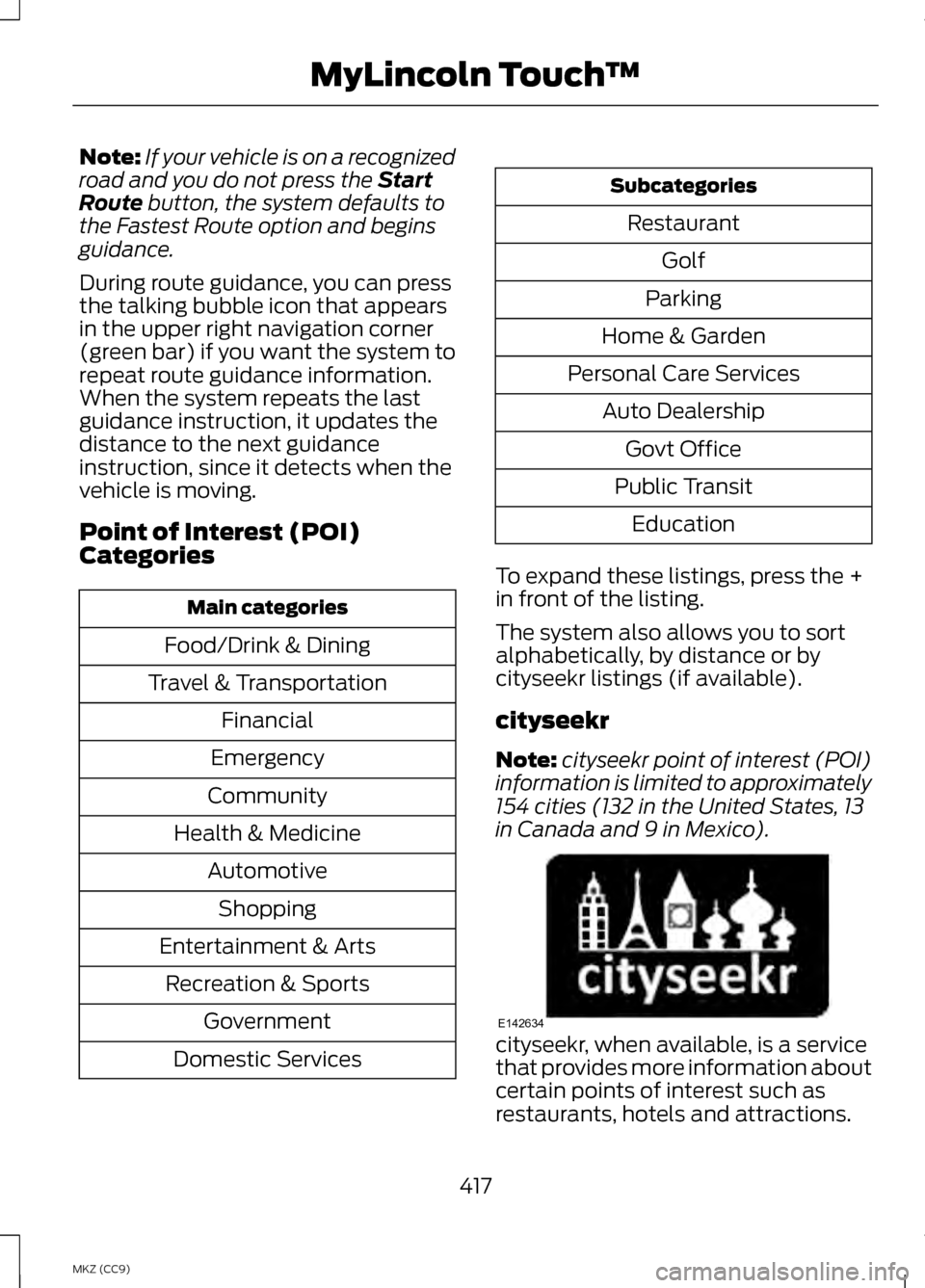

Note:
If your vehicle is on a recognized
road and you do not press the Start
Route button, the system defaults to
the Fastest Route option and begins
guidance.
During route guidance, you can press
the talking bubble icon that appears
in the upper right navigation corner
(green bar) if you want the system to
repeat route guidance information.
When the system repeats the last
guidance instruction, it updates the
distance to the next guidance
instruction, since it detects when the
vehicle is moving.
Point of Interest (POI)
Categories Main categories
Food/Drink & Dining
Travel & Transportation Financial
Emergency
Community
Health & Medicine AutomotiveShopping
Entertainment & Arts Recreation & Sports Government
Domestic Services Subcategories
Restaurant Golf
Parking
Home & Garden
Personal Care Services Auto DealershipGovt Office
Public Transit Education
To expand these listings, press the +
in front of the listing.
The system also allows you to sort
alphabetically, by distance or by
cityseekr listings (if available).
cityseekr
Note: cityseekr point of interest (POI)
information is limited to approximately
154 cities (132 in the United States, 13
in Canada and 9 in Mexico). cityseekr, when available, is a service
that provides more information about
certain points of interest such as
restaurants, hotels and attractions.
417
MKZ (CC9) MyLincoln Touch
™E142634

When you have selected a point of
interest, the location and information
appear, such as address and phone
number. If cityseekr lists the point of
interest, more information is available,
such as a brief description, check-in
and checkout times or restaurant
hours.
Press More Information for a longer
review, a list of services and facilities,
the average room or meal price as
well as the website. This screen
displays the point of interest icon such
as: Hotel
Coffeehouse
Food & Drink
Nightlife
Attraction
This icon appears when your
selection exists in multiple
categories within the
system. When you are viewing more
information for hotels, cityseekr also
tells you if the hotel has certain
services and facilities using icons, such
as:
•
Restaurant
• Business center
• Handicap facilities
• Laundry
• Refrigerator
• 24 hour room service
• Fitness center
• Internet access
• Pool
• Wi-fi.
For restaurants, cityseekr can provide
information such as star rating,
average cost, review, handicap
access, hours of operation, and
website address.
For hotels, cityseekr can provide
information such as star rating, price
category, review, check-in and
checkout times, hotel service icons
and website address.
Setting Your Navigation
Preferences
Select settings for the system to take
into account when planning your
route. Press the Settings icon >
Settings
> Navigation.
418
MKZ (CC9) MyLincoln Touch
™E143884 E142636 E142637 E142638 E142639 E142640 E142607

Map Preferences
Breadcrumbs
Display your vehicle
’s previously
traveled route with white dots. Turn
this feature ON or OFF.
Turn List Format
Have the system display your turn list
Top to Bottom
or Bottom to Top.
Parking POI Notification
Set the automatic parking point of
interest notification. Turn this feature
ON
or OFF. When parking point of
interest notification is on, the icons
display on the map when you get
close to your destination. This may
not be very useful in dense areas, and
may clutter the map when other
points of interest display.
Route Preferences
Preferred Route
Choose to have the system display
the Shortest, Fastest or most
Ecological route first.
Always Use Preferred Route
Bypass route selection in destination
programming. The system only
calculates one route based on
preferred route setting.
Eco Time Penalty
Select a low, medium or high cost for
the calculated Eco Route. The higher
the setting, the longer the time
allotment is for the route. Avoid
These features allow you to choose
to have the system avoid freeways,
toll roads, ferries and car trains when
planning your route. Turn these
features
ON or OFF.
Use HOV Lanes
Have the system use high-occupancy
vehicle lanes, if available, when
planning your route.
Navigation Preferences
Guidance Prompts
Have the system use
Voice & Tones
or Tone Only on your programmed
route.
Auto - Fill State/Province
Have the system automatically fill in
the state and province based on the
information already entered into the
system. Turn this feature
ON or OFF.
419
MKZ (CC9) MyLincoln Touch
™

Traffic Preferences
Avoid Traffic Problems
Choose how you want the system to
handle traffic problems along your
route.
•
Automatic: Have the system
reroute you to avoid traffic
incidents that develop and impact
the current route. The system does
not provide a traffic alert
notification.
• Manual:
Have the system always
provide a traffic alert notification
for traffic incidents along the
planned route. You have a choice
to accept or ignore the notification
before making the route deviation.
Traffic Alert Notification
Have the system display traffic alert
notifications.
Other traffic alert features allows you
to turn on certain, or all, traffic icons
on the map such as road work,
incident, accidents and closed roads.
Scroll down to view all the different
types of alerts. Turn these features
ON
or OFF.
Avoid Areas
Choose areas which you want the
system to avoid when calculating a
route for you. Press
Add to program an entry. Once
you make a selection, the system tries
to avoid the area(s) if possible for all
routes. To delete a selection, choose
the listing on the screen. When the
screen changes to Avoid Areas Edit,
you can press
Delete at the bottom
right of the screen.
Map Mode
Press the green bar in the upper right
area of the touchscreen to view map
mode. Map mode shows advanced
viewing comprised of both 2D city
maps as well as 3D landmarks (when
available).
2D city maps show detailed outlines
of buildings, visible land use and land
elements and detailed railway
infrastructure for the most essential
cities around the globe. These maps
also contain features, such as town
blocks, building footprints, and
railways.
3D landmarks appear as clear, visible
objects that are typically recognizable
and have a certain tourist value. The
3D landmarks appear in 3D map mode
only. Coverage varies, and improves
with updated map releases.
420
MKZ (CC9) MyLincoln Touch
™

Change the appearance of the map
display by repeatedly pressing the
arrow button in the upper left corner
of the screen. It toggles between three
different map modes: Heading up,
North up, and 3D.
Heading up (2D map) always
shows the direction of forward
travel to be upward on the
screen. This view is available for map
scales up to 2.5 miles (4 kilometers).
The system remembers this setting
for larger map scales, but shows the
map in North up only. If the scale
returns below this level, the system
restores Heading up. North up (2D map) always
shows the northern direction
to be upward on the screen. 3D map mode
provides an
elevated perspective of the
map. This viewing angle can
be adjusted and the map can
be rotated 180 degrees by touching
the map twice, and then dragging your
finger along the shaded bar with
arrows at the bottom of the map. Re-center the map by
pressing this icon whenever
you scroll the map away
from your vehicle ’s current location.
Auto Zoom
Press the green bar to access map
mode, then select the
+ or - zoom
button to bring up the zoom level and
Auto buttons on the touchscreen.
When you press
Auto, Auto Zoom
turns on and Auto displays in the
bottom left corner of the screen in the
map scale. The map zoom level then
synchronizes with vehicle speed. The
slower your vehicle is traveling, the
farther in the map zooms in; the faster
your vehicle is traveling, the farther
the map zooms out. To turn the
feature off, just press the + or - button
again.
In 3D mode, rotate the map view by
swiping your finger across the shaded
bar with the arrows.
Map Icons Vehicle mark
shows the
current location of your
vehicle. It stays in the center
of the map display, except
when in scroll mode. Scroll cursor
allows you to
scroll the map; the fixed icon
is in the center of the screen.
The map position closest to the cursor
is in a window on the top center part
of the screen.
421
MKZ (CC9) MyLincoln Touch
™E142641 E142642 E142643 E142644 E146188 E142646 E142647

Address book entry default
icon(s) indicates the location
on the map of an address book
entry. This is the default symbol
shown after the entry has been stored
to the Address Book by any method
other than the map. You can select
from any of the 22 icons available. You
can use each icon more than once. Home
indicates the location
on the map currently stored as
the home position. You can
only save one address from the
Address Book as your Home entry.
You cannot change this icon. POI (Point Of Interest)
icons
indicate locations of any
point of interest categories you
choose to display on the map. You
can choose to display three point of
interest categories on the map at one
time. Starting point
indicates the
starting point of a planned
route. Waypoint
indicates the
location of a waypoint on the
map. The number inside the
circle is different for each
waypoint and represents the position
of the waypoint in the route list. Destination symbol indicates
the ending point of a planned
route.
Next maneuver point
indicates the location of the
next turn on the planned route. No GPS symbol indicates that
insufficient GPS satellite
signals are available for
accurate map positioning. This
icon may display under normal
operation in an area with poor GPS
access.
Quick-touch Buttons
When in map mode, touch anywhere
on the map display to access the
following options:
Set as Dest
Touch this button to select a scrolled
location on the map as your
destination. You may scroll the map
by pressing your index finger on the
map display. When you reach the
desired location, simply let go and
then touch
Set as Dest.
Set as Waypoint
Touch this button to set the current
location as a waypoint.
Save to Favorites
Touch this button to save the current
location to your favorites.
POI Icons
Touch this button to select icons to
display on the map. You can select up
to three icons to display on the map
at the same time. Turn these
ON or
OFF.
422
MKZ (CC9) MyLincoln Touch
™E142648 E142649 E142650 E142651 E142652 E142653 E142654 E142655
