2013 LINCOLN MKZ HYBRID Owners Manual

3.
While holding the shoulder and lap
belt portions together, route the
tongue through the child seat
according to the child seat
manufacturer's instructions. Be
sure the belt webbing is not
twisted. 4. Insert the belt tongue into the
proper buckle (the buckle closest
to the direction the tongue is
coming from) for that seating
position until you hear a snap and
feel the latch engage. Make sure
the tongue is latched securely by
pulling on it. 5. To put the retractor in the
automatic locking mode, grasp the
shoulder portion of the belt and
pull downward until all of the belt
is pulled out.
Note: The automatic locking mode is
available on the front passenger and
rear seats.
6. Allow the belt to retract to remove
slack. The belt will click as it
retracts to indicate it is in the
automatic locking mode.
7. Try to pull the belt out of the retractor to make sure the
retractor is in the automatic
locking mode (you should not be
able to pull more belt out). If the
retractor is not locked, unbuckle
the belt and repeat Steps 5 and 6. 23
MKZ (CC9) Child SafetyE142530 E142531 E142875 E142533

8.
Remove remaining slack from the
belt. Force the seat down with
extra weight, for example, by
pressing down or kneeling on the
child restraint while pulling up on
the shoulder belt in order to force
slack from the belt. This is
necessary to remove the remaining
slack that will exist once the extra
weight of the child is added to the
child restraint. It also helps to
achieve the proper snugness of the
child seat to your vehicle.
Sometimes, a slight lean toward
the buckle will provide extra help
to remove remaining slack from
the belt.
9. Attach the tether strap (if the child
seat is equipped). 10. Before placing the child in the
seat, forcibly move the seat
forward and back to make sure
the seat is securely held in place.
To check this, grab the seat at the
belt path and attempt to move it
side to side and forward and
back. There should be no more
than 1 inch (2.5 centimeters) of
movement for proper installation. Ford recommends checking with a
NHTSA Certified Child Passenger
Safety Technician to make certain the
child restraint is properly installed. In
Canada, check with your local St. John
Ambulance office for referral to a
Certified Passenger Seat Technician.
Inflatable safety belts
1. Position the child safety seat in a
seat with a combination lap and
shoulder belt. 2. After positioning the child safety
seat in the proper seating position,
grasp the shoulder belt and lap
belt together behind the belt
tongue.
24
MKZ (CC9) Child SafetyE142534 E142528 E146522

3.
While holding the shoulder and lap
belt portions together, route the
tongue through the child seat
according to the child seat
manufacturer's instructions. Be
sure the belt webbing is not
twisted. 4. Insert the belt tongue into the
proper buckle (the buckle closest
to the direction the tongue is
coming from) for that seating
position until you hear a snap and
feel the latch engage. Make sure
the tongue is latched securely by
pulling on it. 5. To put the retractor in the
automatic locking mode, grasp the
grasp the lap portion of the
inflatable safety belt and pull
upward until all of the belt is pulled
out.
Note: The automatic locking mode is
available on the front passenger and
rear seats.
Note: Unlike the standard safety belt,
the inflatable safety belt's unique lap
portion locks the child seat for
installation. The ability for the shoulder
portion of the belt to move freely is
normal, even after the lap belt has
been put into the automatic locking
mode.
6. Allow the belt to retract to remove
slack. The belt will click as it
retracts to indicate it is in the
automatic locking mode.
7. Try to pull the belt out of the retractor to make sure the
retractor is in the automatic
locking mode (you should not be
able to pull more belt out). If the
retractor is not locked, unbuckle
the belt and repeat Steps 5 and 6.
25
MKZ (CC9) Child SafetyE142530 E146523 E146524

8.
Remove remaining slack from the
belt. Force the seat down with
extra weight, for example, by
pressing down or kneeling on the
child restraint while pulling down
on the lap belt in order to force
slack from the belt. This is
necessary to remove the remaining
slack that will exist once the extra
weight of the child is added to the
child restraint. It also helps to
achieve the proper snugness of the
child seat to your vehicle.
Sometimes, a slight lean toward
the buckle will additionally help to
remove remaining slack from the
belt.
9. Attach the tether strap (if the child
seat is equipped). 10. Before placing the child in the
seat, forcibly move the seat
forward and back to make sure
the seat is securely held in place.
To check this, grab the seat at the
belt path and attempt to move it
side to side and forward and
back. There should be no more
than 1 inch (2.5 centimeters) of
movement for proper installation.
Ford recommends checking with a
NHTSA Certified Child Passenger
Safety Technician to make certain the
child restraint is properly installed. In
Canada, check with your local St. John
Ambulance office for referral to a
Certified Passenger Seat Technician.
Using Lower Anchors and
Tethers for CHildren (LATCH) WARNINGS
Never attach two child safety
seats to the same anchor. In a
collision, one anchor may not be
strong enough to hold two child safety
seat attachments and may break,
causing serious injury or death. Depending on where you secure
a child restraint, and depending
on the child restraint design, you may
block access to certain safety belt
buckle assemblies or LATCH lower
anchors, rendering those features
potentially unusable. To avoid risk of
injury, occupants should only use
seating positions where they are able
to be properly restrained. 26
MKZ (CC9) Child SafetyE146525 E142534

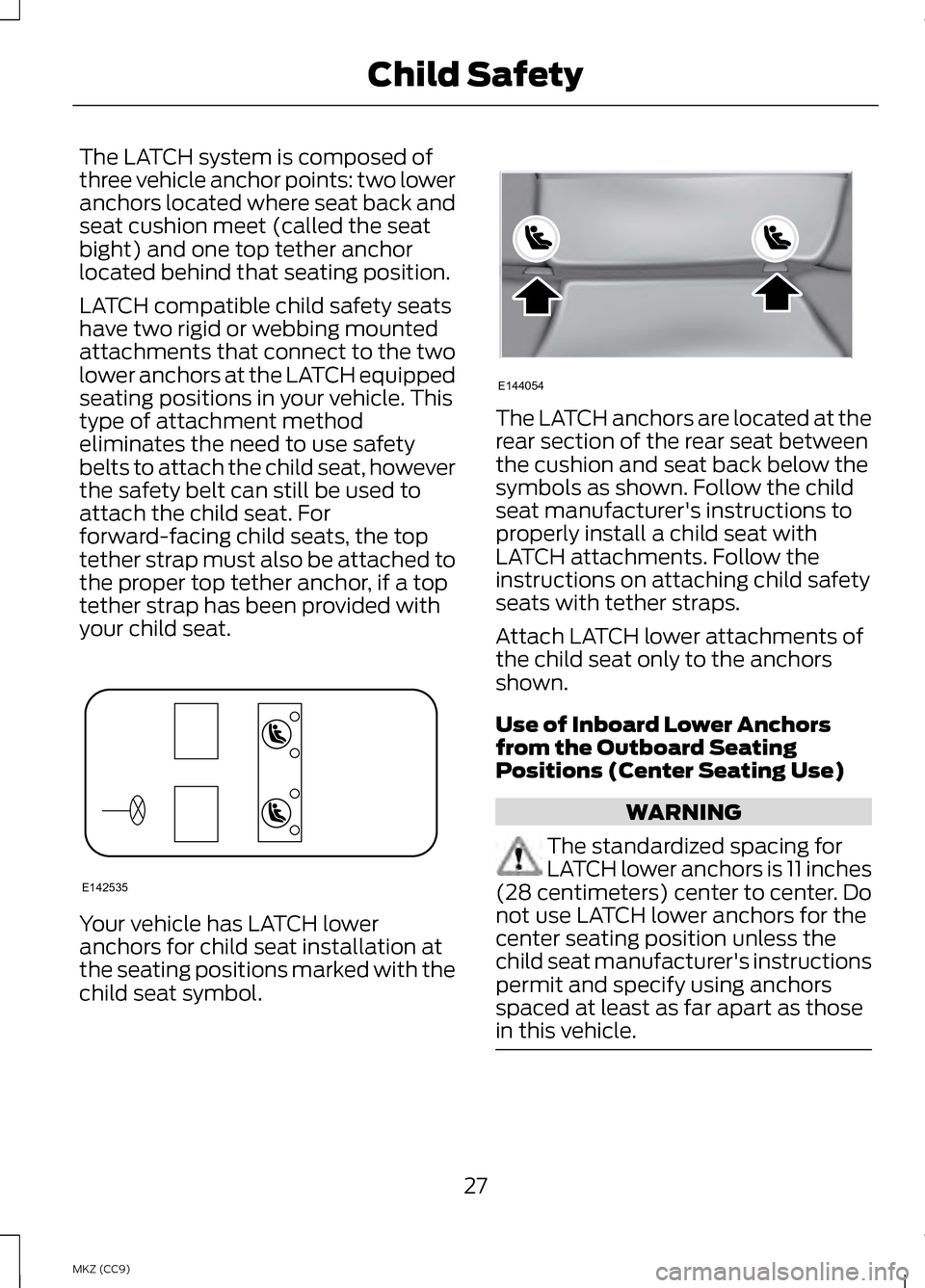

The LATCH system is composed of
three vehicle anchor points: two lower
anchors located where seat back and
seat cushion meet (called the seat
bight) and one top tether anchor
located behind that seating position.
LATCH compatible child safety seats
have two rigid or webbing mounted
attachments that connect to the two
lower anchors at the LATCH equipped
seating positions in your vehicle. This
type of attachment method
eliminates the need to use safety
belts to attach the child seat, however
the safety belt can still be used to
attach the child seat. For
forward-facing child seats, the top
tether strap must also be attached to
the proper top tether anchor, if a top
tether strap has been provided with
your child seat.
Your vehicle has LATCH lower
anchors for child seat installation at
the seating positions marked with the
child seat symbol. The LATCH anchors are located at the
rear section of the rear seat between
the cushion and seat back below the
symbols as shown. Follow the child
seat manufacturer's instructions to
properly install a child seat with
LATCH attachments. Follow the
instructions on attaching child safety
seats with tether straps.
Attach LATCH lower attachments of
the child seat only to the anchors
shown.
Use of Inboard Lower Anchors
from the Outboard Seating
Positions (Center Seating Use)
WARNING
The standardized spacing for
LATCH lower anchors is 11 inches
(28 centimeters) center to center. Do
not use LATCH lower anchors for the
center seating position unless the
child seat manufacturer's instructions
permit and specify using anchors
spaced at least as far apart as those
in this vehicle. 27
MKZ (CC9) Child SafetyE142535 E144054

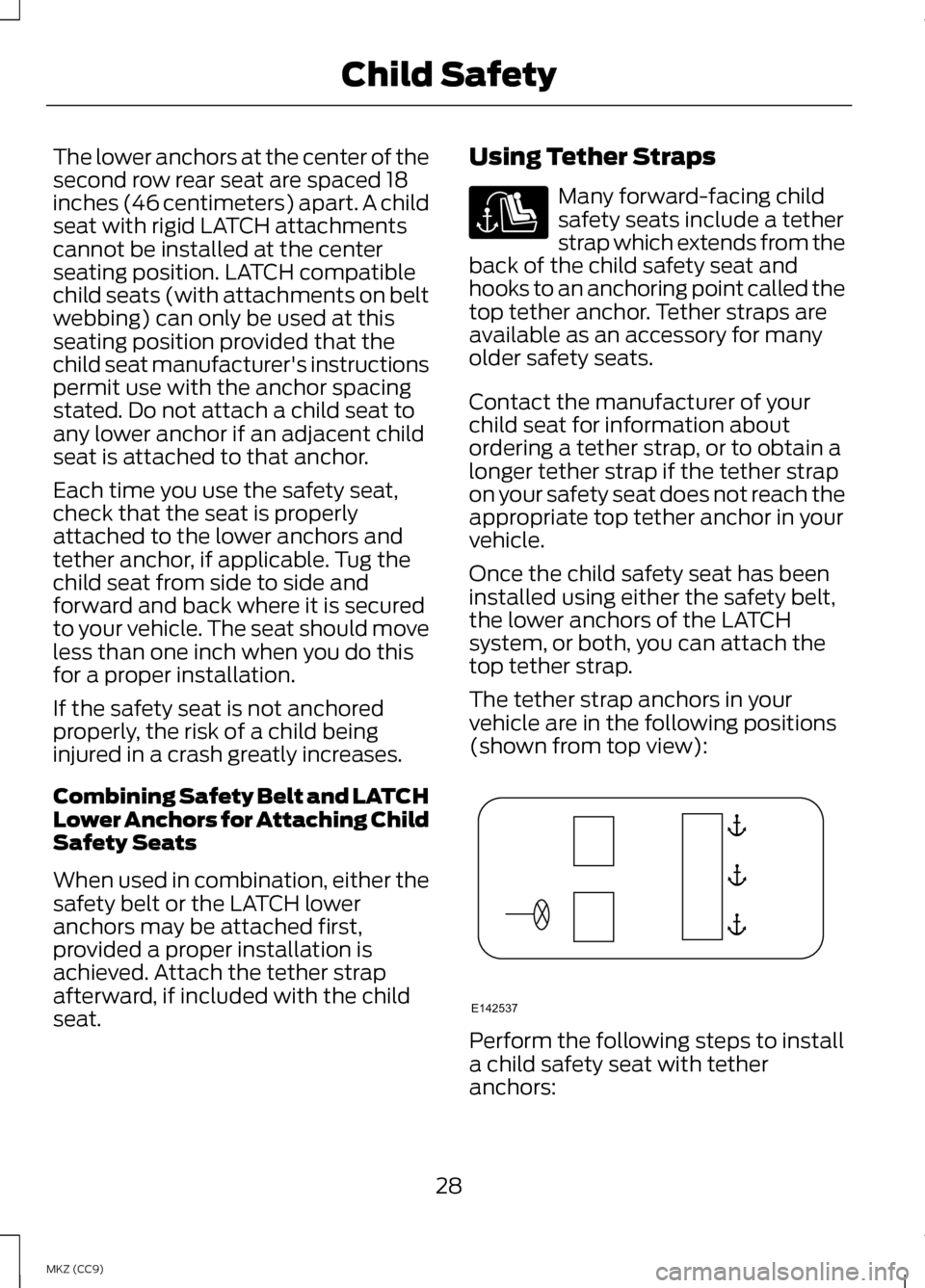

The lower anchors at the center of the
second row rear seat are spaced 18
inches (46 centimeters) apart. A child
seat with rigid LATCH attachments
cannot be installed at the center
seating position. LATCH compatible
child seats (with attachments on belt
webbing) can only be used at this
seating position provided that the
child seat manufacturer's instructions
permit use with the anchor spacing
stated. Do not attach a child seat to
any lower anchor if an adjacent child
seat is attached to that anchor.
Each time you use the safety seat,
check that the seat is properly
attached to the lower anchors and
tether anchor, if applicable. Tug the
child seat from side to side and
forward and back where it is secured
to your vehicle. The seat should move
less than one inch when you do this
for a proper installation.
If the safety seat is not anchored
properly, the risk of a child being
injured in a crash greatly increases.
Combining Safety Belt and LATCH
Lower Anchors for Attaching Child
Safety Seats
When used in combination, either the
safety belt or the LATCH lower
anchors may be attached first,
provided a proper installation is
achieved. Attach the tether strap
afterward, if included with the child
seat.
Using Tether Straps Many forward-facing child
safety seats include a tether
strap which extends from the
back of the child safety seat and
hooks to an anchoring point called the
top tether anchor. Tether straps are
available as an accessory for many
older safety seats.
Contact the manufacturer of your
child seat for information about
ordering a tether strap, or to obtain a
longer tether strap if the tether strap
on your safety seat does not reach the
appropriate top tether anchor in your
vehicle.
Once the child safety seat has been
installed using either the safety belt,
the lower anchors of the LATCH
system, or both, you can attach the
top tether strap.
The tether strap anchors in your
vehicle are in the following positions
(shown from top view): Perform the following steps to install
a child safety seat with tether
anchors:
28
MKZ (CC9) Child Safety E142537

Note:
If you install a child seat with
rigid LATCH attachments, do not
tighten the tether strap enough to lift
the child seat off your vehicle seat
cushion when the child is seated in it.
Keep the tether strap just snug without
lifting the front of the child seat.
Keeping the child seat just touching
your vehicle seat gives the best
protection in a severe crash.
1. Route the child safety seat tether strap over the back of the seat. For
outboard seating positions, route
the tether strap under the head
restraint and between the head
restraint posts. For the center
seating positions, route the tether
strap over the top of the head
restraint. If needed, the head
restraints can also be removed. 2. Locate the correct anchor for the
selected seating position, then
open the tether anchor cover. 3.
Clip the tether strap to the anchor
as shown.
4. Tighten the child safety seat tether
strap according to the
manufacturer's instructions.
If your child restraint system is
equipped with a tether strap, and the
child restraint manufacturer
recommends its use, Ford also
recommends its use.
CHILD SAFETY LOCKS
When these locks are set, the rear
doors cannot be opened from the
inside. The childproof locks are located on
the rear edge of each rear door and
must be set separately for each door.
Left-Hand Side
Turn counterclockwise to lock and
clockwise to unlock.
29
MKZ (CC9) Child SafetyE144274 E144275 E112197

Right-Hand Side
Turn clockwise to lock and
counterclockwise to unlock.
30
MKZ (CC9) Child Safety
