■Wide view front & side monitor cameras
In the following cases, it may be difficult to see images on the screen even when the
system is functioning correctly:
●The vehicle is in a dark area, such as at night.
●The temperature near the lens is extremely high or low.
●Water droplets are on the camera lens or humidity is high, such as when it rains.
●Foreign matter, such as snow and mud, adheres to the camera lens.
●The camera has scratches or dirt on it.
●The sun or headlights are shining directly into the camera lens.
●The camera lens is damaged by flying stones.Side camera
Front camera
GX460_OM_OM60J63U_(U).book Page 296 Thursday, March 29, 2012 9:10 AM

297
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■Smear effect
■Flicker effect
When the camera is used under fluorescent lights, sodium lights, mercury lights
etc., the lights and the illuminated areas may appear to flicker.
CAUTION
■When using the wide view front & side monitor system
Observe the following precautions to avoid an accident that could result in death or
serious injuries.
●Never depend solely on the monitor system.
●Always check visually and with the mirrors to confirm your intended path is clear.
●Depicted distances between objects and flat surfaces differ from actual dis-
tances.
●Do not use the system if the hood or doors are open.
If a bright light, such as sunlight reflected off
the vehicle body, is picked up by the camera,
a smear effect
* characteristic to the camera
may occur.
*: Smear effect  A phenomenon that
occurs when a bright light is picked up by
the camera; when transmitted by the cam-
era, the light source will appear to have
streaks of light emanating from it. The
streaks will also appear when the light
source is in the masked area.
GX460_OM_OM60J63U_(U).book Page 297 Thursday, March 29, 2012 9:10 AM

298
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
CAUTION
■Conditions which may affect the wide view front & side monitor system
●If the front of the vehicle or the passenger side outside rear view mirror has been
hit, the camera’s position and mounting angle may have changed. Have the vehi-
cle inspected by your Lexus dealer.
●As the camera has a water proof construction, do not detach, disassemble or
modify it. This may cause incorrect operation.
●Rapid temperature changes, such as when hot water is poured on the vehicle in
cold weather, may cause the system to function abnormally.
●If the camera lens is dirty, it cannot transmit a clear image. Rinse with water and
wipe with a soft cloth. If the camera lens is extremely dirty, wash with a mild
cleanser and rinse.
●Do not strongly rub the camera lens. If the camera lens is scratched, it cannot
transmit a clear image.
●Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to
the camera. If this happens, wipe it off as soon as possible.
●The displayed image may be darker and moving images may be slightly distorted
when the system is cold.
●Situations unsuitable for wide view front & side monitor
• On icy or slick road surfaces, or in snow.
• When using tire chains or emergency tires.
• On roads that are not flat or straight, such as curves or slopes.
●When washing the vehicle, do not apply intensive bursts of water to the camera
or camera area. Doing so may result in the camera malfunctioning.
GX460_OM_OM60J63U_(U).book Page 298 Thursday, March 29, 2012 9:10 AM

299
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)

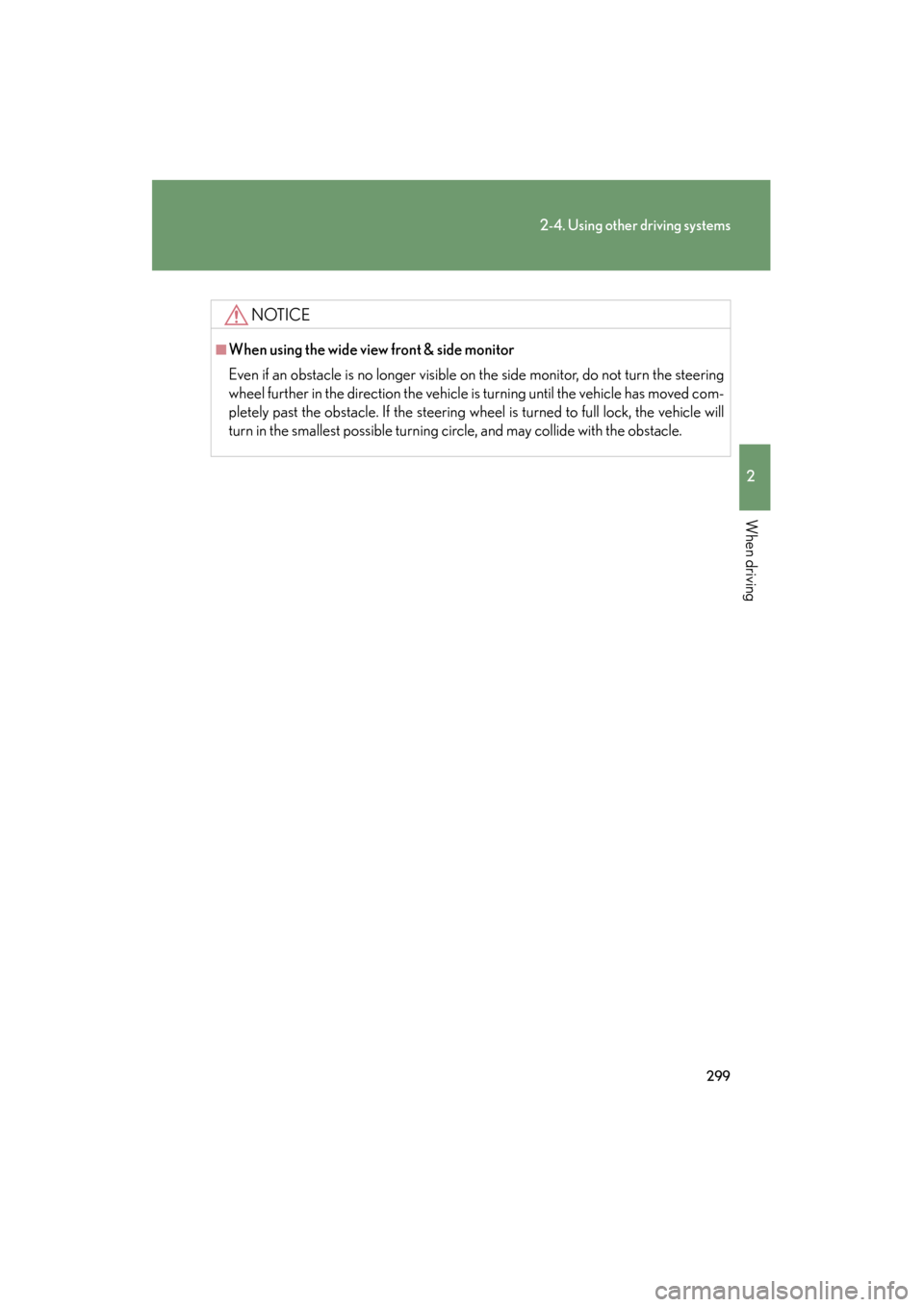

NOTICE
■When using the wide view front & side monitor
Even if an obstacle is no longer visible on the side monitor, do not turn the steering
wheel further in the direction the vehicle is turning until the vehicle has moved com-
pletely past the obstacle. If the steering wheel is turned to full lock, the vehicle will
turn in the smallest possible turning circle, and may collide with the obstacle.
GX460_OM_OM60J63U_(U).book Page 299 Thursday, March 29, 2012 9:10 AM

300
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
Multi-terrain Select∗
∗: If equipped
Multi-terrain Select is a system that helps drivability in off-road situations.
Select a mode that most closely matches the type of terrain on
which you are driving from among 4 modes.
Engine control and brake control can be optimized in accordance
with the selected mode.
Menu switch
“ENTER” switch
Multi-information display
Displays status information
including operating status
and road type selection.
Multi-terrain Select indicator
GX460_OM_OM60J63U_(U).book Page 300 Thursday, March 29, 2012 9:10 AM

301
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
■Selectable modes
A mode which matches the road conditions can be selected from
among the following 4 modes.
■ Switching modes
Push the menu switch.
The multi-information display
will change to electronic fea-
tures control mode.
ModeRoad Conditions
MUD & SANDSuitable for muddy roads, sandy roads, snow-covered
roads, dirt trails and other slippery or dirty conditions
LO OS E ROCKSuitable for slippery conditions consisting of mixtures of
earth and loose rock
MOGULSuitable for a wide range of off-road conditions, particu-
larly very bumpy conditions
ROCKSuitable for rocky terrain
STEP1
GX460_OM_OM60J63U_(U).book Page 301 Thursday, March 29, 2012 9:10 AM

302
2-4. Using other driving systems
GX460_OM_OM60J63U_(U)
Press the “ENTER” switch
upwards or downwards until
“MULTI-TERRAIN SELECT”
appears and then press the
“ENTER” switch.
The mode selection screen is
displayed.
Press the “ENTER” switch
upwards or downwards to
select a desired mode and then
press the “ENTER” switch.
The system switches to the
selected mode, and the multi-
terrain select indicator will turn
on.
Once the mode has been set,
the mode name will be dis-
played and operation will com-
mence.
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 302 Thursday, March 29, 2012 9:10 AM

303
2-4. Using other driving systems
2
When driving
GX460_OM_OM60J63U_(U)
Statement on the multi-information display
■ After mode selection
OFF
Turn the system off
MODE SELECTION
Change the mode (→P. 301)
CAM. POSITION
Switch the displayed image
when using the Multi-terrain
Monitor ( →P. 308)
DISP. GUIDANCE
Explain other necessary opera-
tions when selecting a mode
(→ P. 304)
Status
Display the status of the system
The displayed content may differ in
accordance with the system status.
GX460_OM_OM60J63U_(U).book Page 303 Thursday, March 29, 2012 9:10 AM
