2013 Lexus GX460 Owner's Manual

632
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
■Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:
●If recharging with the battery installed on the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the battery.
■After recharging/reconnecting the battery
●Unlocking the doors using the smart key system may not be possible immedi-
ately after reconnecting the battery. If this happens, use the wireless remote
control or the mechanical key to lock/unlock the doors.
●Start the engine with the “ENGINE START STOP” switch in ACCESSORY
mode. The engine may not start with the “ENGINE START STOP” switch
turned OFF. However, the engine will operate normally from the second
attempt.
●The “ENGINE START STOP” switch mode is recorded by the vehicle. If the bat-
tery is reconnected, the vehicle will return the “ENGINE START STOP” switch
mode to the status it was in before the battery was disconnected. Make sure to
turn off the engine before disconnect the battery. Take extra care when con-
necting the battery if the “ENGINE START STOP” switch mode prior to dis-
charge is unknown.
If the system will not start even after multiple attempts, contact your Lexus dealer.
GX460_OM_OM60J63U_(U).book Page 632 Thursday, March 29, 2012 9:10 AM

633
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)

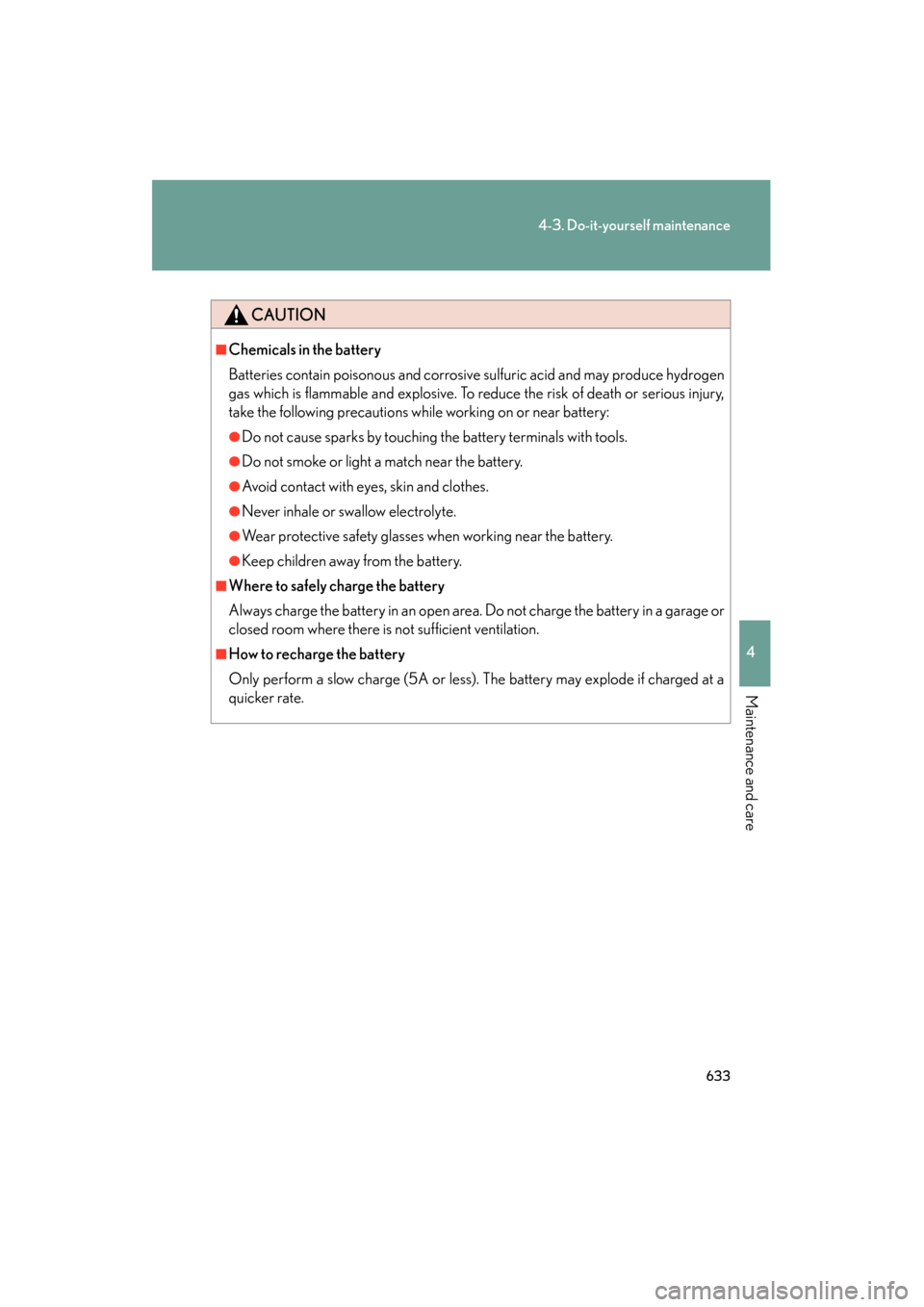

CAUTION
■Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce hydrogen
gas which is flammable and explosive. To reduce the risk of death or serious injury,
take the following precautions while working on or near battery:
●Do not cause sparks by touching the battery terminals with tools.
●Do not smoke or light a match near the battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the battery.
●Keep children away from the battery.
■Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a garage or
closed room where there is not sufficient ventilation.
■How to recharge the battery
Only perform a slow charge (5A or less). The battery may explode if charged at a
quicker rate.
GX460_OM_OM60J63U_(U).book Page 633 Thursday, March 29, 2012 9:10 AM

634
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
CAUTION
■Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and seek immediate med-
ical attention. If possible, continue to apply water with a sponge or cloth while
traveling to the nearest medical facility.
●If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or a burning sensation, seek
medical attention immediately.
●If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the clothing and
follow the procedure above if necessary.
●If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention imme-
diately.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
GX460_OM_OM60J63U_(U).book Page 634 Thursday, March 29, 2012 9:10 AM

635
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
Washer fluidIf any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
CAUTION
■When refilling the washer fluid
Do not refill the washer fluid when the engine is hot or running, as the washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.
GX460_OM_OM60J63U_(U).book Page 635 Thursday, March 29, 2012 9:10 AM

636
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
Tires
Replace or rotate tires in accordance with maintenance schedules and
treadwear.
■Checking tires
New tread
Treadwear indicator
Worn tread
The location of treadwear indi-
cators is shown by the “TWI” or
“∆ ” marks, etc., molded on the
sidewall of each tire.
Check spare tire condition and
pressure if not rotated.
■ Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and extend
tire life, Lexus recommends that
tire rotation is carried out at the
same interval as tire inspection.
■The tire pressure warning system
Your Lexus is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise. ( →P. 6 9 8 )
Front
GX460_OM_OM60J63U_(U).book Page 636 Thursday, March 29, 2012 9:10 AM

637
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and trans-
mitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
new ID codes must be registered in the tire pressure warning computer
and the tire pressure warning system must be initialized. Have tire pres-
sure warning valve and transmitter ID codes registered by your Lexus
dealer. ( →P. 6 3 7 )
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a unique
ID code. When replacing a tire pressure warning valve and transmitter, it
is necessary to register the ID code. Have the ID code registered by your
Lexus dealer.
GX460_OM_OM60J63U_(U).book Page 637 Thursday, March 29, 2012 9:10 AM

638
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
■When to replace your vehicle’s tires
Tires should be replaced if:
●You have tire damage such as cuts, splits, cracks deep enough to expose the
fabric or bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with your Lexus dealer.
■Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not registered,
the tire pressure warning system will not work properly. After driving for about 20
minutes, the tire pressure warning light come s on after blinking for 1 minute to indi-
cate a system malfunction.
■Tire lif e
Any tire over 6 years old must be checked by a qualified technician even if they
have seldom or never been used or damage is not obvious.
■If the tread on snow tires wears down below 0.16 in. (4 mm) on snow tires
The effectiveness of the tire as snow tires is lost.
■Maximum load of tire
Check that the number given by dividing the maximum load by 1.10 of the replace-
ment tire is greater than 1 /2 of the Gross Axle Weight Ratings (GAWR) of either
the front axle or the rear axle, whichever is greater.
For the GAWR, see the Certification Label.
For the maximum load of the tire, see the load
limit at maximum cold tire inflation pressure
mentioned on the sidewall of the tire.
(→ P. 7 74 )
GX460_OM_OM60J63U_(U).book Page 638 Thursday, March 29, 2012 9:10 AM

639
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
’■Tire types
1 Summer tiresSummer tires are high-speed performance tires best suited to highway driving
under dry conditions. Since summer tires do not have the same traction perfor-
mance as snow tires, summer tires are inadequate for driving on snow-covered
or icy roads. For driving on snow-covered roads or icy roads, the use of snow tires
is recommended. When installing snow tires, be sure to replace all four tires.
2 All season tires All season tires are designed to provide better traction in snow and to be ade-
quate for driving in most winter conditions, as well as for use year round. All sea-
son tires, however, do not have adequate traction performance compared with
snow tires in heavy or loose snow. Also, all season tires fall short in acceleration
and handling performance compared wi th summer tires in highway driving.
3Snow tires For driving on snow-covered roads or icy roads, we recommend using snow tires.
If you need snow tires, select tires of the same size, construction and load capac-
ity as the originally installed tires. Since your vehicle has radial tires as original
equipment, make sure your snow tires also have radial construction. Do not install
studded tires without first checking lo cal regulations for possible restriction.
Snow tires should be installed on all wheels. ( →P. 3 7 1 )
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
GX460_OM_OM60J63U_(U).book Page 639 Thursday, March 29, 2012 9:10 AM
