2013 Lexus GX460 Owner's Manual

568
3-7. Other interior features
GX460_OM_OM60J63U_(U)

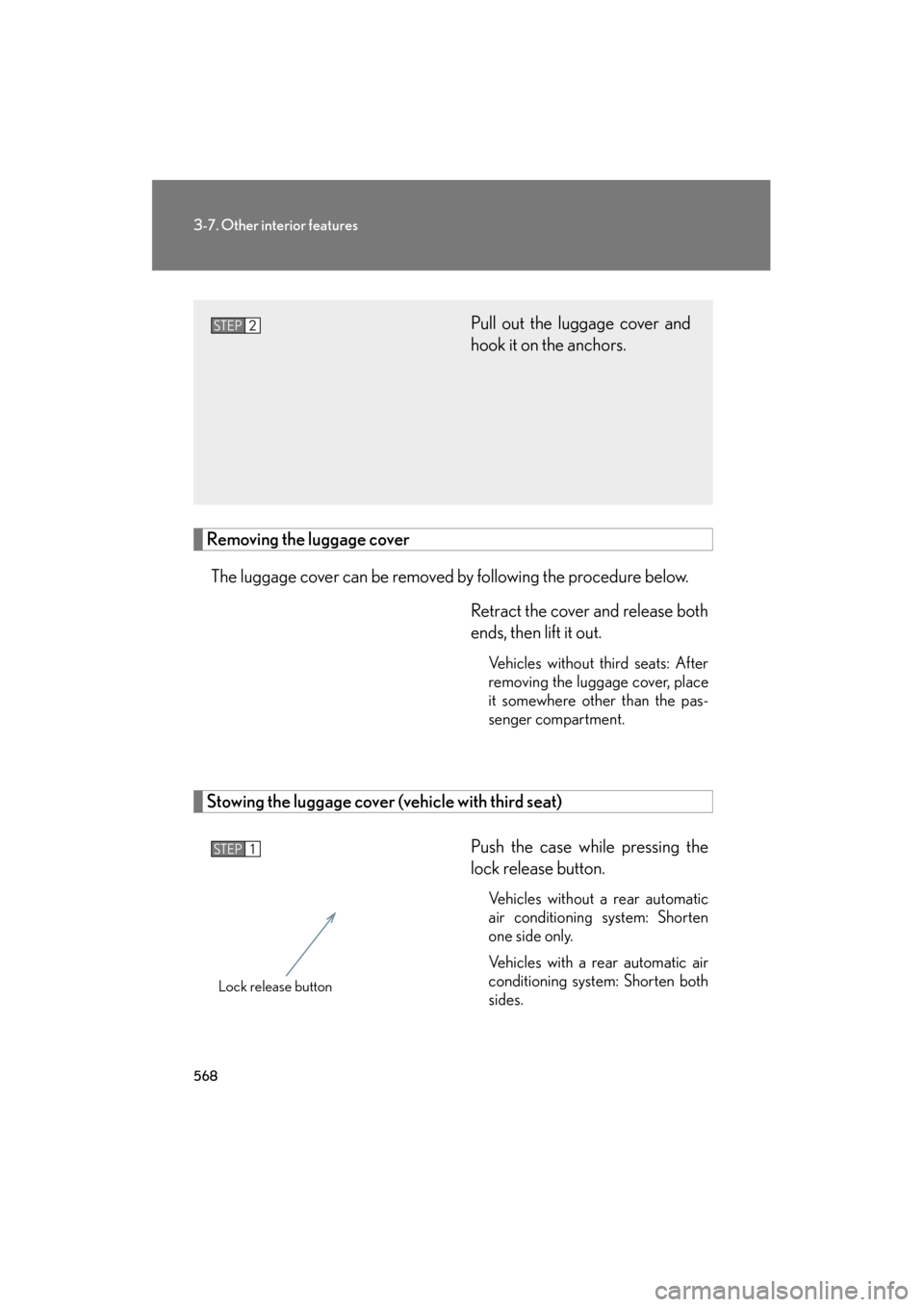

Removing the luggage coverThe luggage cover can be removed by following the procedure below. Retract the cover and release both
ends, then lift it out.
Vehicles without third seats: After
removing the luggage cover, place
it somewhere other than the pas-
senger compartment.
Stowing the luggage cover (vehicle with third seat)
Push the case while pressing the
lock release button.
Vehicles without a rear automatic
air conditioning system: Shorten
one side only.
Vehicles with a rear automatic air
conditioning system: Shorten both
sides.
Pull out the luggage cover and
hook it on the anchors.STEP2
STEP1
Lock release button
GX460_OM_OM60J63U_(U).book Page 568 Thursday, March 29, 2012 9:10 AM

569
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)Push the case until it locks.
Check that the lock release button
can be seen.
Vehicles without a rear automatic
air conditioning system: Shorten
one side only.
Vehicles with a rear automatic air
conditioning system: Shorten both
sides.
Secure the luggage cover with lug-
gage cover restraining bands.
Check that luggage cover and lug-
gage cover restraining bands are
secured.
Fold over the cover and the sub
cover.
STEP2
Lock release button
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 569 Thursday, March 29, 2012 9:10 AM

570
3-7. Other interior features
GX460_OM_OM60J63U_(U)Stow the hooks.
Fold over the sub cover.
Extending the case
Push the lock release button.
STEP5
STEP6
STEP1
Lock release button
GX460_OM_OM60J63U_(U).book Page 570 Thursday, March 29, 2012 9:10 AM

571
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)Pull the case until it locks.
Check that the lock release button
can be seen.
STEP2
Lock release button
■Adjusting the sub cover (vehicles with third seats)
Fasten the button when the second seats are
in the rear-most position.
Unfasten the buttons before sliding the sec-
ond seats forward.
GX460_OM_OM60J63U_(U).book Page 571 Thursday, March 29, 2012 9:10 AM

572
3-7. Other interior features
GX460_OM_OM60J63U_(U)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■Caution while driving
●Keep the auxiliary box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by an open auxiliary
box or the items stored inside.
●Keep the both sides of the luggage cover case locked. Otherwise, the luggage
cover may fly out in case of the sudden braking, sudden serving or an accident,
resulting in death or serious injury. (vehicles without third seats)
●When stowing the luggage cover in the luggage compartment, use the luggage
cover restraining bands to secure the left and right sides of the luggage cover.
Otherwise, the luggage cover may fly out in case of the sudden braking, sudden
serving or an accident, resulting in death or serious injury. (vehicles without third
seats)
■Caution for the luggage cover
Do not allow children to climb on the luggage cover. Climbing on the luggage
cover could result in damage to the luggage cover, possibly causing death or seri-
ous injury to the child.
GX460_OM_OM60J63U_(U).book Page 572 Thursday, March 29, 2012 9:10 AM

573
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)
NOTICE
■To prevent damage to the luggage cover (vehicles without third seats)
●When stowing the luggage cover, do not put luggage on the luggage cover.
●Do not use the luggage cover restraining bands for anything other than securing
the luggage cover.
●Do not insert coins etc. into the area shown
in the illustration.
GX460_OM_OM60J63U_(U).book Page 573 Thursday, March 29, 2012 9:10 AM

574
3-7. Other interior features
GX460_OM_OM60J63U_(U)
Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufactured
under license from HomeLink®.
Programming HomeLink® (for U.S. owners)
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
GX460_OM_OM60J63U_(U).book Page 574 Thursday, March 29, 2012 9:10 AM

575
3-7. Other interior features
3
Interior features
GX460_OM_OM60J63U_(U)■
Programming HomeLink
®
Point the remote control transmit-
ter for the device 1 in. (25 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator
light in view while programming.
Press and hold one of the
HomeLink® buttons and the trans-
mitter button. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both buttons.
If the HomeLink® indicator light
comes on but does not flash, or
flashes rapidly for 2 seconds and
remains lit, the HomeLink
® button
is already programmed. Use the
other buttons or follow the “Repro-
gramming a HomeLink
® button”
instructions. ( →P. 5 7 9 )
STEP1
STEP2
