2013 Lancia Ypsilon Owner handbook (in English)

To cancel the setting, proceed as follows:
❒briefly press the
button: "On" will flash on
the display;
❒press button: "Off" will flash on the
display;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
Headlight sensor (automatic headlights/dusk
sensor sensitivity adjustment)(for versions/
markets, where provided)
This function is used to turn the headlights on or
off according to external light conditions.
The dusk sensor sensitivity can be adjusted
according to 3 levels (level 1 = minimum
sensitivity, level 2 = average sensitivity, level 3 =
maximum sensitivity); the greater the sensitivity
set, the less the external light variation needed
to turn on the lights (e.g. with a setting on level 3
at sunset the headlights switch on earlier in
relation to levels 1 and 2).
Proceed as follows to set:
❒press thebutton briefly; the previously set
level will flash on the display;
❒press theor
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.Rain sensor (Rain sensor sensitivity
adjustment)(for versions/markets, where
provided)
This function allows you to adjust the rain sensor
sensitivity to 4 levels.
To set the required sensitivity level, proceed as
follows:
❒briefly press the
button: the previously set
sensitivity “level” flashes on the display;
❒press the
or
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
13GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Activation/Trip B data (Activating Trip B)
With this function it is possible to activate ("On")
or deactivate ("Off") the Trip B display (trip
meter). For more information see the "Trip
computer" paragraph.
For activation/deactivation, proceed as follows:
❒press the
button briefly to make the display
flash On or Off according to the previous
setting;
❒press theor
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
Time adjustment (Clock adjustment)
This function enables the clock to be set through
two submenus: “Time” and “Format”.
To carry out the adjustment, proceed as follows:
❒briefly press the button
: the display will show
the two submenus "Time" and "Format";
❒press the button
or
to switch between
the two submenus;
❒once you have selected the submenu to be
changed, press the buttonbriefly;
❒when you select “Time”, pressing
briefly
makes the "hours" flash on the display; press
the
or
button to make the adjustment;❒briefly press the
button, which makes the
display flash the "minutes"; press the
or
button to make the adjustment;
❒if you select the "Format" submenu, pressing
thebutton briefly makes the display mode
flash on the display. Press the
or
button
to select "12h" or "24h" mode. When you
have carried out the required settings, briefly
press the
button to go back to the submenu
screen or hold the button down to go back
to the main menu screen without storing the
new settings.
Hold down the
button again to return to the
standard screen or to the main menu according to
where you are in the menu.
IMPORTANT The setting will increase or decrease
by one unit each time the button
or
is
pressed. Keeping the button pressed causes an
automatic rapid speed increase/decrease.
Complete the setting by briefly pressing the button
when you approach the required value.
14GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Set date (Setting the date)
Using this function it is possible to update the date
(year - month - day).
To carry out the adjustment, proceed as follows:
❒briefly press the
button: the year will flash on
the display;
❒press the
or
button to make the
adjustment;
❒briefly press
: the “month” will flash on the
display;
❒press theor
button to make the
adjustment;
❒briefly press thebutton: the day will flash on
the display;
❒press the
or
button to make the
adjustment;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
IMPORTANT The setting will increase or decrease
by one unit each time the button
or
is
pressed. Keeping the button pressed causes an
automatic rapid speed increase/decrease.
Complete the setting by briefly pressing the button
when you approach the required value.First page (display of information on the main
screen)(for versions/markets, where provided)
This function allows you to choose the information
you would like to display on the main screen.
You can view the date or the trip distance.
To carry out the adjustment, proceed as follows:
❒briefly press the
button: "First page" will
appear on the display;
❒press the
button again briefly to display the
"Date" and "Trip distance" options;
❒briefly press
: the "Month" will flash on the
display;
❒press
or
to select the information you
wish to see on the main page of the display;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
When the key is turned to MAR and the initial
check stage is over, the display will show the
information selected via the "First page" menu
function.
15GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

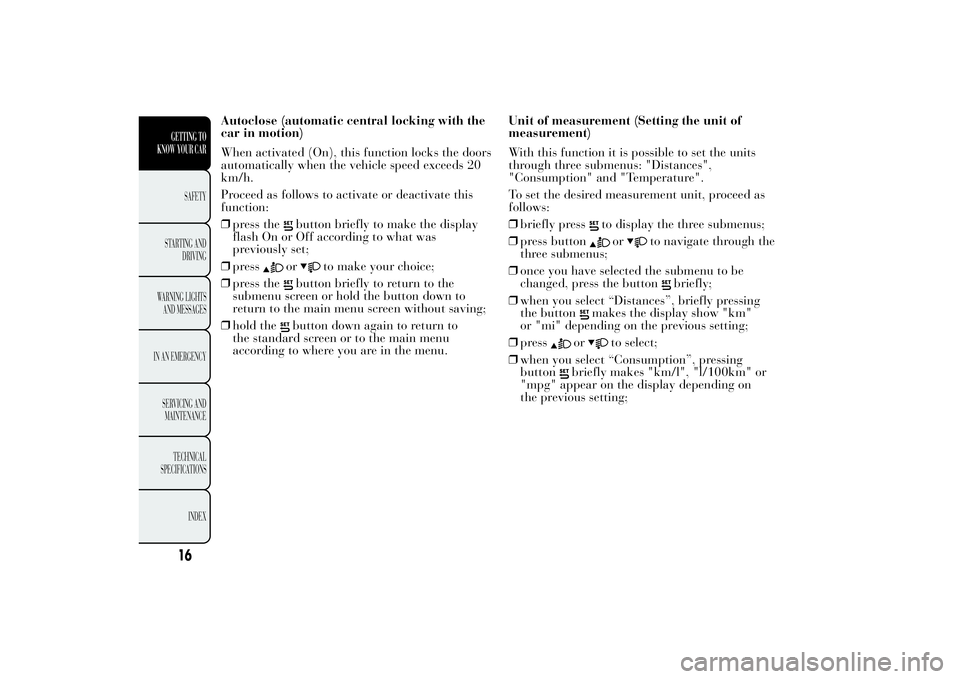

Autoclose (automatic central locking with the
car in motion)
When activated (On), this function locks the doors
automatically when the vehicle speed exceeds 20
km/h.
Proceed as follows to activate or deactivate this
function:
❒press the
button briefly to make the display
flash On or Off according to what was
previously set;
❒pressor
to make your choice;
❒press the
button briefly to return to the
submenu screen or hold the button down to
return to the main menu screen without saving;
❒hold thebutton down again to return to
the standard screen or to the main menu
according to where you are in the menu.Unit of measurement (Setting the unit of
measurement)
With this function it is possible to set the units
through three submenus: "Distances",
"Consumption" and "Temperature".
To set the desired measurement unit, proceed as
follows:
❒briefly press
to display the three submenus;
❒press buttonor
to navigate through the
three submenus;
❒once you have selected the submenu to be
changed, press the button
briefly;
❒when you select “Distances”, briefly pressing
the button
makes the display show "km"
or "mi" depending on the previous setting;
❒press
or
to select;
❒when you select “Consumption”, pressing
button
briefly makes "km/l", "l/100km" or
"mpg" appear on the display depending on
the previous setting;
16GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

If the set distance unit is "km", the fuel
consumption unit will be displayed in km/l or
l/100 km. If the distance unit of measurement
stored is "mi," the display shows the amount of
fuel consumed in "mpg".
❒press
or
to make your choice;
❒when you select “Temperature”, pressing the
button
briefly makes "°C" or "°F" appear
on the display depending on the previous
setting;
❒pressor
to make your choice;
Once the required settings are made, briefly press
button
to go back to the submenu screen or
hold the button down to return to the main menu
screen without storing.
Hold down the
button again to return to the
standard screen or to the main menu according to
where you are in the menu.Language (Language selection)
Display messages can be shown in the following
languages: Italian, English, German, Portuguese,
Spanish, French, Dutch, Polish. Turkish and
Brazilian.
To set the desired language, proceed as follows:
❒briefly press the button
: the previously set
language starts flashing on the display;
❒press
or
to make your choice;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
17GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Warnings volume (Adjusting the alert/warning
acoustic signal volume)
With this function the volume of the buzzer which
accompanies the display of any failure/warning
can be adjusted according to 8 levels.
To set the desired volume, proceed as follows:
❒press the
button briefly, making the display
flash the previously set volume level;
❒pressor
to make your choice;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.Button volume (Adjusting the button volume)
With this function it is possible to adjust (to eight
levels) the volume of the acoustic signal emitted
when the
button is held down to exit a submenu
and return to the standard menu
To set the desired volume, proceed as follows:
❒press thebutton briefly, making the display
flash the previously set volume level;
❒press the button
or
to adjust the
volume; an acoustic signal equal to the volume
level being selected is emitted during this
adjustment;
❒press the
button briefly to return to the menu
screen or give the button a long press to return
to the standard screen without storing.
On versions with reconfigurable multifunction
display, the volume level is represented by bars.
18GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Belt buzzer (Buzzer activation for SBR
indication)(for versions/markets, where
provided)
This function can only be displayed after a Lancia
Dealership has deactivated the SBR system (see
"SBR system" in the "Safety" chapter).
Service (Scheduled servicing)
Using this function you can display information
about the mileage or daily intervals for car
servicing. With the Service function it is also
possible to view the interval (in kilometres or
miles) before the next engine oil change is due.
To consult this display, proceed as follows:
❒briefly press the
button, which makes the
display show the service interval in kilometres
(km) or miles (mi) according to the previous
setting (see "Distance units of measurement"
paragraph);
❒briefly press button
to return to the menu
screen or hold it down to return to the standard
screen.NoteThe "Scheduled Servicing Plan" requires the
car to be serviced every 30,000 km (or 18,000
miles). This is automatically displayed, when the
ignition key is turned to MAR, from 2,000 km
(or the equivalent in miles) and reappears every
200 km (or the equivalent in miles). Below 200
km servicing indications are more frequent. The
display will be in kilometres or miles depending
on the measurement unit settings. When the next
scheduled service is approaching, the message
"Service" will appear on the display, followed by
the number of kilometres or miles left, when
the key is turned to MAR. Contact a Lancia
Dealership where the operations of the "Scheduled
Servicing Plan" will be performed and the
message will be reset.
19GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Airbag/Passenger bag
(Activation/deactivation of passenger side
front airbag and side bag for chest/pelvis
protection - for versions/markets, where
provided)
This function allows the passenger airbag to be
activated / deactivated.
Proceed as follows:
❒press the
button and, after the message "Bag
pass: Off" (to deactivate) or "Bag pass: On" (to
activate) is displayed by pressing buttons
and
, press the
button again;
❒a confirmation request message will appear on
the display;
❒by pressing the
or
buttons select "Yes"
(to confirm activation/deactivation) or "No"
(to cancel);
❒press the
button briefly; a message confirming
the selection is displayed and you return to the
menu screen; Hold down the button to return to
the standard screen without storing.Exit Menu
This function closes the cycle of settings listed in
the menu screen. Pressing the
button briefly will
return the display to the standard screen without
storing. Press button
to return to the first
menu item (Speed Beep).
20GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
