2013 HONDA PILOT Owners Manual

304
uuBluetooth® HandsFreeLink®uHFL Menus
Features
Display a list of all 20 speed dial entries.
Send numbers or names during a call.
Mute your voice during a call.
Transfer a call from HFL to your phone, or from your phone to HFL.
“Dial”
“Dial Tones”
“Dial”
“Mute”
“Transfer”
The first four on the Cellular Phone screen.“Speed dial entries”
“One”
“Two”
“Three”
“Four”
“Phonebook”
“Call History”Display the last 30 incoming, outgoing, or missed calls.
Display the paired phone’s previously imported phonebook (or import a new one).
Press the (Pick-Up) button to display the Cellular Phone screen.
Press the (Talk) button each time you give a voice command.
“More Speed Dial”
Say a phone number to dial.

Continued305
uuBluetooth® HandsFreeLink®uHFL Menus
Features
■To pair a cell phone (when there is no
phone paired to the system)
1.Press the PHONE button or the button.
2.Rotate to select Yes. Press .
3.Put your cell phone in Discovery or Search
mode.
4.Select OK.
5.Select your phone in the list.
uSelect Phone Not Found? if your phone
is not found.
uRefer to your phone manual for
instructions on searching for a
Bluetoothr device.
6.Enter the 4-digit pairing code on your
phone when prompted to complete the
pairing process.
■Phone Setup1Phone Setup
Your Bluetooth-compatible phone must be paired to HFL before you can make and receive hands-free
calls.
You can control the HFL system using voice
commands.
2HFL Menus P. 303
The maximum range between your phone and
vehicle is about 30 feet (10 meters).
Phone Pairing Tips
•You cannot pair your phone while the vehicle is moving.
•Your phone must be in discovery or search mode
when pairing the phone. Refer to your phone’s manual.
•Up to six phones can be paired.
•Your phone’s battery may drain faster when it is
paired to HFL.•If your phone is not ready for pairing or not found
by the system within three minutes, the system will
time out and returns to idle.•The default pass-key “0000” is used until you
change the setting.
Pass-Key
You can change the pass-key setting.
2To change the Pass-key setting P. 307You can delete the paired phone.
2To delete a paired phone P. 308

uuBluetooth® HandsFreeLink®uHFL Menus
306
Features

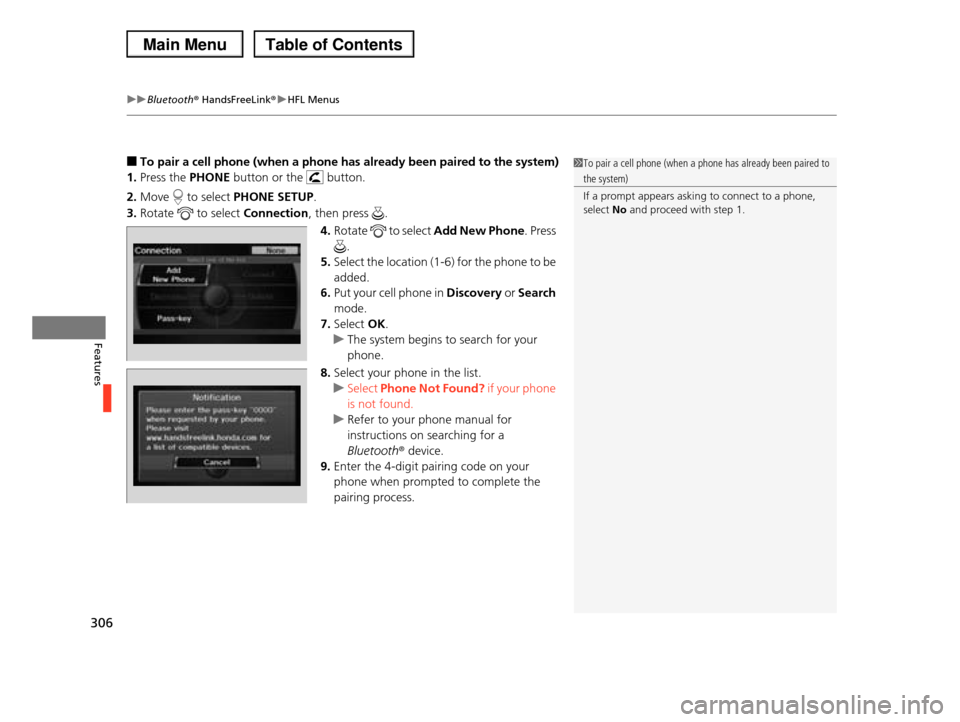

■To pair a cell phone (when a phone has already been paired to the system)
1.Press the PHONE button or the button.
2.Move to select PHONE SETUP.
3.Rotate to select Connection, then press .
4.Rotate to select Add New Phone. Press
.
5.Select the location (1-6) for the phone to be
added.
6.Put your cell phone in Discovery or Search
mode.
7.Select OK.
uThe system begins to search for your
phone.
8.Select your phone in the list.
uSelect Phone Not Found? if your phone
is not found.
uRefer to your phone manual for
instructions on searching for a
Bluetoothr device.
9.Enter the 4-digit pairing code on your
phone when prompted to complete the
pairing process.
1To pair a cell phone (when a phone has already been paired to
the system)
If a prompt appears asking to connect to a phone,
select No and proceed with step 1.

307
uuBluetooth® HandsFreeLink®uHFL Menus
Continued
Features
■To change the Pass-key setting
1.Press the PHONE button or the button.
2.Move to select PHONE SETUP.
3.Rotate to select Connection, then press .
4.Rotate to select Pass-Key. Press .
5.Rotate to select an item. Press .
The following items are available:
•Random: Uses a randomly generated pass-key.
•Fixed: Create your own pass-key.

308
uuBluetooth® HandsFreeLink®uHFL Menus
Features
6.If you select Fixed, move to select
DELETE to remove the current pass-key.
7.Enter a new pass-key. Move to select
OK.
■To delete a paired phone
1.Press the PHONE button or the button.
2.Move to select PHONE SETUP.
3.Rotate to select a Connection, then press .
4.Rotate to select Delete.

Continued309
uuBluetooth® HandsFreeLink®uHFL Menus
Features

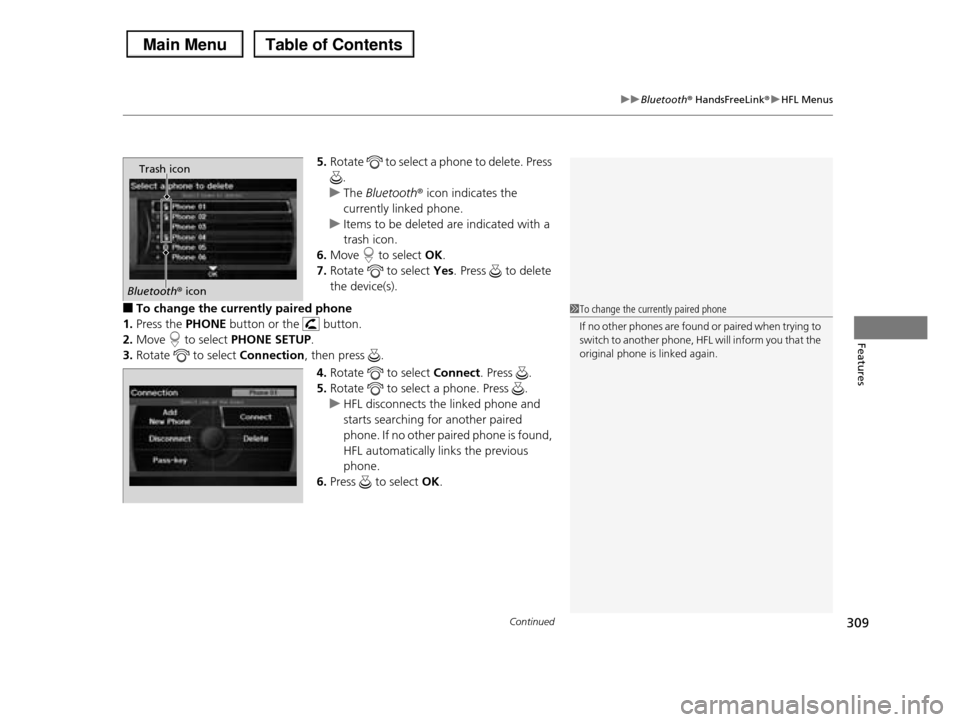

5.Rotate to select a phone to delete. Press
.
uThe Bluetoothr icon indicates the
currently linked phone.
uItems to be deleted are indicated with a
trash icon.
6.Move to select OK.
7.Rotate to select Yes. Press to delete
the device(s).
■To change the currently paired phone
1.Press the PHONE button or the button.
2.Move to select PHONE SETUP.
3.Rotate to select Connection, then press .
4.Rotate to select Connect. Press .
5.Rotate to select a phone. Press .
uHFL disconnects the linked phone and
starts searching for another paired
phone. If no other paired phone is found,
HFL automatically links the previous
phone.
6.Press to select OK.
Trash icon
Bluetoothr icon
1To change the currently paired phone
If no other phones are found or paired when trying to
switch to another phone, HFL will inform you that the
original phone is linked again.

uuBluetooth® HandsFreeLink®uHFL Menus
310
Features
1.Press the PHONE button or the button.
2.Move to select PHONE SETUP.
3.Rotate to select Phone Name/PIN, then press .
4.Rotate to select an item. Press .
The following items are available:
•Phone Name: Enter a name.
•PIN: Enter a 4-digit PIN. Re-enter to confirm. You can select DO NOT USE PIN to
remove a PIN number.

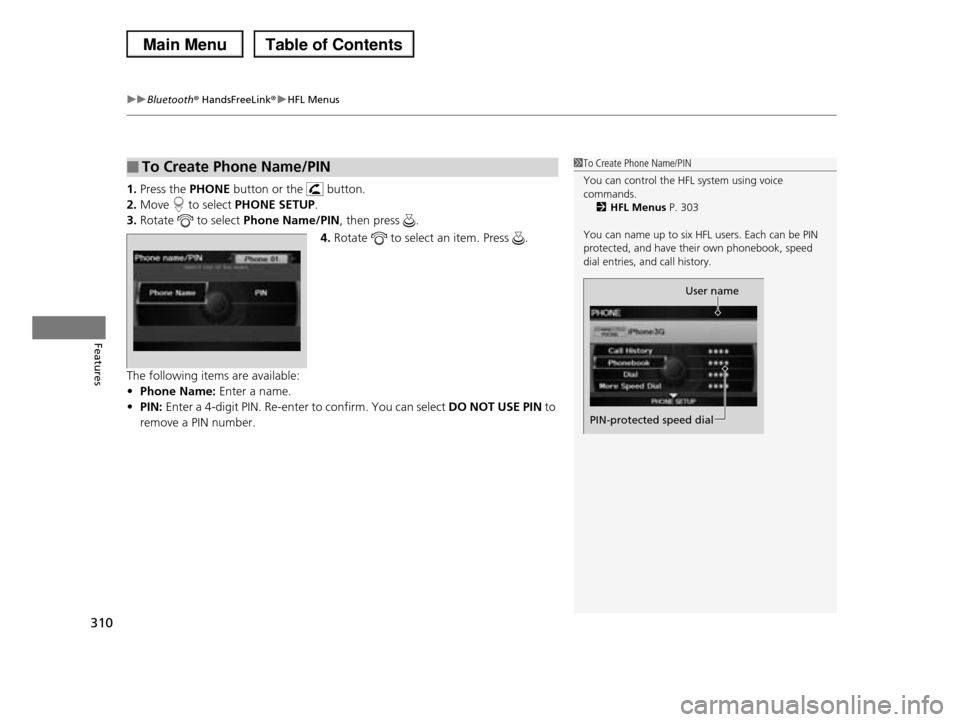

■To Create Phone Name/PIN1To Create Phone Name/PIN
You can control the HFL system using voice commands.
2HFL Menus P. 303
You can name up to six HFL users. Each can be PIN
protected, and have their own phonebook, speed
dial entries, and call history.
User name
PIN-protected speed dial

311
uuBluetooth® HandsFreeLink®uHFL Menus
Continued
Features
If you get into the vehicle while you are on the phone, the call can be automatically
transferred to HFL.
1.Press the PHONE button or the button.
2.Move to select PHONE SETUP.
3.Rotate to select Auto Transfer, then press .
4.Rotate to select On, then press .
You can choose when the HFL system automatically answers incoming calls.
1.Press the PHONE button or the button.
2.Move to select PHONE SETUP.
3.Rotate to select Auto Answer, then press .
4.Rotate to select a mode you want press .

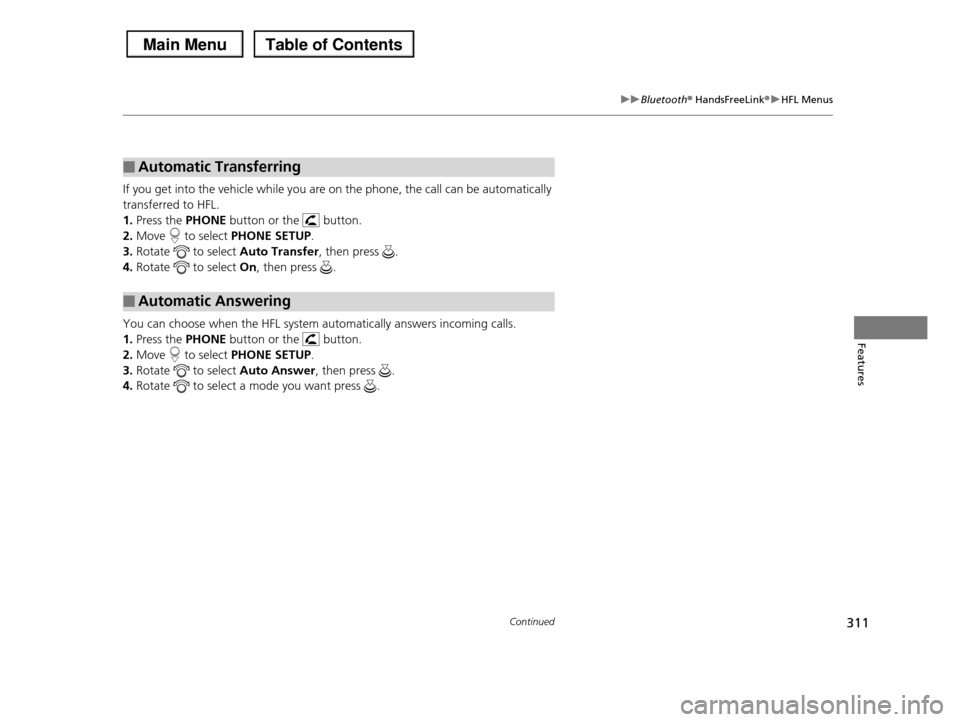

■Automatic Transferring
■Automatic Answering
