2013 HONDA PILOT Owners Manual

uuGauges and DisplaysuMulti-Information Display*
88
Instrument Panel
Shows the instant fuel economy, average fuel economy, range, elapsed time, and
average speed.
■Instant Fuel Economy
Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).
■Average Fuel Economy
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
■Range
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your trips in the past.
■Elapsed Time
Shows the time elapsed since the last time Trip A or Trip B was reset.
■Average Speed
Shows the average speed in mph or km/h since the last time Trip A or Trip B was
reset.
Shows each tire's pressure.
2TPMS (Tire Pressure Monitoring System) P. 355
■Trip Computer
■Tire Pressure Monitor
1Average Fuel Economy
You can change when to reset the average fuel economy.
2Customized Features P. 90
1Elapsed Time
You can change when to reset the elapsed time.
2Customized Features P. 90
1Average Speed
You can change when to reset the average speed.
2Customized Features P. 90

89
uuGauges and DisplaysuMulti-Information Display*
Continued
Instrument Panel
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance Minder™ P. 381
■Engine Oil Life

uuGauges and DisplaysuMulti-Information Display*
90
Instrument Panel
Use the multi-information display to customize certain features.
■How to customize
Select the CUSTOMIZE SETTINGS by pressing the / button while the
ignition switch is in ON (w, and the vehicle is at a complete stop. Press the SEL/
RESET button to change the display to the CHG SETTING.
■Customized Features1Customized Features
To customize other features, press the / button.
2List of customizable options P. 92
2Example of customization settings P. 94
Customization is possible when you see the driver’s
ID (DRIVER 1 or DRIVER 2) on the CHG SETTING screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The customized settings are recalled every time you
unlock the driver’s door with that remote.
When you customize settings:
Shift to (P.
SEL/RESET Button
Enters the selected item.
/ Button
Changes the customize menu and items.

91
uuGauges and DisplaysuMulti-Information Display*
Continued
Instrument Panel
■Customization flow
Press the / button.
SEL/RESET
CUSTOMIZE SETTINGS
SECURITY RELOCK TIMER
TRIP A INFO RESET
LANGUAGE SELECTION
ADJUST OUTSIDE TEMP. DISPLAY
MEMORY POSITION LINK
INTERIOR LIGHT DIMMING TIME
HEADLIGHT AUTO OFF TIMER
AUTO LIGHT SENSITIVITY
AUTO DOOR LOCK
AUTO DOOR UNLOCK
KEY AND REMOTE UNLOCK MODE
KEYLESS LOCK ACKNOWLEDGMENT
3
4
3
4
METER SETUP
POSITION SETUP
LIGHTING SETUP
DOOR/WINDOW SETUP
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
PTG KEYLESS OPEN MODE*
3
4
3
4
EXIT
CHG SETTING
DEFAULT ALL
EXIT
SEL/RESET
3
4
3
4
3
4SEL/RESET
SEL/RESET
3
4
* Not available on all models

92
uuGauges and DisplaysuMulti-Information Display*
Instrument Panel
■List of customizable options
*: Default Setting
Setup Group Customizable FeaturesDescriptionSelectable Settings
METER
SETUP
LANGUAGE SELECTIONChanges the displayed language.ENGLISH*/FRENCH/SPANISH
ADJUST OUTSIDE TEMP.
DISPLAYAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F* ~ +5°F (U.S.)
-3°C ~ ±0°C* ~ +3°C (Canada)
TRIP A INFO RESET
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.
with REFUEL/
MANUAL ONLY*/IGN OFF
POSITION
SETUPMEMORY POSITION LINKChanges the driver's seat and the outside mirror
positions to a stored setting.ON*/OFF
LIGHTING
SETUP
INTERIOR LIGHT
DIMMING TIME
Changes the length of time the interior lights stay on
after you close the doors.60 sec/30 sec*/15 sec
HEADLIGHT AUTO OFF
TIMER
Changes the length of time the exterior lights stay
on after you close the driver's door.60 sec/30 sec/15 sec*/0 sec
AUTO LIGHT SENSITIVITYChanges the timing for the headlights to come on.MAX/HIGH/MID*/LOW/MIN

93
uuGauges and DisplaysuMulti-Information Display*
Continued
Instrument Panel
*1:Not available on all models
*2: Default Setting
Setup Group Customizable FeaturesDescription Selectable Settings
DOOR/
WINDOW
SETUP
AUTO DOOR LOCKChanges the setting for the automatic locking
feature.
SHIFT FROM (P/WITH VEH
SPEED*2/OFF
AUTO DOOR UNLOCKChanges the setting for when the doors unlock
automatically.
SHIFT TO (P *2/IGN OFF/OFF
DRIVER DOOR*2/ALL DOORS
KEY AND REMOTE
UNLOCK MODE
Sets up either the driver's door or all doors to unlock
on the first push of the remote transmitter.DRIVER DOOR*2/ALL DOOR
KEYLESS LOCK
ACKNOWLEDGMENT
LOCK/UNLOCK- The exterior lights flash. LOCK (2nd
push)- The beeper sounds.ON*2/OFF
SECURITY RELOCK TIMERChanges the time it takes for the doors to relock and the security system to set after you unlock the vehicle without opening any door.90 sec/60 sec/30 sec*2
PTG KEYLESS OPEN
MODE*1Changes the keyless setting for when the power
tailgate opens.
ANYTIME*2 / WHEN
UNLOCKED
DEFAULT
ALL
Cancels/Resets all the customized settings as
default.CANCEL*2/SET

94
uuGauges and DisplaysuMulti-Information Display*
Instrument Panel
■Example of customization settings
The steps for changing the TRIP A INFO RESET setting to with REFUEL are shown
below. The default setting for TRIP A INFO RESET is MANUAL ONLY.
1.Press and release / button until
CUSTOMIZE SETTINGS appears on the
display.
2.Press the SEL/RESET button.
uCHG SETTING appears on the display.
3.Press the SEL/RESET button to go into the
METER SETUP group.
4.Press the SEL/RESET button again.
uLANGUAGE SELECTION appears first
on the display.

95
uuGauges and DisplaysuMulti-Information Display*
Instrument Panel

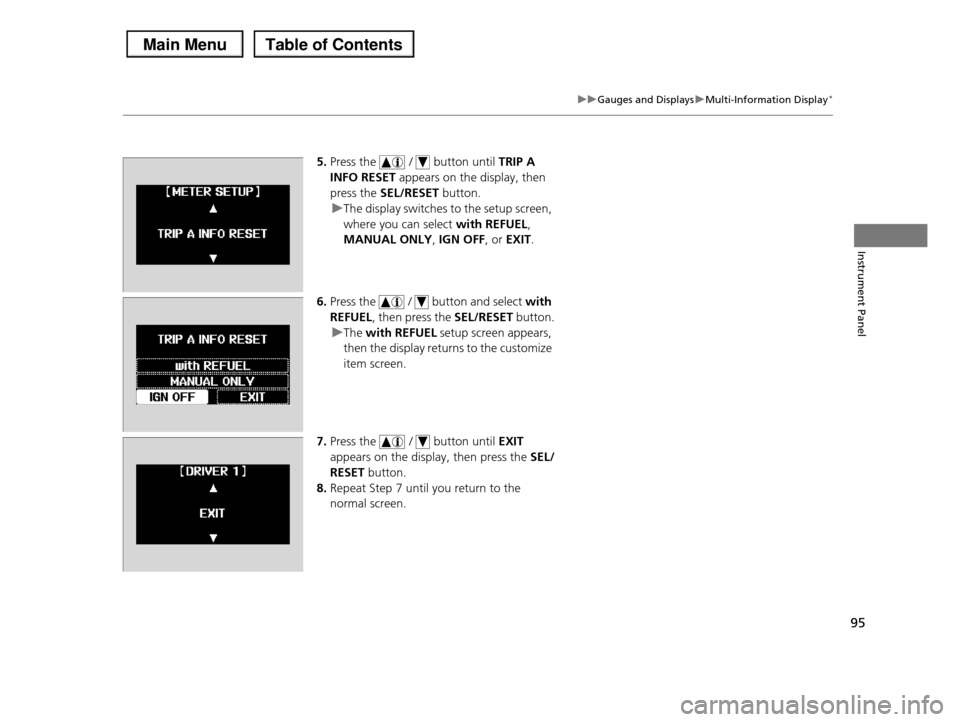

5.Press the / button until TRIP A
INFO RESET appears on the display, then
press the SEL/RESET button.
uThe display switches to the setup screen,
where you can select with REFUEL,
MANUAL ONLY, IGN OFF, or EXIT.
6.Press the / button and select with
REFUEL, then press the SEL/RESET button.
uThe with REFUEL setup screen appears,
then the display returns to the customize
item screen.
7.Press the / button until EXIT
appears on the display, then press the SEL/
RESET button.
8.Repeat Step 7 until you return to the
normal screen.
