2013 HONDA PILOT Owners Manual

176
uuAudio System Basic OperationuAudio/Information Screen*
Features
Audio/Information Screen*
Displays audio status, trip computer and wallpaper, and allows you to go to various
setup options.
Press DISPLAY button. Rotate and select the mode from the four display modes.
Press .
■Switching the Display1Switching the Display
These indications are used to show how to operate the selector knob.
Rotate to select.
Press to enter.
DISPLAY Button
Selector Knob
* Not available on all models

Continued177
uuAudio System Basic OperationuAudio/Information Screen*
Features
Shows the current audio information.
2Audio System Basic Operation P. 175
Shows the instant fuel economy, average fuel economy, distance (trip meter),
average speed, elapsed time, and range.
2Instant Fuel Economy P. 82
2Trip Meter P. 82
2Range P. 82
■Average speed
Shows the average speed in mph (U.S.) or km/h (Canada).
■Elapsed time
Shows the time during one drive cycle.
Shows a clock screen or an image you import.
2Wallpaper Setup P. 179
Minimizes the display by only showing the compass, audio status, and clock on the
upper part of the display.
■Audio Display
■Trip Computer
■Wallpaper
■Minimum Display
1Trip Computer
You can reset the trip computer.
2Trip Computer P. 88

178
uuAudio System Basic OperationuAudio/Information Screen*
Features

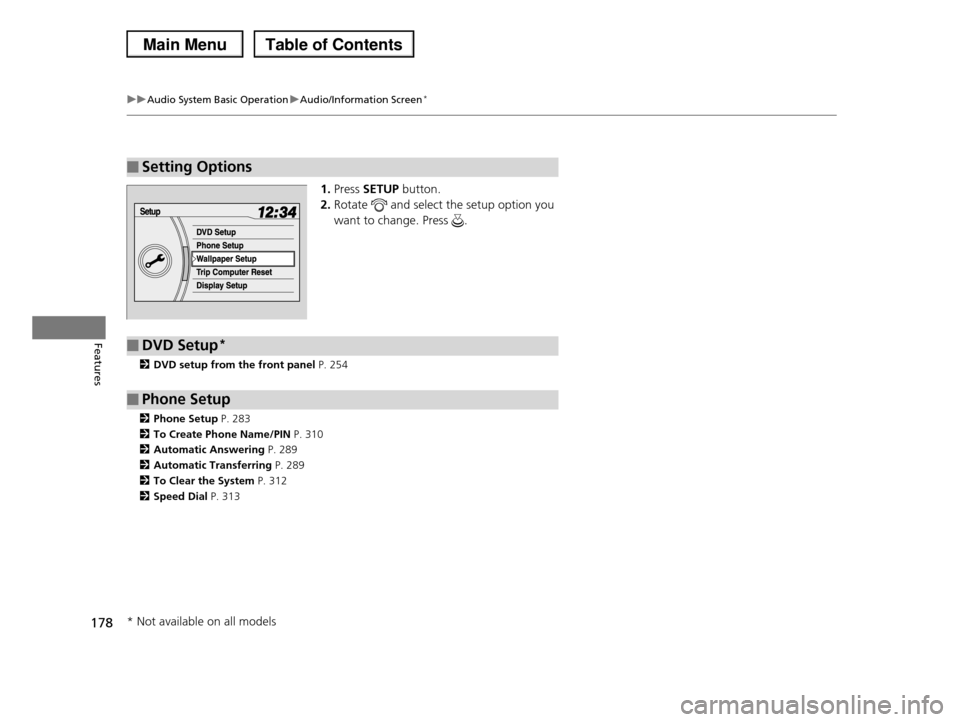

1.Press SETUP button.
2.Rotate and select the setup option you
want to change. Press .
2DVD setup from the front panel P. 254
2Phone Setup P. 283
2To Create Phone Name/PIN P. 310
2Automatic Answering P. 289
2Automatic Transferring P. 289
2To Clear the System P. 312
2Speed Dial P. 313
■Setting Options
■DVD Setup*
■Phone Setup
* Not available on all models

Continued179
uuAudio System Basic OperationuAudio/Information Screen*
Features
You can change, store, delete the wallpaper on the audio/information screen.
See the navigation system manual for how to change the wallpaper.
■Importing pictures from USB
You can import up to five images, one at a time, for wallpaper from USB flash drive.
Select Import picture from USB from setup menu and properly connect a USB
flash drive to store an image.
1.Connect the USB flash drive to the adapter
cable.
2USB Adapter Cable P. 173
2.Press the SETUP button.
3.Rotate to select Wallpaper Setup,
then press .
4.Rotate to select Import picture from
USB, then press .
5.Rotate to select a desired picture, then
press .
uLoading Picture will appear on the
display.
■Wallpaper Setup1Wallpaper Setup
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory.Images in a folder cannot be imported.
•The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).•The maximum image size is 1,024 x 768 pixels.
Smaller images are displayed in the middle of the
screen with the extra area appearing in black.
If the USB flash drive does not have any pictures, No Files will appear.
Models with navigation system

180
uuAudio System Basic OperationuAudio/Information Screen*
Features
6.The preview of the imported data is
displayed.
7.Rotate to select OK, then press .
uThe imported list number and the
confirmation message will appear. Then
the display will return to the import
wallpaper list.
■Choose wallpaper
1.Rotate to select Choose Wallpaper on the wallpaper setup menu, then press
.
uThe screen will change to the wallpaper list.
2.Rotate to select desired wallpaper and press .
3.Your selection will be indicated by the filled in circle.
uYou can also select Default Wallpaper (Honda logo) or Clock on the list.
■Delete wallpaper
1.Rotate to select Delete Picture from mem on the wallpaper setup menu,
then press .
uThe screen will change to the delete wallpaper list.
2.Rotate to select wallpaper that you want to delete and press .
uThe confirmation message will appear.
3.Rotate to select Yes, then press to delete completely.

181
uuAudio System Basic OperationuAudio/Information Screen*
Continued
Features

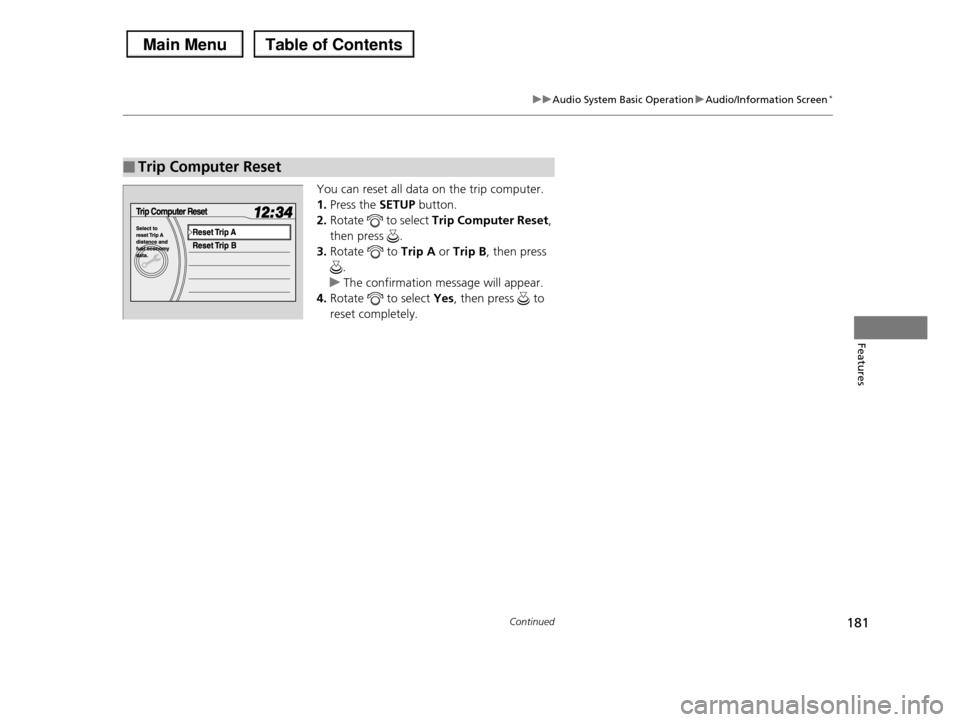

You can reset all data on the trip computer.
1.Press the SETUP button.
2.Rotate to select Trip Computer Reset,
then press .
3.Rotate to Trip A or Trip B, then press
.
uThe confirmation message will appear.
4.Rotate to select Yes, then press to
reset completely.
■Trip Computer Reset

182
uuAudio System Basic OperationuAudio/Information Screen*
Features
■Brightness/Contrast
If you select Brightness or Contrast, adjust
the setting by rotating and pressing .
■Menu Color
If you select Menu Color, rotate to setting
you want, then press .
■Display Setup

183
uuAudio System Basic OperationuAudio/Information Screen*
Features

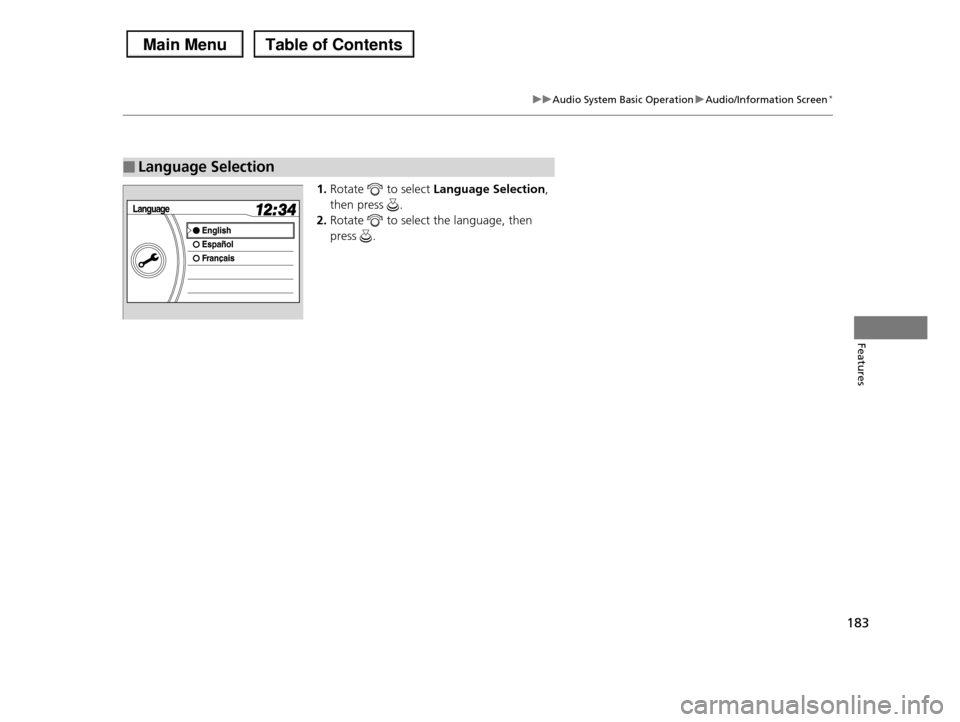

1.Rotate to select Language Selection,
then press .
2.Rotate to select the language, then
press .
■Language Selection
