2013 HONDA PILOT Owners Manual

136
uuAdjusting the Mirrors uPower Door Mirrors
Controls
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
If activated, either side door mirror
automatically tilts downw ard when you put
the shift lever in
(R; this improves close-in
visibility on the selected side of the vehicle
when reversing. The mirror automatically
returns to its original position when you shift
out of
(R.
To activate this feature, turn the ignition
switch to ON
(w and slide the selector switch
to the left or right side.
Selector
Switch
Adjustment
Switch■Reverse Tilt Door MirrorSelector Switch
* Not available on all models
*

137Continued
Controls
Adjusting the Seats
Adjusting the Seat Positions
Adjust the driver's seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger's seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
■Adjusting the front power seat(s)*
1Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Canada recommend that drivers allow
at least 10 inches (25 cm) between the center of the steering wheel and the chest.
Always make seat adjustments before driving.
3WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back.
Allow sufficient space.
Horizontal Position Adjustment
Height Adjustment (Driver's seat only)Seat-back Angle Adjustment
Lumbar Support Adjustment (Driver's seat only)
Driver’s seat is shown.
* Not available on all models

uuAdjusting the SeatsuAdjusting the Seat Positions
138
Controls
■Adjusting the front manual seat(s)*1Adjusting the front manual seat(s)*
Once a seat is adjusted correctly, rock it back and forth to make sure it is locked in position.
Horizontal Position AdjustmentPull up on the bar to move the seat, then release the bar.
Height Adjustment(Driver side only)Pull up or push down the lever to raise or lower the seat.
Seat-back Angle AdjustmentPull up the lever to change the angle.Driver’s seat is shown.
* Not available on all models

Continued139
uuAdjusting the SeatsuAdjusting the Seat Positions
Controls

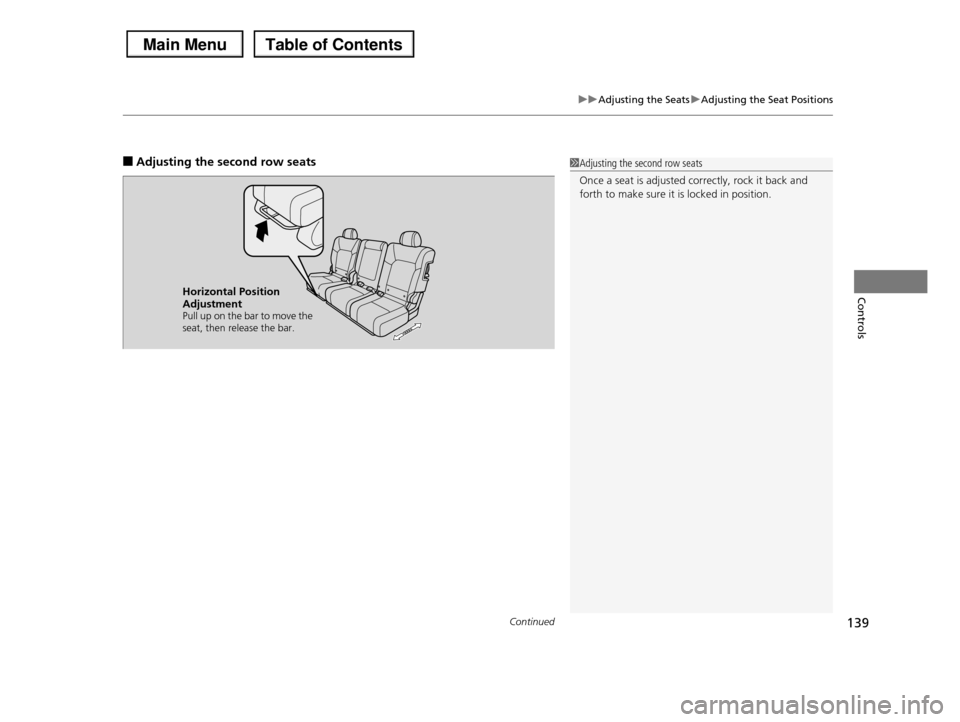

■Adjusting the second row seats1Adjusting the second row seats
Once a seat is adjusted correctly, rock it back and forth to make sure it is locked in position.
Horizontal Position AdjustmentPull up on the bar to move the seat, then release the bar.

uuAdjusting the SeatsuAdjusting the Seat Positions
140
Controls
Adjust the driver's seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant's chest reduces the protective capability of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the greater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the seat-back and your back.
Doing so may interfere with proper seat belt or airbag operation.
If you cannot get far enough away from the steering wheel and still reach the controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.

Continued141
uuAdjusting the SeatsuAdjusting the Seat Positions
Controls

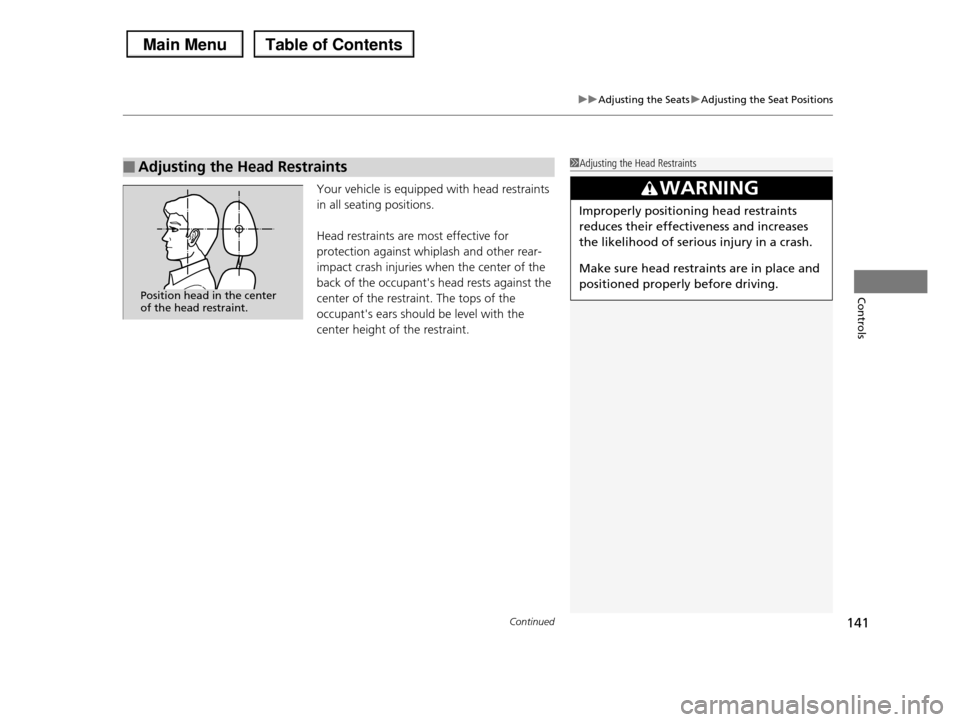

Your vehicle is equipped with head restraints
in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant's head rests against the
center of the restraint. The tops of the
occupant's ears should be level with the
center height of the restraint.
■Adjusting the Head Restraints1Adjusting the Head Restraints
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.Position head in the center of the head restraint.

142
uuAdjusting the SeatsuAdjusting the Seat Positions
Controls

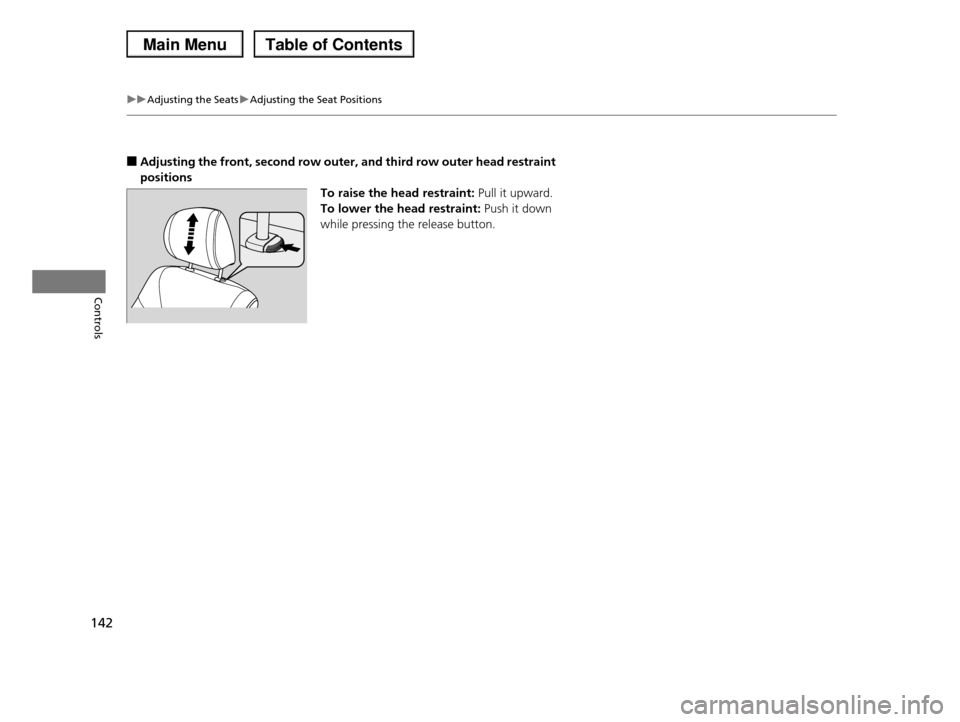

■Adjusting the front, second row outer, and third row outer head restraint
positions
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.

143
uuAdjusting the SeatsuAdjusting the Seat Positions
Continued
Controls
A passenger sitting in the second row/third
row center seating position should adjust the
height of their head restraint to an
appropriate position before the vehicle begins
moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
Push short side of the cap and pry up on long
side of the cap. Push the release buttons
sideways, and push the restraint down.
■Changing the Second Row/Third Row Center Seat Head
Restraint Positions
Long side
Short side
Third row center seat
