2013 HONDA PILOT Owners Manual

408
uuReplacing Light BulbsuRear License Plate Light Bulb
Maintenance

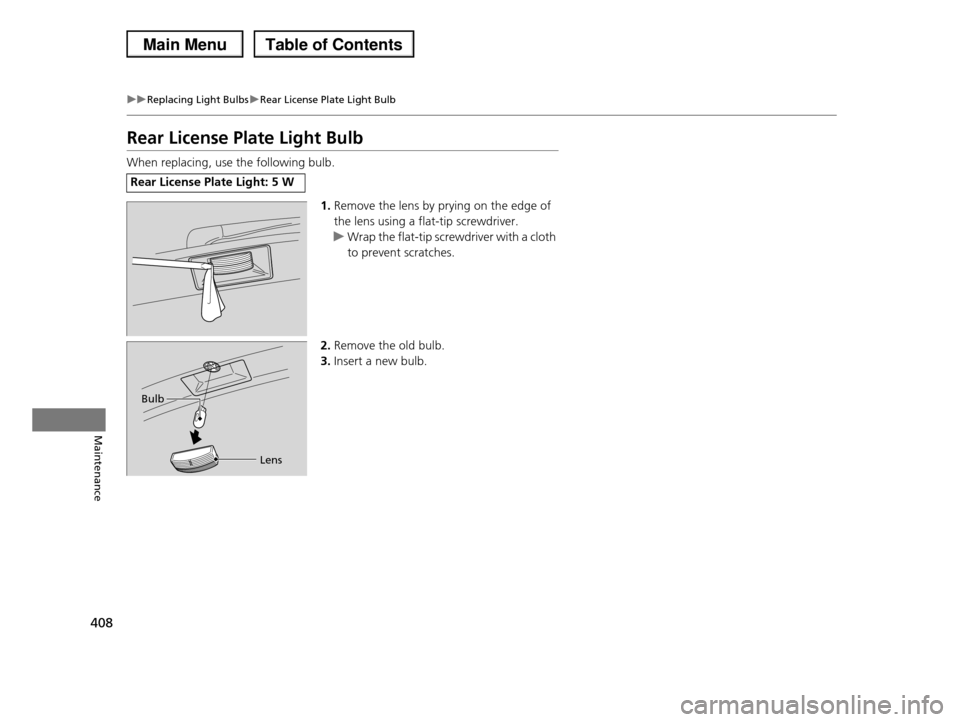

Rear License Plate Light Bulb
When replacing, use the following bulb.
1.Remove the lens by prying on the edge of
the lens using a flat-tip screwdriver.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
2.Remove the old bulb.
3.Insert a new bulb.
Rear License Plate Light: 5 W
Bulb
Lens

409
uuReplacing Light BulbsuHigh-Mount Brake Light Bulb
Maintenance

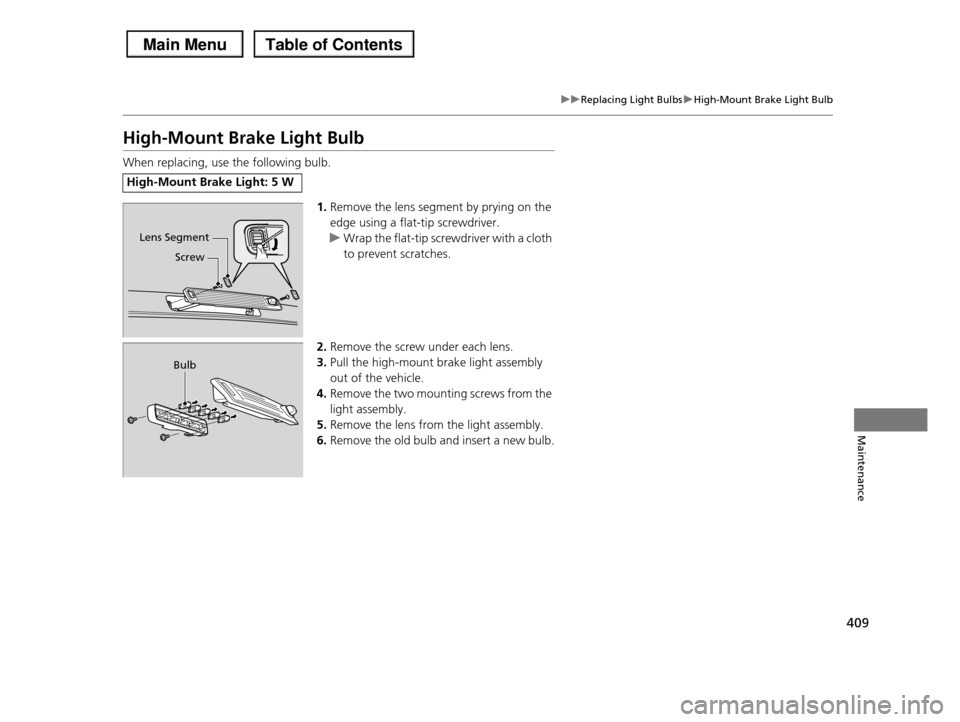

High-Mount Brake Light Bulb
When replacing, use the following bulb.
1.Remove the lens segment by prying on the
edge using a flat-tip screwdriver.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
2.Remove the screw under each lens.
3.Pull the high-mount brake light assembly
out of the vehicle.
4.Remove the two mounting screws from the
light assembly.
5.Remove the lens from the light assembly.
6.Remove the old bulb and insert a new bulb.
High-Mount Brake Light: 5 W
Screw
Lens Segment
Bulb

410
Maintenance

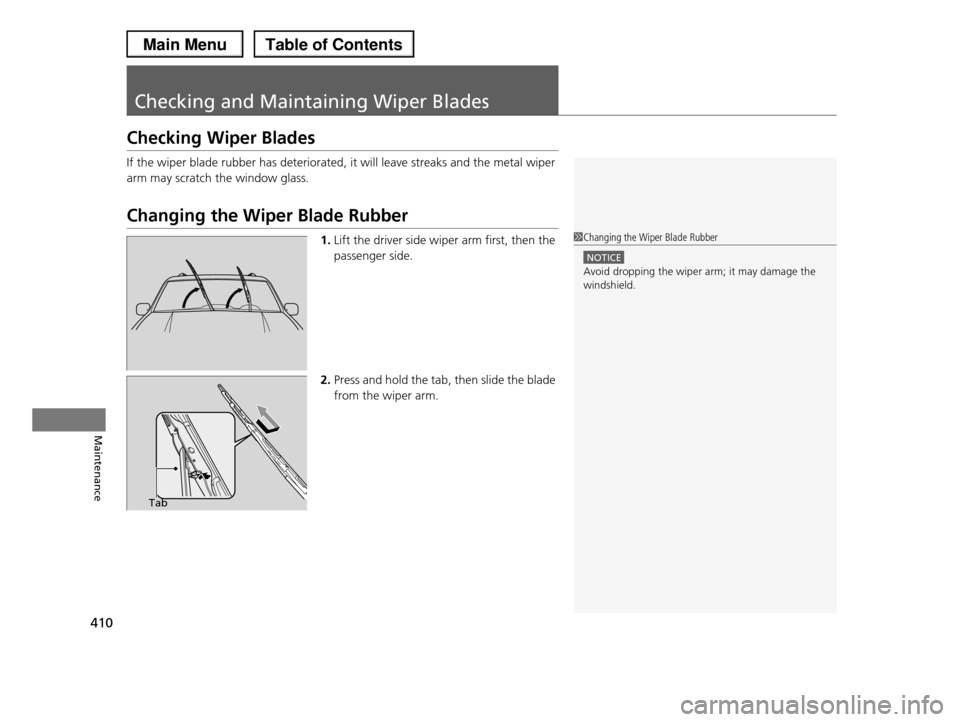

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the metal wiper
arm may scratch the window glass.
Changing the Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2.Press and hold the tab, then slide the blade
from the wiper arm.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm; it may damage the
windshield.
Tab

411
uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber
Maintenance

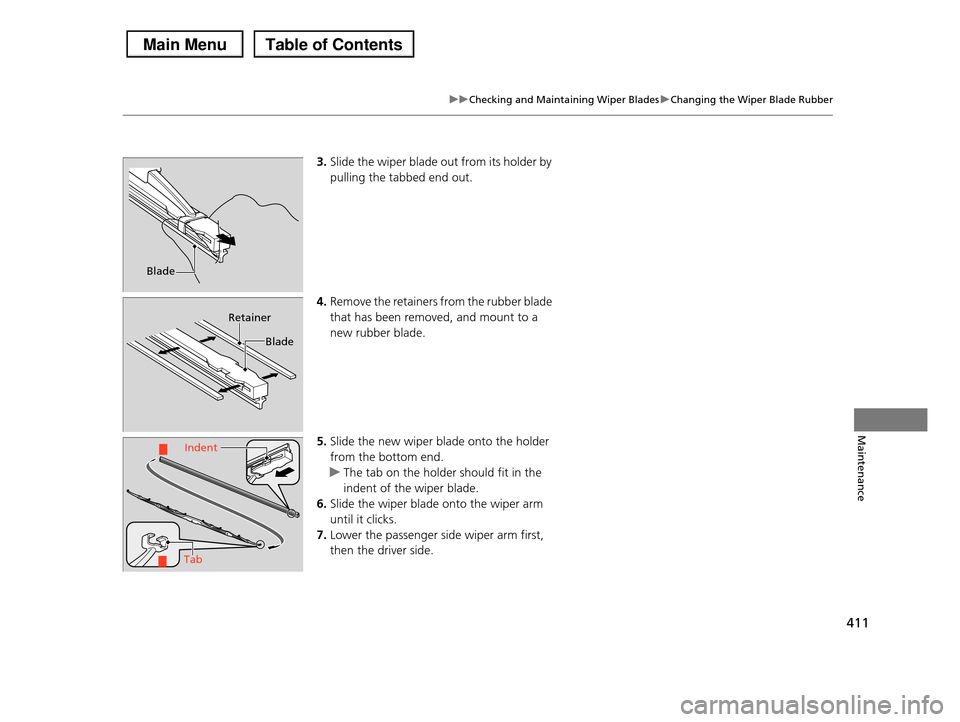

3.Slide the wiper blade out from its holder by
pulling the tabbed end out.
4.Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
5.Slide the new wiper blade onto the holder
from the bottom end.
uThe tab on the holder should fit in the
indent of the wiper blade.
6.Slide the wiper blade onto the wiper arm
until it clicks.
7.Lower the passenger side wiper arm first,
then the driver side.
Blade
Retainer
Blade
Indent
Tab

412
uuChecking and Maintaining Wiper BladesuChanging the Rear Wiper Blade Rubber
Maintenance

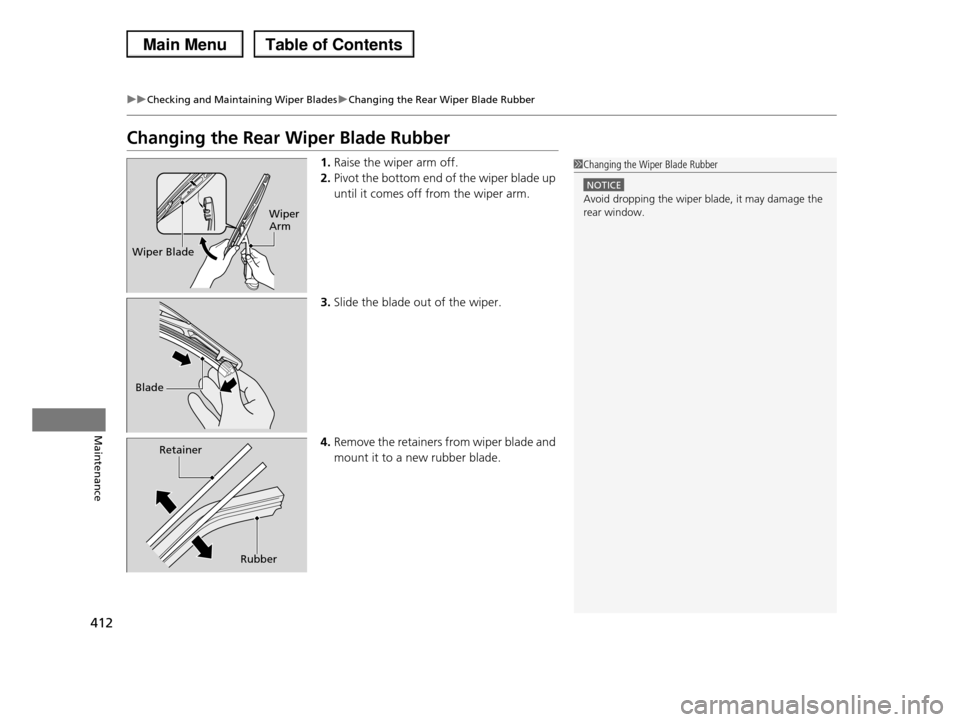

Changing the Rear Wiper Blade Rubber
1.Raise the wiper arm off.
2.Pivot the bottom end of the wiper blade up
until it comes off from the wiper arm.
3.Slide the blade out of the wiper.
4.Remove the retainers from wiper blade and
mount it to a new rubber blade.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper blade, it may damage the
rear window.
Wiper Blade
Wiper Arm
Blade
Retainer
Rubber

413
uuChecking and Maintaining Wiper BladesuChanging the Rear Wiper Blade Rubber
Maintenance

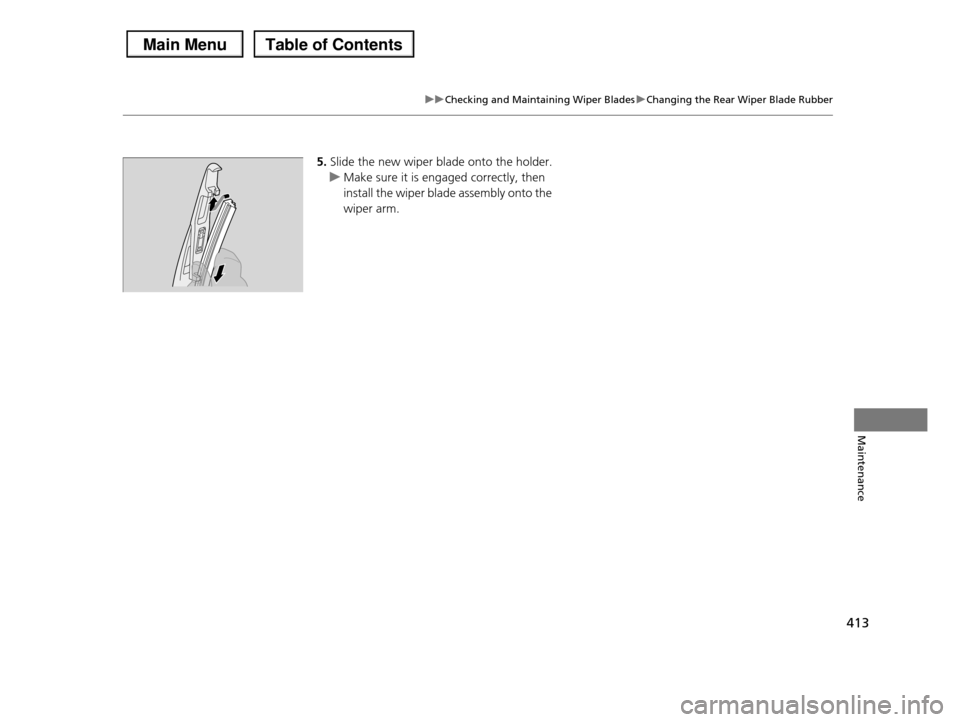

5.Slide the new wiper blade onto the holder.
uMake sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.

414
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or specification’s page for the specified pressure.
Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in
all tires, including the spare. Even tires in good condition can lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm2) per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
•Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the side of the tire. Replace it if you see fabric or cord.
•Remove any foreign objects and inspect for air leaks.
•Uneven tread wear. Have a dealer check the wheel alignment.
•Excessive tread wear.
2Wear Indicators P. 419
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If necessary, add or release air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as 4–6 psi (30–40 kPa, 0.3–0.4 kgf/cm2) higher than if
checked when cold.
Have a dealer check the tires if you feel a consistent
vibration while driving. New tires and any that have
been removed and reinstalled should be properly balanced.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding tire inflation and
maintenance.

415
uuChecking and Maintaining TiresuTire and Loading Information Label
Continued
Maintenance
Tire and Loading Information Label
The label attached to the driver’s doorjamb provides necessary tire and loading
information.
Tire Labeling
The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described below.
Whenever tires are replaced, they should be replaced with tires of the same size.
1Tire and Loading Information Label
The tire and loading information label attached to the driver’s doorjamb contains:
aThe number of people your vehicle can carry.
bThe total weight your vehicle can carry. Do not exceed this weight.
cThe original tire sizes for front, rear, and spare.
dThe proper cold tire pressure for front, rear, and spare.
Label Example
43
2
ExampleTire SizeTire Identification Number (TIN)
Maximum Tire Load
Maximum Tire PressureTire Size
■Tire Sizes
1Tire Sizes
Following is an example of tire size with an
explanation of what each component means.P235/60 R18 102T
P: Vehicle type (P indicates passenger vehicle).
235: Tire width in millimeters. 60: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).18: Rim diameter in inches.
102: Load index (a numerical code associated with
the maximum load the tire can carry). T: Speed symbol (an alphabetical code indicating the
maximum speed rating).
