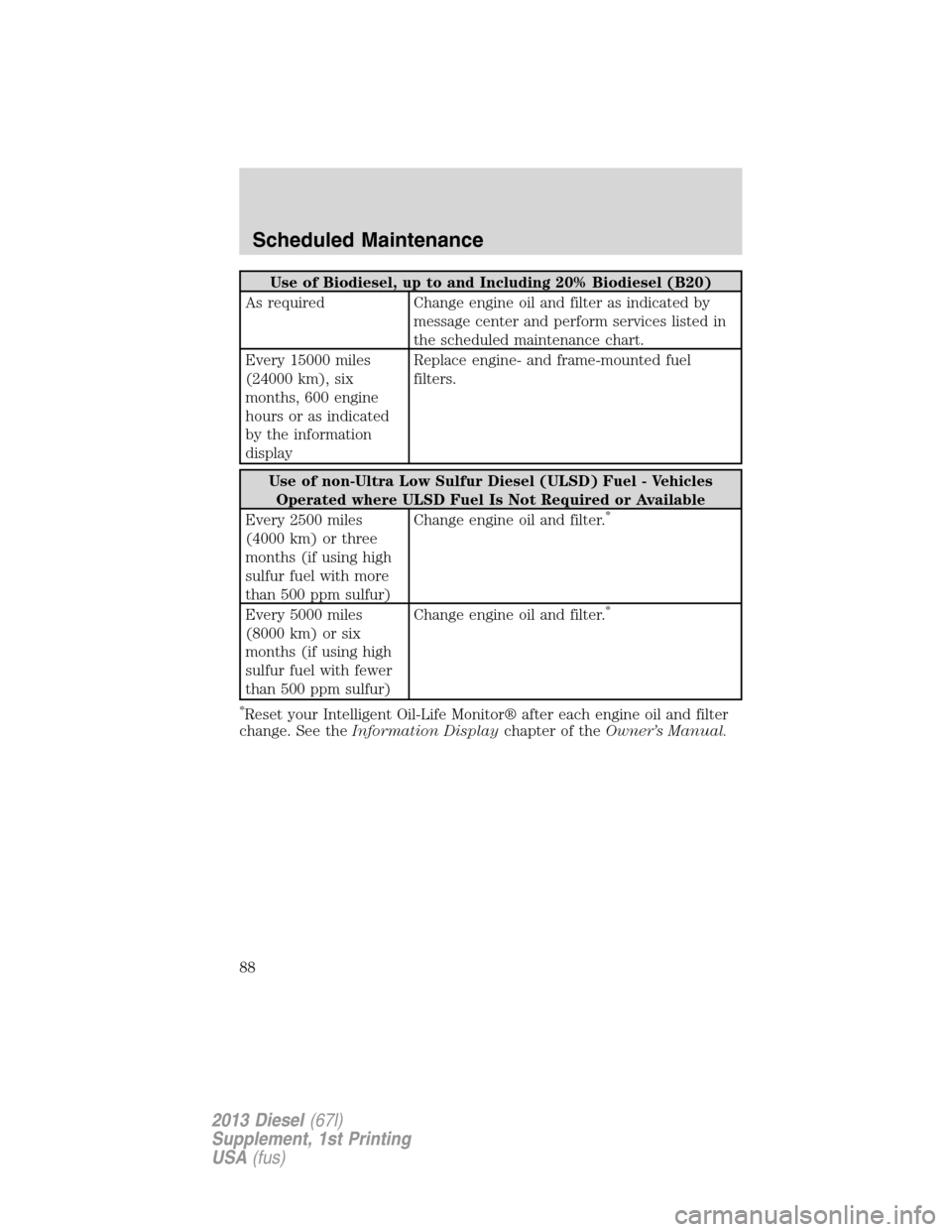

2013 FORD SUPER DUTY Diesel Supplement Manual

Use of Biodiesel, up to and Including 20% Biodiesel (B20)
As required Change engine oil and filter as indicated by
message center and perform services listed in
the scheduled maintenance chart.
Every 15000 miles
(24000 km), six
months, 600 engine
hours or as indicated
by the information
displayReplace engine- and frame-mounted fuel
filters.
Use of non-Ultra Low Sulfur Diesel (ULSD) Fuel - Vehicles
Operated where ULSD Fuel Is Not Required or Available
Every 2500 miles
(4000 km) or three
months (if using high
sulfur fuel with more
than 500 ppm sulfur)Change engine oil and filter.
*
Every 5000 miles
(8000 km) or six
months (if using high
sulfur fuel with fewer
than 500 ppm sulfur)Change engine oil and filter.*
*
Reset your Intelligent Oil-Life Monitor® after each engine oil and filter
change. See theInformation Displaychapter of theOwner’s Manual.
Scheduled Maintenance
88
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

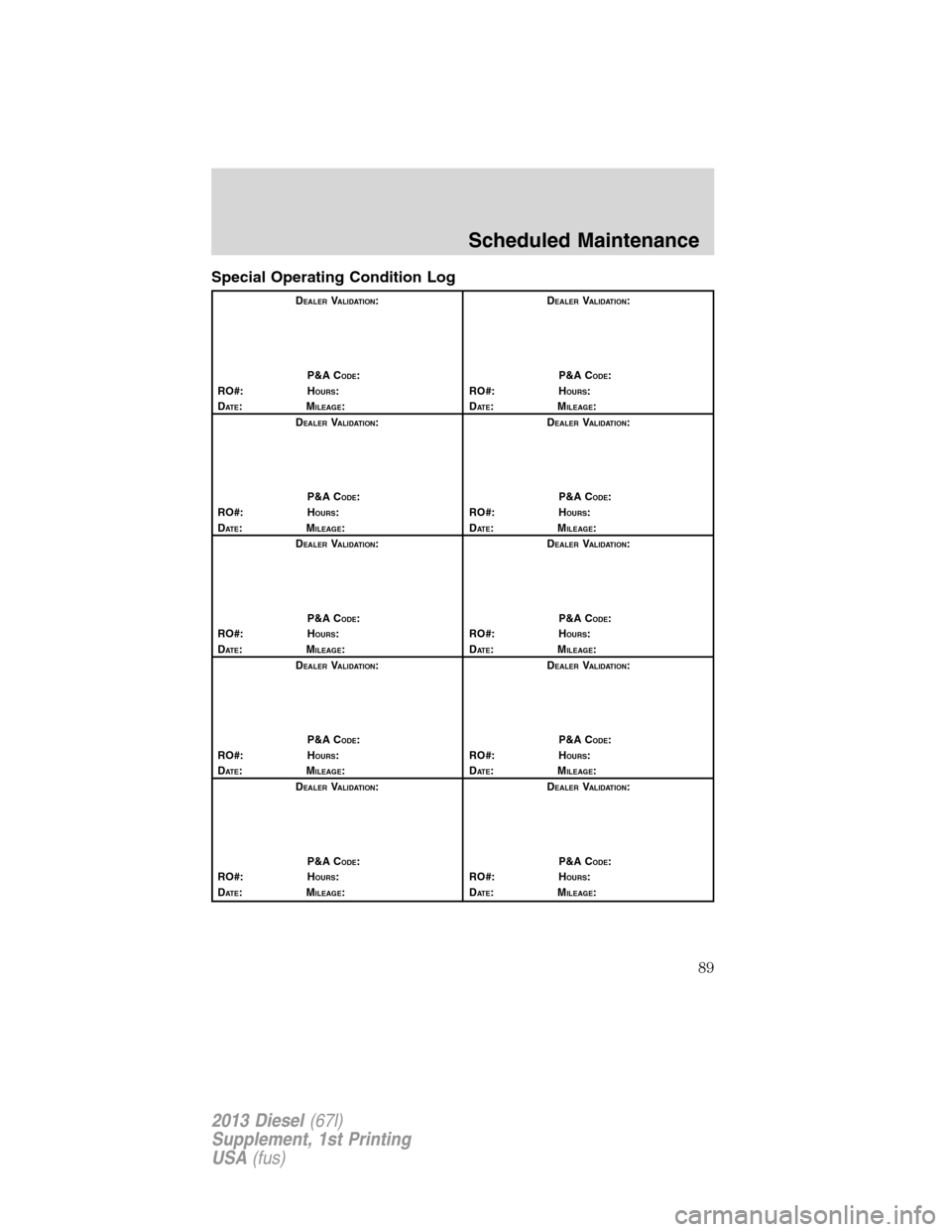

Special Operating Condition Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
89
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
90
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3000 miles (4800 kilometers) or three months,
whichever comes first. This interval can be waived if the axle is filled
with 75W140 synthetic gear fluid meeting Ford specification
WSL-M2C192-A, part number F1TZ-19580-B or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles (refer toTechnical specificationsin the
Maintenancechapter for details).
F-450 and F-550 axle maintenance:Change rear axle fluid every
100000 miles (160000 kilometers) under normal driving conditions on all
commercial applications. For trucks operated at or near maximum Gross
Vehicle Weights, the rear axle fluid should be changed every 50000 miles
(80000 kilometers). In addition, this 50000 mile (80000 kilometer)
schedule should be observed when the vehicles are operated under the
special operating conditions, where noted.
Diesel Particulate Filter (DPF):The DPF may need to be removed
for ash cleaning at approximately 120000 miles (192000 kilometers) or
greater (actual mileage can vary greatly depending upon engine/vehicle
operating conditions) and replaced with a new or remanufactured (ash
cleaned) part. The filter may need to be replaced at approximately
250000 miles (400000 kilometers) depending upon engine/vehicle
operating conditions. In both cases the engine control system will set a
service light (
) to inform you to bring the vehicle to the dealer for
service. If there are any issues with the oxidation catalyst/DPF system a
service light (
or) will be set by the engine control system to
inform you to bring the vehicle into a dealership for service.
Scheduled Maintenance
91
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

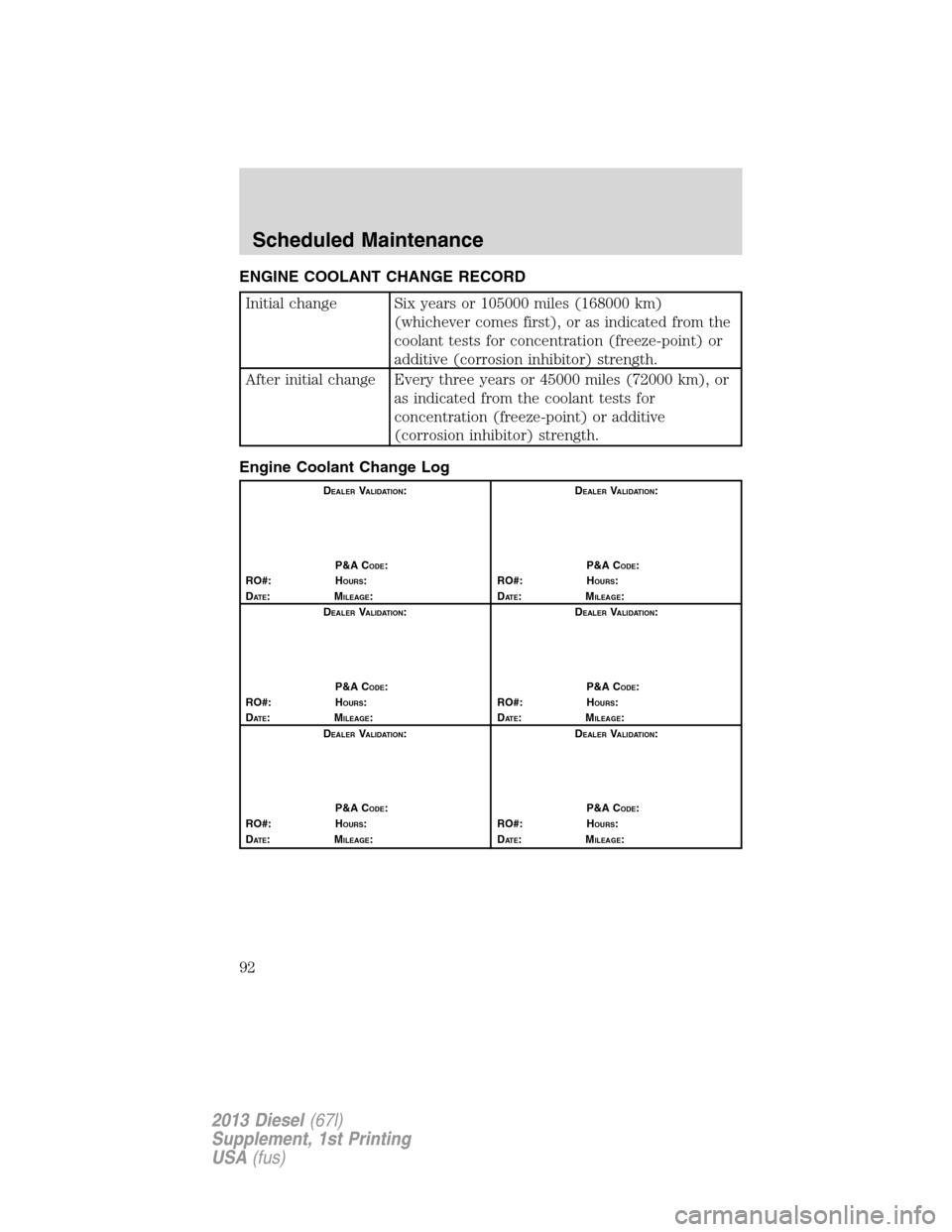

ENGINE COOLANT CHANGE RECORD
Initial change Six years or 105000 miles (168000 km)
(whichever comes first), or as indicated from the
coolant tests for concentration (freeze-point) or
additive (corrosion inhibitor) strength.
After initial change Every three years or 45000 miles (72000 km), or
as indicated from the coolant tests for
concentration (freeze-point) or additive
(corrosion inhibitor) strength.
Engine Coolant Change Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
92
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

A
Accessory belt .............................66
Additive
coolant .................................57, 67
Air cleaner filter .............10, 58, 66
Air filter restriction gauge .........58
Antifreeze
(see Engine coolant) ..................53
B
Battery .........................................66
auxiliary battery .......................66
jumping a disabled battery ......47
Biodiesel ......................................15
Break-in period .............................3
C
Cleaning your vehicle
engine compartment ..........64–65
Cold weather operation ..........8, 10
Coolant ..............................5, 53, 67
checking and adding ................53
refill capacities ..........................67
Coolant additive ..........................67
Coolant change .........52–53, 57, 67
Cooler ............................................5
D
Diesel exhaust fluid
(DEF) ....................................19, 47
Diesel Particulate Filter
(DPF) ..............................34–36, 40
Drivebelt ......................................66E
Emergencies, roadside
jump-starting ............................47
Emission control
system ........................34–36, 40, 42
Engine ..........................................48
cleaning ...............................64–65
coolant .......................................67
diesel .......................................2–3
refill capacities ..........................67
service points ............................48
starting after a collision ...........46
Engine fan ...................................58
Engine oil ....................4, 49, 51, 67
dipstick ......................................49
filter, specifications ..................66
refill capacities ..........................67
specifications ......................49, 67
Exhaust brake .............................44
Exhaust filter ........................34, 36
Exhaust Fluid ..............................19
Exhaust system .........19, 34, 40, 65
F
Fan, Engine Cooling ...................58
Filter
fuel .............................................32
Fuel ........................................14, 43
cap .............................................18
capacity .....................................67
dual tank selector switch .........43
filling your vehicle with fuel ....18
filter, specifications ............32, 66
fuel pump shut-off switch .......46
Fuel pump shut-off switch .........46
Fuel separator .......................30, 32
