2013 FORD SUPER DUTY Diesel Supplement Manual

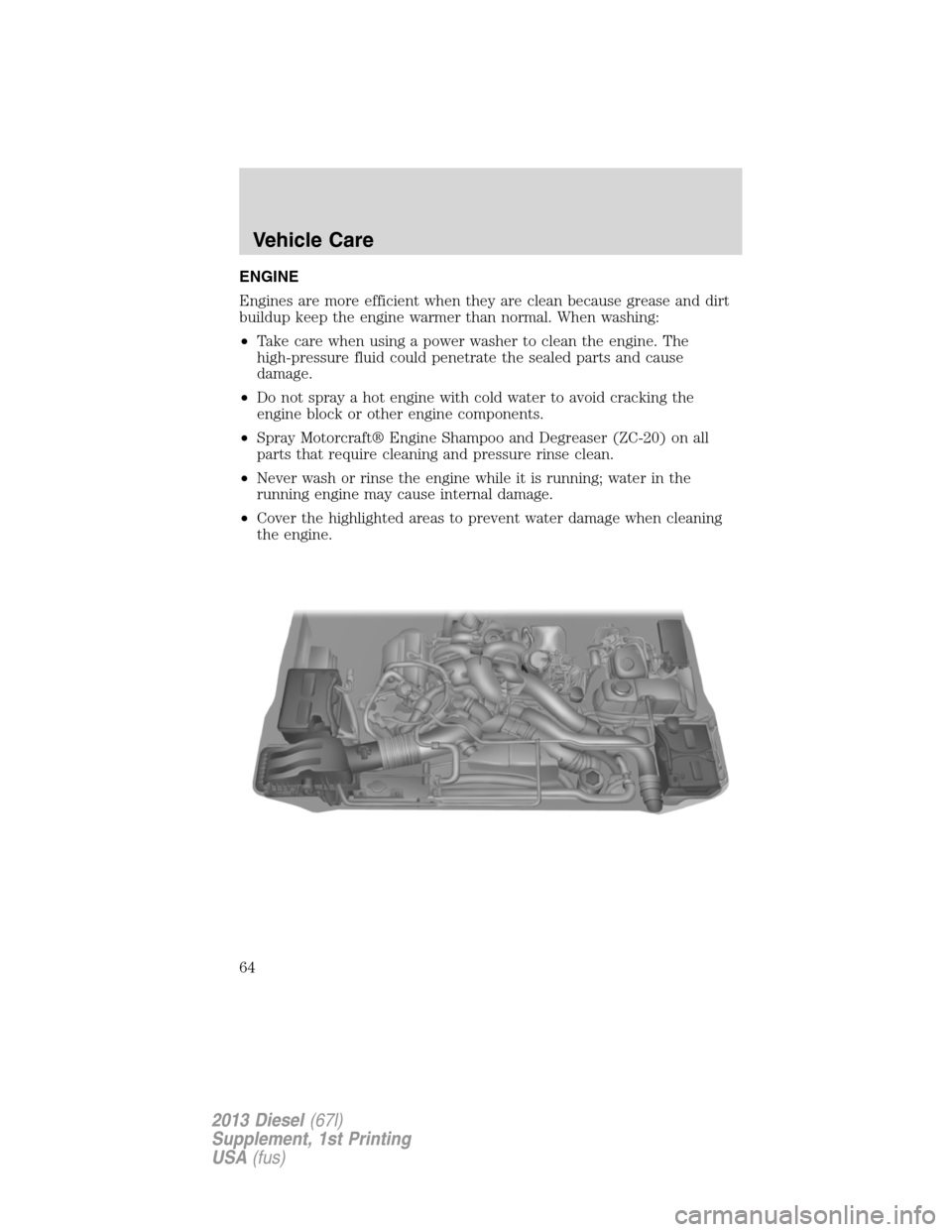

ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray Motorcraft® Engine Shampoo and Degreaser (ZC-20) on all
parts that require cleaning and pressure rinse clean.
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
•Cover the highlighted areas to prevent water damage when cleaning
the engine.
Vehicle Care
64
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

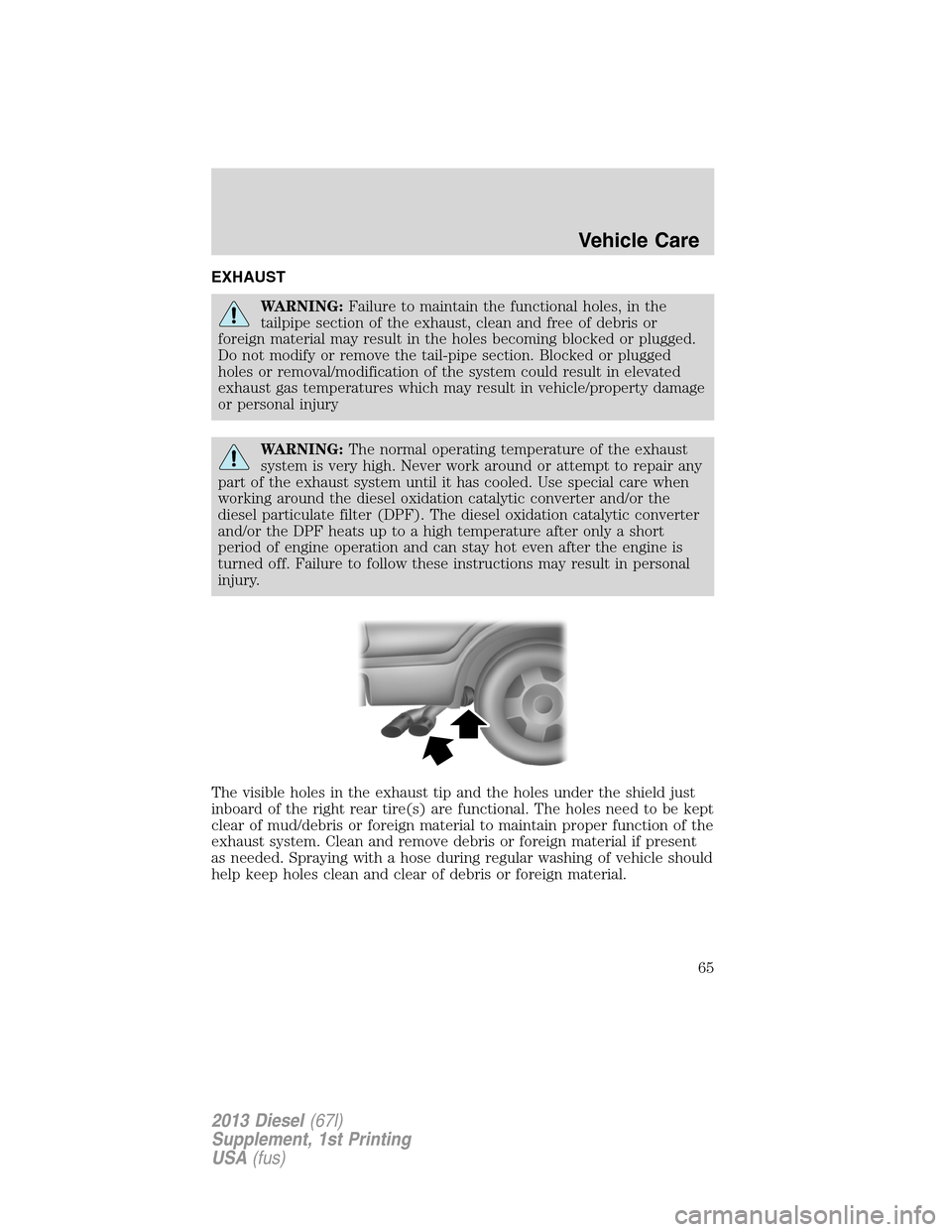

EXHAUST
WARNING:Failure to maintain the functional holes, in the
tailpipe section of the exhaust, clean and free of debris or
foreign material may result in the holes becoming blocked or plugged.
Do not modify or remove the tail-pipe section. Blocked or plugged
holes or removal/modification of the system could result in elevated
exhaust gas temperatures which may result in vehicle/property damage
or personal injury
WARNING:The normal operating temperature of the exhaust
system is very high. Never work around or attempt to repair any
part of the exhaust system until it has cooled. Use special care when
working around the diesel oxidation catalytic converter and/or the
diesel particulate filter (DPF). The diesel oxidation catalytic converter
and/or the DPF heats up to a high temperature after only a short
period of engine operation and can stay hot even after the engine is
turned off. Failure to follow these instructions may result in personal
injury.
The visible holes in the exhaust tip and the holes under the shield just
inboard of the right rear tire(s) are functional. The holes need to be kept
clear of mud/debris or foreign material to maintain proper function of the
exhaust system. Clean and remove debris or foreign material if present
as needed. Spraying with a hose during regular washing of vehicle should
help keep holes clean and clear of debris or foreign material.
Vehicle Care
65
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

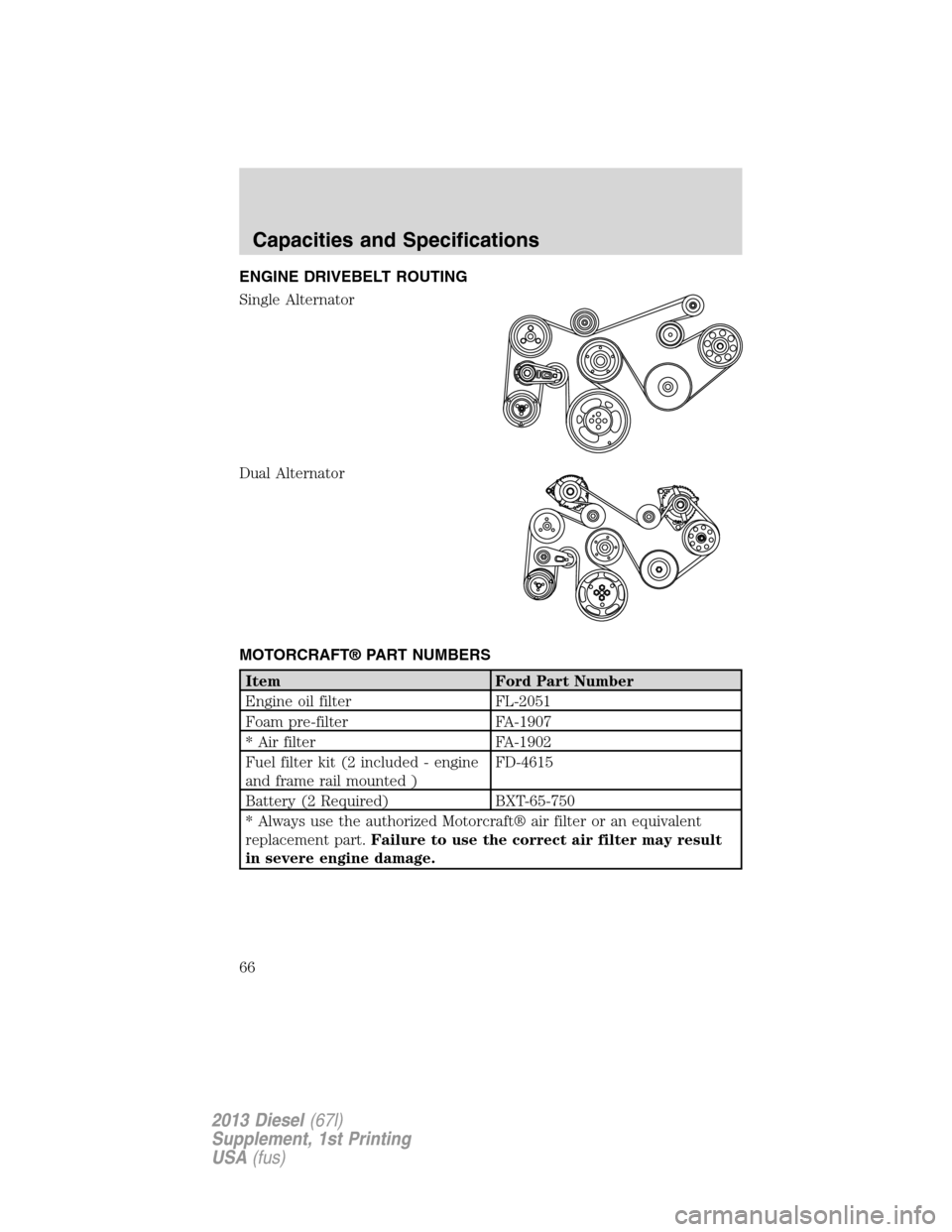

ENGINE DRIVEBELT ROUTING
Single Alternator
Dual Alternator
MOTORCRAFT® PART NUMBERS
Item Ford Part Number
Engine oil filter FL-2051
Foam pre-filter FA-1907
* Air filter FA-1902
Fuel filter kit (2 included - engine
and frame rail mounted )FD-4615
Battery (2 Required) BXT-65-750
* Always use the authorized Motorcraft® air filter or an equivalent
replacement part.Failure to use the correct air filter may result
in severe engine damage.
Capacities and Specifications
66
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

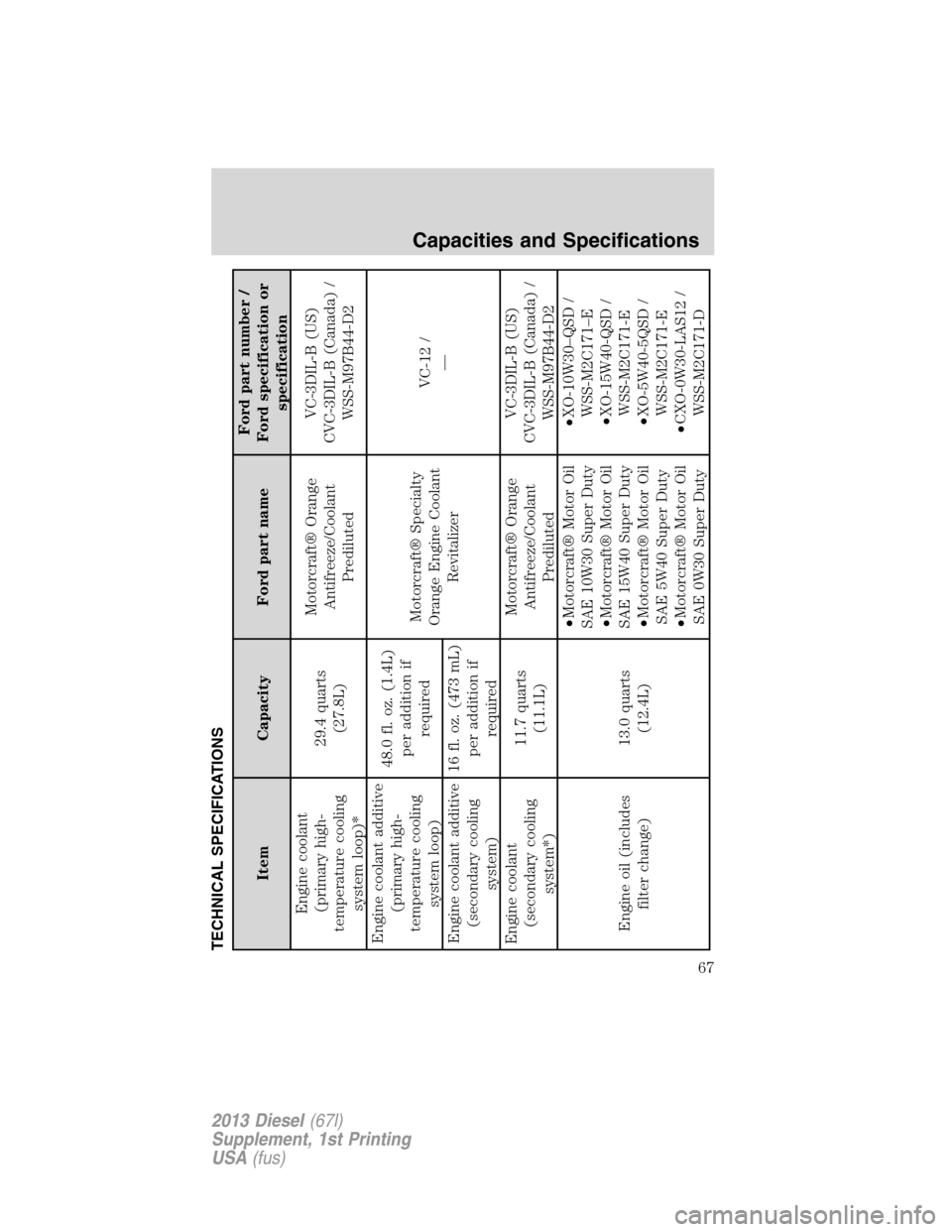

TECHNICAL SPECIFICATIONS
Item Capacity Ford part nameFord part number /
Ford specification or
specification
Engine coolant
(primary high-
temperature cooling
system loop)*29.4 quarts
(27.8L)Motorcraft® Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2
Engine coolant additive
(primary high-
temperature cooling
system loop)48.0 fl. oz. (1.4L)
per addition if
requiredMotorcraft® Specialty
Orange Engine Coolant
RevitalizerVC-12 /
—
Engine coolant additive
(secondary cooling
system)16 fl. oz. (473 mL)
per addition if
required
Engine coolant
(secondary cooling
system*)11.7 quarts
(11.1L)Motorcraft® Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2
Engine oil (includes
filter change)13.0 quarts
(12.4L)•Motorcraft® Motor Oil
SAE 10W30 Super Duty
•Motorcraft® Motor Oil
SAE 15W40 Super Duty
•Motorcraft® Motor Oil
SAE 5W40 Super Duty
•Motorcraft® Motor Oil
SAE 0W30 Super Duty•XO-10W30–QSD /
WSS-M2C171–E
•XO-15W40-QSD /
WSS-M2C171-E
•XO-5W40-5QSD /
WSS-M2C171-E
•CXO-0W30-LAS12 /
WSS-M2C171-D
Capacities and Specifications
67
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification or
specification

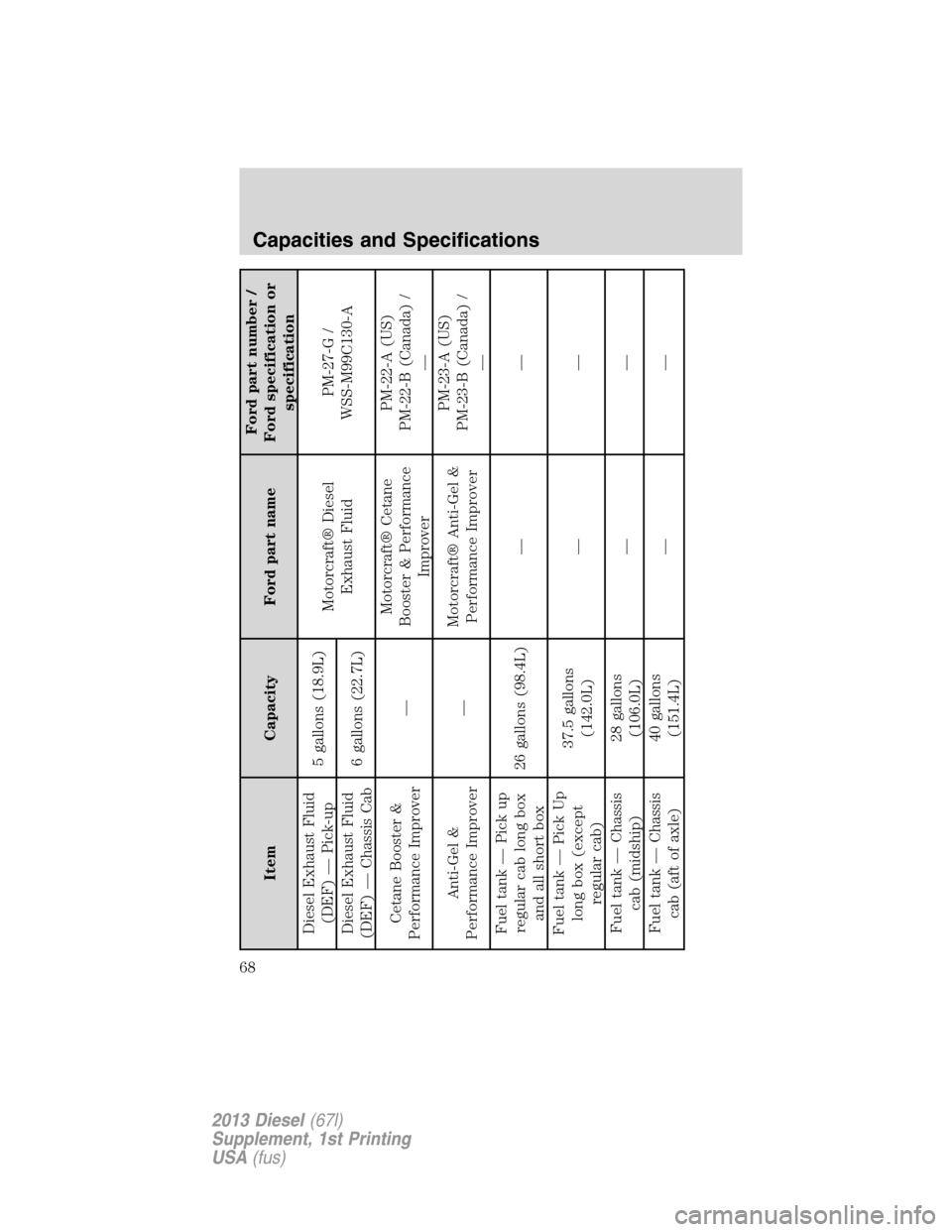

Diesel Exhaust Fluid
(DEF) — Pick-up5 gallons (18.9L)
Motorcraft® Diesel
Exhaust FluidPM-27-G /
WSS-M99C130-A
Diesel Exhaust Fluid
(DEF) — Chassis Cab6 gallons (22.7L)
Cetane Booster &
Performance Improver—Motorcraft® Cetane
Booster & Performance
ImproverPM-22-A (US)
PM-22-B (Canada) /
—
Anti-Gel &
Performance Improver—Motorcraft® Anti-Gel &
Performance ImproverPM-23-A (US)
PM-23-B (Canada) /
—
Fuel tank — Pick up
regular cab long box
and all short box26 gallons (98.4L) — —
Fuel tank — Pick Up
long box (except
regular cab)37.5 gallons
(142.0L)——
Fuel tank — Chassis
cab (midship)28 gallons
(106.0L)——
Fuel tank — Chassis
cab (aft of axle)40 gallons
(151.4L)——
Capacities and Specifications
68
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification or
specification

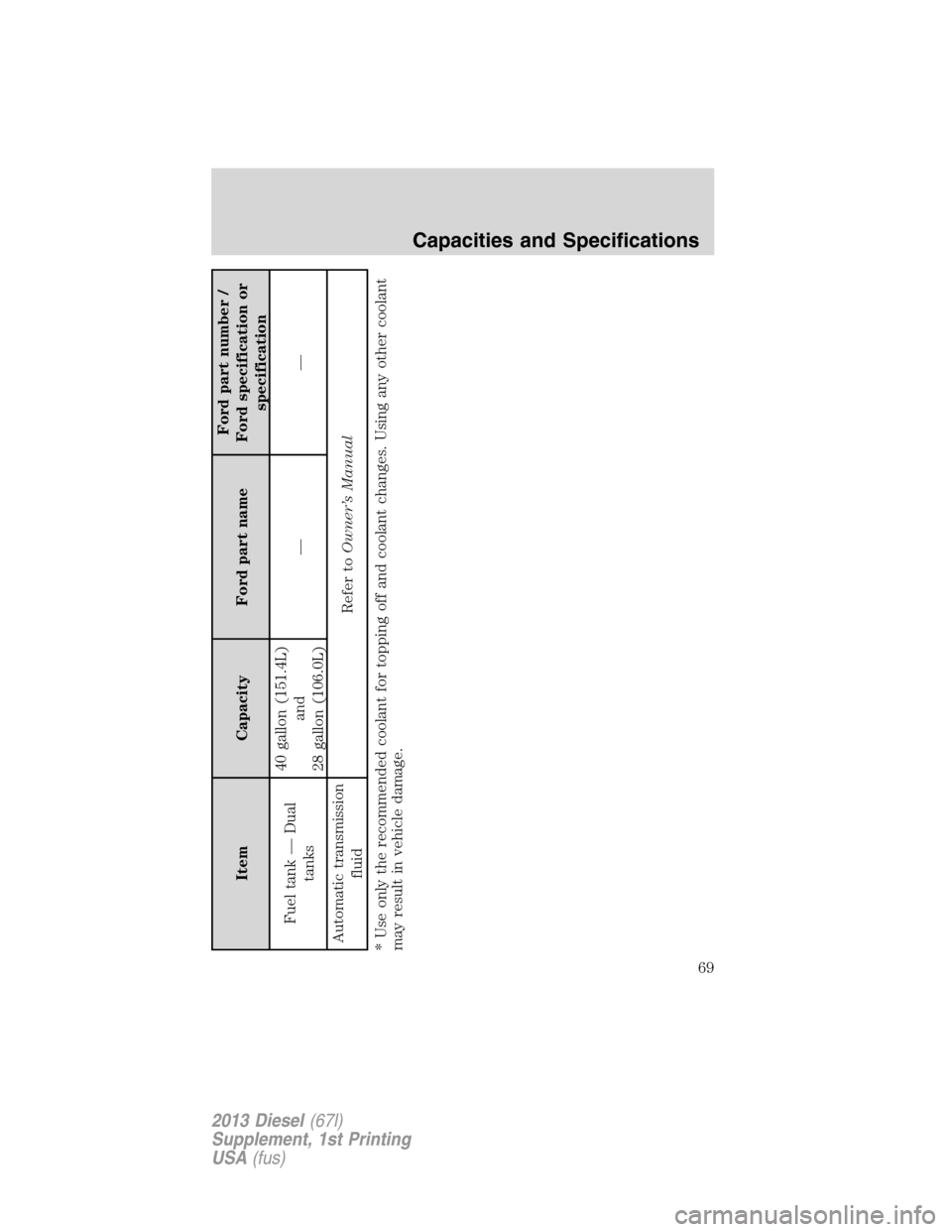

Fuel tank — Dual
tanks40 gallon (151.4L)
and
28 gallon (106.0L)——
Automatic transmission
fluidRefer toOwner’s Manual
* Use only the recommended coolant for topping off and coolant changes. Using any other coolant
may result in vehicle damage.
Capacities and Specifications
69
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

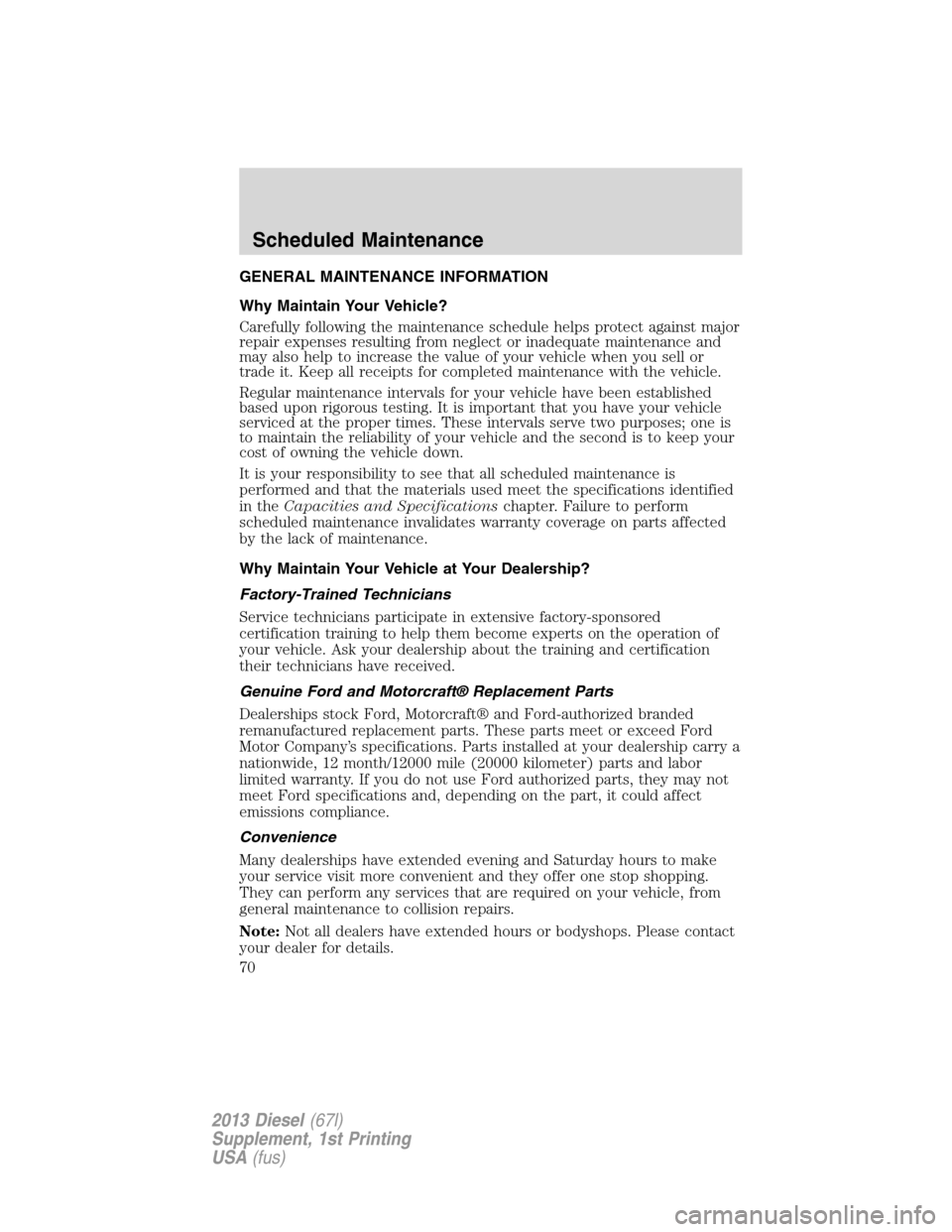

GENERAL MAINTENANCE INFORMATION
Why Maintain Your Vehicle?
Carefully following the maintenance schedule helps protect against major
repair expenses resulting from neglect or inadequate maintenance and
may also help to increase the value of your vehicle when you sell or
trade it. Keep all receipts for completed maintenance with the vehicle.
Regular maintenance intervals for your vehicle have been established
based upon rigorous testing. It is important that you have your vehicle
serviced at the proper times. These intervals serve two purposes; one is
to maintain the reliability of your vehicle and the second is to keep your
cost of owning the vehicle down.
It is your responsibility to see that all scheduled maintenance is
performed and that the materials used meet the specifications identified
in theCapacities and Specificationschapter. Failure to perform
scheduled maintenance invalidates warranty coverage on parts affected
by the lack of maintenance.
Why Maintain Your Vehicle at Your Dealership?
Factory-Trained Technicians
Service technicians participate in extensive factory-sponsored
certification training to help them become experts on the operation of
your vehicle. Ask your dealership about the training and certification
their technicians have received.
Genuine Ford and Motorcraft® Replacement Parts
Dealerships stock Ford, Motorcraft® and Ford-authorized branded
remanufactured replacement parts. These parts meet or exceed Ford
Motor Company’s specifications. Parts installed at your dealership carry a
nationwide, 12 month/12000 mile (20000 kilometer) parts and labor
limited warranty. If you do not use Ford authorized parts, they may not
meet Ford specifications and, depending on the part, it could affect
emissions compliance.
Convenience
Many dealerships have extended evening and Saturday hours to make
your service visit more convenient and they offer one stop shopping.
They can perform any services that are required on your vehicle, from
general maintenance to collision repairs.
Note:Not all dealers have extended hours or bodyshops. Please contact
your dealer for details.
Scheduled Maintenance
70
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)

Protecting Your Investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To maintain the proper
performance of your vehicle and its emission control systems, it is
imperative that scheduled maintenance be completed at the designated
intervals.
Your vehicle is equipped with the Intelligent Oil-Life Monitor® (IOLM)
system which displays a message in the information display at the proper
oil change service interval; this interval may be up to one year or
10000 miles (16000 kilometers). When ENGINE OIL CHANGE DUE or
OIL CHANGE REQUIRED appears in the information display, it is time
for an oil change; the oil change must be done within two weeks or
500 miles (800 kilometers) of the ENGINE OIL CHANGE DUE or OIL
CHANGE REQUIRED message appearing. The Intelligent Oil-Life
Monitor® must be reset after each oil change; see theInformation
Displayschapter of yourOwner’s Manual.
If your information display is prematurely reset or becomes inoperative,
you should perform the oil change interval at six months or 5000 miles
(8000 kilometers) from your last oil change. Never exceed one year or
10000 miles (16000 kilometers) between oil change intervals.
Your vehicle is very sophisticated and built with multiple, complex,
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That is why it is
important to rely upon your dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended maintenance intervals for
various parts and component systems based upon engineering testing.
Ford Motor Company relies upon this testing to determine the most
appropriate mileage for replacement of oils and fluids to protect your
vehicle at the lowest overall cost to you and recommends against
maintenance schedules that deviate from the scheduled maintenance
information.
Ford strongly recommends the use of only genuine Ford, Motorcraft® or
Ford-authorized remanufactured replacement parts because they are
engineered for your vehicle.
Additives and Chemicals
Ford Motor Company recommended additives and chemicals are listed in
the owner manual and in the Ford Workshop Manual. Additional
chemicals or additives not approved by Ford Motor Company are not
recommended as part of normal maintenance. Please consult your
warranty information.
Scheduled Maintenance
71
2013 Diesel(67l)
Supplement, 1st Printing
USA(fus)
