2013 FORD FIESTA Owners Manual

Autolock (if equipped)
The autolock feature will lock all the doors when:
•all doors are closed,
•the ignition is on,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 5 mph (7 km/h).
If a door(s) is unlocked, the autolock feature will repeat when:
•the vehicle slows below 5 mph (7 km/h) and then attains a speed
greater than 5 mph (7 km/h).
Autounlock (If Equipped)
If the doors have been autolocked, the doors will autounlock only when:
•the ignition is on,
•all doors are closed,
•the vehicle has been in motion at a speed greater than 12 mph
(20 km/h) for more than two seconds,
•the vehicle comes to a stop,
•the ignition is turned off or to accessory,
•the driver door is opened within 10 minutes of the ignition being
switched from on to off or accessory.
Note:If you use the power door lock button to lock the doors before an
autolock event, the doors will not autounlock.
Deactivating and Activating Autolock or Autounlock
Note:When programming the autolock feature, carry out the following
steps within 30 seconds or the procedure needs to be repeated. If the
procedure needs to be repeated, wait 30 seconds between programming
sessions.
1. Turn the ignition on.
2. Press the power door lock control three times.
3. Turn the ignition off.
4. Press the power door lock control three times.
Locks65
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

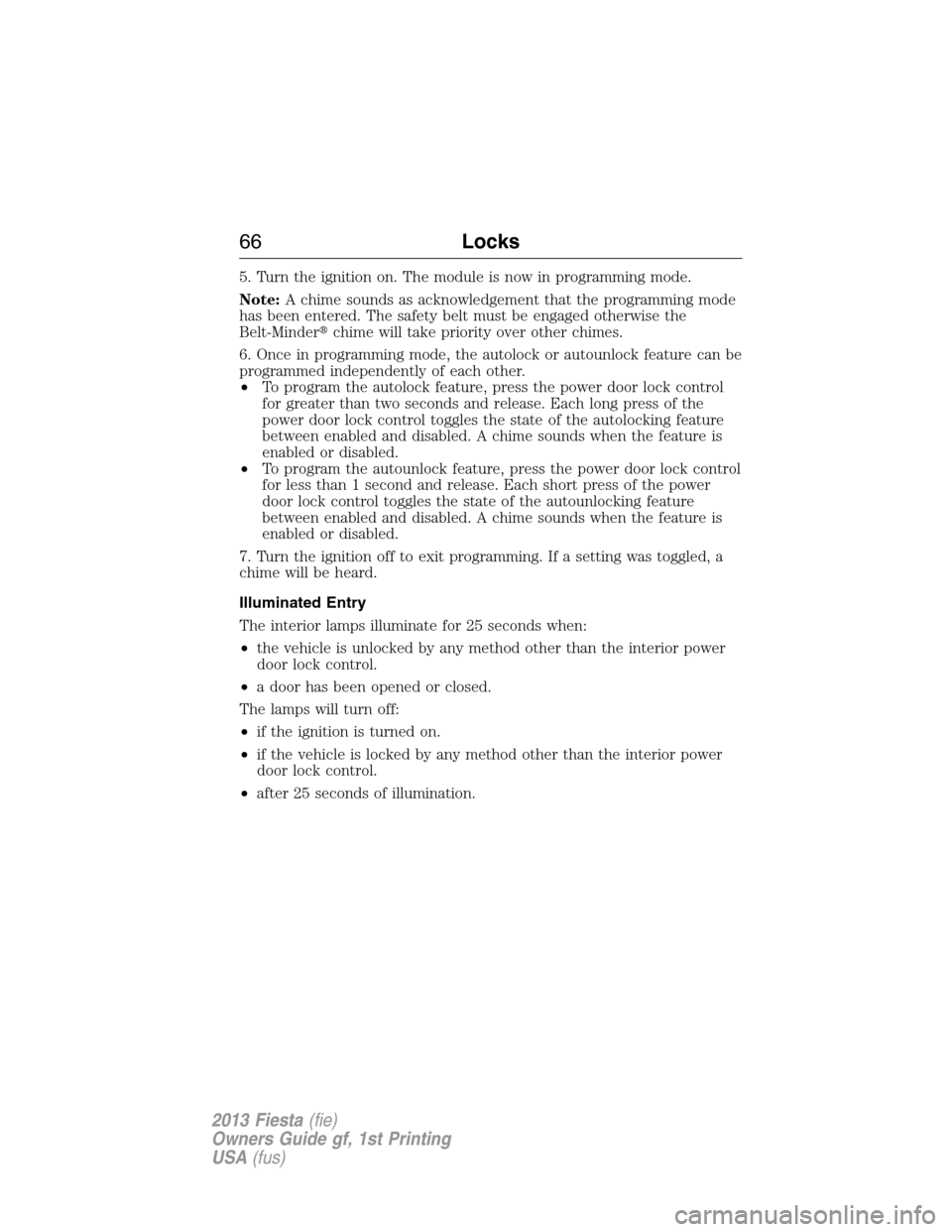

5. Turn the ignition on. The module is now in programming mode.
Note:A chime sounds as acknowledgement that the programming mode
has been entered. The safety belt must be engaged otherwise the
Belt-Minderchime will take priority over other chimes.
6. Once in programming mode, the autolock or autounlock feature can be
programmed independently of each other.
•To program the autolock feature, press the power door lock control
for greater than two seconds and release. Each long press of the
power door lock control toggles the state of the autolocking feature
between enabled and disabled. A chime sounds when the feature is
enabled or disabled.
•To program the autounlock feature, press the power door lock control
for less than 1 second and release. Each short press of the power
door lock control toggles the state of the autounlocking feature
between enabled and disabled. A chime sounds when the feature is
enabled or disabled.
7. Turn the ignition off to exit programming. If a setting was toggled, a
chime will be heard.
Illuminated Entry
The interior lamps illuminate for 25 seconds when:
•the vehicle is unlocked by any method other than the interior power
door lock control.
•a door has been opened or closed.
The lamps will turn off:
•if the ignition is turned on.
•if the vehicle is locked by any method other than the interior power
door lock control.
•after 25 seconds of illumination.
66Locks
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Illuminated Exit
The interior lamps and parking lamps will illuminate for 25 seconds
when:
•the ignition is turned off.
•an IKT is removed from, or reinserted into, the ignition.
The lamps will turn off:
•if the ignition is turned off.
•if the vehicle is locked by any method other than the power door lock
control.
•after 25 seconds of illumination.
Accessory Mode Battery Saver for Intelligent Access Keys
(If Equipped)
If you shut off the engine and leave the ignition in the on or accessory
mode, the ignition will shut off after 30 minutes.
TRUNK RELEASE
To open the trunk with the outside
release button:
1. Unlock the trunk with the remote control or power door lock control.
The trunk will unlock when you press the release button if the intelligent
access transmitter is within 3 feet (1 meter) of the trunk.
2. Press the release button located above the license plate.
Locks67
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

INTERIOR LUGGAGE COMPARTMENT RELEASE (4–DOOR ONLY)
WARNING:Keep vehicle doors and luggage compartment locked
and keep keys and remote transmitters out of a child’s reach.
Unsupervised children could lock themselves in the trunk and risk
injury. Children should be taught not to play in vehicles.
WARNING:Do not leave children, unreliable adults, or animals
unattended in the vehicle. On hot days, the temperature in the
trunk or vehicle interior can rise very quickly. Exposure of people or
animals to these high temperatures for even a short time can cause
death or serious heat-related injuries, including brain damage. Small
children are particularly at risk.
Your vehicle is equipped with a release handle that provides a means of
escape for children and adults if they become locked inside the luggage
compartment.
Adults should familiarize themselves with the operation and location of
the release handle.
The handle is located inside the
luggage compartment either on the
luggage compartment door (lid) or
near the tail lamps. It is composed
of a material that will glow for hours
in darkness following brief exposure
to ambient light.
Pull the handle and push up on the
luggage compartment door (lid) to
open from within the luggage
compartment.
68Locks
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

SECURILOCKPASSIVE ANTI-THEFT SYSTEM
Note:The system is not compatible with non-Ford aftermarket remote
start systems. Use of these systems may result in vehicle starting
problems and a loss of security protection.
Note:Metallic objects, electronic devices or a second coded key on the
same key chain may cause vehicle starting issues if they are too close to
the key when starting the engine. Prevent these objects from touching
the coded key while starting the engine. Switch the ignition off, move all
objects on the key chain away from the coded key and restart the engine
if a problem occurs.
Note:Do not leave a duplicate coded key in the vehicle. Always take
your keys and lock all doors when leaving the vehicle.
The system is an engine immobilization system. It is designed to help
prevent the engine from being started unless a coded key programmed
to your vehicle is used. Using the wrong key may prevent the engine
from starting. A message may appear in the information display.
If you are unable to start the engine with a correctly coded key, a
malfunction has happened and a message may appear in the information
display.
Automatic Arming
The vehicle is armed immediately after switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded key disarms the vehicle.
Replacement Keys
The integrated keyhead transmitter functions as a programmed ignition key
that operates all the locks and starts the vehicle, as well as a remote control.
The intelligent access key functions as a programmed key that operates
the driver door lock and activates the intelligent access with push button
start systems, as well as a remote control.
If your programmed transmitters or standard SecuriLockcoded keys
(integrated keyhead transmitters only) are lost or stolen and you don’t
have an extra coded key, you will need to have your vehicle towed to an
authorized dealer. The key codes need to be erased from your vehicle
and new coded keys will need to be programmed.
Store an extra programmed key away from the vehicle in a safe place to
help prevent any inconveniences. See your authorized dealer to purchase
additional spare or replacement keys.
Security69
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Programming a Spare Integrated Keyhead Transmitter or
SecuriLockCoded Key
Note:A maximum of eight coded keys can be programmed to your
vehicle; all eight can be integrated keyhead transmitters.
You can program your own integrated keyhead transmitter or standard
SecuriLockcoded keys to your vehicle. To program the remote control
functions, seeReplacing a Lost Key or Remote Controlin theKeys and
Remote Controlchapter.
Only use integrated keyhead transmitters or standard SecuriLockkeys.
You must have two previously programmed coded keys and the new
unprogrammed key readily accessible. See your authorized dealer to have
the spare key programmed if two previously programmed coded keys are
not available.
Read and understand the entire procedure before you begin.
1. Insert the first previously programmed coded key into the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the first coded key from the ignition.
4. After three seconds but within 10 seconds of turning the ignition off,
insert the second previously coded key into the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed
coded key from the ignition.
7. After three seconds but within 10 seconds of turning the ignition off
and removing the previously programmed coded key, insert the new
unprogrammed key into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six
seconds.
9. Remove the newly programmed coded key from the ignition.
If the key has been successfully programmed it will start the engine.
If it was not programmed successfully, wait 10 seconds and repeat
Steps 1 through 8. If you are still unsuccessful, bring your vehicle to
your authorized dealer.
Wait 20 seconds and then repeat this procedure from Step 1 to program
an additional key.
70Security
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Programming a Spare Intelligent Access Key
See your authorized dealer to have additional keys programmed to your
vehicle.
ANTI-THEFT ALARM (IF EQUIPPED)
The system will warn you of an unauthorized entry to your vehicle. It
will be triggered if any door, the luggage compartment or the hood is
opened without using the key or the remote control.
The park and turn lamps will flash and the horn will sound if
unauthorized entry is attempted while the alarm is armed.
Take all remote controls to an authorized dealer if there is any potential
alarm problem with your vehicle.
Arming the alarm
The alarm is ready to arm when there is not a key in the ignition. Lock
the vehicle to arm the alarm.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors or luggage compartment with the remote control.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turn the ignition to the on or start position with a programmed coded
ignition key.
Pressing the power door unlock control within the 20 second pre-armed
mode will return the vehicle to a disarmed state.
Security71
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. Refer to
Sitting In the Correct Positionin theSeatschapter.
1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position.
3. Lock the steering column.
72Steering Wheel
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
