2013 FORD FIESTA Owners Manual

AUDIO CONTROL (IF EQUIPPED)
Select the required source on the audio unit.
The following functions can be operated with the control:
A. Volume up
B. Seek up or next
C. Volume down
D. Seek down or previous
Seek, Next or Previous
Press the seek button to:
•tune the radio to the next or previous stored preset
•play the next or previous track.
Press and hold the seek button to:
•tune the radio to the next station up or down the frequency band
•seek through a track.
B
A
C
D
Steering Wheel73
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

VOICE CONTROL (IF EQUIPPED)
A. Receive a call
B. Voice recognition
C. End a call
Refer to theSYNCchapter.
CRUISE CONTROL (IF EQUIPPED)
Refer to theCruise Controlchapter.
BAC
74Steering Wheel
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

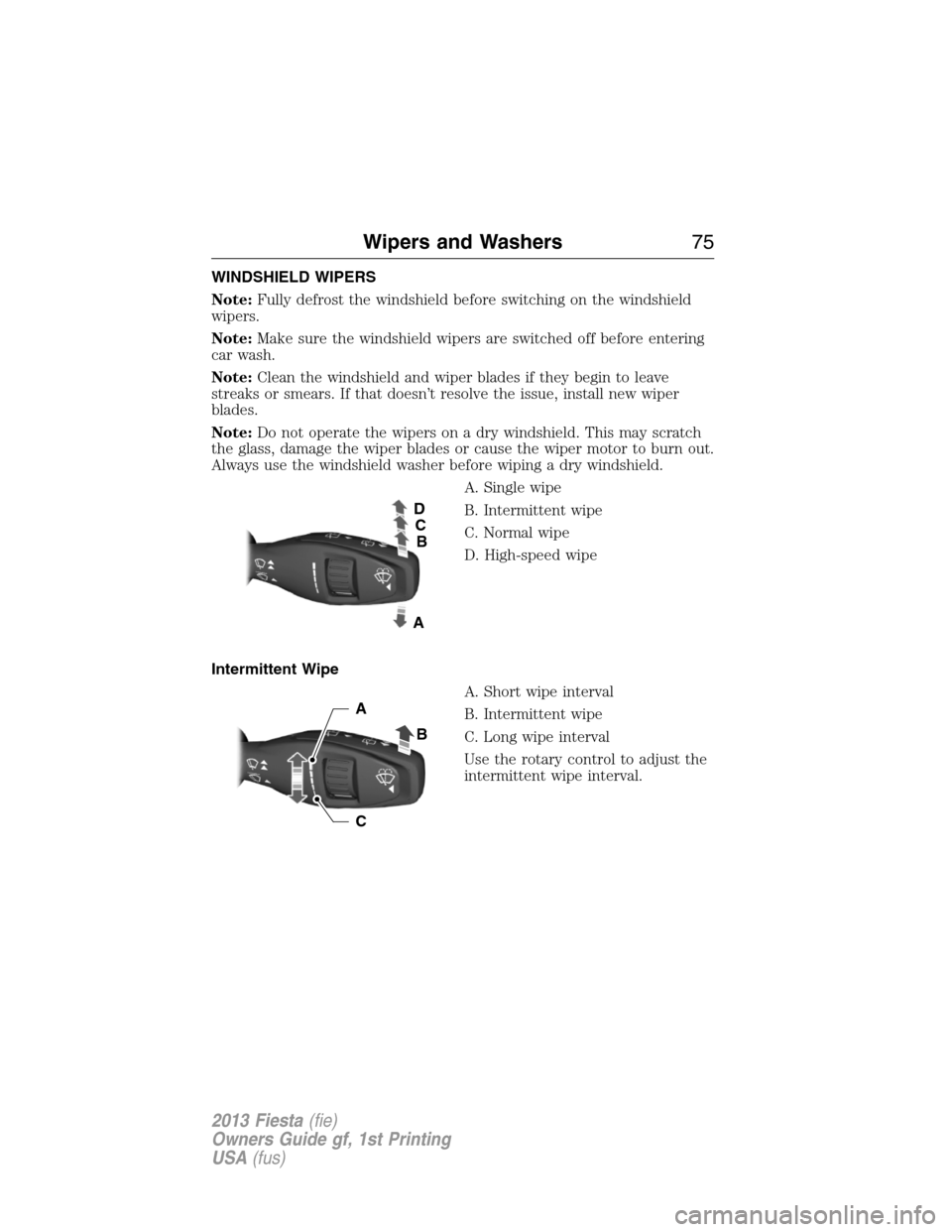

WINDSHIELD WIPERS
Note:Fully defrost the windshield before switching on the windshield
wipers.
Note:Make sure the windshield wipers are switched off before entering
car wash.
Note:Clean the windshield and wiper blades if they begin to leave
streaks or smears. If that doesn’t resolve the issue, install new wiper
blades.
Note:Do not operate the wipers on a dry windshield. This may scratch
the glass, damage the wiper blades or cause the wiper motor to burn out.
Always use the windshield washer before wiping a dry windshield.
A. Single wipe
B. Intermittent wipe
C. Normal wipe
D. High-speed wipe
Intermittent Wipe
A. Short wipe interval
B. Intermittent wipe
C. Long wipe interval
Use the rotary control to adjust the
intermittent wipe interval.
A
B C D
C
B
A
Wipers and Washers75
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

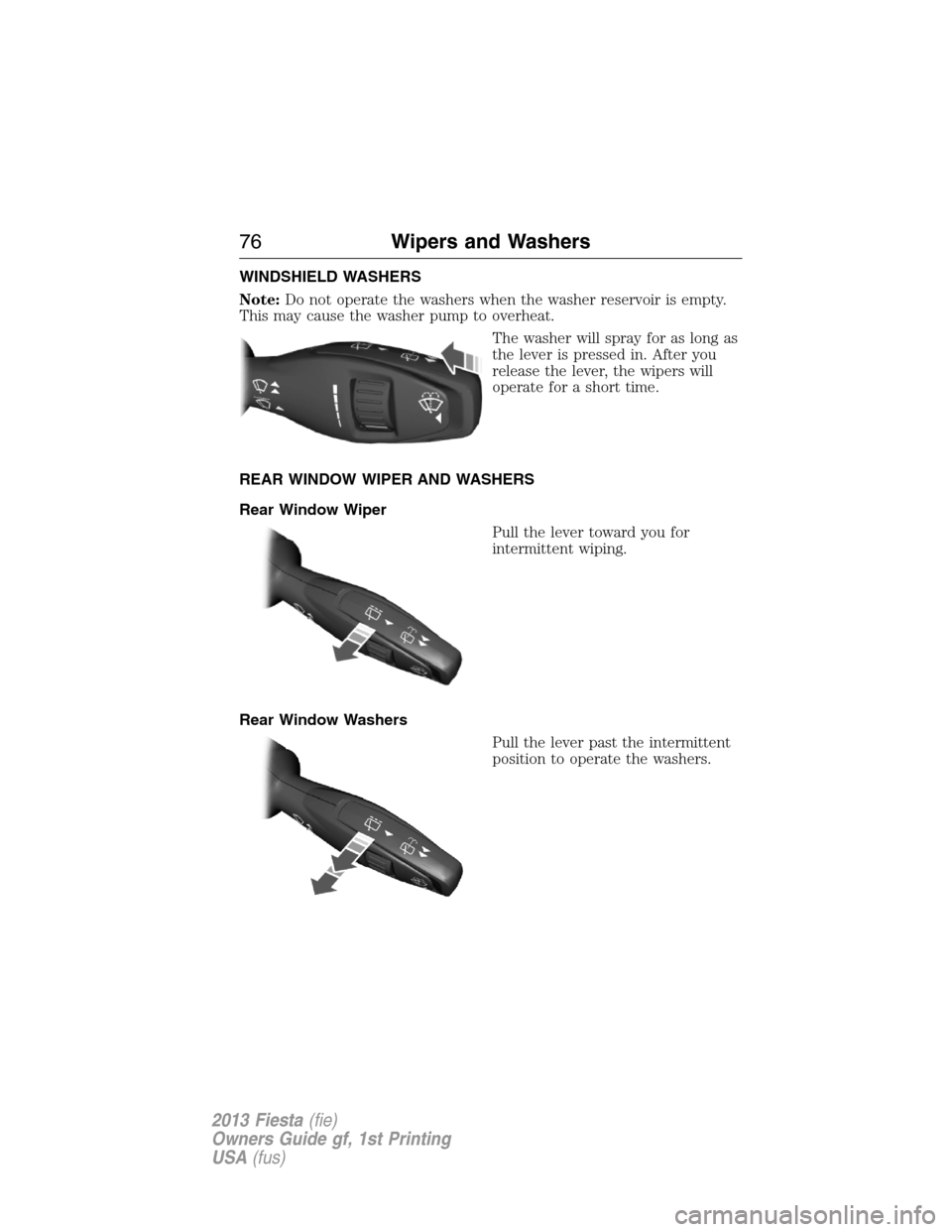

WINDSHIELD WASHERS
Note:Do not operate the washers when the washer reservoir is empty.
This may cause the washer pump to overheat.
The washer will spray for as long as
the lever is pressed in. After you
release the lever, the wipers will
operate for a short time.
REAR WINDOW WIPER AND WASHERS
Rear Window Wiper
Pull the lever toward you for
intermittent wiping.
Rear Window Washers
Pull the lever past the intermittent
position to operate the washers.
76Wipers and Washers
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

LIGHTING CONTROL
A. Off
B. Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps
C. Headlamps
High Beams
Pull the lever fully past the detent
to activate. Pull the lever fully again
to deactivate.
Headlamp Flasher
Pull the lever toward you slightly to activate and release to deactivate.
INSTRUMENT LIGHTING DIMMER
Press repeatedly or press and hold
until the desired level is reached.
AB
C
Lighting77
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

HEADLAMP EXIT DELAY
After you switch the ignition off, you can switch the headlamps on by
pulling the direction indicator lever toward you. You will hear a short
tone. The headlamps will switch off automatically after three minutes
with any door open or 30 seconds after the last door has been closed..
You can cancel this feature by pulling the direction indicator toward you
again or switching the ignition on.
DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to switch your headlamps on in
low light situations or during inclement weather. The system does
not activate the tail lamps and may not provide adequate lighting
during these conditions. Failure to activate your headlamps under these
conditions may result in a collision.
The system switches the headlamps on in daylight conditions.
To switch the system on:
1. Switch the ignition on.
2. Switch the lighting control to the off or parking lamp position.
3. Make sure the transmission selector lever is not in position P.
DIRECTION INDICATORS
Push the lever up or down to use
the direction indicators.
Note:When changing lanes, the turn signal indicator can be programmed to
flash either one or three times when the stalk is tapped. SeeMultifunction
displayin theInstrument clustersection for more information.
78Lighting
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

INTERIOR LAMPS
Front dome and map lamps
Press the buttons to switch the map
lamps on and off.
The dome lamp switch has two
modes:
•OFF: The dome lamps will not come on when the doors are opened.
•DOOR: The dome lamps come on when a door is opened.
Rear dome and map lamps
Press the buttons to switch the map
lamps on and off.
SLIDE TILT
SLIDE TILT
Lighting79
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Battery Saver
The battery saver feature will switch off the interior lamps 10 minutes
after the ignition has been turned to the (off) position and one of the
vehicle doors has been opened.
Note:The battery saver feature will turn off the map lamps after
30 minutes if left in the on position.
AMBIENT LIGHTING (If Equipped)
Illuminates the interior with a choice of several colors. The ambient
lighting control is located on the instrument panel.
Press and release the control to
cycle through the color choices plus
the off state.
The ambient lighting will switch on when the following conditions have
been met:
•You switch the ignition on.
•You switch the headlamps on.
•The outside ambient light level is low.
The ambient lighting will remain on until you switch the ignition off and
one of the following conditions have been met:
•You lock your vehicle.
•The accessory delay timer expires.
80Lighting
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
