2013 FORD FIESTA Owners Manual

O.Function Button 1:Select different functions of the audio system
depending on which mode (i.e. radio or CD) you are in.
P.PHONE:Access the phone features of the SYNCsystem. Refer to
theSYNCchapter for more information.
Q.AUX:Access the media features of the SYNCsystem. Refer to the
SYNCchapter for more information.
R.SIRIUS:Access different SIRIUS satellite radio features by pressing
SIRIUS, then MENU. Refer toMenu structurelater in this section.
S.RADIO:Access different radio features by pressing RADIO, then
MENU. Refer toMenu structurelater in this section.
T.CD:Access different CD features by pressing CD, then MENU. Refer
toMenu structurelater in this section.
Setting the clock
Press the H or M buttons on the outside of the multifunction display to
access the clock settings. Once you are in the clock setting, press the H
or M button repeatedly until the desired number appears. Press OK to
confirm and close.
MENU STRUCTURE
Note:Depending on your system, some options may appear slightly
different, not at all or on-screen and able to be selected using the
function buttons.
Press MENU.
Press the up and down arrow buttons to scroll through the options (if
active).
Press the right arrow to enter a menu. Press the left arrow to exit a
menu.
RADIO
Manual tuneUse the left and right arrows to go up or down
the frequency band
ScanSelect for a brief sampling of all available
channels.
AutostoreSelect to store the six strongest local stations
on the AM and FM frequency bands.
Audio System105
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

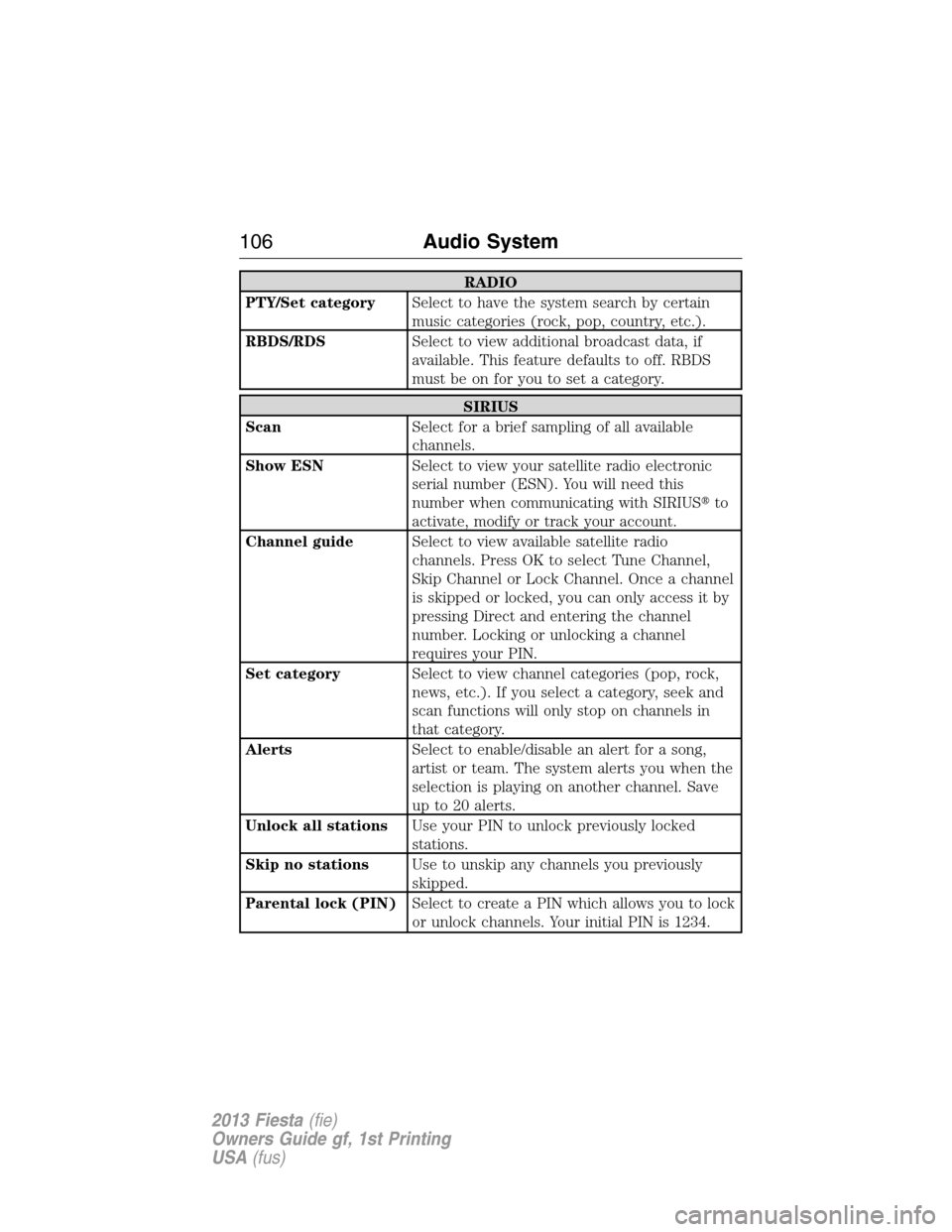

RADIO
PTY/Set categorySelect to have the system search by certain
music categories (rock, pop, country, etc.).
RBDS/RDSSelect to view additional broadcast data, if
available. This feature defaults to off. RBDS
must be on for you to set a category.
SIRIUS
ScanSelect for a brief sampling of all available
channels.
Show ESNSelect to view your satellite radio electronic
serial number (ESN). You will need this
number when communicating with SIRIUSto
activate, modify or track your account.
Channel guideSelect to view available satellite radio
channels. Press OK to select Tune Channel,
Skip Channel or Lock Channel. Once a channel
is skipped or locked, you can only access it by
pressing Direct and entering the channel
number. Locking or unlocking a channel
requires your PIN.
Set categorySelect to view channel categories (pop, rock,
news, etc.). If you select a category, seek and
scan functions will only stop on channels in
that category.
AlertsSelect to enable/disable an alert for a song,
artist or team. The system alerts you when the
selection is playing on another channel. Save
up to 20 alerts.
Unlock all stationsUse your PIN to unlock previously locked
stations.
Skip no stationsUse to unskip any channels you previously
skipped.
Parental lock (PIN)Select to create a PIN which allows you to lock
or unlock channels. Your initial PIN is 1234.
106Audio System
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

AUDIO
SCV levelAutomatically adjusts the volume to
compensate for speed and wind noise. You can
set the system between off and +7.
SoundAllows you to adjust sound settings such as
treble, bass, middle, fade and balance.
Occupancy modeOptimizes sound quality for the chosen seating
position.
RBDS/RDSSelect to view additional broadcast data, if
available. This feature defaults to off. RBDS
must be on for you to set a category.
DSPAllows you to choose between STEREO
SURROUND mode and STEREO mode.
CD
Scan allSelect to scan all disc selections.
Scan folderSelect to scan all music in the current MP3
folder.
CD compressionSelect to bring soft and loud passages together
for a more consistent listening level.
DISPLAY
DimmingSelect to change display brightness.
LanguageSelect to display the language in English,
French or Spanish.
Temp settingSelect to display the outside temperature in
Fahrenheit or Celsius
CLOCK
Set timeSelect to set the time.
Set dateSelect to set the calendar date.
12/24 hourSelect to view clock time in a 12–hour mode or
24–hour mode.
Audio System107
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

AUXILIARY INPUT JACK
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
WARNING:For safety reasons, do not connect or adjust the
settings on your portable music player while the vehicle is moving.
WARNING:Store the portable music player in a secure location,
such as the center console or the glove box, when the vehicle is
in motion. Hard objects may become projectiles in a collision or sudden
stop, which may increase the risk of serious injury. The audio extension
cable must be long enough to allow the portable music player to be
safely stored while the vehicle is in motion.
The auxiliary input jack (AIJ) allows
you to connect and play music from
your portable music player through
the vehicle speakers. You can use
any portable music player designed
for use with headphones. Your audio
extension cable must have male
one-eighth inch (3.5 millimeter)
connectors at each end.
1. Make sure the vehicle, radio and portable music player are turned off
and the vehicle is in P (Park).
2. Plug the extension cable from the portable music player into the AIJ.
3. Turn on the radio. Select either a tuned FM station or a CD.
4. Adjust the volume as desired.
5. Turn on your portable music player and adjust its volume to one–half
maximum.
108Audio System
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

6. Press AUX until LINE or LINE IN appears in the display. You should
hear music from your device even if it is low.
7. Adjust the volume on your portable music player until it reaches the
volume level of the FM station or CD. Do this by switching back and
forth between the AUX and FM or CD controls.
USB PORT
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
The USB port allows you to plug in
media playing devices, memory
sticks and charge devices (if
supported). Refer to theSYNC
chapter for more information.
SATELLITE RADIO INFORMATION (IF EQUIPPED)
Satellite Radio Channels
SIRIUSbroadcasts a variety of music, news, sports, weather, traffic and
entertainment satellite radio channels. For more information and a
complete list of SIRIUSsatellite radio channels, visit www.siriusxm.com
in the United States, www.sirius.ca in Canada, or call SIRIUSat
1–888–539–7474.
Audio System109
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Satellite Radio Reception Factors
Potential satellite radio reception issues
Antenna
obstructionsFor optimal reception performance, keep the
antenna clear of snow and ice build-up and
keep luggage and other material as far away
from the antenna as possible.
TerrainHills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking garages,
dense tree foliage and thunderstorms can
interfere with your reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and the audio system
may mute.
Satellite radio signal
interferenceYour display may show ACQUIRING...to
indicate the interference and the audio
system may mute.
SIRIUSSatellite Radio Service
Note:SIRIUSreserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
SIRIUSsatellite radio is a
subscription-based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory-installed SIRIUS
satellite radio system includes
hardware and a limited subscription term which begins on the date of sale
or lease of the vehicle. Refer to your authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit
www.siriusxm.com in the United States, www.sirius.ca in Canada, or call
SIRIUSat 1–888–539–7474.
11 0Audio System
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Satellite Radio Electronic Serial Number (ESN)
You need your ESN to activate, modify or track your satellite radio
account. When in satellite radio mode, you can view this number by
pressing SIRIUS and memory preset 1 at the same time.
Troubleshooting
SIRIUStroubleshooting tips
Radio Display Condition Possible Action
Acquiring Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
Sat Fault/SIRIUS
system failureInternal module or
system failure present.If this message does
not clear shortly, or
with an ignition key
cycle, your receiver
may have a fault. See
your authorized dealer
for service.
Invalid Channel Channel no longer
available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
No Signal Loss of signal from the
SIRIUSsatellite or
SIRIUStower to the
vehicle antenna.The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating Update of channel
programming in
progress.No action required.
The process may take
up to three minutes.
Audio System111
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

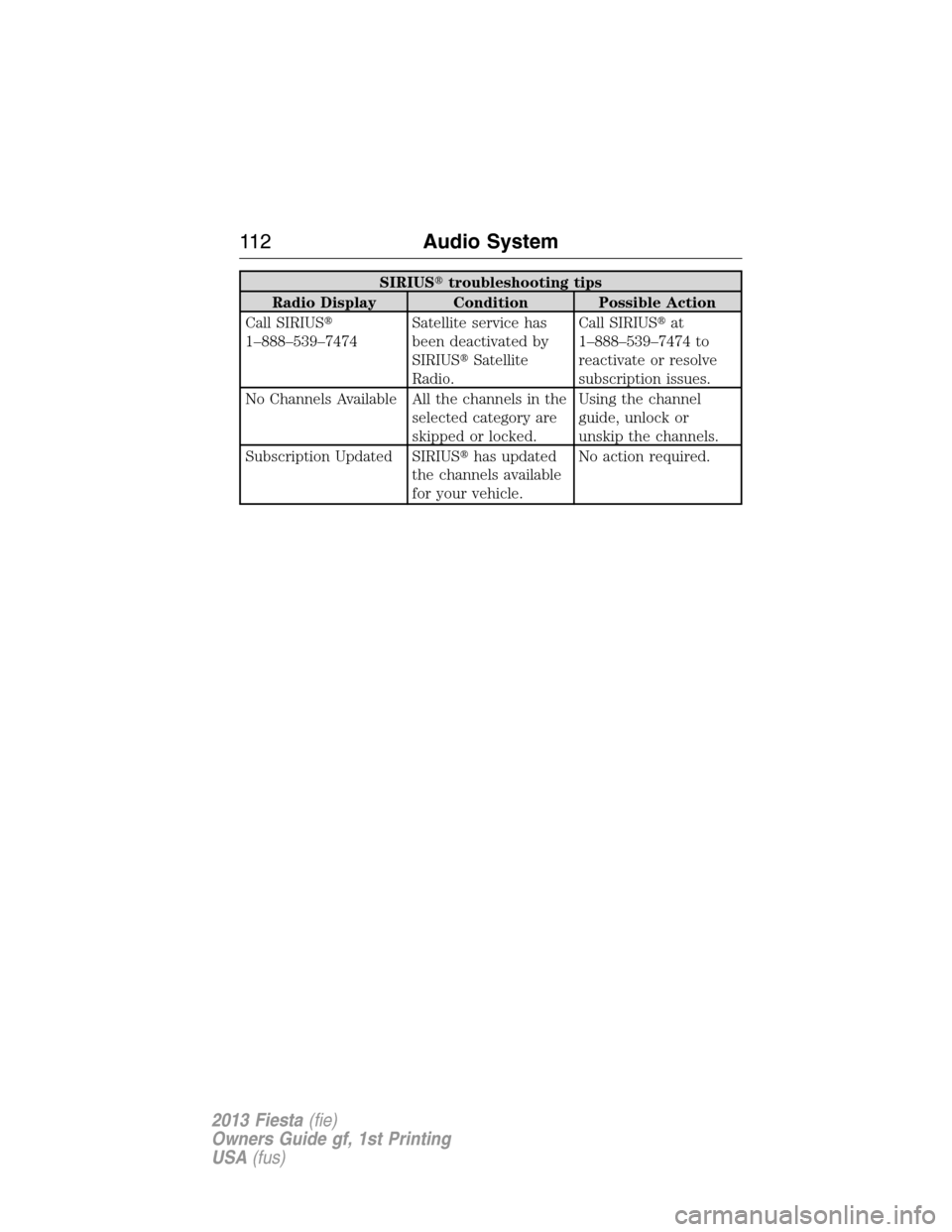

SIRIUStroubleshooting tips
Radio Display Condition Possible Action
Call SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels Available All the channels in the
selected category are
skipped or locked.Using the channel
guide, unlock or
unskip the channels.
Subscription Updated SIRIUShas updated
the channels available
for your vehicle.No action required.
11 2Audio System
