2013 FORD FIESTA Owners Manual

Message Warning Lamp at
Instrument ClusterSystem
TRANSMISSION
HOT STOP OR
SPEED UP— Transmission
USE BRAKE STOP
SAFELY— Transmission
TRANSMISSION
HOT WAIT X MIN— Transmission
TRANSMISSION
HOT WAIT...— Transmission
TRANSMISSION
READY— Transmission
HILL START ASSIST
ACTIVE— Transmission
HILL START ASSIST
OFF— Transmission
VEHICLE NOT IN
PARK SELECT P— Starting/Transmission
VEHICLE NOT IN
PARK SELECT P— Starting/Transmission
DOOR OPEN APPLY
BRAKE— Doors
X DOOR OPEN
Doors
TRUNK OPEN
Doors
HOOD OPEN
Hood
AIRBAG
MALFUNCTION
SERVICE NOW
Airbag
ENGINE OIL
CHANGE DUE NEXT
SERVICE
Engine Oil (SeeOil
life monitoring
system resetlater in
this section)
Information Displays97
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Message Warning Lamp at
Instrument ClusterSystem
ENGINE OIL
PRESSURE LOW
STOP SAFELY
Engine Oil
BRAKE FLUID
LEVEL LOW
SERVICE NOWBRAKE or
Brakes
CHECK FUEL FILL
INLET— Fuel
Oil life monitoring system reset
To reset the oil service light and clear the oil change message after
servicing, use the following procedure:
1. Begin with the ignition off.
2. Turn the key to the accessory position for keyed vehicles and for push
button start vehicles press the Start/Stop button once quickly. DO NOT
attempt to start the engine.
3. Press the accelerator and brake pedals fully for 20 seconds.
4.ENGINE OIL CHANGE DUE NEXT SERVICEand
will display.
5. Turn the vehicle off. The message and lights will be cleared.
98Information Displays
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

GENERAL AUDIO INFORMATION
Radio Frequencies and Reception Factors
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio reception factors
Distance/StrengthThe further you travel from an FM station,
the weaker the signal and the weaker the
reception.
TerrainHills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking garages,
dense tree foliage and thunderstorms can
interfere with your reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result the audio
system muting.
CD/CD Player Information
Note:CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not function
correctly when used in Ford CD players.
Note:CDs with homemade paper (adhesive) labels should not be
inserted into the CD player as the label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be identified
with permanent felt tip marker rather than adhesive labels. Ballpoint
pens may damage CDs. Please contact your authorized dealer for further
information.
Note:Do not use any irregularly shaped discs or discs with a scratch
protection film attached.
Audio System99
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Always handle discs by their edges only. Clean the disc with an approved
CD cleaner only, wiping from the center of the disc toward the edge. Do
not clean in a circular motion.
Do not expose discs to direct sunlight or heat sources for extended
periods of time.
MP3 Track and Folder Structure
Audio systems capable of recognizing and playing MP3 individual tracks
and folder structures work as follows:
•There are two different modes for MP3 disc playback: MP3 track
mode (system default) and MP3 folder mode.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.Note:The maximum
number of playable MP3 files may be less depending on the structure
of the CD and exact model of radio present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders helps with navigation
through the disc files.
If you are burning your own MP3 discs, it is important to understand
how the system reads the structures you create. While various files may
be present, (files with extensions other than mp3), only files with the
.mp3 extension are played; other files are ignored by the system. This
enables you to use the same MP3 disc for a variety of tasks on your work
computer, home computer and your in-vehicle system.
In track mode, the system displays and plays the structure as if it were
only one level deep (all .mp3 files are played, regardless of being in a
specific folder). In folder mode, the system only plays the .mp3 files in
the current folder.
100Audio System
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

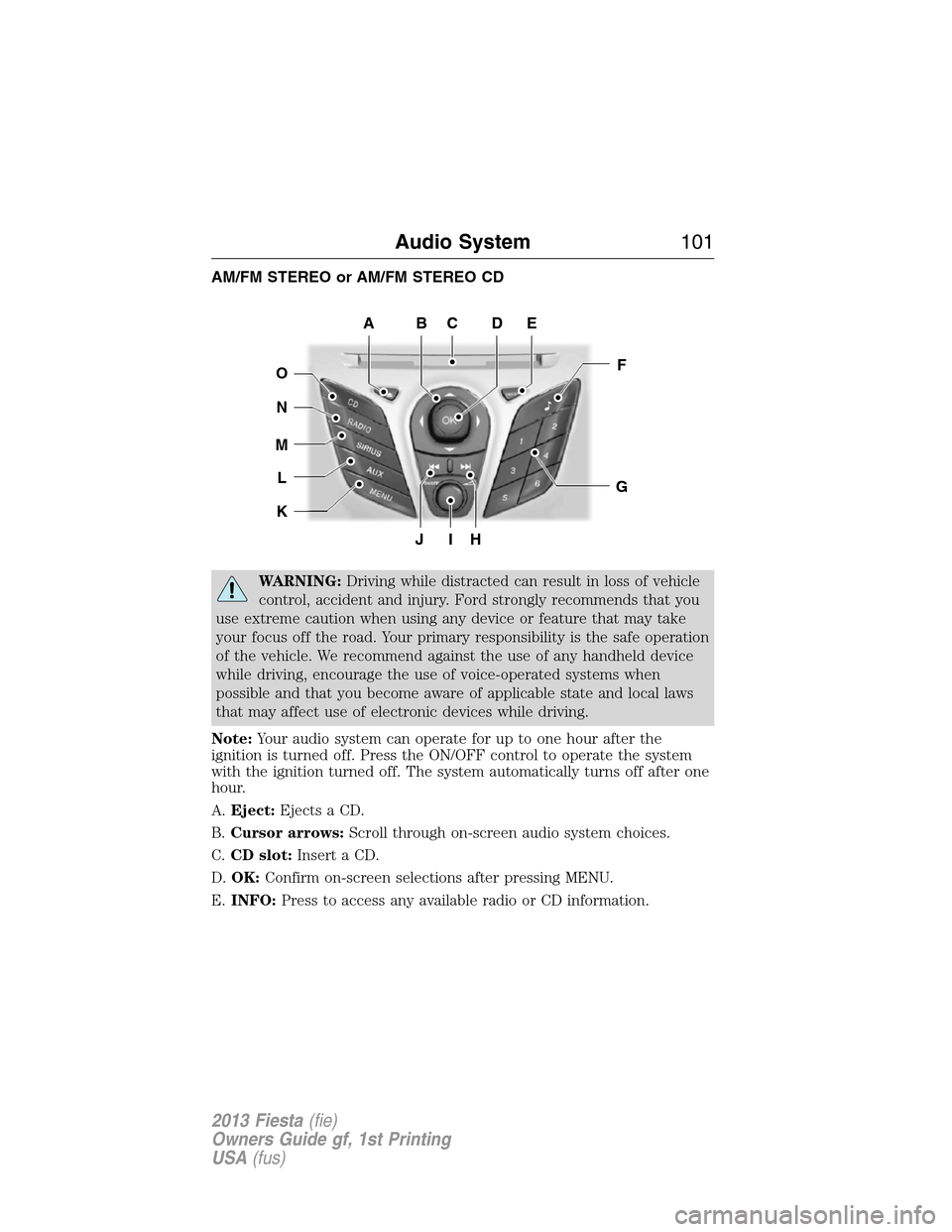

AM/FM STEREO or AM/FM STEREO CD
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Note:Your audio system can operate for up to one hour after the
ignition is turned off. Press the ON/OFF control to operate the system
with the ignition turned off. The system automatically turns off after one
hour.
A.Eject:Ejects a CD.
B.Cursor arrows:Scroll through on-screen audio system choices.
C.CD slot:Insert a CD.
D.OK:Confirm on-screen selections after pressing MENU.
E.INFO:Press to access any available radio or CD information.
JIH
F
G
EDCBA
O
N
M
L
K
Audio System101
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

F.SOUND:
•Press to access Treble, Bass, Middle, Fade (if equipped) and Balance
menu options.
•Use the up and down arrow buttons to see the various options. When
you make your selection, press the left and right arrow buttons to
increase or decrease the levels. Press OK to set or press MENU to
exit.
•Sound settings can be set for each audio source independently.
G.Memory presets:Store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound returns.
H.SEEK:
•Press and release to go to the next track or preset radio station.
•Press and hold to fast forward through the current track or to next
strong radio station (manually advances between station presets or
through radio stations).
I.ON/OFF:
•Press the power control to turn the system on and off.
•Turn to adjust the volume.
J.SEEK:
•Press and release to go to the previous track or preset radio station.
•Press and hold to reverse through the current track or to previous
strong radio station (manually reverses between station presets or
through radio stations).
K.MENU:Access different audio system features. SeeMenu structure
information later in this section.
L.AUX:Press to access LINE IN (auxiliary input jack) mode.
M.SIRIUS:Press repeatedly to access SAT1, SAT2 and SAT3 satellite
radio modes (if equipped).
N.RADIO:Access different radio features. SeeMenu structure
information later in this section.
O.CD:Access different CD features. SeeMenu structureinformation
later in this section.
102Audio System
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

AM/FM/CD/SIRIUS SATELLITE RADIO WITH SYNC
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Note:Your audio system can operate for up to one hour after the
ignition is turned off. Press the ON/OFF control to operate the system
with the ignition turned off. The system automatically turns off after one
hour.
Note:Some features such as SIRIUS satellite radio may not be available
in your location. Check with your authorized dealer.
A.Eject:Ejects a CD.
B.Cursor arrows:Scroll through on-screen audio system choices.
Audio System103
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

C.CD slot:Insert a CD.
D.OK:Confirm on-screen selections after pressing MENU.
E.INFO:Press to access any available radio or CD information.
F.MENU:Access different audio system features. SeeMenu structure
information later in this section.
G.SOUND:
•Press to access Treble, Bass, Middle, Fade (if equipped) and Balance
menu options.
•Use the up and down arrow buttons to see the various options. When
you make your selection, press the left and right arrow buttons to
increase or decrease the levels. Press OK to set or press MENU to
exit.
•Sound settings can be set for each audio source independently.
H.Number block:Store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound returns.
•In radio mode,store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound
returns.
•In CD mode,select a track.
•In phone mode,enter a phone number.
I.Function Button 4:Select different functions of the audio system
depending on which mode (i.e. radio or CD) you are in.
J.Function Button 3:Select different functions of the audio system
depending on which mode (i.e. radio or CD) you are in.
K.SEEK:
•Press and release to go to the next track or preset radio station.
•Press and hold to fast forward through the current track or to next
strong radio station (manually advances between station presets or
through radio stations).
L.ON/OFF:
•Press the power control to turn the system on and off.
•Turn to adjust the volume.
M.SEEK:
•Press and release to go to the previous track or preset radio station.
•Press and hold to reverse through the current track or to previous
strong radio station (manually reverses between station presets or
through radio stations).
N.Function Button 2:Select different functions of the audio system
depending on which mode (i.e. radio or CD) you are in.
