REMOTE CONTROL
Integrated Keyhead Transmitters (If Equipped)
Your vehicle may be equipped with
two integrated keyhead
transmitters. The key blade is used
to start the vehicle and unlock or
lock the driver’s door from outside
the vehicle. The transmitter portion
functions as the remote control.
Note:Your vehicle’s keys were
issued with a security label that
provides important vehicle key cut
information. Keep the label in a safe
place for future reference.
Intelligent access key (if equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks. The key
must be in the vehicle to activate
the push button start system.
56Keys and Remote Control
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

SECURILOCKPASSIVE ANTI-THEFT SYSTEM
Note:The system is not compatible with non-Ford aftermarket remote
start systems. Use of these systems may result in vehicle starting
problems and a loss of security protection.
Note:Metallic objects, electronic devices or a second coded key on the
same key chain may cause vehicle starting issues if they are too close to
the key when starting the engine. Prevent these objects from touching
the coded key while starting the engine. Switch the ignition off, move all
objects on the key chain away from the coded key and restart the engine
if a problem occurs.
Note:Do not leave a duplicate coded key in the vehicle. Always take
your keys and lock all doors when leaving the vehicle.
The system is an engine immobilization system. It is designed to help
prevent the engine from being started unless a coded key programmed
to your vehicle is used. Using the wrong key may prevent the engine
from starting. A message may appear in the information display.
If you are unable to start the engine with a correctly coded key, a
malfunction has happened and a message may appear in the information
display.
Automatic Arming
The vehicle is armed immediately after switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded key disarms the vehicle.
Replacement Keys
The integrated keyhead transmitter functions as a programmed ignition key
that operates all the locks and starts the vehicle, as well as a remote control.
The intelligent access key functions as a programmed key that operates
the driver door lock and activates the intelligent access with push button
start systems, as well as a remote control.
If your programmed transmitters or standard SecuriLockcoded keys
(integrated keyhead transmitters only) are lost or stolen and you don’t
have an extra coded key, you will need to have your vehicle towed to an
authorized dealer. The key codes need to be erased from your vehicle
and new coded keys will need to be programmed.
Store an extra programmed key away from the vehicle in a safe place to
help prevent any inconveniences. See your authorized dealer to purchase
additional spare or replacement keys.
Security69
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

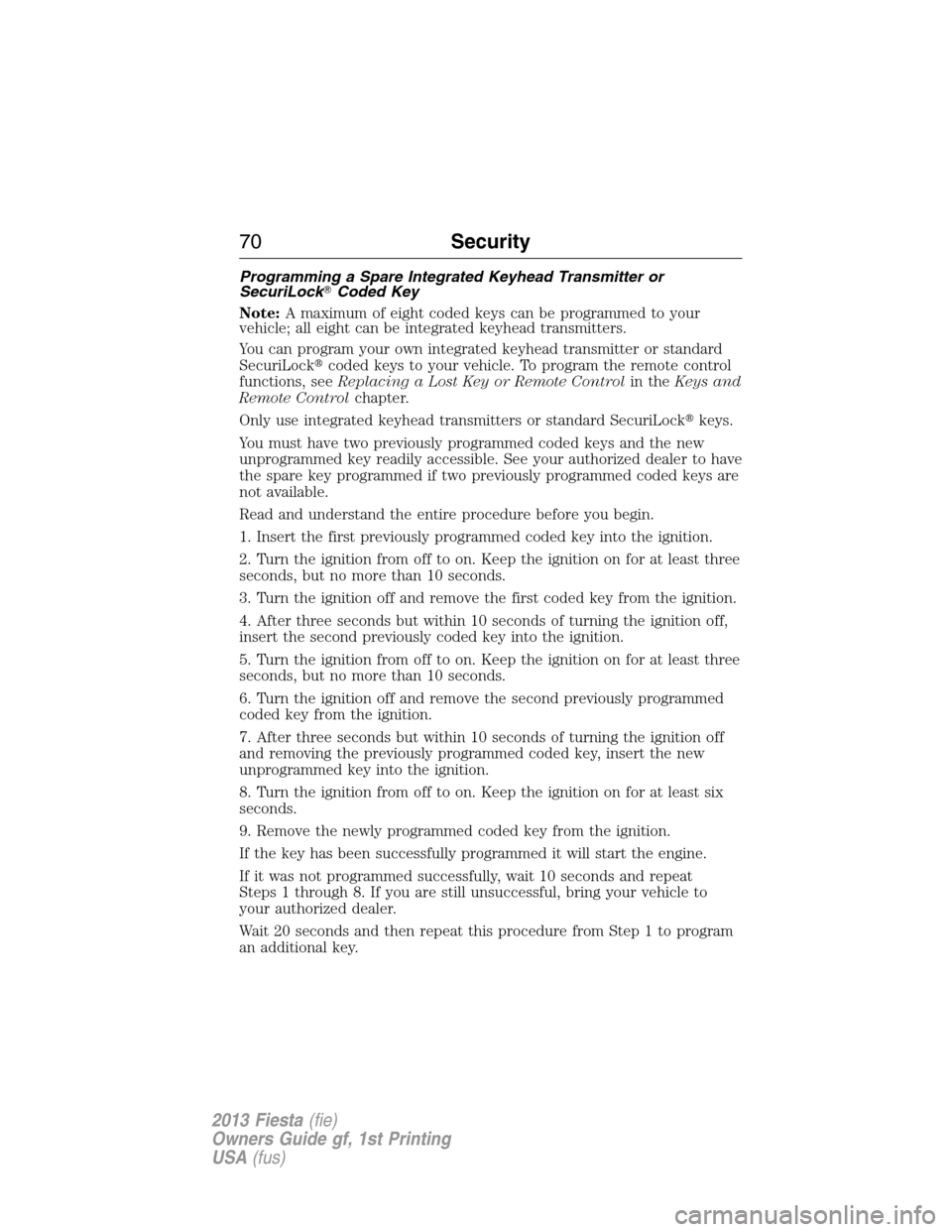

Programming a Spare Integrated Keyhead Transmitter or
SecuriLockCoded Key
Note:A maximum of eight coded keys can be programmed to your
vehicle; all eight can be integrated keyhead transmitters.
You can program your own integrated keyhead transmitter or standard
SecuriLockcoded keys to your vehicle. To program the remote control
functions, seeReplacing a Lost Key or Remote Controlin theKeys and
Remote Controlchapter.
Only use integrated keyhead transmitters or standard SecuriLockkeys.
You must have two previously programmed coded keys and the new
unprogrammed key readily accessible. See your authorized dealer to have
the spare key programmed if two previously programmed coded keys are
not available.
Read and understand the entire procedure before you begin.
1. Insert the first previously programmed coded key into the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the first coded key from the ignition.
4. After three seconds but within 10 seconds of turning the ignition off,
insert the second previously coded key into the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed
coded key from the ignition.
7. After three seconds but within 10 seconds of turning the ignition off
and removing the previously programmed coded key, insert the new
unprogrammed key into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six
seconds.
9. Remove the newly programmed coded key from the ignition.
If the key has been successfully programmed it will start the engine.
If it was not programmed successfully, wait 10 seconds and repeat
Steps 1 through 8. If you are still unsuccessful, bring your vehicle to
your authorized dealer.
Wait 20 seconds and then repeat this procedure from Step 1 to program
an additional key.
70Security
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

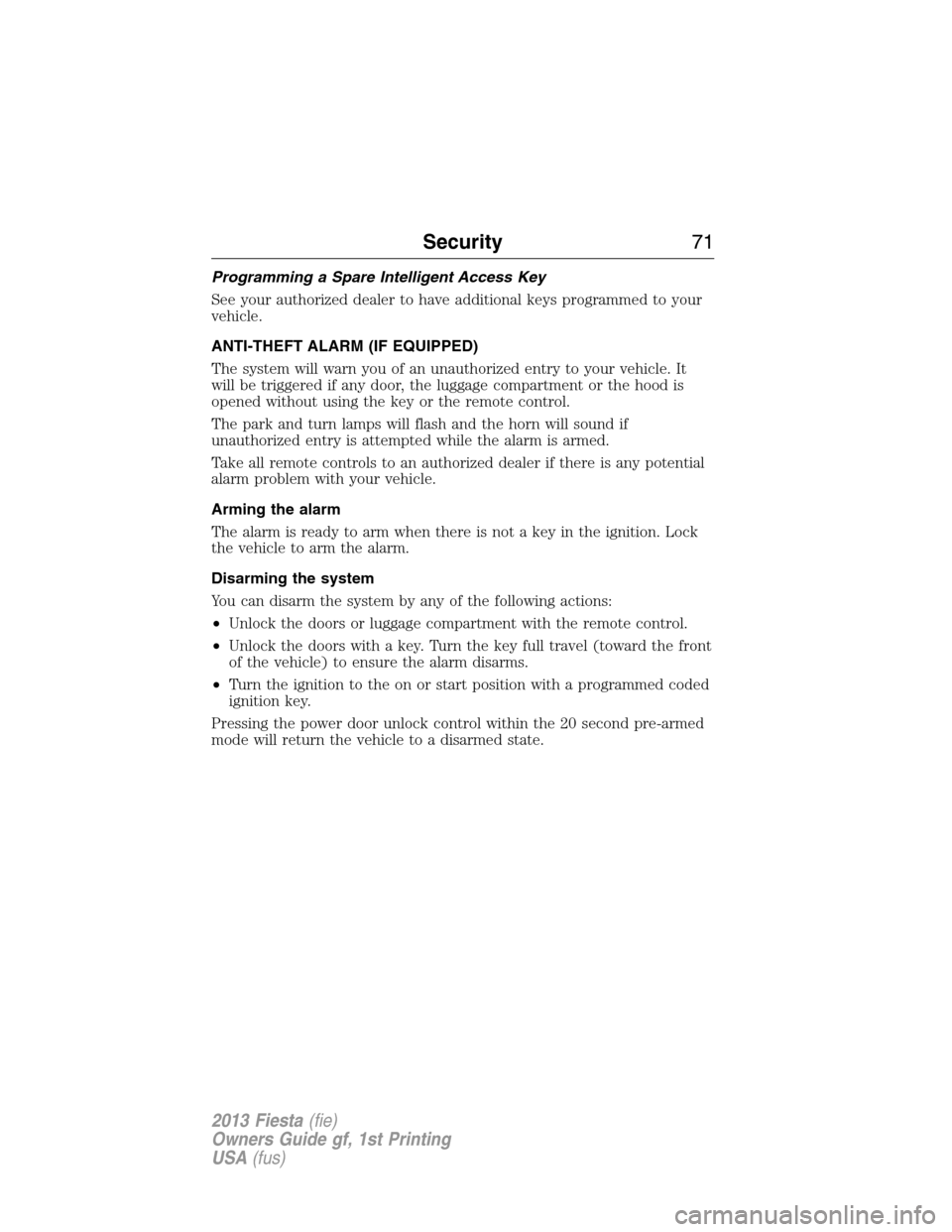

Programming a Spare Intelligent Access Key
See your authorized dealer to have additional keys programmed to your
vehicle.
ANTI-THEFT ALARM (IF EQUIPPED)
The system will warn you of an unauthorized entry to your vehicle. It
will be triggered if any door, the luggage compartment or the hood is
opened without using the key or the remote control.
The park and turn lamps will flash and the horn will sound if
unauthorized entry is attempted while the alarm is armed.
Take all remote controls to an authorized dealer if there is any potential
alarm problem with your vehicle.
Arming the alarm
The alarm is ready to arm when there is not a key in the ignition. Lock
the vehicle to arm the alarm.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors or luggage compartment with the remote control.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turn the ignition to the on or start position with a programmed coded
ignition key.
Pressing the power door unlock control within the 20 second pre-armed
mode will return the vehicle to a disarmed state.
Security71
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Peace of mind
•Keyless entry keypad•Seat covers*
•Remote start•Car covers*
•Wheel locks
•Bumper mounted parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•
Mobile communications systems may harm the operation of your vehicle,
particularly if they are not properly designed for automotive use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the amateur radio antennas in the
area of the driver’s side hood.
•Any non-Ford custom electrical or electronic accessories or
components that are added to the vehicle by the authorized dealer or
the owner, may adversely affect battery performance and durability,
and may also adversely affect the performance of other electrical
systems in the vehicle.
262Accessories
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Receiving a text message .........293
Recommendations for
attaching safety restraints for
children ........................................22
Relays ................................188–189
Remote entry system
illuminated entry ................66–67
locking/unlocking doors ...........62
opening the trunk .....................63
replacing the batteries .............57
Roadside assistance ..................175
S
Safety Belt Maintenance ............40
Safety belts
(see Safety restraints) .........34, 37
Safety defects, reporting ..186–187
Safety information ....................282
Safety restraints ..............34–35, 37
Belt-Minder.............................37
extension assembly ..................36
for adults .............................34–35
for children .........................18, 22
safety belt maintenance ...........40
seat belt maintenance ..............40
warning light and chime ..........37
Safety restraints -
LATCH anchors ...........................26
Safety seats for children ......18, 22
Safety Compliance
Certification Label ....................260
Satellite Radio ...........................103
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............271Seat belts
(see Safety restraints) ...............34
Seats ..........................................124
child safety seats ................18, 22
front seats ...............................122
heated ......................................123
second row seats ....................124
SecuriLock passive anti-theft
system ..........................................69
Selecting your media source
(USB, Line in, BT audio) .........313
Setting the clock .........94, 101, 103
Side air curtain ...........................51
Side-curtain airbags system .......51
SIRIUSsatellite radio .............103
Snowplowing ...............................14
SOS Post Crash Alert .................43
Spark plugs,
specifications .....................254, 258
Special notice
ambulance conversions ............14
utility-type vehicles ..................14
Specification chart,
lubricants ...................................255
Stability system .........................156
Starting your vehicle ................131
jump starting ..........................177
push button start system .......129
Steering wheel ............................72
controls ......................................73
tilting .........................................72
Supplemental Restraint System
(SRS) (see airbags) ....................44
SYNCAppLink™ ....................308
SYNCcustomer support .........282
SYNCServices .........................305
340Index
