Practical information
167




















Changing a fuse

The extraction tweezer and the spare fusestorage locations are fitted to the back of the dashboard fusebox cover.
For access to them:)open the glove box lid,)unclip the fusebox cover by pulling on the side,)remove the cover completely,)remove the tweezer.
Changing a fuse
Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the faulty fuse by checking thecondition of its filament.
)
Use the special tweezer to extract the fuse
from its housing.) Always replace the failed fuse with a fuse
of the same rating. ) Check that the number marked on thebox, the rating marked on the fuse and the
tables below all agree.GoodFailed
CITROËN will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by CITROËN andnot installed in accordance with itsinstructions, in par ticular when the combined consumption of all of the additional equipment connectedexceeds 10 milliamperes.


Installing electricalaccessories
Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.


Access to the tools

Practical information
168
Dashboard fusebox
The fusebox is placed in the lower dashboard (left-hand side).
Access to the fuses
)Refer to the paragraph "Access to the
tools".

Fuse tables
Fuse N°RatingFunctions
FH365 ATr a i l e r r e l ay unit.
FH37
-Not used.
FH3
820 AHiFi amplifier.
FH3
9-Not used.
FH40
40 ATr a i l e r r e l ay unit.
Fuse N°RatingFunctions
F1-Not used.
F
2-Not used.
F
35 A Airbags and pretensioners control unit.
F410 A Air conditioning, clutch switch, electrochromatic mirror, par ticle
filter pump (Diesel), diagnostic socket, air flow sensor (Diesel).
F530 AElectric windows panel, passenger's electric window control,
front electric window motor.
F
630 ARear electric windows motors and driver's electric window motor.
F75 ACourtesy lamp, side reading lamps.

11
Practical information
169
Fuse N°RatingFunctions
F
820 A Multifunction screen, audio system, navigation radio, instrument
panel with clock, alarm control unit, alarm siren, audio system (after-market), por table navigation system carrier supply.
F
930 A
Multifunction screen, audio system, navigation audio unit,
instrument pnael with clock, alarm control unit, alarm siren,
audio s
ystem (after-market), 12 V socket, portable navigationsupport supply, locking.
F1
015 A Steering mounted controls.
F1
115 A
Ignition, diagnostic socket, automatic gearbox control unit.
F12 15 A
Rain
/ sunshine sensor, trailer relay unit, driving school module.
F1
35 A Main stop switch, engine relay unit, electronic gearbox gear lever.
F1415 A Parking sensors control unit, airbag control unit, instrument
panel, automatic air conditioning, USB Box, HiFi amplifier, reversing camera.
F1
530 A Locking.
F1
6- Not used.
F17
40 A Rear screen and door mirrors demisting/defrosting.
S
H- PA RC shunt.

Practical information
170

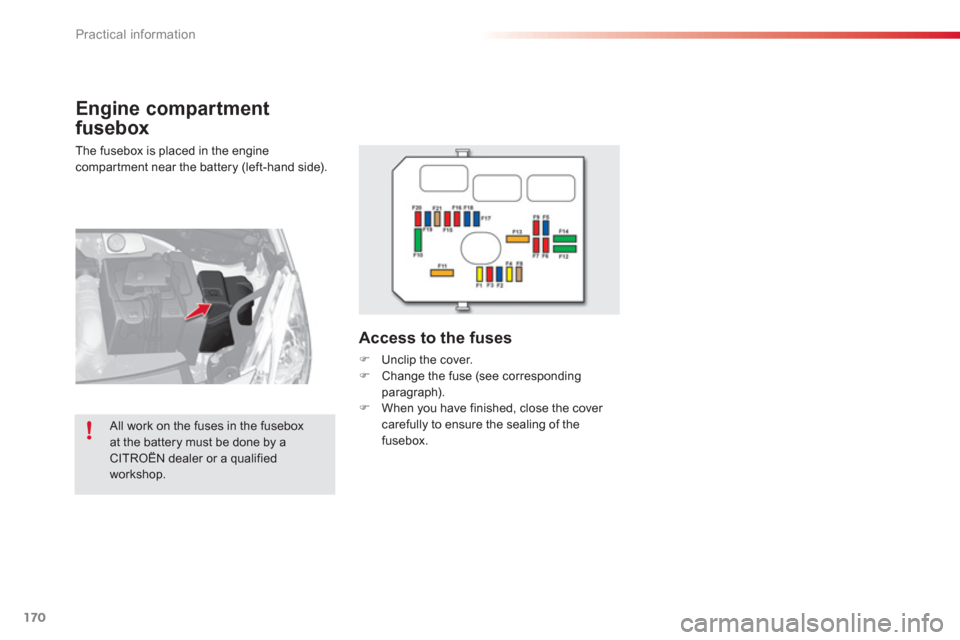

Engine compartment
fusebox
The fusebox is placed in the engine compartment near the battery (left-hand side).

Access to the fuses
)
Unclip the cover.)
Change the fuse (see correspondingparagraph).)
When you have finished, close the cover carefully to ensure the sealing of thefusebox.
All work on the fuses in the fusebox
at the battery must be done by a CITROËN dealer or a qualified workshop.

11
Practical information
171
Fuse N°RatingFunctions
F120 AEngine control unit supply, cooling fan unit control relay,multifunction engine control main relay, injection pump (Diesel).
F
215 AHorn.
F
310 AFront / rear wash-wipe.
F420 ADaytime running lamps, LED daytime running lamps.
F
515 ADiesel heater (Diesel), par ticle filter additive pump (Diesel), air
flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater
and electrovalves (VTi).
F
610 A ABS/ESP control unit, secondary stop switch.
F710 AElectric power steering, automatic gearbox.
F
825 AStarter control.
F9
10 ASwitching and protection unit (Diesel).
F10
30 AFuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic
thermostat and canister purge electrovalve (1.1i and 1.4i).
F1
140 AHeater blower.

Fuse table

Practical information
172
Fuse N°RatingFunctions
F1230 A Windscreen wipers slow / fast speed.
F13
40 A Built-in systems inter face supply (ignition positive).
F14
30 A Valvetronic supply (VTi).
F1
510 A Right-hand main beam headlamps.
F1
610 A
Left-hand main beam headlamps.
F17 15 A
Left-hand dipped beam headlamps.
F18 15 A
Ri
ght-hand dipped beam headlamps.
F1
915 A Oxygen sensors and electrovalves (VTi), electrovalves (Diesel),
EGR electrovalve (Diesel).
F20 10 A Pumps, electronic thermostat
(VTi), water in fuel sensor (Diesel).
F2
15 A Fan assembly control supply, ABS/ESP.

11
Practical information
173

Table of maxi-fuses
Fuse N°RatingFunctions
MF1*60 AFan assembly.
MF2*30 A ABS / ESP pump.
MF3 * 30 A ABS / ESP electrovalves.
MF4 * 60 ABuilt-in Systems Interface (BSI) supply.
MF5 * 60 ABuilt-in Systems Interface (BSI) supply.
MF6 *-Not used.
MF7 *80 ADashboard fusebox.
MF8 *
-Not used.

*

The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fusesmust be carried out by a CITROËN dealer or a qualified workshop.

Practical information
174











Battery

The battery is located under the bonnet.
To gain access to it: )open the bonnet using the interior release
lever, then the exterior safety catch,)secure the bonnet stay,)lift the plastic cover on the (+) terminal.
The presence of this label, in particular with the Stop & Start system, indicatesthe use of a 12 V lead-acid battery withspecial technology and specification;the involvement of a CITROËN dealer or a qualified workshop is essential when replacing or disconnecting thebattery. Failure to observe this recommendation may cause premature wear of thebattery.

After refitting the battery by a CITROËN dealer or a qualified workshop,the Stop & Star t system will only be active after a continuous period of immobilisation of the vehicle, aperiod which depends on the climaticconditions and the state of charge of the battery (up to about 8 hours). Procedure for char
ging your battery when it is flat or for star ting the engine using another battery.
