14 Instrum ent s and w arn ing /indic ato r light s
Engine cooling system
r:::;,page 18
Steering column lock
r:::;, page 18
Ignition lock
r:::;,page 18
USA mod els:
Speed warning system
r:::;, page 81
Canada models :
Speed warning system
r:::;,page81
Adapt ive cru ise control./
r:::;, page 94
Yellow ind ic a tor lights
Ye llow symbols indicate a priority 2 ma lfunc­
tion -Warning!
•
I
ESC OFF
m
ll!fJ
Power top operation
r:::;, page43
Electronic Stabilization Control
(ESC) ,/
r:::;, page 19
Electronic Stabilization Control ( E SC) ./
r:::;,page 19
Electronic Stabilization Control
(ESC)
r:::;,page 176
USA mod els :
Anti-lock braking system (ABS)
defective ,/
r:::;, page 19
Canada model s:
Anti-lock braking system (ABS)
defective ,/
r:::;,page 19
USA models :
Safety systems ./
r:::;,page20
Canada models :
Safety systems ,/
r:::;,page20
•
•
[I]
.,,,~,
~
•
Im
-
•
•
-
ml
II
•
m
!I
-
!!
l:J
E
II
Worn brake pads
r:::;, page20
Electromechanical parking brake
r:::;, page
79
I
Tire pressure monitoring
system./
r:::;, page 241
Tire pressure monitor ing system
r:::;, page2 41
Electronic power control./
r:::;, page 20
Malfunction indicator Lamp
(MI L),/
r:::;, page 2 0
Engine speed limitation
r:::;, page21
Engine oi l level
r:::;,page 17
Eng ine oi l sensor
r:::;, page 21
Battery
r:::;, page 17
Tank system
r:::;, page 21
Windshield washer fluid level
r:::;,page 21
Windshie ld w ipers
r:::;, page 21
Remote control key
r:::;, page
7 7
"
Battery in remote control key
r:::;, page33
Defective light bulb warning
r:::;, page 21
Rear fog light(s)*
r:::;, page 21
Headlight range control
r:::;, page 22

Instrument s and warnin g/indic ator ligh ts 15
ml
adaptive light *
¢page22
m
Light-/rain sensor*
¢page22
-
Ill
Sport differential*
¢page 22
m
Ignition lock
¢page22
Ill
Steering column lock
¢page 18
Et·D
Electromechanical steering,
dynamic steering *./
¢page 180
•
Transmission ¢ page 90
m
Transmission ¢ page 90
Other indicator light s
1111
Turn signals
ii ¢page22
CRUISE
•
Pl
-
I
•
USA models: Cruise control
¢page82
Canada model s: Cruise control
¢page82
Adaptive cruise control*
¢page94
-Adaptive cruise control*
¢page94
High beam
¢page 53
BRAKE /((f) ) Brake system
The light illum inates when the ignition is
switched on. It goes out after the engine has
been started. Th is indicates that the brake
warn ing light is functioning properly.
If the brake warning light doe s not light up
when the engine i s cranking , the re m ay be a malfunction in the elect
rical system . In thi s
ca se, contact your Audi deale r.
If the brake system wa rn ing/ indicator light
tu rns o n, there is a b ra ke sys tem ma lfunction .
1111 (USA model s)/. (Canada model s)
Stop ve hicle and check brake fluid lev el
If the indicator light turns on and the mes­
sage appears, proceed as follows:
.,. Pull off the road.
.,. Stop the vehicle.
.,. Turn off the engine .
.,. Check the b rake fluid level¢
page 216 .
.,. Contact your nearest authorized repair fa-
cility if necessa ry.
W arning! Fault in brake system . Contact
d ealer
If the ABS indicator light E (USA models)/
Ii] (Canada mode ls), the ESC ind icator light
J.i) and the brake system indicator light
1111 ( U SA mode ls)/ . (Canada mode ls) tur n
o n and the message appears, the ABS, ESC
and braking distr ibut ion are not working¢,&..
Carefully drive to your author ized Audi dealer
immediately to have the malfunct ion correct­
ed ¢& .
1111 (USA models )/. (Canada models)
Parking brake system fault! See owner 's
manual
- If the ind icator light and the message ap­
pear
when stationary or after switch ing the
ignition on ,
check if you can release the
parking brake . Afte r releasing the parking
brake, carefully d rive to your author ized
Audi dea le r i mmediately to have the ma l­
function corrected. If yo u cannot release the
parking brake, see k professiona l assistance .
- If the ind icator light and the message ap­
pea r
while driving , the emergency b ra ki ng
function may not be avail able.
It may not be
possible to set the par king brake or release
it once it has been set. Seek professiona l as-
sistance. ..,.

Instrument s and warnin g/indic ator ligh ts 21
Contact your authorized Audi dealer and have
the ma lfunction correct ed .
An improperly closed fuel fi ller cap may also
cause the MI L light to illum inate ¢
page 204.
For more informat ion c;> page 29 .
!?) Engine speed limitation
App lies to vehicles: wit h engine speed lim itation
(II D o not exceed m ax . e ng in e s pee d of
XXXX rpm
The engine speed is automatically lim ited to
the speed disp layed in the driver information
system. This protects the engine from over­ h eat ing.
The engine speed limitation deactivates once
the eng ine is no longer in the cr it ica l tempera­
ture range and you have released the acce lera­
tor peda l on ce.
If the engine speed lim itation was act ivated
by an eng ine control malfunction , the ind ica­
tor light
(3B also turns on . Make sure that the
speed does not go above the speed displayed .
Drive to yo ur authorized Audi dea ler immedi­
ately to have the malfunction corrected .
~. Engine oil level
Ill A dd oil , m ax XXXX l. You ma y cont. d riv.
When the symbo l Ill and driver message ap ­
pea r, add the amount of oi l appearing in the
disp lay at the next opportunity
c;> page 212.
~ ;,,. Engine oil sensor
II Oil le vel! Se nsor defecti ve
If the symbol illuminates, contact your au­
thorized Audi dealer and have the oil sensor inspected . Until you have this done, check the
oil leve l each time you refuel just to be on the
sa fe side
c;> page 212 .
Bil Tank system
J.ll Please r efu el
If the indicator light turns on for the first
time and the message appears, there are
about 2. 1 -2.4 gallons (7 -9 liters) of fuel left
in the tank . T ime to refue l¢
page 203.
Ii] Fuel tank sy stem malfunction! Co ntact
dealer
If the indica tor l ight turns on and this mes­
sage appears, there is a malf unct ion in the
tank system.
D rive to your authorized Audi dealer immed i­
ate ly to have the ma lfunction corrected.
<:::> Windshield washer fluid level
- Pleas e refill wa she r fluid
If the symbol illum inates, add w indshie ld
washe r flu id to t he washer sys tem and also to
the headligh t washe r system* ¢
page 2 21.
'1:> Windshield wipers
El'J Windshield wipe r defecti ve
T he re is a malfunction with the windshield
wipe rs.
Drive to your authorized Audi dealer immedi­
ate ly to have the ma lfunction corrected .
~/0$ Defective light bulb warn ing
If the Fl indicator light turns on, a b ulb has
failed. The message ind icates the location of
the bu lb .
- I f the
mJ indicator light a lso turns on, then
a rear fog light has failed . T he position of
t he indicator light cor responds wi th the lo ­
cation on the vehicle .
T his wa rning can also occu r if the light switch
is in an unengaged posi tion between two sym­
bols .
Vehicl e lights: S yste m fau lt !
If the message appears, there is a malfunc­
tion in the headlights or light sw itch .
Drive to your authorized Audi d ealer immedi-
ate ly to have the malfunction corrected .
I),

22 Instruments and warning/indicator lights
A WARNING
- light bu lbs are pressurized and could ex­
plode while they are being changed caus­
ing ser ious p erso na l inju ry .
- Work w ith due care when handling the
high -voltage section of gas discha rge
(xenon) lights . Fa ilu re to do so could re­
sult in death or se rious injury.
(D Tips
Have the bulb replaced or the connection
re pa ired by yo ur autho rized Aud i Service
de partment.
~(D Headlight range control
El Headlight range control defective !
If the symbol El illum inates , the dynam ic
h eadl ight range cont rol is no long er wo rking
p rope rly . Have the system checked and re­
pa ired a t your author ized Audi dealer.
§0
Adaptive Light
Appl ies to vehicles: with adaptive ligh t
m;J Audi adaptive light: defective
If the indicator lig ht turns on and t his mes­
sage appears, the re is a ma lfu nction in the
a d apt ive light sys tem . Th e headlights s till
f u nc tion.
Go to an a utho rized dea le rship to have the
h eadlights or the cont ro l unit fo r the adapt ive
light rep aired.
@.D Light/rain sensor
App lies to vehicles: with light/rain senso r
t'£;I Automatic headlight s/ automatic wipers
defective
I f t he in di cator lig ht tu rns on and t his mes­
s a ge appears, the lig ht/r ain se nsor is no t
function ing cor rectly.
For safety reasons the low beams are tu rned
on permanent ly w ith the swi tch in
AUTO .
However, you can con tinue to tu rn the ligh ts
on an d off usin g the light swi tc h. You can still control a
ll functions that are independent of
the ra in sensor through the windshield wipe r
l ever.
C o nta ct you r auth orized Aud i dea ler as soon
as possib le to have the problem co rrec ted.
H Sport differential
Appl ies to vehicles: wit h Aud i drive se lect and spo rt dif·
ferential
Sport differential : System fault!
T he re is a malfunction with t he sport d iffe ren­
tia l.
Drive to y our authorized A udi dealer immedi­
ate ly to have the malfu nction corrected .
Sport differential : Overheating
T he transm iss ion tempera ture ha s in cr eased
s ignificantly due to the sporty d riving manner .
Drive in a less sporty ma nner until the tem­
perature returns to the normal range and the
indicator light switches of.
A WARNING
Contact your author ized Audi dealer or a
q ualified wor kshop if the spo rt differential
i s faul ty or malfunct io ning . T he repair
must be perfor med by t rain ed perso nnel
usi ng the co rrect oil in order to ensure
s a fety .
~ Ignition lock
I!) Ignition lo ck defe ctive
-
The re is a malfunction in the e lect ronic igni­
t io n lock . P lease go to a n author ized Audi
de aler or o ther qua lifie d wo rkshop to have t he
malfu nction rep aire d.
¢¢ Turn signals
Whenever yo u use the left H or the right B
turn s ignal , the indicato r light blin ks. When
you use the emergency f lashe rs, both indica -
tor lights flash . .,.

Locking and unlocking with convenience
key
Applies to vehicles: with convenience key
The doors and the rear lid can be unlocked
and locked without operating the master key .
Fig . 22 Doo r handle : lock ing t he ve hicle
Unlocking vehicle
.. Take hold of the door handle . The door is un-
locked automatically.
.. Pull the handle to open the door.
Locking vehicle
.. Move the selector lever to the P position,
otherwise the veh icle cannot be locked .
.. To lock the vehicle , close the door and touch
the sensor in the door hand le
once Q fig. 22
Q A in Gen eral description on page 31. Do
not reach inside the door handle.
The vehicle can be locked and unlocked at any
door. The remote control key cannot be more
than 1.5 m away from the door hand le. It
makes no difference whether the master key
is in your jacke t pocket or in your brie f case.
If you grip the door handle while locking, this
can adversely affect the locking function.
It is not possible to re-open the door for a
brief period d irect ly after closing it. This al­
lows you to ens ure that the doors are properly
locked.
It depends on the settings in the radio or
MMI* whether the entire veh icle is unlocked
or one of the doors
Q page 36 .
Opening and closing 35
A WARNING
Read and follow all WARNINGS Q .&. in
General description on page 31 .
(D Tips
If your vehicle has been standing for an ex­
tended per iod, please note the following:
- The proximity sensors are deactivated af-
ter a few days to save power . You then
have to pull on the door handle once to
unlock the vehicle and a second t ime to
open the vehicle.
- To prevent the battery from being d is­
charged and to preserve your vehicle's
ability to start for as long as possible,
the energy management system gradu­
ally switches off unnecessary conven­
ience functions.
It is possible that you
w ill not be able to unlock your vehicle us­
ing these convenience functions.
- For Declaration of Compliance to United
States FCC and Industry Canada regula ­
tions
Q page 267.
Locking and unlocking the vehicle from
inside
Fig. 23 D rive r's doo r: pow er locking sw it c h
.. Press the button@ to lock the vehicle Q _&.
.. Press the button@ to unlock the vehicle
¢fig.23.
If you lock the vehicle using the power locking
switch, please note the fo llowing:
- If a door is open , the vehicle cannot be
locked using the power locking system
switch.

52 Clear vis ion
Clear vision
Lights
Switching the lights on and off
Fig . 55 Instr ument pane l: headlight con trol switch
Light switch -~ -
Turn the switch c:> fig . 55 to the correspond ing
position . When the lights are switched on, the
,o o~ symbo l tu rns on.
0 -The lights are off or the dayt ime run ning
lights are on:
- USA model s: The daytime running lights are
activated when the light sw itch
c:> fig . 55 is
in the
O position or the AUTO position (o nly
in dayl ight conditions) . The daytime running
lights function can be turned on and off in
the radio or MMI* menu
Exterior ligh ting
c:> page 53 , c:> ,&..
-Canada model s: The daytime runn ing lights
are activated when the light sw itch
c:> fig . 55
is in the O position, :oo; position or the AUTO
pos it ion (on ly in daylight cond itions) . The
dayt ime running lights function cannot be
tu rned off
c:> &. .
AUTO* -Au toma tic h eadlights switch on and
off depending on b rightness, fo r example in
tw ilight, during rain or in t unnels
c:> &. .
:o o; -Side marker lights
io -Low beam headlights
Rear fog light (s)
Press the appropriate b utton c:> fig. 55:
0$ -Rear fog light(s)
adaptive light*
When switched on, adaptive ligh t adap ts to
curves in the road depend ing on the vehicle
speed and the steering ang le . This provides
b etter l ighting t hro ugh the curve . The system
operates at speeds between app roximate ly
6 mph (10 km/h) and 68 mph (110 km/h).
Static cornering light* (vehicles with adaptive
light) - the cornering light switches on at
speeds up to approximately 25 mph (40 km/
h) when a certain steering wheel angle is
reached or when a turn signa l is activated. The
area to the s ide of the vehicle is illuminated
better when turning .
The adaptive light and the cornering light only
funct ion when the switch is in t he AU TO posi­
t ion (automatic headlights*) .
A WARNING
--
- Daytime r unning lights and automatic
headlights* are only inte nded to assist
the dr iver . Th ey do n ot relieve the driver
of his re s ponsibili ty to chec k the head ­
lights and to t urn them on manua lly ac ­
cordin g to the c urrent light and visibility
conditions . For examp le, fog cannot be
detected by the light sensors *. So a lways
sw itch on t he headlights
io under these
weather conditions and when driving in
the dark .
- Crashes can happen whe n you cannot see
the road ahead and when yo u cannot be
see n by other moto rists. Always tu rn on
the head lights so that you can see ahead
a nd so t hat other s can see your car fr om
the b ack.
- P lease obey all laws when using the
lighting sys tems descri bed here .
(D Note
The rear fog lights sho uld only be turned
o n in acco rdanc e with t raff ic regu lation, as
the lights are bright for following traffic. ..,

(D Tips
-The light sensor * for headl ight control is
l ocated in the rear view m irror mount.
You should therefore not apply any st ick­
ers to the windsh ield in this area in order
to prevent malfunctions or failures .
- Some exterior lighting functions can be
adjusted
¢page 53.
-When yo u remove you r key from the igni­
tion w hile the vehicle's lights are turned
on, a buzzer sounds as long as the driv­
er's door is open.
- In cool or damp weather, t he ins ide of
the headlights, turn signa ls and tail
li ghts can fog ove r due to the tem pera ­
ture diffe ren ce betwe en the inside and
outside. They will clear shor tly after
swi tching t hem on. This d oes not aff ect
the service life of the ligh ting.
- In the even t of a ligh t sensor malfunc­
tion, the drive r is no tifie d in the inst ru ­
ment cluster disp lay ~
page 2 2.

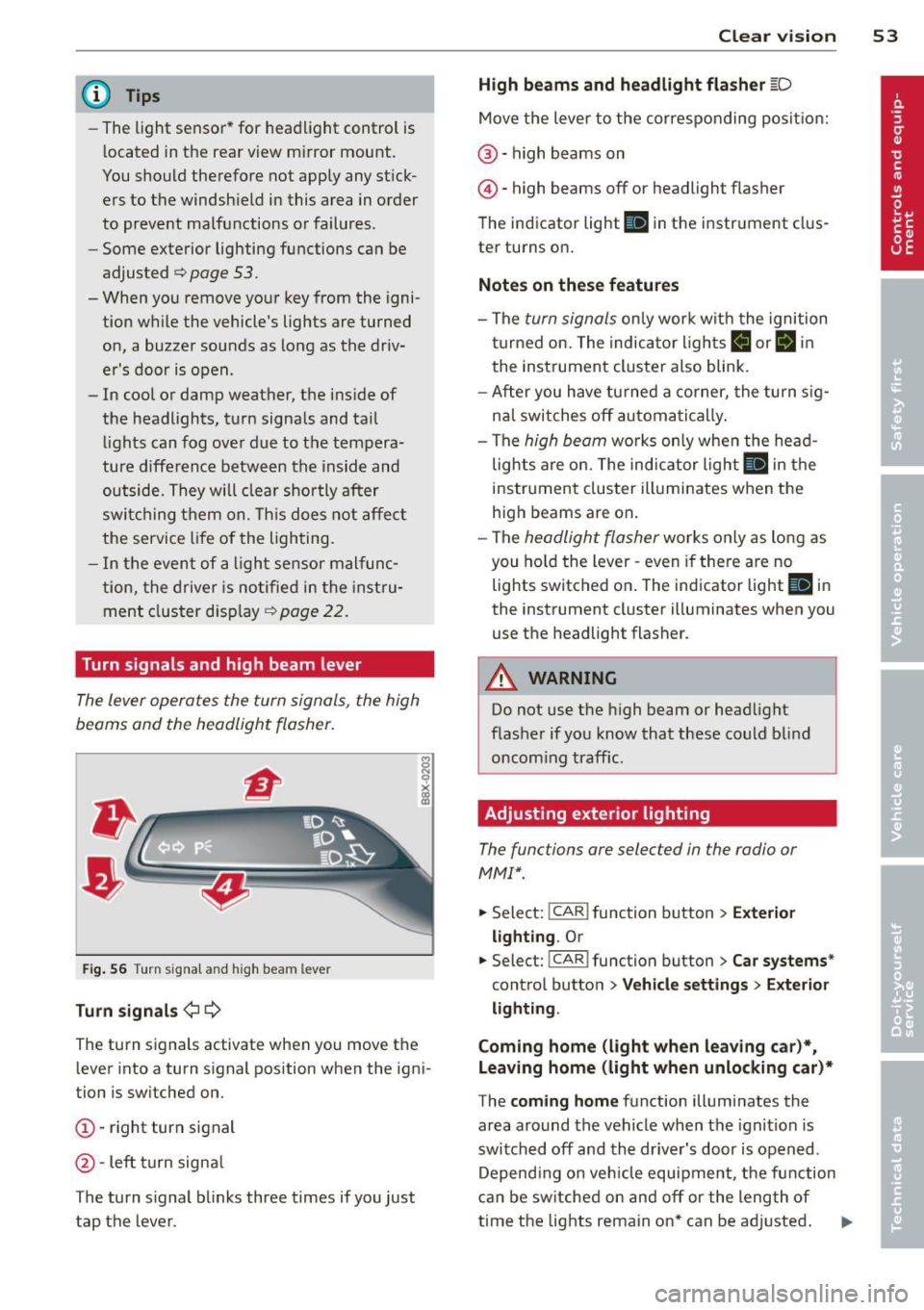

Turn signals and high beam lever
The lever operates the turn signal s, the high
beams and the headlight flasher .
Fig. 56 T urn sig na l and high beam leve r
Turn signals ¢i ¢
The turn s ignals activate when you move the
l ever into a turn s ignal position when the ign i­
tion is sw itched on.
(D -right turn signal
@ -Left turn signa l
The turn s ignal b links three times if you just
tap the lever .
Clear vision 5 3
High beams and headlight flasher @:D
Move the lever to the corresponding posit io n:
@ -high beams on
@-high beams off or headlight flasher
T he ind icator light
II in the instr ument clus ­
ter turns on .
Notes on these features
-The turn signals on ly wor k w it h t he ignition
t urned on. The indica tor l igh ts
11 or II in
the instrument cluste r also blink .
- Aft er you have tu rned a corner, the turn s ig­
na l swi tches off au tom atically .
- The
high beam wo rks only when the head­
lights a re on. The indicator Ligh t. in the
instrumen t clus ter illuminates when the
high beams are on .
- The
headligh t flasher works on ly as long as
you ho ld the lever -even if the re are no
lights switched o n. The ind icator light
Ill i n
the inst rument cluster illuminates when you
use the headlight flasher.
&_ WARNING
Do not use the h igh beam or head light
flasher if you kn ow that these could b lind
oncom ing traffic.
Adjusting exterior lighting
The functions are selected in the radio or
MM!* .
.. Select: !CAR I function button> Exterior
light ing .
Or
.. Select: !CAR I function button > Car systems*
contro l butto n > Vehicle settings > Exterior
lighting .
Coming home (light when leav ing car )*,
Leaving home (light when unlocking car)*
The coming home function illumi nates the
area around the vehicle when the ignition is
switched off and the drive r's door is open ed.
Depend ing on ve hicle equipment, t he fu nction
can be sw itched on and off or the length of
time the lights rem ain on* can be ad justed . .._

-If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes . Do not induce vomiting unless
instructed to do so by medical professio­
nal. Get medical attention immediately.
(D Note
Liquid electrolyte leaking from broken mir­
ror glass will damage any plastic surfaces
it comes in contact with . Clean up spilled
electrolyte immediately with clean water
and a sponge.
@ Tips
- Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimm ing function of
the exterior mirrors .
-Automatic dimming for the mirror only
operates properly if the light striking the
inside mirror is not hindered by other ob­
jects.
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected .
Sun visors
._[ _ __,!
Fig. 63 Driver's s ide: s un visor
The sun visors for the driver and passenger
can be pulled out of their brackets in the cen­
ter of the vehicle and turned towards the
doors
(D .
The mirror light switches on when the cover
over the vanity mirror @opens .
Clear vision 5 7
Wiper and washer
system
Switching the windshield wipers on
Fig. 64 Win dshi eld w ipe r leve r
Move the windshield wiper lever to the corre­
sponding position:
@-Windshield wiper off
CD-Interval mode . To extend/shorten the
wiper intervals, move the switch @to the
left/right. In vehicles with a rain sensor* the
wipers turn on in the rain once the vehicle
speed exceeds approximately 2 mph (4 km/h) .
The higher the sensitivity of the rain sensor* is
set (switch @to the right), the earlier the
windshield wipers react to moisture on the
windshield. In some models, you can switch
rain sensor mode off and switch intermittent
mode on in the MMI* . Select:
!CAR I function
button
> Car systems* control button > Driver
assist
> Rain sensor. In intermittent mode,
you can adjust the interval time using the@
switch.
@ -Slow wiping
® -Fast wiping
©-Single wipe
® -Clean the windshield. To eliminate water
droplets, the windshield wiper performs one
afterwipe operation after several seconds
while driving . You can switch this function off
by moving the lever to position ® within 10
seconds of the afterwipe operation. The after­
wipe function is reactivated the next time the
ignition is switched on.
...
