144 Airbag sys tem
-Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lling
the forward-facing child restraint. The backrest must be adjusted to an upr ight
posit io n.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
t ime w henever the ignition is switched
on.
Advanced Airbag System components
The fron t passenger sea t in your vehicle h as a
lot of very important par ts of the Advanced
Airbag System in it. These parts include t he
weight -sensing mat, sensors, wiring, brack­
ets, and more. The function of the system in
the front passenger seat is checked by the
e lectronic control u nit when the ignit ion is on.
The control unit mo nitors the Advanced Air­
bag System and turns the airbag indicator
l ight on when a ma lfunction in t he system
components is detected. The func tion of the
a ir bag ind icator light is described in greater
detai l be low . Because the front passenger
seat contains important parts of the Ad­
vanced A irbag System, you m ust take care to
prevent it from be ing damaged. Damage to
the seat may prevent the Advanced Airbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag Sy stem
consists of the following:
- Crash sensors in the front of the veh icle that
measure veh icle acceleration/deceleration
to provide information to the Advanced Air­
bag System abou t the seve rity of the crash.
- An electron ic co ntrol unit, with integ rated
crash sensors for front and side impacts .
T he cont ro l unit "dec ides " w het her to fire
the front airbags based on the information
received from the crash senso rs . The contro l
unit a lso "decides" whethe r the safety be lt
pretensioners should be activated . -
An Advanced A irbag w ith gas generator and
cont ro l valve for the d river inside the steer­
ing wheel h ub.
- An Advanced A irbag with gas ge nerator and
contro l valve inside the instrument pane l for
the front passenger.
- A weight-sensing mat under the up ho lstery
pad ding of the front passenger seat cushion
that measures the total weight on the seat.
The informat ion registered is sent continu­
ously to the electronic contro l unit to regu­
late deployment of the front Advanced Air­ bag on the passenger side .
- An airbag monitor ing system and i ndicator
light in the i nstr ument cluster ~
page 148 .
-A sensor in each front seat registers the dis­
tance between the respective seat a nd the
steer ing whee l o r i ns trument panel. The i n­
formation registered is sent cont inuo usly to
t he ele ctr onic cont ro l uni t to regula te de­
p loyment o f the front Advance d Airbags .
- The
PASSENGER AIR BAG OFF ligh t comes
on and st ays on in the cen ter o f the instr u­
ment panel
~ page 148, fig . 155 and tells
you whe n the front Advanced Airbag on the
passenger side has been tu rned off .
- A sensor below the safety be lt latch for the
front seat passenger to measure the tension on the safety be lt . The tension on the safety
be lt and the weight registered by the
weight-sensing mat he lp the control unit
"decide" whether the front airbag for the
front passenger seat should be turned off or
not
~ pag e 138, Child restraints on the
front seat -some important things to
know.
- A senso r in the safety belt latch fo r th e d riv­
er and fo r the front sea t passenger tha t
senses w het he r th at safety bel t is latched or
not and transmi ts this information to the
electronic control unit.
A WARNING
Damage to the front passenger seat can
p revent the front airbag from work ing
properly.
-

-Improper repair or disassembly of the
front passenger and driver seat will pre­
vent the Advanced Airbag System from
functioning properly .
- Repairs to the front passenger seat must
be performed by qualified and properly
trained workshop personnel.
- Never remove the front passenger or
driver seat from the vehicle .
- Never remove the upholstery from the
front passenger seat .
- Never disassemble or remove parts from
the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat. If the weight­
sensing mat in the passenger seat is
punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat . Such
items can increase the weight registered
by the weight-sensing mat and send the
wrong information to the airbag control
unit.
- Never store items under the front pas­
senger seat. Parts of the Advanced Air­
bag System under the passenger seat
could be damaged, preventing them and
the airbag system from working proper­
ly.
- Never place seat covers or replacement
upholstery that have not been specifical­
ly approved by Audi on the front seats.
- Seat covers can prevent the Advanced
Airbag System from recognizing child re­
straints or occupants on the front pas­
senger seat and prevent the side airbag in the seat backrest from deploying prop­
erly.
- Never use cushions, pillows, blankets or
similar items on the front passenger
seat . The additional padding will prevent
the weight-sensing mat in the seat from
accurately registering the child restraint
or person on the seat and prevent the
Advanced Airbag System from function­
ing properly.
- If you must use a child restraint on the
front passenger seat and the child re-
Airbag system 145
straint manufacturer's instructions re­
quire the use of a towel, foam cushion or
something else to properly position the
child restraint, make certain that the
PASSENGER AIR BAG OFF light comes
on and stays on whenever the child re­
straint is installed on the front passen­
ger seat.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install child restraint in a rear seat­
ing position and have the airbag system
inspected by your authorized Audi dealer .
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the
side airbags supplement the protection of­
fered by the front three-point safety belts
with pretensioners and load limiters and the
adjustable head restraints to help reduce the
risk of injury in a wide range of accident and
crash situations. Be sure to read the impor­
tant information about safety and heed the
WARNINGS in this chapter.
Deployment of the Adv a need Airbag System
and the activation of the safety belt preten­
sioners depend on the deceleration measured
by the crash sensors and registered by the
electronic control unit. The amount of infla­
tion of the front airbags can also be adapted
to the front sea t position, depending on the
distance between the respective front seat
and the steering wheel or instrument panel as registered by sensors in the seats. Crash se­
verity depends on speed and deceleration as
well as the mass and stiffness of the vehicle
or object involved in the crash.
On the passenger side, regardless of safety
belt use, the airbag will be turned off if the
weight on the passenger seat is less than the
amount programmed in the electronic control
unit. The front airbag on the passenger side
will also be turned off if one of the child safe-
ty seats that has been certified under Federal
Motor Vehicle Safety Standard 208 has been
recogni zed on the seat . The
PASSENGER AIR .,,.
•
•

148 Airbag system
Monitoring the
Advanced Airbag System
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN ­
GER AIR BA G OFF
light.
The Advanced Airbag System (including the
electronic control unit, sensor circuits and sys­
tem wiring) is monitored continuously to
make sure that it is functioni ng properly
whenever the ignit ion is on. Each t ime you
turn on the ignition, the
rl airbag monitoring
indicator light w ill come on for a few seconds
(self diagnostics) .
The system must be inspected when the
(I indicator light :
-does not come on when the ignit ion is
swit ched on,
- does not go out a few seconds after you
h ave swi tched on the ign ition, o r
- comes on wh ile d riving .
If an airbag system malfunction is detected,
the indicator light will first start flash ing to
catch the driver's attention and then stay on
continuously to se rve as a constant reminde r
to have the system inspec ted immediately .
If a malfunction occurs that turns the front
a irbag on the passenger side off, the
PASSEN­
GER AIR BAG OFF
li ght will come on and stay
on w henever the ignition is on.
A WARNING
An air bag system th at is not func tionin g
prope rly ca nnot provide supp lemen tal pro­
t ect ion in a fron tal cr ash .
-If the airbag indic ator light¢ page 20
comes whe n the vehicle is be ing used,
have t he system inspected immediate ly
by you r a uth o rized Aud i dea le r. It is pos­
sible that the a irbag will inf late when it
is not s upposed to, or w ill not inflate
when it shou ld.
PASSENGER AIR BAG OFF l ight
Fig . 1 55 Sec tion fro m the instr ument pa ne l: PASSEN ­
GER AIR BAG OFF lig ht
T he PASSENGER AIR BAG OFF light is loca ted
in the center of t he in st rument p anel
¢fig. 155.
The PASSENGER AIR BAG OFF light w ill come
o n and stay o n to tell you w hen the front Ad ­
van ced Air bag o n the pas senge r side has been
tu rned off by the ele ct ronic contro l uni t. Each
t ime you turn on the ignition, the
PASSEN­
GER AIR BAG OFF
light will flas h for a few
seconds and:
- will stay on if the front passenger seat is not
occupied,
- wil l sta y on if t here is a small ch ild or child
restrai nt on the front passenge r seat,
- will go out i f th e front p assenge r sea t is oc­
cupied by an adult as registered by the
weight -sensing mat .
T he
PASSENGER AIR BAG OFF light must
come on and stay on
if the igni tion is on and
- a car bed has been installed on the front
seat, or
- a rearward-facing child restraint has been
installed on the front passenger seat, o r
- a forward-fac ing ch ild restra int has been in­
s talled on the front passenger seat, or
- the weight reg iste red on the front passen­
ger seat is equal to or less than t he com­
b ined weight of a typical 1 year -o ld restra in­
ed in one of the rea r-facing or forwa rd-fac­
ing infant restra ints listed in Federal Motor
Veh icle Safety Stan dard 208 wi th wh ich the
Advanced A irbag System in you r vehicle wa s
cert ified.
II>-

If the fron t passenger seat is not occupied,
the front airbag will not deploy, and the
PAS­
SENGER AIR BAG OF F
light will stay on. Nev­
er in sta ll a rearward-fac ing ch ild restra int on
t he fron t passenger seat, the safest place for
a child in any kind of child restraint is at one
of the seating positions on the rear seat
¢ page 138, Child restraints on the front seat
- some important things to know
and
¢ page 158, Child Safety .
If the PASSENGER AIR BAG OFF light c om es
on
when one of the conditions listed above is
met, be sure to check the light regularly to
make certa in that the
PAS SENGER AIR BAG
O FF
ligh t stays on cont inuous ly whenever the
ignition is on . If the
PASSENGER AIR BAG
OFF
light does not appear and not stay on all
the time, stop as soon as it is safe to do so
and
- reactivate the system by turning the ignition
off and then t urning it on again;
- remove and reinstall the child restraint .
Make sure that the child restraint is properly
installed and that the sa fety be lt for the
front passenger seat has been correct ly
routed around the child restraint a s desc ri­
bed in the child restraint manufacturer 's in­
structions;
- make sure that the convertible locking fea­
ture on the safety be lt for the front passen ­
ger seat has been activated and that the
safety belt has been pulled tight . The belt
mus t not be loose o r have loops of slack so
that the sensor below the safety be lt latch
on the seat can do its job
¢ page 168 .
-make su re that th ings that may increase the
weight of t he ch ild and child safe ty seat are
not being transported on the front passen ­
ger seat ;
- make su re that the safety bel t tension sen ­
sor is not b locked . Shake t he safety belt
l atch on the front passenger seat back and
forth;
- If a strap or tether is being used to tie the
child safety seat to the front passenger
seat, make sure that it is not so tight that it
A irbag system 149
causes the weight -sensing mat to measure
more weight than is act ually on the seat .
If the PASSENGER AIR BAG OFF light still
doe s not come on
and does not stay on con ­
tin uous ly (when the ignition is switched on) ,
- take the child rest ra int off the front passen-
ge r seat and install it properly a t one of the
rear seat positions. Have the airbag system
inspected by yo ur authorized Audi dealer
immediate ly .
- move the child to a rear seat position and
make sure t hat the c hild is properly restrain­
ed in a c hild restra int that is app ropriate for
its size and age.
T he
PASSENGER AIR BAG OFF light sho uld
NOT come on when the ignition is on and an
adult is sitting in a proper seating position on
the front passenger seat. If the
PASSENGER
AIR BAG OFF
ligh t comes on and stays on or
flashes for about 5 seconds wh ile driving, un­
der these c ircumstances , make sure that:
- the adult on the front passenger seat is
properly seated on the center of the seat
cushion wi th his or her back up aga inst the
backrest and the backrest is not recl ined
¢ page 119, Proper occupant seating posi­
tions,
- the adult is not tak ing weight off the seat by
holding on to the passenger assist handle
above the front passe nger door or support ­
ing their weight on the armrest ,
- the safety belt is being properly wo rn and
t ha t there is not a lot of s lack in the safety
be lt webbing ,
- ac cesso ry seat covers or cushions o r other
t hings tha t may cause an incorrect reading
or impression on the we ight-sensing mat
under the upho lstery of the seat have been
removed from the front passenger seat,
- a sa fety belt exten der has not been left in
the safety belt latch for the front passenger
seat.
In add it ion to the
PASSENGER AIR BAG OFF
li ght in the cente r of the instrumen t panel,
the message
PASSENGER AIR BAG OFF or
PASSENGER AIR BAG ON wi ll briefly appear ll-
•
•

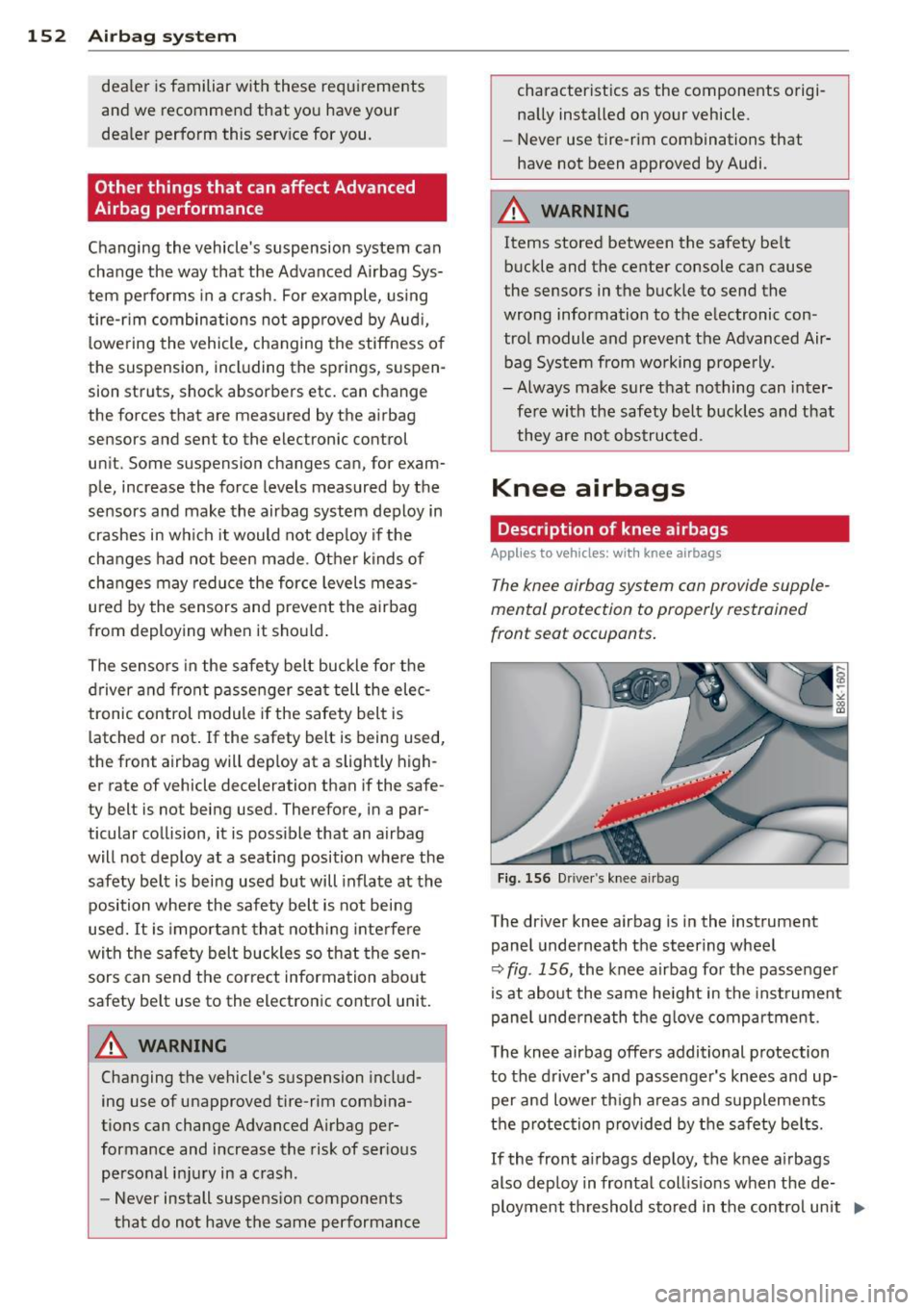

152 Airbag system
dealer is familiar with these re quirements
and we recommend that you have your
dea ler perform this serv ice for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag Sys­
tem pe rforms in a crash. For example, us ing
tire-r im combinations not app roved by Aud i,
lowering the vehicle, changing the stiffness of
the suspension, incl uding the springs, suspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the airbag
sensors and sent to the electronic control
un it. Some suspension changes can, for exam­
ple, increase the force levels measured by the
sensors a nd make the airbag system deploy in
crashes in w hich it would not dep loy if the
changes had not been made . Other kinds of
changes may reduce the force levels meas ­
ured by the sensors and prevent the airbag
from deploying when it should .
The sensors in the safety belt buckle fo r the
d river and front passe nger seat tell the elec­
tronic control module if the safety belt is
latched or not.
If the safety belt is being used,
the front airbag will deploy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par­
ticular collision, it is poss ible that an a irbag
will not deploy at a seating position whe re the
safety belt is being used but will inflate at the
position whe re the safety belt is not bei ng
used. It is important tha t noth ing inte rfe re
with the safety belt buckles so t hat the sen­
sors can send the correct information a bout
safety belt use to the electronic contro l unit.
A WARNING
Changing the vehicle 's suspension includ­
ing use of unapproved tire-rim c ombina­
tions can change Advanced Airbag per­
formance and increase the risk of ser ious
personal i njur y in a crash.
- Never install suspension components
that do not have the same performance characterist
ics as the components origi­
na lly installed on your vehicle.
- Never use tire-rim com binations that
have not been approved by Audi.
A WARNING
= -
Items stored between the safety be lt
b uckle and the center console can cause
the sensors in the buckle to send the
wrong information to the e lectronic con­
trol module and prevent the Advanced Air­ bag System from wo rking prope rly.
- Always make s ure that nothing can inter­
fe re with the safety belt buckles and that
they are not obstructed.
Knee airbags
Description of knee airbags
Applies to vehicles: with knee airbags
The knee airbag system can provide supple­
mental protection to properly restrained
front seat occupants .
Fig. 1 56 Dr iver 's k nee a irbag
The driver knee airbag is in the instrument
panel underneath the steering wheel
Q fig . 156, the knee a irbag for the passenger
is at about the same height in the inst rument
pane l underneath the g love compar tme nt.
The knee airbag offers additional p rotection
to the driver 's and passenger's knees and up­
per and lowe r th igh a reas and suppleme nts
the p rotec tion provided by t he safety be lts.
If the front a irbags dep loy, the knee a irbags
also dep loy in fron tal coll is io ns w hen the de­
ployment th reshol d sto red in the control un it ..,,

Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fi g. 158 S ide a irbag location i n the driver 's seat
The s ide a irbags are located in the sides of the
front sea t backrests
r=> fig . 158. They are iden­
tified by the word "AIRBAG" .
The sid e a irbag system ba sicall y consis ts of :
-the electronic control module and external
side impact senso rs
- the two side airbags located in the sides of
the front backrests
- the a irbag warning light in the instrument
cluster .
The airbag system is monitored electronica lly
to make certain that it is functioning properly at all times . Each time you turn on the igni­
tion, the airbag system indicator light will
come on for a few seconds (self diagnostics) .
The s ide a irbag system supplements the safe­
ty belts and can help to reduce the risk of in­
jury to the dr iver's and front passenge r's up­
pe r torso on the side of the veh icle that is
struck in a side co llision . The airbag deploys
on ly in side impacts and on ly when the vehicle
acceleration registered by the control u nit is
hi gh eno ugh . If this rate is below the refer­
ence va lue programmed i nto the con trol un it,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­
sult of the collision. It is not possible to de­
fine an airbag trigger ing range that will cover
eve ry possible angle of impact, since the ci r­
cumstances wi ll vary conside rably between
A irba g sy stem 155
one collis ion and anothe r. Important factors
incl ude, for example, the nature (hard or soft)
of the impacting object, the ang le of impact,
vehicle speed, etc.
r=> page 156, Important
safety instructions on the side airbag system .
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front
passenger in position in the event of a side
collision so that the side airbags can provide protection .
The airbag system is
not a substitute for your
safety belt. Rather, it is part of the overall oc­
cupant restra int system in your vehicle. Al­
ways remember that the side airbag system can only help to protect you if you are wearing
you r safety be lt and wea ring it p roperly. This
is anothe r reason why you should a lways wear
yo ur safe ty be lts, no t ju st because the law re­
quires you to do so
r=>page 129, General
notes .
It is important to remembe r that wh ile the
s u pplementa l side airbag system is designed
to reduce the likelihood of ser ious inju ries,
other injur ies, for example, swelling, br uising,
and minor abrasions can also be associated
with deployed side airbags. Remember too,
s ide airbags will deploy only once and only in
certain kinds of accidents -your safety belts
are always the re to offer protection .
Vehicle damage, repair costs or
even the lack
of ve hicle damage are not necessarily a n indi­
cation of over-sensitive or failed airbag activa­
tion. In some coll is io ns, both front and side
airbags may inflate. Remember too, that air­
bags will deploy only once and only in ce rtain
k inds of co lli sions -you r safe ty be lts are al­
w ays the re to offe r protection in those a cci­
dents in whi ch airbags are not s upposed to
deploy or when they have a lready deployed .
The side airbag system will not deploy:
-when t he ignit io n is tu rned off
- in side collisions whe n the acceleration
meas ured by the sensor is too low
- in front-e nd collisions
- in rear-end collis ions

-Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­ bag module must always be repaired
immediately by an authorized Audi
dealer.
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cupholders, tele­
phone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat
backrests.
- Such objects and accessories can be­
come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other
passengers to travel in this position .
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc.) to
the original seat covers or to the seam in
the area of the side airbag module must
always be repaired immediately by an au­
thorized Audi dealer.
- If children are seated improperly, their
risk of injury increases in the case of an
accident ~
page 158, Child Safety.
Airbag system 157
-Never attempt to modify any compo­
nents of the airbag system in any way.
- In a side collision, side airbags will not
function properly if sensors cannot cor­
rectly measure increasing air pressure in­
side the doors when air escapes through larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed.
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers
or other equipment is installed in the
inside door panels.
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop.
•
•

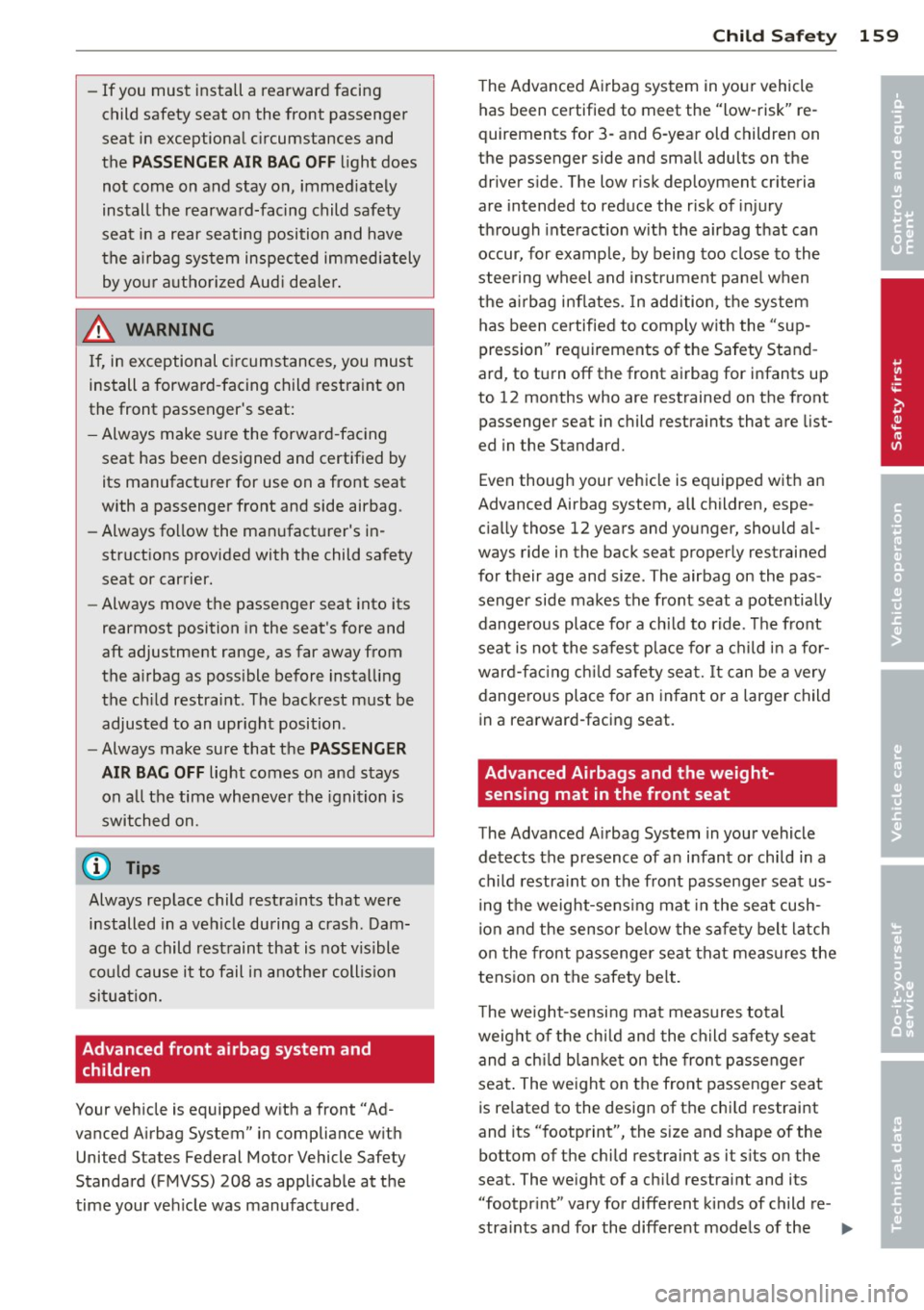

-If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rearward-facing child safety
seat in a rear seating position and have
the airbag system inspected immediately by your authorized Audi dealer.
,& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
@ Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with
United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured .
Child Safety 159
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates. In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size . The airbag on the pas ­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat.
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight-sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the
seat. The weight of a child restraint and its "footprint" vary for different kinds of child re -
straints and for the different models of the ..,. •
•
