2013 AUDI RS5 CABRIOLET sensor

160 Child Saf ety
same kind of child rest raint offered by child
restraint manufact urers.
The weight ranges fo r the ind ividual types,
makes and mode ls o f chi ld restra ints that the
NHTSA has specified in the Safety Standard
together with the weight ranges of typical in­
fants and typical 1 year-o ld child have been
stored in the control unit of the Advanced A ir­
bag System. When a child restraint is being
used on the front passenger seat with a typi­
cal 1 year-old ch ild, the Advanced Airbag Sys­
tem compa res the we ight measured by the
weight sensing mat with the informat io n sto r­
ed i n the ele ct ron ic cont ro l uni t.
The electron ic control unit also registers the
tension on the front passenge r safety belt .
The tens io n on the safety be lt fo r the front
passenger seat will be d iffe ren t for an ad ult
who is prope rly using the safety belt as com­
pared to the tension on the be lt whe n it is
used to attach a chi ld restraint to the seat.
The sensor below the latch for the safety be lt
for the front seat passenger meas ures the
tension on the be lt. The input from this sen­
sor is then used with the we ight to "decide",
whether there is a ch ild restraint w ith a typ ical
1 year-o ld child o n the front passenger seat
and whe ther or not the ai rbag must be tu rned
off.
Child restraints and Advanced Airbags
Regardless o f the child restraint t hat you use,
make sure that it has been ce rtified to meet
United States Federal Motor Vehicle Safety
Standards and has been certified by its manu­
facturer for use with a n airbag. Always be sure
that the child restraint is properly instal led at
one of the rear seat ing pos itions .
If in excep­
tional c ircumstances you must use it on the
fro nt passenger sea t, caref ully read all of the
i n format ion on c hild safety and Advanced A ir­
bags and heed a ll of the app licab le WAR N­
I NGS . Ma ke certain that the child restraint is
correctly recognized by the weig ht-sensing
mat inside the front passenger seat, that the
fro nt passenger airbag is turned off and that the a
irbag sta tus is always cor rect ly signa led
by the
PASSENGER AIR BAG OFF light .
Many types and models of child res traints
h ave been available over the yea rs, new mod­
els are introduced regu larly incorporating new
and improved designs and o lde r mode ls are
ta ken out o f product ion . Ch ild restra ints are
not standard ized . Child restraints of the same
type typically have different weights and sizes
and different 'footpr ints,' the size and shape
of the bottom of the ch ild restra int that sits
on the seat, when they are insta lled on a vehi­
cl e seat. These d iffe rences make it v irtually
i mpossible to certify compl ian ce wi th t he re­
quiremen ts for advanced airbags with eac h
and every chi ld restraint that has eve r been
sold in the past or wi ll be sold over the course
of the useful life of your veh icle.
F or t his reason, the United S tates National
Highway T raffic Safety Adm inist ration has
published a list of specific type, ma kes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System i n your veh icle with the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These ch ild restraints a re:
Subpart A -Car bed child re straints
Model
A ngel Guard Angel
Ride AA2403FOF
Manufactured on or
after
September 25, 2007
Subpart B -Rear-facing child restraints
Model Manufactured on or
after
Ce ntury 5martFit December 1, 19 99
4 543
Cosco Arriva September 25, 2007
I
22-013PAW and base
22-999WHO
I
Evenflo Discove ry Ad- December 1, 1999
just Right 212
Evenflo First Choice December 1, 1999
20 4
Graco Infant 8457 December 1, 1999

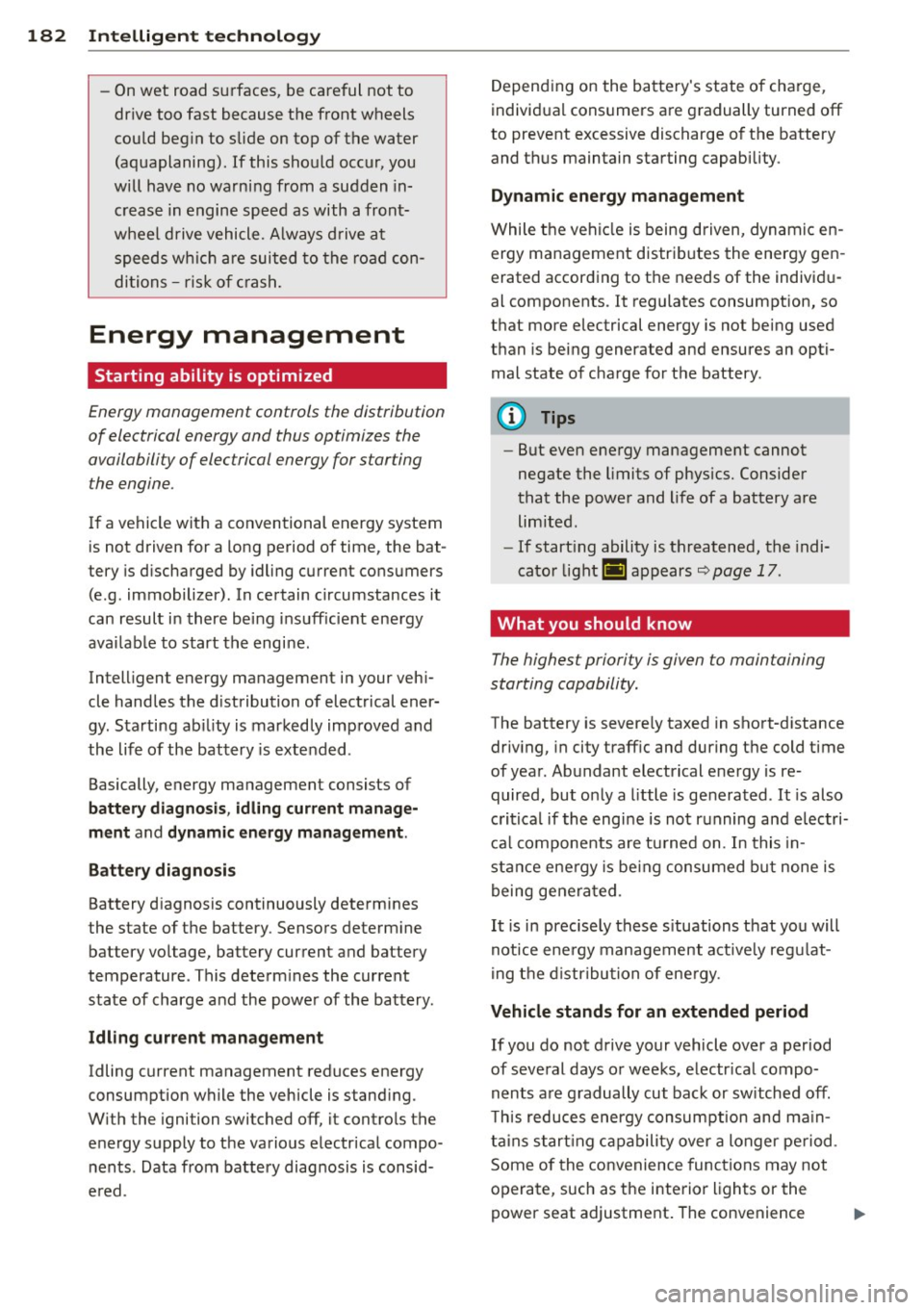

182 Intelligent technology
-On wet road surfaces , be careful not to
dr ive too fast because the front wheels
cou ld beg in to slide on top of the water
(aquaplaning). If this should occur, you
will have no warning from a sudden in­
c rease in engine speed as with a front­
wheel drive vehicle. A lways d rive at
s peeds w hich a re suited to the road con­
di tions -ris k of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution
of electrical energy and thus optimi zes the
availabili ty of elec trical energy for s tarting
t he engine.
If a vehicle with a conventional energy system
is not driven for a long period of time, the bat­
te ry is d ischarged by idling current consumers
(e.g . immobilizer) . In certain ci rcumstances it
can result i n there bei ng ins ufficient ene rgy
ava ilab le to start th e engi ne .
Intell igen t energy management in y our veh i­
cle hand les the d istribution of electrical ener­
gy. Starting ab ility is markedly improved and
the life of the battery is extended .
Basically, energy management consists of
battery diagnos is , idling current manage­
ment
and dynamic en ergy management .
Battery diagnosis
Battery d iagnosis continuously determ ines
the state of the battery. Sensors determ ine
battery vo ltage, ba tte ry current and battery
temperature . This dete rm ines the current
state of charge and the powe r of the battery.
Idling current management
Idling current management reduces energy
consumption while the vehicle is stand ing.
W ith the igni tion switched off, it cont ro ls the
energy s upply to the va rious e lectr ica l compo ­
n ents . Data from battery diagnosis is consid­
e red. D
epend ing on the ba tte ry's state o f cha rge ,
indivi dual cons umers a re g radually turned off
to prevent excessive discharge of t he battery
and th us maintain starting capability.
Dynamic energy management
While the vehi cle is being d riven, dynami c en ­
ergy management distr ibutes the energy gen ­
erated accord ing to t he needs of the indivi du­
al components . It regulates consumption, so
t h at more electrical energy is not being used
t h an is be ing generated and ensures an opti­
mal state of charge fo r the battery .
(D Tips
-But even ene rgy management cannot
negate the limits of physics. Consider
t ha t the powe r and life of a battery are
limited.
- If start ing ability is t hreatened , the indi­
cator light(•) appears ~
page 17.
What you should know
The highest priority is given to maintaining
starting capability.
The battery is severe ly taxed in short-d istance
driv ing, in city traff ic and during the cold time
of yea r. Ab undant electrical e nergy is re­
quired, but on ly a little is generated . It is also
c rit ical if th e engi ne is no t ru nning and e lectri­
ca l c ompone nts are t urned on . In this in ­
sta nce ene rgy is be ing consumed but none i s
being gene ra ted .
It is in prec isely these s ituations that you will
not ice ene rgy management a ct ive ly reg ulat­
in g t he di stribu tion of ene rgy.
Vehicle stands for an extended period
If you do not drive your vehicle over a period
of seve ral days or weeks , e lectr ica l compo­
n ents a re g radually cut bac k or sw itched off.
T h is reduces energy consump tion and ma in­
ta in s start ing c apabili ty over a longer pe riod .
Some of the convenience func tions may not
opera te, such as t he interio r lights or the
power seat adjustme nt. The convenience
ll-

(D Note
-Never try to remove dirt, mud or dust if
the surface of the vehicle is dry. Never
use a dry cloth or sponge, since this
could scratch your vehicle's pa int or w in­
dows .
- Never wash your car in bright sunlight.
Drops of water act as magnifying lenses
and may damage your paint.
- When you wash your car in the w inter: if
you r inse your vehicle w ith a hose, be
careful not to aim the stream of water
direct ly at locks, or at door or hatch
openings - they can free ze shut.
- Never use sponges des igned to remove
i nsects, or any kitchen scouring sponges
or similar products. They can damage
you r paint finish.
- Never use a dry cloth o r sponge to clean
the headligh ts. On ly use we t cloths or
sponges to prevent scratches.
It i s best
to use soapy wate r.
- You sho uld remove debris (su ch as in­
sects) from the head ligh t lenses on a
r egular basis, for example when refuel ­
ing your vehicle . Never use a dry cloth or
sponge to clean the head lights. Only use
wet cloths or sponges to prevent
scratches.
It is best to use soapy water.
@ For the sake of the environment
On ly wash the vehicle in facilit ies specially
designed for that purpose. Th is w ill reduce
the risk of d irty water contaminated with
oil from entering the sewer system. In
some areas, wash ing vehicles outs ide of
these facilit ies is prohib ited.
Washing your vehicle with a power
washer
Cleaning the exterior of your car with a high ­
pressure power washer is safe as long as you observe a few simple rules .
~ Before us ing the powe r washe r, make sure
yo u have re ad an d u nderstood the WARN-
Cleaning and protec tion 19 1
INGS ¢ A in General information on
page 189 .
~ Always follow the operating instr uctions for
the power washer.
~ Make sure that the jet on the spray hose pro­
duces a "fan shaped sp ray" .
~ Do not hold the sp ray nozzle too close to
soft mater ials .
Never use a pow er washer to clean the power
top itself.
Keep a distance from soft materia ls s uch as
rubber hoses or insulating material as well as
sensors and camera lenses.
When cleaning the vehicle with a power was h­
er
always follow the operating instructions .
This applies part icu larly to the operating pres­
sure and the spraying d istance. Do not point
the spray d irectly at the seals around the s ide
windows, around the doo rs, on the rea r lid or
o n the powe r top. Likewise, do not po int it di­
re ct ly at tires, rubbe r hoses, insulat io n ma te ­
ria l or senso rs
¢ page 193. Hold the spray
nozzle at leas t 1.3 ft (0. 4 m) away from the
vehicle.
Do no t use a high-p ressu re power was her to
remove snow and i ce .
Do not use a jet which sprays water in a d irect
stream o r one that has a rotat ing jet.
Water temperature should not exceed 140 °F (60
°() .
A WARNING
Neve r wash t ires with a jet t hat sprays wa­
ter in a direct stream . Thi s could cause in­
v isi ble d amage to the t ire s and weaken
them, even if the spr ay is from a re lative ly
l ong dis tance and for a sho rt time. Dam­
aged and weakened tires can fail and cause
accidents and personal in jury.
([) Note
- Never use a power washer to clean the
powe r top itse lf .
•
•

192 Cleaning and protection
-To a void damaging yo ur vehicle, always
make sure that there is sufficient dis­
tance between the spray head and soft
mater ials like rubber hoses, p lastic parts
and sound-deaden ing mater ials as well
as sensors and camera lenses . Never aim
the spray head at t he same po int for a
l ong time. This also app lies to cleaning
headlights and painted bumpers . Re­
member: the cl oser the nozzle is to the
su rface o f the materia l, the greater the
stress on the mate rial.
Caring for vehicles with matte finish
paint
Ap plies to vehicles: with matte finish pa int
Vehicles with matte finish point require spe­
cial core due to the characteristics of the
poin t.
Washing by hand
To avoid damag ing the pa int when wash ing,
f irst remove dust and large particles from
your ve hicle . Insects, g rease spots and finger­
prints are best removed with a special cleaner
for matte finish paint .
Apply the product using a microfiber cloth. To
avoid damaging the paint surface, do not use
too m uch pressure.
R inse the vehicle t ho roughly with wa ter. Clean
the vehicle sta rting at the top and working to­
ward the bottom using a
neutral shampoo
and a soft mi crofiber cloth . Stop frequently to
rinse t he cloth thoroughly.
C lean the w heels and sill panels last. Use a
clean
s ponge on these areas .
R in se the veh icle tho roughly aga in and let i t
a ir dry . If there are any wa ter spots, t hey ca n
be removed using a
leather cloth.
C lean again with t he special cleaner for matte
fini sh paint
if ne cessa ry.
Removing stubborn dirt
Bird dropping s or tree sap
are best removed
with plenty of water a nd a m icrofiber cloth. You should
rinse off
ga soline re sidue immed i­
ate ly wit h plenty of water.
A WARNING
-
- Wash your vehicle only when the ign ition
is switched off to reduce the risk of a
crash.
-Always read and heed a ll WAR NINGS and
other information
c';> page 189.
(D Note
- Do not treat veh icle parts pa inted with
matte finish paint using polishing mate­
r ia ls or hard wax . These p roducts could
cause damage to the appearance or s ur­
face that cannot be repaired.
- Never use protective wax . It can destroy
the matte f inish effect .
- Do not place any stickers or magnetic
signs on vehicle parts painted with
matte finish paint . The paint could be
damaged w hen the stickers or magnets
are removed.
'
- To prevent paint damage, do not wash
the vehicle in d irect sunlight.
- To prevent damage to the pa int surface,
do not use insect remova l sponges ,
rough k itchen spo nges or sim ila r items.
- You should remove deb ris (such as i n­
sects) from the headlight lenses o n a
regu lar basis, for example w he n r efuel­
ing your vehicle . Only clea n the head­
ligh ts u sing a wet cloth or sponge, neve r
a dry one. Clean ing wi th so apy wate r is
recommended .
{D Tips
For more inform ation on special clea ning
p rodu cts designed fo r m att e fin ish pain t,
see your Aud i deale r.
Power top care
The power top requires special care.
K eep ing you r top looking great and mak ing
c e rtain that it lasts a long time depend to a
great ex ten t on prope r use an d ca re. Remove .,.

bird d ropp ings as soon as possib le, since the
corrosive chemica ls in them wi ll cause the
rubber impregnat ion in your top to swell and
possibly allow the fabric to leak.
With
normal soiling , all yo u need to do is
clear the top with a soft brush and clear wa­
ter . Always brush in the direction of the fabric
from front to rear.
If the top is
very dirty and has spotted areas
clean it with a brush using a convertible top
cleaner . Always brush in the direction of the
fabric from front to rea r. Rinse w ith plenty of
clear water, and allow the top to air-dry .
Chamo is are not suitable for drying the top .
Never use gasoline, spot remover, benze ne,
pa int thinner or so lvents to remove spo ts. We
recommend that you only use cleaners espe ­
cially formu lated for use on convertible tops ,
and that you follow the produce use di rections
caref ully. Authori zed A udi deals can p rovide
deta iled information.
A WARNING
Always read and heed all WARNINGS and
the information on ¢
page 189.
Never use a high-pressure power washer to
clean the power top.
Wind deflector
App lies to vehicles: with wind deflector
Clear the wind deflector with water or, if it is
heav ily soiled, a chemically neutra l cleaning
solut io n.
A WARNING
Always read and heed a ll WARNINGS and
t he information on
¢page 189.
Sensors and camera lenses
-Remove snow wi th a hand brush and remove
ice with a de-icing spray that does not con­
ta in solvents .
Cleaning and protec tion 193
- Clean the sensors (adap tive c ruise control *,
parking system *) with a cleaning so lution
that does not contain so lvents and a soft
cloth.
@ Note
- If you wash your vehicle with a press ure
washer,
- make sure there is enough d istance to
sensors in the rear bumper.
- do not clean the camera lenses and the area a round them with the p ress ure
washer.
- N ever use warm o r hot wate r to remove
snow or ice from the came ra lens . This
c ou ld cause t he lens to crack.
- N ever clean the camera lens with abra­
sive products .
Waxing and Polishing
Waxing
A good wax coating protects the vehicle paint
to a la rge ex ten t agains t the envi ronmental
f a ctors lis ted under ¢
page 189, Washing and
even against s light scratches .
You can use a liquid car wax to protect yo ur
paint as soon as one wee k afte r you r vehicle
has been delivered.
Even if you regularly use a
wa xing process in
a utomat ic car washes, we recommend that
yo u manually a pply a coat o f wax to g ive the
pain t ex tra protection, par ticu larly if water no
longer beads on t he clean paint.
P rotect plast ic body parts w ith car wax in the
same w ay as the veh icle body .
During warm weather dead insects tend to
collect on the front bumper and on the fo r­
ward a rea of the hood. They are much easier
to remove from pa int that is waxed
often .
Polishing
Polish your vehicle only if the paint has lost its
shine and the gloss cannot be brought back
with wax . ..., •
•

Before you check anything in the engine com­
partment,
al ways r ead and heed all W ARN­
ING S ¢ A in Working in the engine compart­
ment on page 207.
The "MIN" und "MAX" markings are found on
the bi-level disc in the interior of the coolant
expansion tank
¢ fig . 181.
.,. Park your vehi cle on a level sur face.
.,. Turn off the ignition .
.,. Let the engine coo l down .
.,. Place a thick rag over the coolant expansion
tank and
c a refully turn the cap counter ­
clockwise ¢
.&,.
.,. Read the engin e coolant le vel inside the
coolant expans ion tank ¢
fig. 180,
¢ page 209, fig . 177. With a cold engine,
the coolant leve l should be between the
" M IN" and "MAX" mark ings
¢ fig. 181
-arrows- . When the eng ine is warm, the lev­
el may be slightly above the "MAX" marking.
.,. The MAX marking may be covered with a
maximum of 1 mm of coolant when yo u
fill
coolant .
.,. Twist the cap on again tightly.
The location of the coolant expansion tank
can be seen in the engine compartment illus­
tration
¢ page 209.
To obtain an accurate read ing, the engine
must be switched off .
The expans ion tank in you r vehicle is equipped
with an electric coolant level sensor .
When the coo lant level is too low, the warning
light in the A uto-Check System¢
page 18 wi ll
b lin k until you add coo lant and the level has
been restored to norma l. Even though there is
an electric coolant level sensor, we sti ll rec­
ommend you check the coolant leve l from
time to time.
Coolant loss
Coolant loss may indicate a leak in the coo ling
system . In the event of coolant loss, the cool ­
i n g system should be inspected immediately
by your authorized Audi dealer. It is not
enough merely to add coolant.
Checkin g and fillin g 215
In a sealed system, losses can occur on ly if
the boiling point of the coolant is exceeded as
a resu lt of overheating.
Adding coolant
Rep lacement engine coolant must confo rm to
exact specificat ions¢
page 214, Coolant .
We recommend using only coo lant add itive
Gl2++, Gl3 or i n an emergency Gl 2+ . Do not
use a different add itive. In an emergen cy use
plain water until you can ge t the correct addi­
tive and can restore the correct ra tio. This
sho uld be done as soon as possib le .
If you have lost a cons iderab le amount o f
coolant, then you sho uld add cold ant ifreeze
and co ld water on ly when the engine is cold.
A lways use
new engine coo la nt when refilling.
Do not fill coolant above the "MAX" mark. Ex­
cess coolant will be fo rced out through the
pressure relief valve in the cap when the en­
gine becomes hot.
_& WARNING
- Th e cooling system is un der pressure and
can get very hot. Reduce the risk of
scalding from hot coolant by following
these ste ps.
- Turn off the engine and allow it to coo l
down.
- Protect your face, hands and arms from
escaping fluid and steam by covering
the cap w ith a large, th ic k rag.
- Turn the cap s lowly and very carefully
i n a counter-clockwise direction while
applying light, downward pressure on
the top of the cap.
- To avoid being bu rned, do not spill an­
tifree ze or coolant o n the ex haust sys­
tem o r hot engine p arts. Under ce rtain
con ditio ns, the ethy lene glycol in en­
gine coolant can catch fire.
- Antifreeze i s poisonous. Always s tore an­
tifreeze in its original container an d well
out of the reach of children .
Ill-
•
•

replacement or alternate tires and wheels a l­
l ow the TPMS to continue to function proper­
l y.
Tire pressure indicator appears
Applies to vehicles: with tire pressure monitoring system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
F ig. 190 Display: underinflatio n warn ing
Using the ABS sensors , the t ire pressure mon i­
toring system compa res the t ire tread circum­
fe rence and v ibration characteristics of the in­
d iv idual tires. If the pressure decreases in one
or mo re tires, th is is indicated in the instru ­
ment cluster with a
ti] warn ing symbol and a
message ¢
fig. 190. The driver message in the
disp lay goes out after S seconds. The driver
message can be d isplayed again by pressing
the
! S ET ! button. If only one tire is affected,
the display will indicate its pos ition .
T he t ire pressure monitoring system must be
reset via radio or MMI* each t ime the pres­
sures are adjusted (e.g . when sw itching be­
tween partia l and full load pressure) or after
changing o r replacing a t ire on your vehicle
¢
page 242. The TPMS indicator only moni­
tors the tire p ressure that you have prev iously
stored . Yo u ca n find the recommended tire
p ress ures for you r vehi cle on the labe l on dr iv­
er's side B -pi llar ¢
page 226 .
T ire tread c ircumfe rence and vibration c harac­
ter ist ics can ch ange and ca use a ti re pressure
warn ing if:
- the tire pressure in one o r more t ires is too
low,
Tire s an d wheel s 241
- the t ire has struc tural damage,
- t he t ire press ure w as c hanged, wheels ro ta t-
ed or rep laced but the TPMS was not reset
¢ page 242.
Warning symbols
ti] Loss of pressure in at least one tire¢& .
Check the t ire o r tires and rep lace or repa ir if
necessary. The
ti] indi ca to r li ght in the inst ru­
ment cluster a lso illuminates
¢ page 13.
Check/cor rect the press ures of all fo ur tires
and reset TPMS via radio or MMI*.
11il~1 (T ir e Pressure Monitoring System) Tire
pre ssure: Sy stem m alfunction!.
IfllilB appears after switching the ignition
o n or while d rivi ng and the
ti] ind icator l ight
i n the instr ument cluster blinks for app roxi ­
mately one minute and then stays on, there is
a system malfunct ion .
Attempt to sto re the co rrect tire pressu re
¢
page 242. If the ind ic a tor lig ht does not
turn off or i f it turns on sho rtly the rea fter, im ­
med iate ly dr iv e your vehicle to an authorized
A udi dealer or authorized repair faci lity to
have the malfunct ion corrected.
A WARNING
- If the tire pressure ind icator appears in
the instrument cluster display, one or more of your t ires is sign ificant ly unde r­
inflated . Reduce you r speed immediately
a nd avoid any hard steer ing or b rak ing
maneuvers. Stop as soon as possib le and
check the tires and their pressu res . In­
f late the tire pressure to the prope r pres ­
sure as indicated o n the vehicle's tire
pressure labe l
¢page 226. D riving on a
sign ificantly under-inflated tire causes
the t ire to overheat and can lead to tire
fa ilure. Under-inflation also is likely to
impair the vehicle's ha ndling and stop­
ping ab ility .
- The drive r is responsib le for maintaini ng
the co rrect tire pressures . You must
check the tire pressures regu larly. .,..
•
•

Fuses and bulbs
Fuses
Replacing a fuse
Fuses that have blown will have metal strips
that have burned through.
Fig . 200 Left cockp it : fuse panel cover
The fuses a re located at the front left and
r igh t of the cockpit and behi nd the trim on
the right side of the luggage compartment .
.. Turn
off the ignit ion a nd the affected electri­
c a l consume rs .
.. Check the following table to see which fuse
belongs to the consumer .
.. Remove the appropriate cover
Q fig. 200 or
Q page 205, fig . 173 .
.. To remove the purple plastic clip if necessa­
ry
ll, hold onto it at the small side and pull
it out of the fuse panel¢
page 251,
fig. 201 .
.. Remove the clamp from the rea r side of the
fuse cover ¢
fig. 200 .
.. Remove the fuse using the clamp and re­
pla ce the blown fuse w ith an identical new
one.
& WARNING , -
Do not repair f uses and never replace a
blown fuse w ith one that has a higher amp
rating. This can cause damage to the elec­
trical system a nd a fi re.
11 You can dis pos e of the plastic clip after removing it.
Fu se s and bulb s 251
(D Note
If a new fuse burns out again after short ly
have you have insta lled it, have the electri ­
ca l system checked by yo ur authorized
A udi dealer .
{!) Tips
-The following table does not list fuse lo ­
cat ions that are not used .
- Some of the equipment items listed are
opt ional or only available on certa in
mode l configurations.
Left cockpit fuse assignment
Fi g. 20 1 Left cockpit: fuse panel wit h plastic clip
No. Consumer
Amps
Fuse panel @(black)
1 Dynamic steering 5
2 ES C control module 5
A/C system pressure sensor,
electromechanical parking
3
brake, Homelink, automatic
5 dimming interior rear view
mirror, air quality/outside
ai r sensor, ESC button
