2013 AUDI A5 COUPE Owners Manual

Instruments and warning/indicator lights 23
=/4 Ignit ion lock
l!J Ignition lock defective
There is a malfunction in the electron ic igni­
tion lock. Please go to an authorized Aud i
dealer or other qualified workshop to have the
malfunct ion repaired.
¢ Q Turn signals
Whenever you use the left II or the right IJ
turn signal, the indicator light blinks. When
you use the emergency flashers, both indica­
tor lights flash .
If one of the turn signal light bulbs burn out,
the turn signal will blink twice as fast as nor ­
mal. Carefully drive to your authorized Audi
dealer immediately to have the malfunction
corrected.

24 Driver information d isplay
Driver information
display
Introduction
The Driver information display inside the in ­
strument cluster provides you, the driver ,
with important information.
Fig. 7 Ins trum en t cl uster : ce nter display
Fig. 8 W iper lev er: con trols fo r th e menu disp lay
Center display
W ith the ignition on, the display in the Dr iver
I nformation System shows the following in­
formation :
- CD* inserted or Radio* station set
- Outside temperature* : At temperatures be-
low 41 °F (+5 °C), a snowflake symbol ap­
pears in front of the temperature display
c::> .&_.
-Warning if one of the doors, front lid or en-
gine compartment lid is not closed .
Additional functions
You can open the following functions in the
Driver Information System display by pressing
the
! RESET I button c::> fig. 8 one or more times:
Digital speedometer*
Tire pressure monitoring *
~page249
Trip computer
Efficiency program*
Service interval display
c::>page25
c::> page 27
c::> page 29
--·-
Gearshift selector positions
Automatic transmission
Adaptive cruise control*
Auto Check Control
c::> page 78
Some functions and vehicle components are
scanned for their operating status when you
switch the ignition on and whi le you are driv­
ing. Malfunctions or required service proce­
dures are signaled audibly and indicated by
red and yellow illuminated symbols and re­
minders in the d isplay.
A WARNING
--- Never rely exclusively on the outside
temperature display to determine if a
road surface is icy or not. Keep in mind
that road surfaces, especially br idges
and overpasses, could be ice covered and
slippery even at an outside temperature
above 41 °F (+5 °C).
- Always remember, even if the "snow­
flake" symbol (ice warning) does not ap­
pear in the disp lay, black ice cou ld be on
the road.
- Always reduce your speed and drive with
specia l care in cold weather cond itions
when the chance of encountering icy
road surfaces increases.
¢j) Tips
If the vehicle is stationary, or if you are
driving at a very low speed, the tempera­
ture shown in the display might be s light ly
higher than the actual outs ide tempera­
ture. This i.s caused by the heat being radi­
ated from the engine .

Trip computer
Introduction
The trip computer gives you information on
current and average fuel mileage, average
speed, fuel range and driving time .
Fig. 9 Trip computer display: Average fuel mileag e
The fo llowing information is continuously
eva luated by the trip computer and can be dis­
p layed sequentially in the instrument cluster
display:
Fuel range
The estimated cruising range in miles (km)
appears in the display. This tells you how far
your vehicle wi ll be able to travel on the cur­
rent tank of fue l and with the same driving
style. The display changes in increments of 6
miles (10 km).
The cruising range is calcu lated based on the
fuel cons umption for the last 18 mi les
(30 km) . If you drive conservatively, the cruis­
ing range will increase.
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in
this display. You can use this disp lay to adjust
your driving technique to achieve a desired
mileage .
Current fuel mileage
The instantaneous fuel consumption in miles
per gallon (l/100 km) is shown in this display .
You can use this display to adj ust yo ur driving
technique to ach ieve a desired mileage.
Driver information display 25
Fuel consumption is recalcu lated at intervals
of 33 yards (30 meters). This display switches
to gallons/hour (liters/hour) when the veh icle
is not moving.
Average speed
The average speed in mph (km/h) s ince you
last reset the memory appears in the display.
Elapsed time
The length of time that yo u have been driving
s ince you last reset the memory appears in
th is disp lay.
Distance
The distance that has been covered since the
last time the memory was cleared appears in
the d isplay .
(0 Tips
- Fuel consumptions (average and cur­
rent), range and speed are displayed in
metric units on Canadian mode ls.
- All stored values will be lost if the vehi­
cle battery is disconnected.
Memories
The trip computer is equipped with two fully
automatic memories as well as an efficiency
program* .
Fig . 10 Tri p computer display: memory leve l 1
You can switch between the trip computer 1
and 2 and the efficiency program* by pressing
the
I RESET I button @r:::> page 26, fig. 11 .
You can tell which memory leve l is currently
active by the number o r the sign in the display
II--

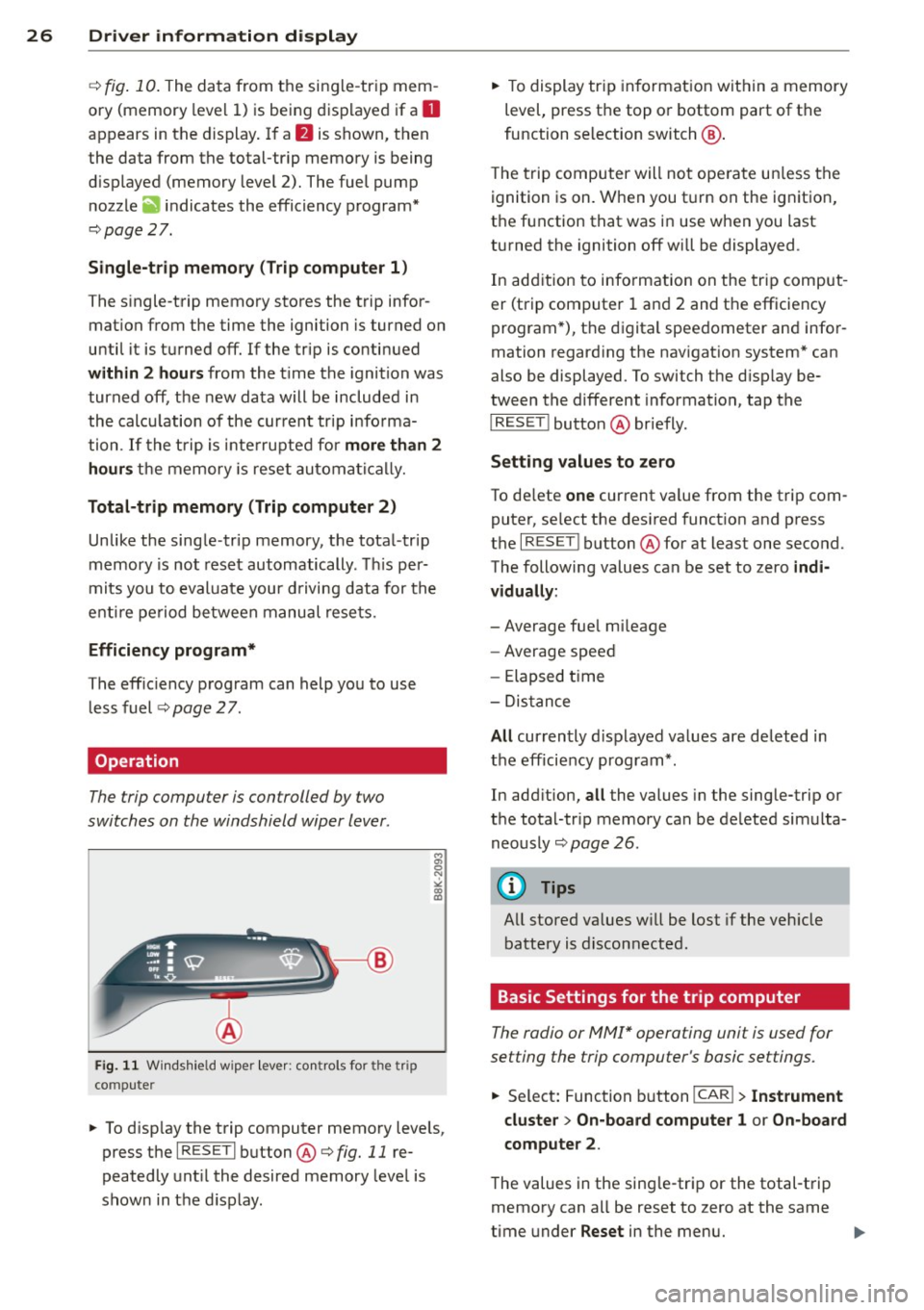

26 Driver in formation d isplay
¢fig . 10 . The data from the single -trip mem ­
ory (memory leve l 1) is being displayed if a
D
appears in the display . If a II is shown, then
the data from the total -trip memory is being
d isplayed (memory leve l 2). The fuel pump
nozzle
iii indicates the efficiency program*
¢ page 27.
Single-tr ip m emory (Trip computer 1 )
The single-trip memory stores the trip infor­
mat ion from the time the ignition is turned o n
until it is turned off. If the trip is continued
w ithin 2 hours from the t ime the ignition was
turned off, the new data will be included in
the calcu lation of the current trip i nfo rma­
tion .
If the t rip is inte rrupted fo r more than 2
hours the memory is reset automati ca lly.
Total -trip memory (Trip computer 2)
Unlike the sing le-trip memory, the tota l- tr ip
memory is not reset automatically . Th is per­
mits you to evaluate your d riving data for the
enti re pe riod be tween manual rese ts.
Efficiency program*
The effic iency program can help you to use
less fuel ¢
page 2 7.
Operation
The trip compu ter is controlled by two
switches on the windshield wiper lever.
F ig . 11 W ind sh ie ld wipe r lever: co ntro ls fo r the tri p
co mp ute r
.. To d isp lay the trip computer memory levels,
press t he
I RES ET I button @¢ fig. 11 re­
peatedly unt il the desired memory leve l is
shown in the d isplay. ..
To display tr ip in format ion wit hin a memory
level, press the top or bottom part of the
function se lection switch @.
T he trip computer will not ope rate un less the
ignition is on. W hen you t urn on the ignition,
the function that was in use when you last
turned the ignition off will be displayed .
In add ition to info rmation on the trip comput ­
er (trip computer 1 and 2 and the efficiency
program *), the digital speedometer and infor­
mation regard ing the nav igat ion system* can
also be displayed. To switch the d isp lay be­
tween the different information, tap the
I RESET ! button@ briefly.
Sett ing values to zero
To de lete one current va lue from the trip com ­
puter, se lect the des ired funct ion and press
t h e
I RES ET I button @for at least one second.
The following values can be set to zero
indi­
vidually :
- Average fue l mi leage
- Average speed
- Elapsed t ime
- Dis tance
All cur rently d isplayed va lues are deleted in
the eff iciency program*.
In add it ion,
all the values in the single-trip or
the total-tr ip memory can be de leted simulta­
neously ¢
page 26.
(D Tips
All stored va lues w ill be lost if the veh icle
battery is discon nected .
Basic Settings for the trip computer
The radio or MMI* operating unit is used for
setting the trip computer's basic se ttings.
.. Select: Function b utton ICAR ! > Instrument
cluster > On-board computer 1 or On -board
computer 2 .
The values in the sing le-trip or the total -t rip
memory can all be reset to zero at the same
time under
Reset in the menu. ...

In addition, you can determine what informa­
tion from the trip computer should be shown
in the instrument cluster display. If one of the
pieces of driver information is turned
O ff , that
driver information will not be shown in the
d isp lay. The information will continue to be
calculated by the trip computer and can be
turned back
On at any time .
(D Tips
-This function is not availab le on all
vehicles.
- The driving information in the efficiency
program is also reset to zero with t he
s ingle-trip memo ry.
Gearshift Indicator
Applies to vehicles: with manual transmission and gear·
shift indica tor
This indicator can help conserve fuel.
Fig. 12 D isplay : Gea rs hi ft indicator
The radio or MMI* can be used to activate or
deactivate the gearshift indicator.
Driving informat ion -fa ding in and out
~ Select: ICARlfunction button> In st rum ent
clu ster
> S hifting r eco mm endati on. Or
~ Se lect: ICARI funct ion button> Car syste m s
control button > Driv er as sist > G ear reco m­
m en dation .
In order to become familiar with the gearshift
i ndictor, at first just drive the way you a re
used to.
If the cu rrent gear· and the d riving
situation· is not the best one for conse rv ing
fuel, then the indicator will display the recom­
mended gear. The disp lay shows the current
Dri ver inform ation di spl ay 2 7
gear and the gear that is recommended
~ fig. 12.
-Up shifting T he disp lay w ill l igh t up to the
right of the gear c urrently selected if i t is
recommending a higher gear .
-Down shifting : The display will ligh t up to
the
left of the gear currently se lected if it is
recommend ing a lower gear.
Somet imes the indi cator will recommend
skipping a gear (3 > S).
If there is no gearshift recommendation, then
just drive in the appropriate gear for conserv­
i ng fuel.
(D Note
This indicator can help you conserve fuel.
This indicator is not meant to show you
which gear you should a lways be in in all
driving situations. Sometimes, in situa­
tions s uch as passing, driving through
mountains or when towing a t railer, there
won't be any gears hift recommendation.
a) Tips
The display does not light up when the
clutch pedal is being depressed.
Efficiency program
Description
Applies to vehicles: with trip computer with efficiency
program
Fi g. 1 3 Display: eff iciency program
~ Press the I RESET I button @~ page 26,
fig. 11
r epeatedly unt il the effic iency p ro­
gram appears in the display.

28 Driver information d isplay
The efficiency program can help you to use
less fuel.
It evaluates driving information in
reference to fue l consumption and shows oth ­
er equipment influencing consumption as well
as shift recommendations. Fuel economy
messages
¢ page 29 provide tips for effi ­
cient dr iv ing .
The efficiency program uses distance and con­
sumption data from trip computer
1. If the
data are deleted in the efficiency program,
those values are also reset in trip computer
1.
Enhanced shift indicator
Applies to vehicles: with manua l transmission and trip
co mpute r with efficiency program
Fig. 14 Dis play : enh ance d shi ft ind icato r
.. In the efficiency program, press the func­
tion selection switch
r=> page 26, fig. 11 @
repeated ly until the enhanced shift indicator
appears in the display .
The effic iency program also has an enhanced
shift indicator. This enhanced shift indicator
follows the same concept as the "standard"
shift indicator ¢
page 27. The selected and
the recommended gears are highlighted in
colors like a traffic light .
The color of the circle indicates if the most
suitable gear is engaged or if you should sh ift
up or down.
Green circle without No gear or the most
or with a gear suitable gear is en­
gaged
Yellow circle¢
fig. 14 Shift up or down one
gear
Red circle Shift up two gears
(D Note
This enhanced shift indicator can help you
conserve fuel. It is not designed to recom­
mend the correct gear in all driving situa­
tions. Only the dr iver can decide wh ich
gear is correct in certa in driving situations
such as when passing another vehicle,
driving on hills or towing a trailer.
(0 Tips
-The enhanced shift indicator display is
different in vehicles with a monochrome
display .
- The "standard" shift indicator* disap­
pears when the enhanced shift indicator
is displayed.
Other equipment
Applies to vehicles: with trip computer with efficiency
program
Fig. 1 5 Display : other eq uipm en t
.. In the efficiency program, press the func­
tion selection switch¢
page 26, fig. 11 @
repeatedly until the other equ ipment ap­
pears in the display.
Other equipment that is currently affecting
fuel consumption is listed in the efficiency
program. The display shows up to three other
items of equipment @. The equipment using
the most fuel is listed first . If more than three
items using fuel are switched on, the equip­
ment that is currently using the most fuel is
displayed .
A scale @also shows the current total con ­
sumption of all other equipment .

Fuel economy messages
App lies to vehicles: with trip computer w it h eff ic iency
p rogram
Fig . 16 Display: fuel economy message
Fue l economy messages are disp layed when
fuel consumption is increased by certain con­
ditions. If you follow these fuel economy mes­
sages, you can reduce your vehicle's consump­
tion of fuel. The messages appear automati­
cally and are only displayed in the effic iency
program. The fuel economy messages turn off
automatically after a certain period of time.
• To turn a fuel economy message off imme­
diately after it appears, press the
I RESE TI
button ¢ page 26, fig. 11 @ , or
• Press the function selection switch
¢ page 26, fig. 11 @.
(D Tips
- Once you have turned a fuel economy
message off, it will only appear again af­
te r you turn the ignition on aga in.
- The fuel economy messages are not dis­
played in every instance, but rathe r in in­
te rva ls over a period of time.
Dri ver inform ation di spl ay 29
Service interval display
The service interval display reminds you when
your next service is due.
Fig. 17 Disp lay: Service i nterval display
The schedule for the next oi l change or inspec­
tion is ca lculated automatica lly and disp layed
accord ingly. The d isp lay works in two stages:
Service reminde r
30 days before the next service is due, a serv­
ice reminder appears in the display whe n you
turn on the ignition¢
fig. 17 .
After about S seconds the display switches
back to normal. The distance and time re­
main ing are updated each time the ignition is
tu rned on unt il th e date due for service is
reached.
Service due
When the due date for service is reached, the
message
Ser vice due! appears in the instru­
ment cluster immediately after you turn on
the ignit ion. Add it iona lly, a warning tone
sou nds. After about S seconds the disp lay
switches bac k to normal.
Calling up the service schedule s
If or when an oil change or inspection is due,
can be shown in the rad io or
MMI* disp lay by
selecting the service interva l display in the car
menu. Select !CAR ! func tion button>
Servic e
interval d ispl ay
o r! CAR ! function button> C ar
sys te m s
cont ro l bu tton > S ervic ing & check s.
Resetting the servic e interval display
Your author ized Audi dealer will reset the cor­
responding service schedule after pe rforming .,.

30 Driver information display
the approp riate service on your vehicle. You
a lso have the possibility to reset the oil
change schedule after having performed an
oil change according to Audi specifications.
Select
I CAR I function button > Service interval
display > Reset oil change interval
or ICARI
function button> Car systems control button
> Servicing & checks > Reset oil change inter­
val.
(CT;) Note
If you disconnect the battery terminals, no
calculations can be made for the service
interva l display during this time and no
service reminder will appear. Remember
that observing the proper serv ice interva ls
is vitally important to extending the life of
your vehicle, particularly the engine, and
maintaining its value. Even if the mileage
driven is low, the maximum period of one
year from one serv ice to the next must not
be exceeded.
@ Tips
-Do not reset the display between oil
changes, otherw ise the display will be in­
correct.
- The information in the Service Reminder
remains stored even when the vehicle
battery is disconnected.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) II in
the instrument cluster is part of the On-Board
Diagnostic (OBD II) system.
The warning/indicator light illuminates when
the ignition is switched on and goes out after
the engine starts and the idle has stabi lized .
This indicates that the MIL is working proper­
l y.
If the light does not go out after the engine
is started, or illuminates while you are driv­
ing, a malfunction may exist in the engine sys- tern.
If the
light illuminates, the catalytic con­
verter could be damaged.
Continue driving
with reduced power (avoid­
ing sustained high speeds and/or rapid accel­
erations) and have the condition corrected.
Contact your authorized Audi dea ler.
If the light illuminates, the electronic speed
limiter may also be malfunct ioning. For more
information
q page 31, El ectronic speed
limiter .
An improperly closed fuel filler cap may also
cause the MIL light to illuminate
~page 213.
On-Board Diagnostics
Fig. 18 Locat ion of Data L ink Connector (DLC)
On-Board Diagnostics monitors the compo­
nents of your em ission control system . Each
monitored component in your engine system
has been assigned a code . In case o f a mal­
function, the component will be identified
and the fault stored as a code in the control
module memory.
T he MIL light may also illuminate if there is a
leak in the on-board fuel vapor recovery sys­
tem.
If the light illuminates after a refueling,
stop the vehicle and make sure the fuel filler
cap is properly closed
q page 213.
In order to make an accurate diagnosis, the
stored data can on ly be displayed using spe ­
cial diagnostic equipment (generic scan tool
for OBD).
In order to connect the special diagnostic
equipment, push the plug into the Data Link ..,.
