Power top emergency
operation
General information
The power top can be closed by hand if there
is a malfunction .
~ Activate the parki ng b rake.
~ Open the windows
~ Remove the key from the ignit ion.
Only close the powe r top ma nually in an eme r­
gency. The best solu tion is to have your au­
thor ized Audi dealer co rrect the cause of the
mal func tion.
Powe r top emergency operation consists of
the following steps:
- Unlocking the power top compartment
cover:
The cover on the power top compart ­
ment must be released by hand .
-Closing the power top: The power top must
be l ifted o ut of the tray and close d.
- Locking the power top: The powe r top
latches must be locked with the emergency
key .
A WARNING
- W hen positioning th e power top, avoid
co nta ct wi th th e suppo rts or o ther mov­
ing parts. Make su re al l of the windows
are lowered . Otherw ise you cou ld pi nch
yo ur hands.
- N ever dr ive when the power top is not
locked correct ly . The win d from drivin g
cou ld cause t he power to p to open . This
can res ult in injuries and damage to the
vehicle .
@ Tips
Have a second person assist when clos ing
the power top . Posit io ning t he power top
is easier when t here is a second person to
he lp.
-
Power top 4 7
Step 1: Unlocking the power top
compartment cover
T he release lever for the powe r top compart­
ment is lo cated under the trim in the luggage
compartmen t.
Fig. 39 Lugg ag e compart men t: re lease lever
Fig. 40 Lu gg ag e compart ment: s ide trim
~ Open the luggage compa rtment lid. The
emergency release can be used if the l ug­
gage compartment lid wi ll not open
c::;,page 38.
~ Reach your f inger into the gap behind the
t rim near the cente r of the vehicle .
~ Pull the release lev er down to release the
power to p compa rtment cover
c::;, fig . 39 .
~ Open the left side trim an d press the yellow
lever in the direction of the arrow ¢
fig. 40.
~ Remove the emergency key from t he com ­
partment on the left side @.
~ Open the r ight side trim and press the yel­
low lever in the direct ion of the arrow .

48 Power top

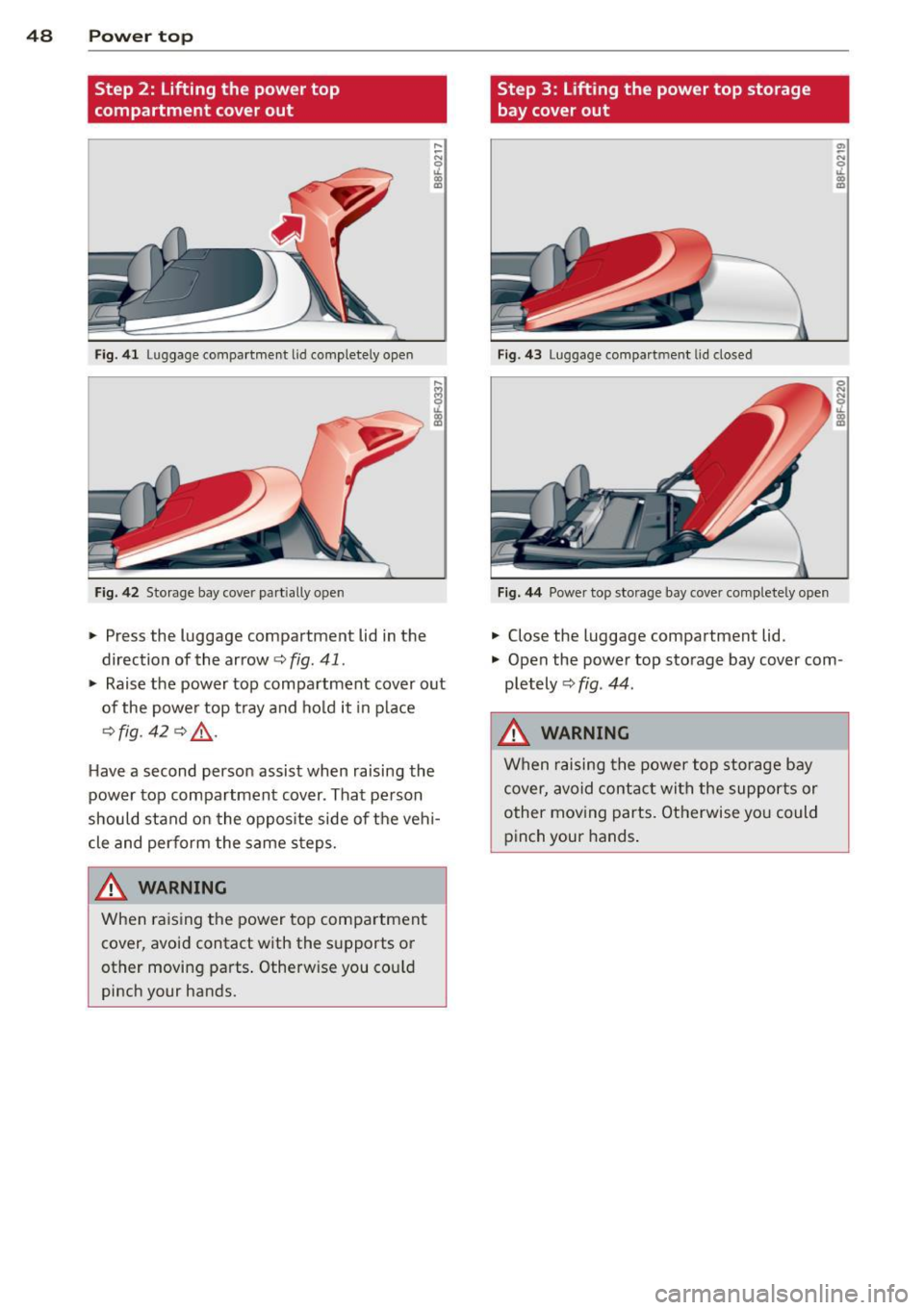

Step 2: Lifting the power top
compartment cover out
Fig. 41 Luggage compartment lid completely open
Fig. 42 Storage bay cover part ially open
.,. Press the luggage compartment lid in the
direction of the arrow
c::, fig. 41 .
.,. Raise the power top compartment cover out
of the powe r top tray and ho ld it in p lace
c::> fig . 42 c::> .al·
Have a second person assist when raising the
power top compartment cover. That pe rson
should stand on the oppos ite side of the veh i­
cle and perform the same steps.
A WARNING
When raising the power top compartment
cover, avoid contact with the s upports or
other moving pa rts . Otherwise you cou ld
pinch your hands.
Step 3 : Lifting the power top storage
bay cover out
Fig. 43 Luggage compa rtm ent lid closed
Fi g. 44 Power top storage bay cove r comple tely open
.,. Close the luggage compartment lid .
.,. Open the power top sto rage bay cover com ­
pletely
c::> fig . 44 .
_&. WARNING
When raising the power top storage b ay
cover, avoid contac t with the supports or
other mov ing parts. Otherwise yo u could
pinch your hands .
-

Step 4: Closing the power top
Fig . 4 5 Remov ing the cove r
Fig. 46 Eme rgency key for ope ning the latc hes
.. Remove the cap on the trim.
.. Insert the emergency key in the opening
(hex socket) .
.. Turn the release key counterclockwise unt il
it stops to ope n the latch.
.. Remove the emergency key.
Step S: Closing the power top
The power top must be positioned by hand .
Fig. 4 7 Powe r top pa rtially open
Power top 49
Fig . 4 8 W ind shield: Power top
.. Raise the power top out of the tray ¢ A in
Step 2: Lifting the power top compartment
cover out on page 48 .
.. Pull the power top o ut completely .
.. Press the power top onto the w indshield
frame
¢ fig . 48 .
.. Press the switch ~ ¢ fig . 32 to close the
convertible top . If this does not work, pro­
ceed w ith
¢ page SO, Step 6: Retracting
the power top compartment cover.
Have a second person assist whe n positioning
the power top . That person should stand on
the opposite side of the vehicle and perform
the same steps.
A WARNING
-
-When positioni ng the power top, avo id
contact w ith the s upports o r other mov­
i n g pa rts. Otherwise you cou ld pinch
your ha nds.
- W hen pressing the pow er top down onto
the wi ndshield frame, make sure that
you do not p in ch you rself or anyo ne e lse .

50 Power top
Step 6: Retracting the power top
compartment cover
The power top compartment cover must be
retracted by ha nd.
F ig . 49 Pow er top rai sed
.,.. Raise the rear of the power top and hold it
in place ¢
fig. 49@¢ A in Step 2: Lifting
the power top compartment cover out on
page 48 .
.,.. Slide the power top compartment forward
until it reaches the end position @. Release
the power top .
&_ WARNING
Do not pinch yo urself or othe rs when clos­
ing the power top compartment .
Step 7: Locking the power top
The Locking system for the power top Latches
are located on the inside of the power top.
Fi g. 50 In sid e of t he pow er to p: hex ke y fo r em erge ncy
ope rat ion
.,.. Insert the emergency key i n the opening
and turn it clockwise unt il it stops to lock
the power top .
.,.. Remove the emergency key.
.,.. Cover the open ing with the cap.
(D Tips
Make sure the locking mechanisms are
l ocked secure ly .
Step 8: Loosening the headliner
F ig . 51 Power top : ar ea arou nd the righ t s ide o f th e
r ea r wi ndow
Fi g. 52 Area aroun d t he r ight side of the rear w indow:
h eadli ne r p artiall y loose ned
Perform the fo llow ing steps in the rear w in­
dow area of the powe r top on each s ide .
.,.. Pull the loops (ma rked i n yellow) with the
emergency key to loosen the headlin er .
.,.. Pull at the ye llow marking aga in to loosen
t he headli ne r aro und the rear w indow (ap­
prox ima tely 30 cm) .
Step 9: Securing the latch
Fig. 53 Rear of t he powe r top : Secu ring t he latc h
., 0 ....
~
"'

The latches must be secured on the left and
right sides of the vehicle .
.,. Pull the power top headline r to the side in
the area around the rear headrests to sec ure
the latches ¢
fig. 53 ¢.& in Step 2: Lifting
the power top compartment cover out on
page 48 .
... Then remove the emergency key and insert
the short end into the power top support at
the ye llow marking .
... Press the emergency key in the direction of
the a rrow @unt il the latch is secure .
.&, WARNING
Do not pinch yo urself o r othe rs when clos­
ing the power top compartment.
Power top 51

52 Clear vis ion
Clear vision
Lights
Switching the lights on and off
Fig . 54 Instr ument pane l: headlight con trol switch
Light switch -~ -
Turn the switch c:> fig . 54 to the correspond ing
position . When the lights are switched on, the
,o o~ symbo l tu rns on.
0 -The lights are off or the dayt ime run ning
lights are on:
- USA models: The daytime running lights are
activated when the light sw itch
c:> fig . 54 is
i n the
O position or the AUTO position (o nly
in dayl ight conditions) . The daytime running
lights function can be turned on and off in
the radio or M MI* menu
Exterior lighting
c:> page 53 , c:> ,&..
-Canada model s: The daytime runn ing lig hts
are activated when the light sw itch
c:> fig . 54
is in the
O p osition, :o o; position or the AUTO
pos it ion (on ly in daylight cond itions) . The
dayt ime running lights function cannot be
tu rned off
c:> &. .
AUTO* -Au toma tic h eadlights switch on and
off depending on b rightness, fo r example in
tw ilight, during rain or in t unnels
c:> &. .
:o o; -Side mar ker lights
io -Low beam headlights
Fog lights /rear fog light( s)*
Press the appropriate b utton c:> fig. 54:
}0 -Fog lights
0$ -Rear fog light(s)
adaptive light*
When switched on, adap tive ligh t ad apts to
curves in the road depending on the vehicle
speed and the steering ang le . This provides
b etter l ighting t hro ugh the curve . The system
operates at speeds between app roximate ly
6 mph (10 km/h) and 68 mph (110 km/h).
Static cor nering light* (vehicles with adaptive
light) - the cornering light switches on at
speeds up to approximately 25 mph (40 km/
h) when a certain steering wheel angle is
reached or when a turn sig na l is activated. The
area to the s ide of the vehicle is illumi nated
be tte r when tur ning .
The adaptive light and the co rnering light only
funct ion when the switch is in the AU TO posi­
t ion (automatic headlights*) .
A WARNING
--
- Daytime r unning lights and automatic
headlights* are only inte nded to assist
the dr iver . Th ey do not re lieve the driver
o f his re sp onsibili ty to check t he head ­
lights and to t urn them on manua lly ac ­
cordin g to the c urrent light and visibility
conditions . For examp le, fog cannot be
detected by the light sensors *. So a lways
sw itch on t he headlights
io under these
wea ther conditions and when driving in
the dark.
- Cras hes can happen whe n you cannot see
the road ahead and when yo u cannot be
see n by other moto ris ts. Always tu rn on
the head lig hts so that yo u can se e ahead
and so th at others can see your car fr om
the b ack.
- Pl ease obey all laws w he n usi ng the
lighting sys tems descr ibed here.
(D Note
The rear fog lights * should o nly be tur ned
o n in acco rdanc e with t raff ic regu lation, as
the lights are bright for following traffic. ..,

@ Tips
-The light sensor * for headl ight control is
l ocated in the rear view m irror mount.
You should therefore not apply any st ick­
ers to the windsh ield in this area in order
to prevent malfunctions or failures .
- Some exterior lighting functions can be
ad justed
¢ page 53.
-When yo u remove you r key from the igni­
tion w hile the vehicle's lights are turned
on, a buzzer sounds as long as the driv­
er's door is open .
- In cool or damp weather, t he ins ide of
the headlights, turn signa ls and tail
li ghts can fog ove r due to the tem pera ­
ture diffe ren ce betwe en the inside and
outside. They will clear shor tly after
swi tching t hem on. This d oes not aff ect
the service life of the ligh ting.
- In the even t of a ligh t sensor malfunc­
tion, the drive r is no tifie d in the inst ru ­
ment cluster disp lay ~
page 2 2.
Turn signals and high beam lever
The lever operates the turn signal s, the high
b eams and th e headlight flash er.
F ig. 55 Turn sig na l an d high beam leve r
Turn signals ¢i ¢
Th e turn s ignals activate when you move the
l ever into a turn s ignal position when the ign i­
tion i s sw itched on.
(D -right turn signal
@ -Left turn signa l
T he turn s ignal b links three times if you just
tap the lever .
Clear vision 5 3
High beams and headlight flasher @:D
Move the lever to the corresponding posit io n:
@ -high beams on
@-high beams off or headlight flasher
T he ind icator light
II in the instr ument clus ­
ter turns on .
Notes on these features
-The turn signals on ly wor k w it h t he ignition
t urned on. The indica tor l igh ts
11 or II in
the instrument cluste r also blink .
- Aft er you have tu rned a corner, the turn s ig­
na l swi tches off au tom atically .
- The
high beam wo rks only when the head­
lights a re on. The indicator Ligh t. in the
i nstrumen t clus ter illuminates when the
high beams are on .
- The
headligh t flasher works on ly as long as
you ho ld the lev er -even if the re are no
lights switched o n. The ind icator light
Ill i n
the inst rument cluster illuminates when you
use the headlight flasher .
&_ WARNING
Do not use the high beam or head light
flasher if you kn ow that these could b lind
oncom ing traffic.
Adjusting exterior lighting
The functions are selec ted in the radio or
MM!* .
.. Select : I CAR! function b utton > Exter io r
light ing . Or
.. Select: I CAR I func tion button > Car sys ­
tems *
control button > Vehicle settings >
Exterior Lighting .
Coming home (light when leaving car )*,
Leaving home (light when unlocking car)*
T he coming home function illumi nates the
area around the vehicle when the ignition is
switched off and the dr iver's door is open ed.
Depend ing o n ve hicl e equ ipment, t he function
can be switched on and off or the length of
time the lig hts remain on* can be ad justed . .._

54 Clear vis ion
The lea ving home function i lluminates the
area around the vehicle when unlocking it.
This funct ion can be switched on and
off.
The co ming h ome and le av ing h ome func­
tions on ly operate when it is dark and the
light switch is in the AUTO position
r=:> fig. 54.
Auto headlight s*
When the light switch is in the AUTO
r=:> page 52 position, the sw itch-on po int of the
lights can be changed in the automatic dr iv ing
light function.
Daytime running lights
US A mo del s: You can switch the dayt ime run­
ni ng lights
on and off .
Ca nada mod els :
The function cannot be
turned
off . It is activated automat ically each
time the ignition is switched on.
Tra vel mode*
The headlight beam is asymmetrical. This pro­
vides stronger illum ination on the side of the
road on wh ich you are driving . If you are driv ­
ing in a country that drives on the opposite
side of the road from your own country, t his
will cause glare for oncoming dr ivers. To pre­
vent glare:
- Trave l mode must be selected in vehicles
with Xenon head lights *.
- In vehicles with halogen headlights, ce rtain
areas of the head light lenses must be cov­
ered w ith waterproof adhesive covers that
prevent light from passing through . Fo r
more information, please see your author­
ized Audi dea ler or authorized repair facility .
@ Tips
When travel mode is a ctiv ated, a displ ay in
the dr iver information system indi cates
this each time you switch t he ignition on.
Emergency flashers
F ig. 56 Center console: em erge ncy flashe r switch
The emergency flashers makes other moto­
rists aware that you or your vehicle are in an
emergency situation.
... Press the switch ~¢
fig. 56 to turn the
emergency flashers on or
off.
When the emergency flashers are on, all four
turn signals b link at the same time. The turn
s ignal indicator lights
H II in the instrument
cluster, as well as the light in the emergency
flasher switch ~ blink likewise.
You can indicate a lane change or a tu rn when
the emergency flashers are switched on by us­
ing th e turn signal lever. The emergency flash­
ers stop temporarily .
T he emergency flashers also work when the
ignition is turned
off .
The emergency flashers wi ll tu rn on automat i­
ca lly if yo u are in an accident where the air bag
has deployed.
(D Tips
You sho uld turn on the emergency flashers
when:
- yo u are the last veh icle standing in a t ra f­
fic jam so that any other vehicles coming can see you, or whe n
- yo ur vehicle has bro ken down or you are
in an emergency situation, or when
- yo ur vehicle is be ing towed by a tow
truck or if you are towing ano ther vehicle
behind you .
