2013.5 Citroen DS5 Owner's Manual

56, 104127
15 3 147


Electronic key: Keyless Entry
and Starting
This system allows you to unlock, lock and
start your vehicle while keeping the key on your
person and in the recognition zone around the
vehicle.

Exterior

Stop & Start

This system puts the engine temporarily into standby during stops
in the traffic (red lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move off. The Stop & Start
system reduces fuel consumption and exhaust emissions, and offers
the comfort of complete silence when stationary.


Directional lighting

This lighting automatically provides additional
for ward visibility when cornering.



Daytime running lamps

This lighting, switched on automatically when
starting the engine, makes your vehicle more
visible to other road users.

14 9
138
19614 0
9Familiarisation

Automatic headlamp dipping

This system automatically changes between
dipped and main beam, depending on the
lighting and traffic conditions, using a camera
located in the interior rear view mirror.


Front and rear parking sensors

This systems warns you of the presence of
obstacles located in front of or behind the
vehicle during parking manoeuvres.



Temporary puncture repair kit

This kit is a complete system consisting of a
compressor and a sealant cartridge, to allow
the temporary repair of a tyre.

Exterior

Reversing camera

This system, available only with satellite
navigation, is activated automatically on
engaging reverse gear and provides an image
in the colour screen.


Exterior expressive stickers

A high pressure jet wash must not be
used to clean the vehicle.

72
54
64
56
Access



1.
Opening the fuel filler flap.
Tank capacity: approximately 60 litres.


Fuel tank


Unlocking

With the electronic key on your person and
in the recognition zone A
around the vehicle,
pass your hand behind the door handle to
unlock the vehicle, then pull on the handle to
open the door.


Locking

With the electronic key in the recognition
zone A
around the vehicle, press with a finger
on the door handle (at the markings) to lock the
vehicle.



Electronic key



A.
Unlocking the vehicle.

B.
Locking the vehicle.

C.
Unlocking the boot and complete unlocking
of the vehicle.



Keyless Entry and Starting

Boot



1.
Unlocking the boot (maintain pressure until
the boot is heard to unlock).

131
90 323 267
82
107 312
347
11Familiarisation
Interior


Head-up display

This system projects speed and cruise control/
speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not
need to take their eyes off the road.


Central storage containing
various systems
It is illuminated, cooled and provides storage
and locations for systems and loose items
(USB Player, location for 0.5 litre bottle, ...).



Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...

eMyWay


Audio
-
Bluetooth
®
system



Massage function

This system provides a lumbar massage for a
period of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.


Electric parking brake

It combines the functions of automatic
application on switching off the engine and
automatic release when moving off. Manual
application and release remains possible.
You can adjust the settings for some
vehicle systems in the configuration
menu.
With eMyWay

With the Audio - Bluetooth
®
system

72 65
64107 104
128 139
17 7 184
14 9130
62 Illumination of the warning lamp indicates the state of the corresponding function.


Switch panels


Opening the fuel filler flap.

Opening the boot.
Deactivation of the alarm.

Electric parking brake activated.
Push button starting/stopping.

Deactivation of Stop & Start.
Deactivation of parking sensors.

Electric child lock.

Deactivation of the DSC/ASR
systems.

Activation of Automatic headlamp
dipping.
Activation of lane departure warning.

Locking/unlocking the passenger
compartment.

78
79
13Familiarisation

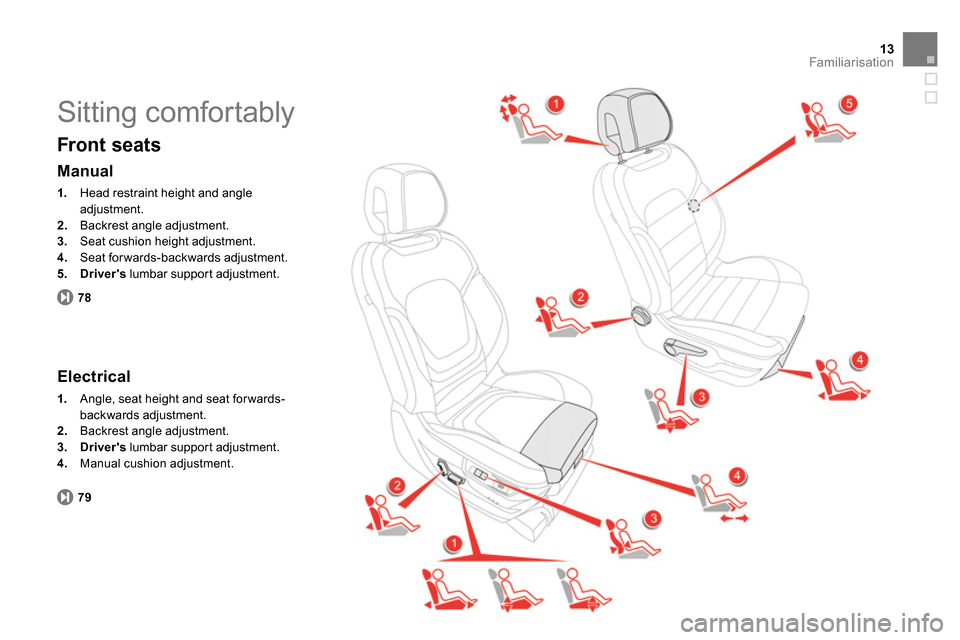

Sitting comfortably


Front seats


Manual



1.
Head restraint height and angle
adjustment.

2.
Backrest angle adjustment.

3.
Seat cushion height adjustment.

4.
Seat forwards-backwards adjustment.

5.
Driver's
lumbar support adjustment.



Electrical



1.
Angle, seat height and seat for wards-
backwards adjustment.

2.
Backrest angle adjustment.

3.
Driver's
lumbar support adjustment.

4.
Manual cushion adjustment.

14 .
Controls for electric windows / electric child
lock / central locking.

15.
eMyWay controls.

16.
Gear lever.

17.
Heating / air conditioning controls.

18.
Audio system.

19.
Hazard warning lamps.

20.
Multifunction screen.

21.
Central adjustable air vents.

22.
Clock.

23.
Starting with the START/STOP button.

24.
Electronic key reader.

25.
Wiper / screenwash / trip computer stalk.

26.
Audio equipment steering wheel controls.

Instruments and controls



1.
Bonnet release lever.

2.
Headlamp height adjustment.

3.
Side adjustable air vents.

4.
Front door window demisting/defrosting
vents.

5.
Quarter light demisting windows.

6.
Head-up display.

7.
Windscreen demisting/defrosting vent.

8.
Passenger's airbag.

9.
Glove box / Passenger's airbag
deactivation inside.

10.
12 V accessory socket.

11.
Rear electric window controls.

12 .
Central armrest with storage.
USB port / auxiliary socket.

13.
Electric parking brake.
27.
Driver's airbag.
Horn.

28.
Cruise control / speed limiter controls.

29.
Switch panel (see previous page).

30.
Door mirror adjustment.

31.
Lighting and direction indicator stalk .

32.
Instrument panel.

33.
Seat belt and airbag warning lamps.

34.
Courtesy lamp.

35.
Head-up display controls.

36.
Controls for glass roof panel blind.

37.
CITROËN Localised Emergency Call -
CITROËN Localised Assistance Call
(depending on country of sale).
