30 Instrument panel
31 Indicator and warning lamps
42 Gauges and indicators
46 Adjustment buttons
48 Setting the date and time
48 Clock
50 Tr i p c o m p u t e r54 Electronic key - remote
control
56 "Keyless Entry and Starting"
64 Boot
65 Alarm
68 Electric windows
70 Cockpit glass roof
72 Fuel tank
73 Misfuel prevention (Diesel)78 Front seats
83 Rear seats
86 Mirrors
87 Steering wheel adjustment
88 Interior fi ttings
92 Boot fi ttings
93 Triangle (stowing)
94 Heating and Ventilation
96 Dual-zone digital air
conditioning
100 Rear screen demist - defrost104 Starting-switching off the
engine
107 Electric parking brake
114 Hill start assist
115 Manual gearbox
116 Automatic gearbox
120 Electronic gearbox
124 Gear effi cency indicator
125 Ty r e u n d e r- i nfl ation detection
127 Stop & Start
130
Lane departure warning system
131 Head-up display
13 4 Speed limiter
136 Cruise control
138 Parking sensors
14 0 Reversing camera

009009010010011011CHECKS TECHNICAL DATA AUDIO and
TELEMATICS
237 Opening the bonnet
238 Petrol engines
239 Diesel engines
240 Running out of fuel (Diesel)
241 Checking levels
245 Checks250 Petrol engines
251 Petrol weights
253 Diesel engines
255 Diesel weights
259 Dimensions
260 Identifi cation markings264 Emergency or assistance
267 eMyWay
323 Audio system

56, 104127
15 3 147


Electronic key: Keyless Entry
and Starting
This system allows you to unlock, lock and
start your vehicle while keeping the key on your
person and in the recognition zone around the
vehicle.

Exterior

Stop & Start

This system puts the engine temporarily into standby during stops
in the traffic (red lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move off. The Stop & Start
system reduces fuel consumption and exhaust emissions, and offers
the comfort of complete silence when stationary.


Directional lighting

This lighting automatically provides additional
for ward visibility when cornering.



Daytime running lamps

This lighting, switched on automatically when
starting the engine, makes your vehicle more
visible to other road users.

131
90 323 267
82
107 312
347
11Familiarisation
Interior


Head-up display

This system projects speed and cruise control/
speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not
need to take their eyes off the road.


Central storage containing
various systems
It is illuminated, cooled and provides storage
and locations for systems and loose items
(USB Player, location for 0.5 litre bottle, ...).



Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...

eMyWay


Audio
-
Bluetooth
®
system



Massage function

This system provides a lumbar massage for a
period of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.


Electric parking brake

It combines the functions of automatic
application on switching off the engine and
automatic release when moving off. Manual
application and release remains possible.
You can adjust the settings for some
vehicle systems in the configuration
menu.
With eMyWay

With the Audio - Bluetooth
®
system

31 73, 45
19Familiarisation


1.
With the ignition on, the orange and red
warning lamps come on.

2.
With the engine running, these warning
lamps should go off.
If a warning lamp remains on, refer to the page
concerned.


Warning lamps

On switching on, the dial needles go to the
extent of their travel then return to 0.


A.
With the ignition on, the bars indicate the
fuel remaining.

B.
With the engine running, the associated
low level warning lamp should go off.

Instrument panel


C.
With the ignition on, the instrument panel
screen should indicate the oil level * .
If the levels are not correct, top up the level
which is low.

Monitoring


* Depending on version.

107
21Familiarisation

If this warning lamp comes on in
the instrument panel, automatic
application / release
is
deactivated
. The parking brake must
be applied and released manually
.


Before leaving the vehicle, check that
the the brake warning lamp and the P

warning lamp in the control lever A

are on fixed (not flashing)
.

If towing a trailer or caravan or if the
slope might vary (transport by boat or
lorry, recovery of the vehicle...) make
a maximum application of the parking
brake - by making a long pull on the
control lever A
- to immobilise the
vehicle.


*
Depending on country of sale.


Automatic Application / Release *

Press the accelerator and release the clutch
(manual gearbox), the parking brake is
released automatically and progressively as
you move off.
With the vehicle stationary, the parking brake
is applied automatically on switching off the
engine.

On opening the driver's door with the
engine running, if an audible signal
is heard, apply the parking brake
manually.
Do not leave a child alone in the vehicle
with the ignition on; they might release
the parking brake.


Manual Application/Release


Manual application
of the parking brake is
possible by pulling
the control lever A
.
With the ignition on, manual release
of the
parking brake is possible by pressing the
brake pedal
and pulling
then releasing
the
control lever A
.


Electric parking brake

Driving safely

104

Starting at temperatures
above zero


- Press the brake pedal.

- Make one short press (about one second)
on the START/STOP
button.



Starting at temperatures
below zero
You must initiate preheating of the Diesel
engine:


- Without
placing your foot on the brake
pedal, make a first short press on the
START/STOP button.

- Wait until the preheater warning lamp
goes off.

- With
your foot on the brake pedal, make
a second short press on the START/
STOP button.





Driving safely


Starting - stopping the engine


Before starting



- Place the gear lever in neutral or in
position N
for an electronic or automatic
gearbox.

- Insert the electronic key in the reader or
keep the Keyless Entry and Starting key in
the vehicle.

13 4
136124
23Familiarisation

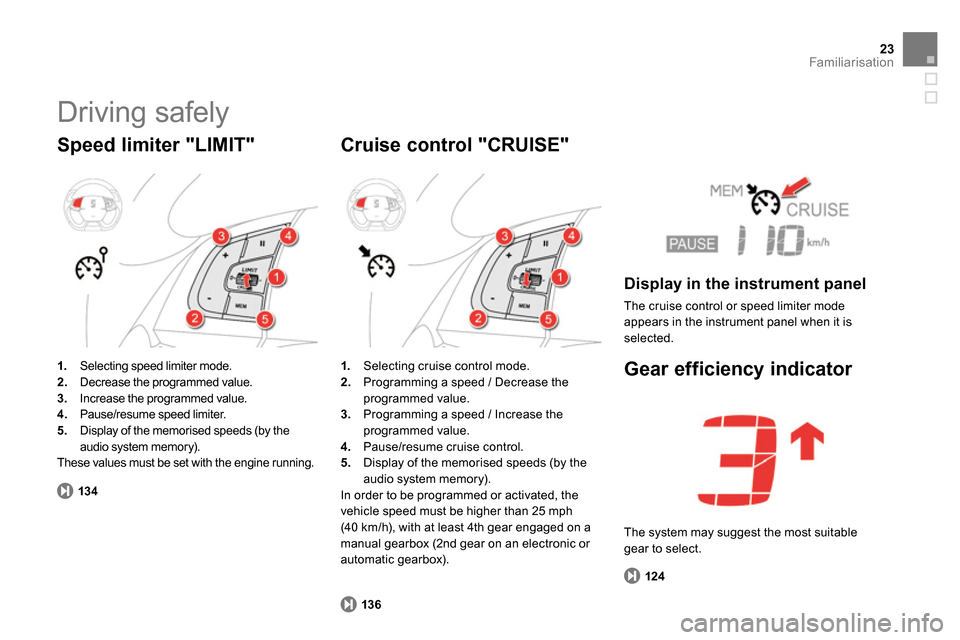

Driving safely


Speed limiter "LIMIT"



1.
Selecting speed limiter mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Pause/resume speed limiter.

5.
Display of the memorised speeds (by the
audio system memory).
These values must be set with the engine running.


Cruise control "CRUISE"



1.
Selecting cruise control mode.

2.
Programming a speed / Decrease the
programmed value.

3.
Programming a speed / Increase the
programmed value.

4.
Pause/resume cruise control.

5.
Display of the memorised speeds (by the
audio system memory).
In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least 4th gear engaged on a
manual gearbox (2nd gear on an electronic or
automatic gearbox).

Display in the instrument panel

The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.



Gear efficiency indicator

The system may suggest the most suitable
gear to select.
