• Always obey the speed limitand never travel faster than
warranted by road and traffic
conditions.
• Always signal before turning or changing lanes. Make sure that
other motorists can see you.
The posture of the operator and
passenger is important for proper
control.
• The operator should keep both hands on the handlebar and
both feet on the operator foo-
trests during operation to
maintain control of the
motorcycle.
• The passenger should always hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foo-
trests. Never carry a passenger
unless he or she can firmly pla-
ce both feet on the passenger
footrests.
Never ride under the influence of
alcohol or other drugs.
This motorcycle is designed for
on-road use only. It is not suitable for off-road use.
Protective Apparel
The majority of fatalities from
motorcycle accidents are the result of
head injuries. The use of a safety hel-
met is the single most critical factor in
the prevention or reduction of head
injuries.
Always wear an approved hel-
met.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impair-
ment of vision that could delay
seeing a hazard.
The use of a jacket, heavy boots,
trousers, gloves, etc., is effective
in preventing or reducing abra-
sions or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on
the control levers, footrests, or
wheels and cause injury or an
accident.
Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or after operation and can cause
burns.
A passenger should also observe
the above precautions.
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing
carbon monoxide can cause heada-
ches, dizziness, drowsiness, nausea,
confusion, and eventually death.
Carbon Monoxide is a colorless,
odorless, tasteless gas which may be
present even if you do not see or
smell any engine exhaust. Deadly
levels of carbon monoxide can collect
rapidly and you can quickly be over-
come and unable to save yourself.
Also, deadly levels of carbon monoxi-
de can linger for hours or days in
enclosed or poorly ventilated areas. If
you experience any symptoms of car-
bon monoxide poisoning, leave the
area immediately, get fresh air, and
SEEK MEDICAL TREATMENT.
Do not run engine indoors. Even
if you try to ventilate engine
exhaust with fans or open win-
dows and doors, carbon monoxi-
1
SAFETY INFORMATION
1-2
1HD-F819D-E0 7/3/11 20:27 Página 9
2AS-F819D-E0.indd 931/07/12 10:09

de can rapidly reach dangerous
levels.
Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
Do not run engine outdoors whe-
re engine exhaust can be drawn
into a building through openings
such as windows and doors.
Loading
Adding accessories or cargo to your
motorcycle can adversely affect sta-
bility and handling if the weight distri-
bution of the motorcycle is changed.
To avoid the possibility of an acci-
dent, use extreme caution when
adding cargo or accessories to your
motorcycle. Use extra care when
riding a motorcycle that has added
cargo or accessories. Here, along
with the information about accesso-
ries below, are some general guideli-
nes to follow if loading cargo to your
motorcycle:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit. Operation of an overloaded vehicle
could cause an accident.
When loading within this weight limit,
keep the following in mind:
Cargo and accessory weight
should be kept as low and close
to the motorcycle as possible.
Securely pack your heaviest
items as close to the center of
the vehicle as possible and make
sure to distribute the weight as
evenly as possible on both sides
of the motorcycle to minimize
imbalance or instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the
motorcycle before riding. Check
accessory mounts and cargo res-
traints frequently.
• Properly adjust the suspension for your load (suspension-
adjustable models only), and check the condition and pres-
sure of your tires.
• Never attach any large or heavy items to the handlebar,
front fork, or front fender. The-
se items, including such cargo
as sleeping bags, duffel bags,
or tents, can create unstable
handling or a slow steering res-
ponse.
This vehicle is not designed to
pull a trailer or to be attached
to a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avai-
lable only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and
accessories or offer other modifica-
tions for Yamaha vehicles. Yamaha is
not in a position to test the products
that these aftermarket companies
produce. Therefore, Yamaha can neit-
her endorse nor recommend the use
Maximum load: 196 kg (432 lb)1
SAFETY INFORMATION
1-3
1HD-F819D-E0 7/3/11 20:27 Página 10
2AS-F819D-E0.indd 1031/07/12 10:09

1
SAFETY INFORMATION
1-4
of accessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket pro-
ducts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your motorcycle.
Carefully inspect the accessorybefore using it to make sure that
it does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand- lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may
attempt to lift the motorcycle,
or the motorcycle may become
unstable in cross winds. These
accessories may also cause
instability when passing or
being passed by large vehicles.
• Certain accessories can dis- place the operator from his or her normal riding position. This
improper position limits the fre-
edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such
accessories are not recom-
mended.
• Use caution when adding elec- trical accessories. If electrical
accessories exceed the capa-
city of the motorcycle’s electri-
cal system, an electric failure
could result, which could cau-
se a dangerous loss of lights or
engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of
handling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to
page 6-19 for tire specifications and
more information on replacing your
tires.
1HD-F819D-E0 7/3/11 20:27 Página 11
2AS-F819D-E0.indd 1131/07/12 10:09

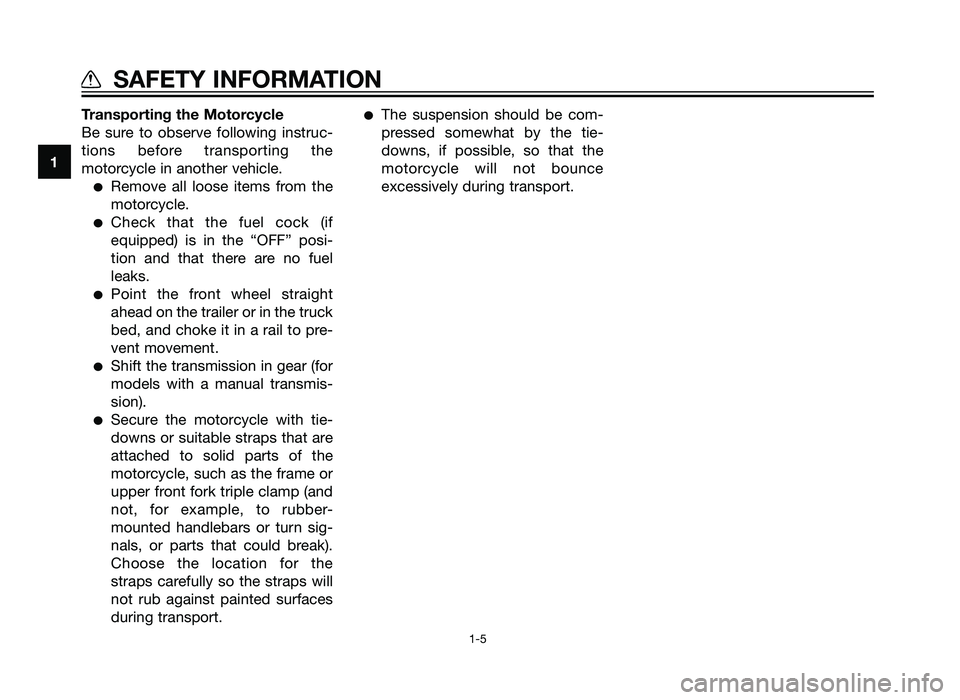

Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the
motorcycle in another vehicle.
Remove all loose items from the
motorcycle.
Check that the fuel cock (if
equipped) is in the “OFF” posi-
tion and that there are no fuel
leaks.
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
Shift the transmission in gear (for
models with a manual transmis-
sion).
Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the
motorcycle, such as the frame or
upper front fork triple clamp (and
not, for example, to rubber-
mounted handlebars or turn sig-
nals, or parts that could break).
Choose the location for the
straps carefully so the straps will
not rub against painted surfaces
during transport.
The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the
motorcycle will not bounce
excessively during transport.
1
SAFETY INFORMATION
1-5
1HD-F819D-E0 7/3/11 20:27 Página 12
2AS-F819D-E0.indd 1231/07/12 10:09

EAU10410
Left view
DESCRIPTION
2-1
2
1. Air filter (page 6-17)
2. Fuel cock lever (page 3-11)
3. Seat lock (page 3-12)
4. Grab bar (page 3-12)
5. Sidestand (page 3-14)
6. Shift pedal (page 3-6)
7. Coolant reservoir (page 6-14)
8. Front brake pads (page 6-23)9. Coolant reservoir cap (page 6-14)
1HD-F819D-E0 7/3/11 20:27 Página 13
2AS-F819D-E0.indd 1331/07/12 10:09

EAU10420
Right view
DESCRIPTION
2-2
2
1. Anti-theft device housing (page 3-13)
2. Owner’s tool kit (page 6-1)
3. Battery (page 6-32)
4. Main fuse (page 6-33)
5. 2-stroke engine oil tank cap (page 3-10)
6. Front brake fluid reservoir (page 6-24)
7. Radiator cap (page 6-14)
8. Brake pedal (page 3-6)9. Rear brake fluid reservoir (page 6-24)
10. Rear brake pads (page 6-23)
1HD-F819D-E0 7/3/11 20:27 Página 14
2AS-F819D-E0.indd 1431/07/12 10:09

EAU10430
Controls and instruments
DESCRIPTION
2-3
2
1. Clutch lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Starter (choke) lever (page 3-12)
4. Tachometer (page 3-4)
5. Main switch/steering lock (page 3-1)
6. Speedometer unit (page 3-3)
7. Right handlebar switches (page 3-4)
8. Throttle grip (page 6-18)9. Front brake lever (page 3-6)
10 . Fuel tank cap (page 3-7)
1HD-F819D-E0 7/3/11 20:27 Página 15
2AS-F819D-E0.indd 1531/07/12 10:09

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
TIP
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU10683
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.T
o lock the steering
1. Push
2. Turn
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ” position, and then turn it to
“ ” while still pushing it.
3. Remove the key.
WARNING
1HD-F819D-E0 7/3/11 20:27 Página 16
2AS-F819D-E0.indd 1631/07/12 10:09
