Page 57 of 92

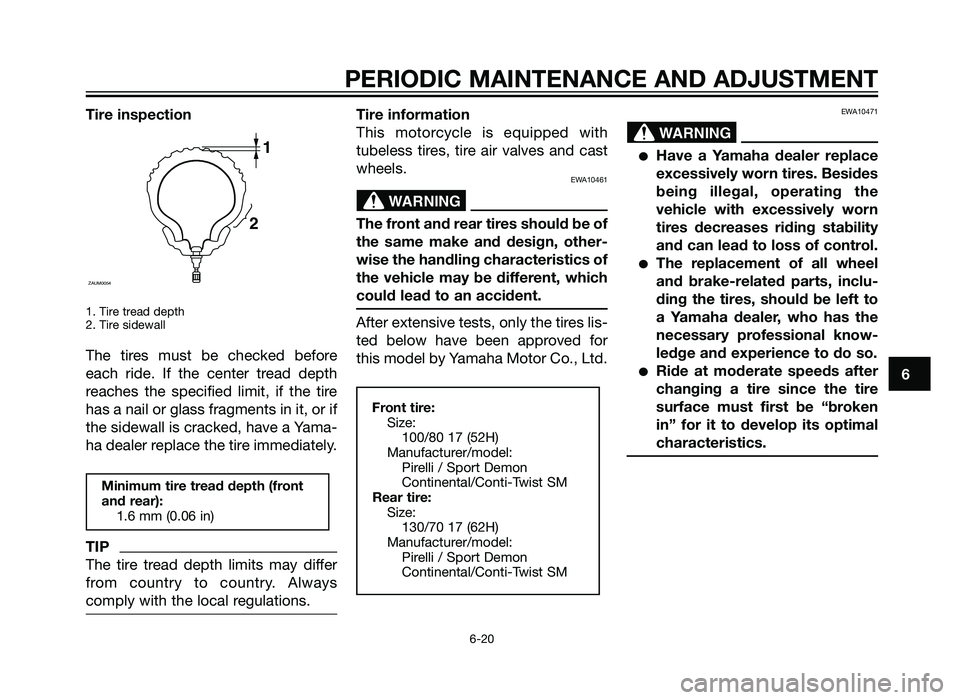

Tire inspection
1. Tire tread depth
2. Tire sidewall
The tires must be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yama-
ha dealer replace the tire immediately.
TIP
The tire tread depth limits may differ
from country to country. Always
comply with the local regulations.
Tire information
This motorcycle is equipped with
tubeless tires, tire air valves and cast
wheels.
EWA10461
The front and rear tires should be of
the same make and design, other-
wise the handling characteristics of
the vehicle may be different, which
could lead to an accident.
After extensive tests, only the tires lis-
ted below have been approved for
this model by Yamaha Motor Co., Ltd.
EWA10471
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
vehicle with excessively worn
tires decreases riding stability
and can lead to loss of control.
The replacement of all wheel
and brake-related parts, inclu-
ding the tires, should be left to
a Yamaha dealer, who has the
necessary professional know-
ledge and experience to do so.
Ride at moderate speeds after
changing a tire since the tire
surface must first be “broken
in” for it to develop its optimal
characteristics.
WARNING
Front tire:Size: 100/80 17 (52H)
Manufacturer/model: Pirelli / Sport Demon
Continental/Conti-Twist SM
Rear tire: Size: 130/70 17 (62H)
Manufacturer/model: Pirelli / Sport Demon
Continental/Conti-Twist SM
WARNING
Minimum tire tread depth (front
and rear):1.6 mm (0.06 in)
1
2
ZAUM0054
PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
1HD-F819D-E0 7/3/11 20:27 Página 57
2AS-F819D-E0.indd 5731/07/12 10:09
Page 58 of 92
EAU21962
Cast wheels
To maximize the performance, durabi-
lity, and safe operation of your vehi-
cle, note the following points regar-
ding the specified wheels.
The wheel rims should be chec-
ked for cracks, bends, warpage
or other damage before each
ride. If any damage is found,
have a Yamaha dealer replace
the wheel. Do not attempt even
the smallest repair to the wheel.
A deformed or cracked wheel
must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
EAU22020
Adjusting the clutch lever
free play
1. Clutch lever free play
2. Locknut
3. Clutch lever free play adjusting bolt
The clutch lever free play should mea-
sure 10.0-15.0 mm (0.39-0.59 in) as
shown. Periodically check the clutch
lever free play and, if necessary,
adjust it as follows.1. Loosen the locknut at the clutch lever.
2. To increase the clutch lever free play, turn the adjusting bolt in
direction (a). To decrease the
clutch lever free play, turn the
adjusting bolt in direction (b). 3. Tighten the locknut.
TIP
If the specified free play cannot be
obtained as described above or if the
clutch does not operate correctly,
have a Yamaha dealer check the
internal clutch mechanism.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6
1HD-F819D-E0 7/3/11 20:27 Página 58
2AS-F819D-E0.indd 5831/07/12 10:09
Page 59 of 92
EAUT1221
Checking the front brake
lever free play
1. Front brake lever free play
The brake lever free play should mea-
sure 2.0-5.0 mm (0.08-0.20 in) as
shown. Periodically check the brake
lever free play and, if necessary, have
a Yamaha dealer check the brake sys-
tem.
EWA10641
An incorrect brake lever free play
indicates a hazardous condition in
the brake system. Do not operate
the vehicle until the brake system
has been checked or repaired by a
Yamaha dealer.
EAUM1353
Adjusting the brake pedal
free play
1. Brake pedal free play
The brake pedal free play should
measure 5.0-10.0 mm (0.20-0.39 in)
as shown. Periodically check the bra-
ke pedal free play and, if necessary,
have a Yamaha dealer adjust it.
EWAM1030
An incorrect brake pedal free play
indicates a hazardous condition in
the brake system. Do not operate
the motorcycle until the brake sys-
tem has been checked or repaired
by a Yamaha dealer.
EAUB1100
Adjusting the shift pedal
position
1. Distance between shift pedal and footrest
The top of the shift pedal should be
positioned approximately 65 mm
(2.56 in)below the top of the footrest
as shown. Periodically check the shift
pedal position and, if necessary, have
a Yamaha dealer adjust it.
WARNINGWARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6
1HD-F819D-E0 7/3/11 20:27 Página 59
2AS-F819D-E0.indd 5931/07/12 10:09
Page 60 of 92
EAU22273
Brake light switches
1. Rear brake light switch adjusting nut
2. Brake light switch
The brake light, which is activated by
the brake pedal and brake lever,
should come on just before braking
takes effect. If necessary, adjust the
rear brake light switch as follows, but
the front brake light switch should be
adjusted by a Yamaha dealer.
Turn the rear brake light switch adjus-
ting nut while holding the rear brake
light switch in place. To make the bra-
ke light come on earlier, turn the
adjusting nut in direction (a). To make
the brake light come on later, turn the
adjusting nut in direction (b).
EAU22392
Checking the front and rear
brake pads
The front and rear brake pads must
be checked for wear at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU22430
Front brake pads
1. Brake pad wear indicator groove
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear wit-
hout having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the
wear indicator grooves have almostdisappeared, have a Yamaha dealer
replace the brake pads as a set.
EAU22480
Rear brake pads
Each rear brake pad is provided with
a wear indicator groove, which allows
you to check the brake pad wear wit-
hout having to disassemble the brake.
Check the brake pad wear as follows.
1. Remove the brake caliper bolt, and then tilt the caliper forward to
inspect the wear indicator groo-
ve. If a brake pad has worn to the
point that the wear indicator gro-
ove has almost disappeared,
have a Yamaha dealer replace
the brake pads as a set.
1. Brake caliper bolt
PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
6
1HD-F819D-E0 7/3/11 20:27 Página 60
2AS-F819D-E0.indd 6031/07/12 10:09
Page 61 of 92
1. Brake pad wear indicator groove
2. Install the brake caliper bolt, andthen tighten it to the specified
torque.
EAU22580
Checking the brake fluid
level
Front brake
1. Minimum level mark
Rear brake
1. Minimum level mark
Insufficient brake fluid may allow air
to enter the brake system, possibly
causing it to become ineffective.
Before riding, check that the brake
fluid is above the minimum level mark
and replenish if necessary. A low bra-
ke fluid level may indicate worn brake
pads and/or brake system leakage. If
the brake fluid level is low, be sure to
check the brake pads for wear and
the brake system for leakage.
Observe these precautions:
When checking the fluid level,
make sure that the top of the bra-
ke fluid reservoir is level.
Use only the recommended qua-
lity brake fluid, otherwise the rub-
ber seals may deteriorate, cau-
sing leakage and poor braking
performance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performan-
ce.
Recommended brake fluid:DOT 4
Tightening torque:Brake caliper bolt: 30 Nm (3.0 m•kgf, 21.7 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6
1HD-F819D-E0 7/3/11 20:27 Página 61
2AS-F819D-E0.indd 6131/07/12 10:09
Page 62 of 92
Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vapor
lock.
Brake fluid may deteriorate pain-
ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
EAU22731
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenan-
ce and lubrication chart. In addition,
have the oil seals of the master cylin-
ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake hoses: Replace every four
years.
EAU22760
Drive chain slack
The drive chain slack should be chec-
ked before each ride and adjusted if
necessary.
EAU22784
To check the drive chain slack
1. Drive chain slack
1. Place the motorcycle on thesidestand.
TIP
When checking and adjusting the dri-
ve chain slack, there should be no
weight on the motorcycle.
2. Shift the transmission into theneutral position.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
1HD-F819D-E0 7/3/11 20:27 Página 62
2AS-F819D-E0.indd 6231/07/12 10:09
Page 63 of 92
3. Measure the drive chain slack asshown.
4. If the drive chain slack is inco- rrect, adjust it as follows.
TIP
When checking the drive chain slack,
the chain tensioner should not be tou-
ching the drive chain.
EAU22922
To adjust the drive chain slack
Consult a Yamaha dealer before
adjusting the drive chain slack.1. Remove the cotter pin from the axle nut, and then loosen the axle
nut.
2. Loosen the chain puller locknut at each end of the swingarm.
3. To tighten the drive chain, turn the drive chain slack adjusting
nut at each end of the swingarm
in direction (a). To loosen the dri-
ve chain, turn the adjusting nut at
each end of the swingarm in direction (b), and then push the
rear wheel forward.
NOTICE:
Improper drive chain slack will
overload the engine as well as
other vital parts of the
motorcycle and can lead to
chain slippage or breakage. To
prevent this from occurring,
keep the drive chain slack wit-
hin the specified limits.
[ECA10571]
TIP
Using the alignment marks on each
side of the swingarm, make sure that
both adjusting nuts are in the same
position for proper wheel alignment.
1. Drive chain slack adjusting bolt
2. Drive chain puller locknut
3. Alignment marks
4. Tighten the locknuts, and then tighten the axle nut to the speci-
fied torque.
5. Insert a new cotter pin into the axle nut, and then bend its ends
as shown. WARNING! Always
use a new cotter pin for the
axle nut.
[EWA10701]
1. Axle nut cotter pin
2. Axle nut
3. Drive chain puller locknut
4. Drive chain slack adjusting bolt
5. Alignment marks
Tightening torque:Axle nut: 90 Nm (9.0 m•kgf, 65.1 ft•lbf)
Drive chain slack:20.0–25.0 mm (0.79–0.98 in)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
1HD-F819D-E0 7/3/11 20:27 Página 63
2AS-F819D-E0.indd 6331/07/12 10:09
Page 64 of 92
TIP
Make sure that two notches in the
axle nut are aligned with the hole
through the wheel axle, otherwise
further tighten the axle nut until they
are.
6. Make sure that the drive chainpullers are in the same position,
the drive chain slack is correct,
and the drive chain moves smo-
othly.
EAU23025
Cleaning and lubricating the
drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly
wear out, especially when riding in
dusty or wet areas. Service the drive
chain as follows.
ECA10583
The drive chain must be lubricated
after washing the motorcycle,
riding in the rain or riding in wet
areas.
1. Clean the drive chain with kero-sene and a small soft brush.
NOTICE: To prevent damaging
the O-rings, do not clean the
drive chain with steam clea-
ners, high-pressure washers or
inappropriate solvents.
[ECA11121]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubri-
cants for the drive chain, as they may contain substances
that could damage the O-rings.
[ECA11111]
NOTICE
PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
1HD-F819D-E0 7/3/11 20:27 Página 64
2AS-F819D-E0.indd 6431/07/12 10:09
