2012 TOYOTA AVENSIS Owners Manual

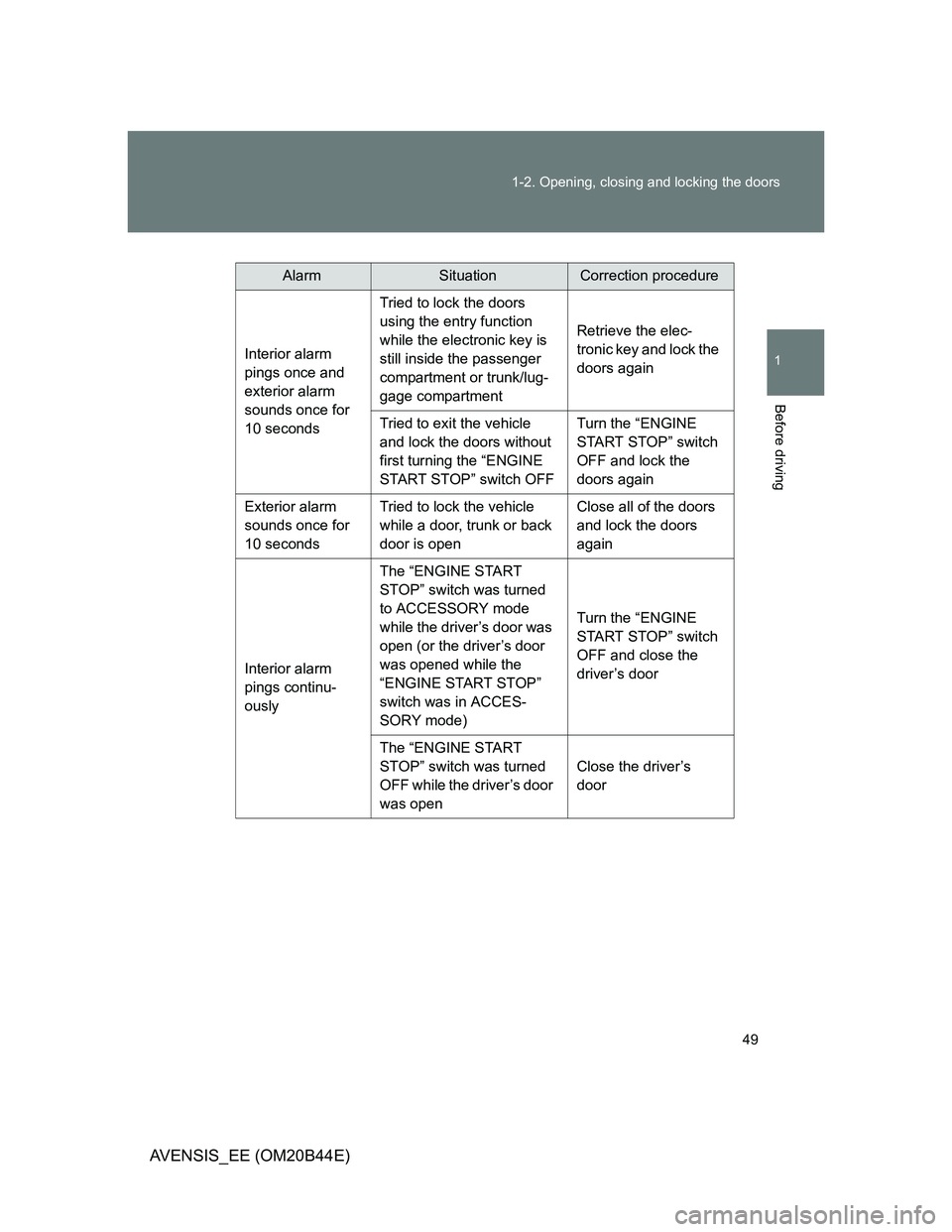

49 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)
AlarmSituationCorrection procedure
Interior alarm
pings once and
exterior alarm
sounds once for
10 secondsTried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartment or trunk/lug-
gage compartmentRetrieve the elec-
tronic key and lock the
doors again
Tried to exit the vehicle
and lock the doors without
first turning the “ENGINE
START STOP” switch OFFTurn the “ENGINE
START STOP” switch
OFF and lock the
doors again
Exterior alarm
sounds once for
10 secondsTried to lock the vehicle
while a door, trunk or back
door is openClose all of the doors
and lock the doors
again
Interior alarm
pings continu-
ouslyThe “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver’s door was
open (or the driver’s door
was opened while the
“ENGINE START STOP”
switch was in ACCES-
SORY mode)Turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door
The “ENGINE START
STOP” switch was turned
OFF while the driver’s door
was openClose the driver’s
door

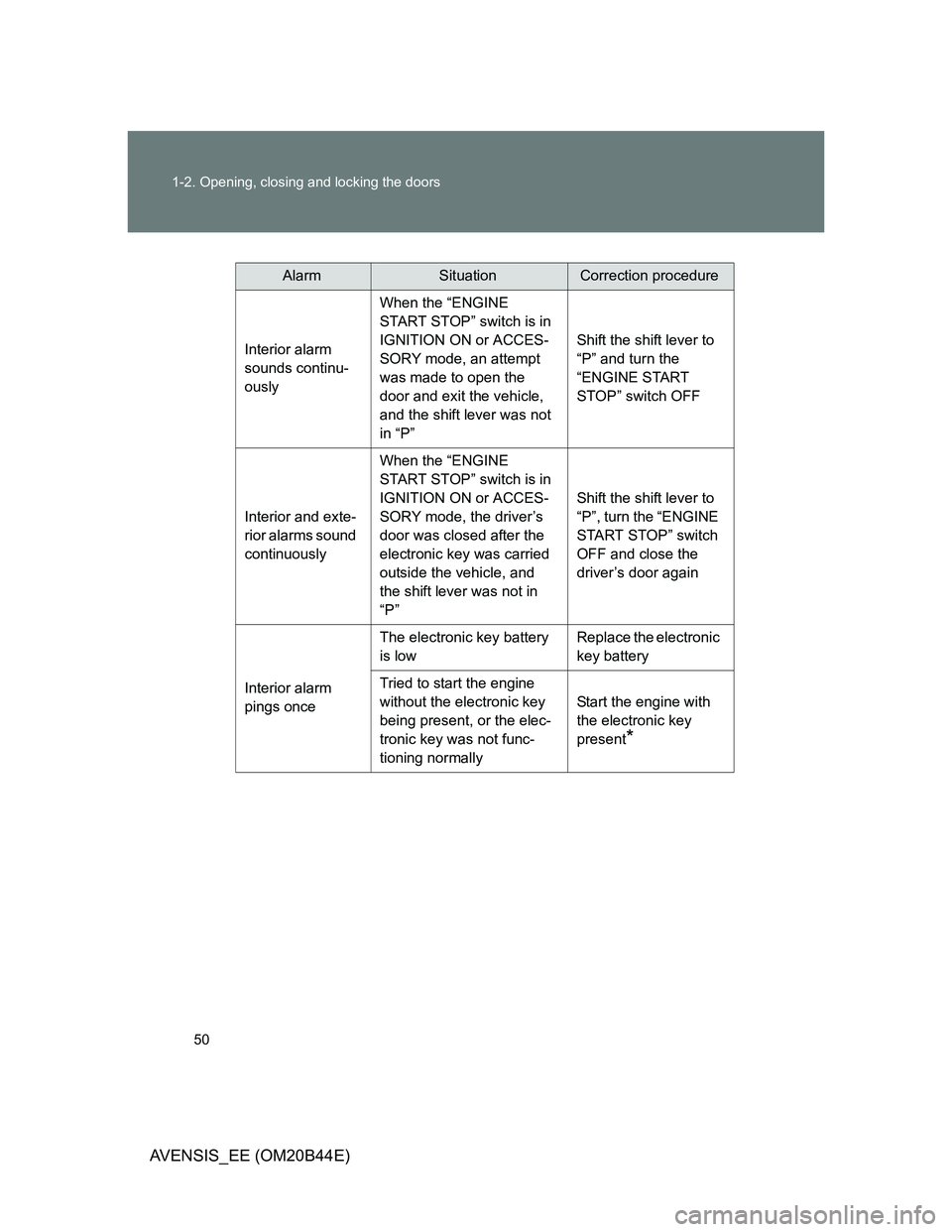

50 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
AlarmSituationCorrection procedure
Interior alarm
sounds continu-
ouslyWhen the “ENGINE
START STOP” switch is in
IGNITION ON or ACCES-
SORY mode, an attempt
was made to open the
door and exit the vehicle,
and the shift lever was not
in “P”Shift the shift lever to
“P” and turn the
“ENGINE START
STOP” switch OFF
Interior and exte-
rior alarms sound
continuouslyWhen the “ENGINE
START STOP” switch is in
IGNITION ON or ACCES-
SORY mode, the driver’s
door was closed after the
electronic key was carried
outside the vehicle, and
the shift lever was not in
“P”Shift the shift lever to
“P”, turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again
Interior alarm
pings onceThe electronic key battery
is lowReplace the electronic
key battery
Tried to start the engine
without the electronic key
being present, or the elec-
tronic key was not func-
tioning normallyStart the engine with
the electronic key
present
*

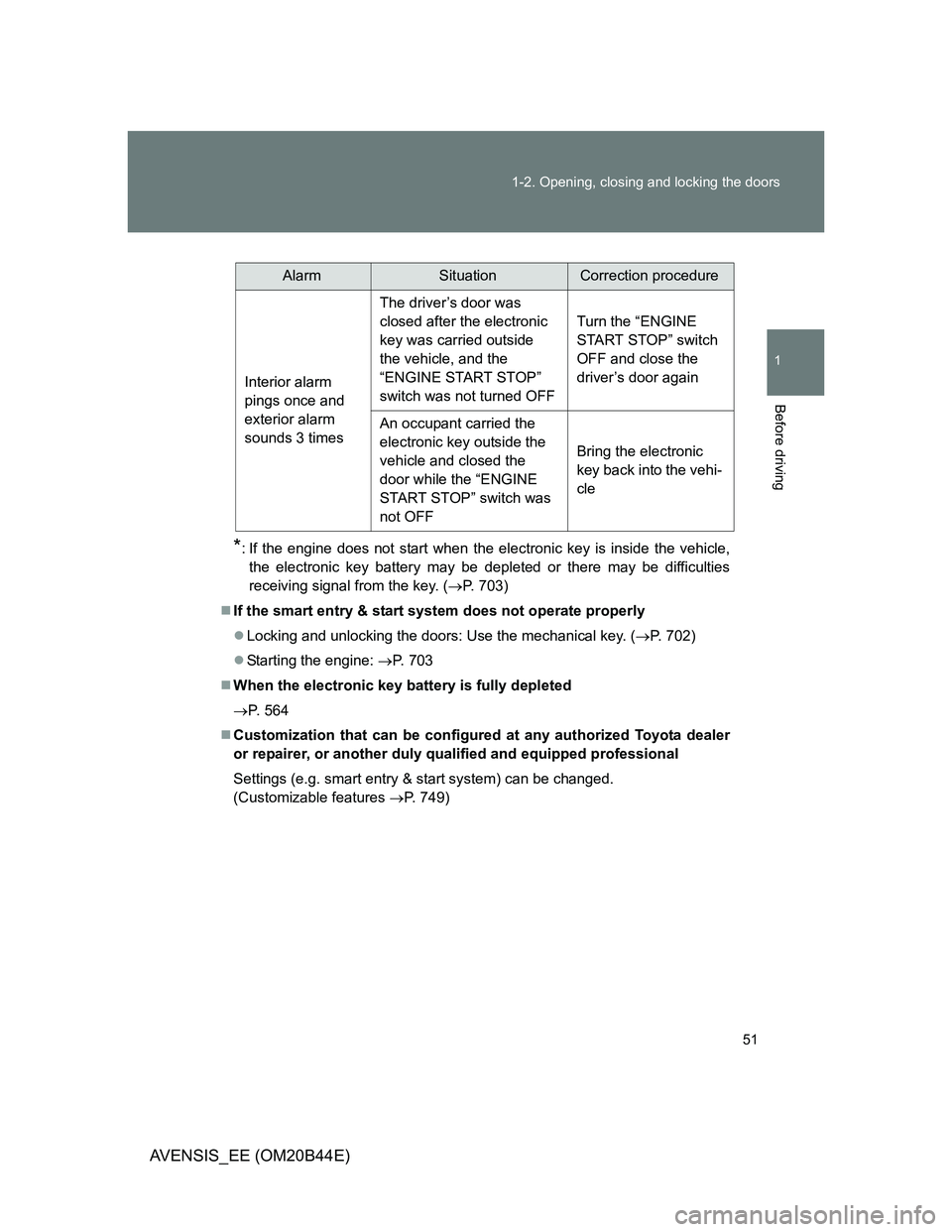

51 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)
*: If the engine does not start when the electronic key is inside the vehicle,
the electronic key battery may be depleted or there may be difficulties
receiving signal from the key. (P. 703)
If the smart entry & start system does not operate properly
Locking and unlocking the doors: Use the mechanical key. (P. 702)
Starting the engine: P. 703
When the electronic key battery is fully depleted
P. 564
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. smart entry & start system) can be changed.
(Customizable features P. 749)
AlarmSituationCorrection procedure
Interior alarm
pings once and
exterior alarm
sounds 3 timesThe driver’s door was
closed after the electronic
key was carried outside
the vehicle, and the
“ENGINE START STOP”
switch was not turned OFFTurn the “ENGINE
START STOP” switch
OFF and close the
driver’s door again
An occupant carried the
electronic key outside the
vehicle and closed the
door while the “ENGINE
START STOP” switch was
not OFFBring the electronic
key back into the vehi-
cle

52 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)

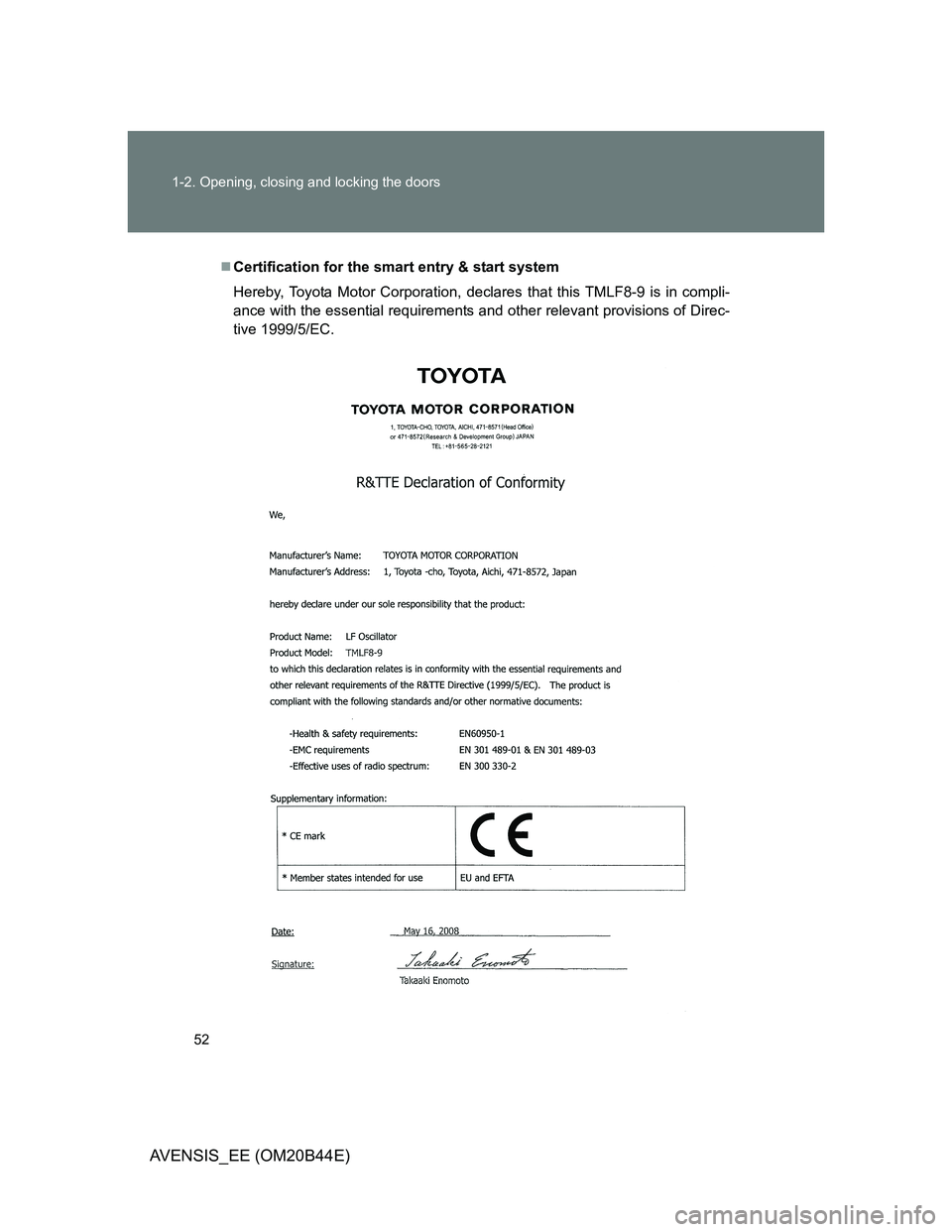

Certification for the smart entry & start system
Hereby, Toyota Motor Corporation, declares that this TMLF8-9 is in compli-
ance with the essential requirements and other relevant provisions of Direc-
tive 1999/5/EC.

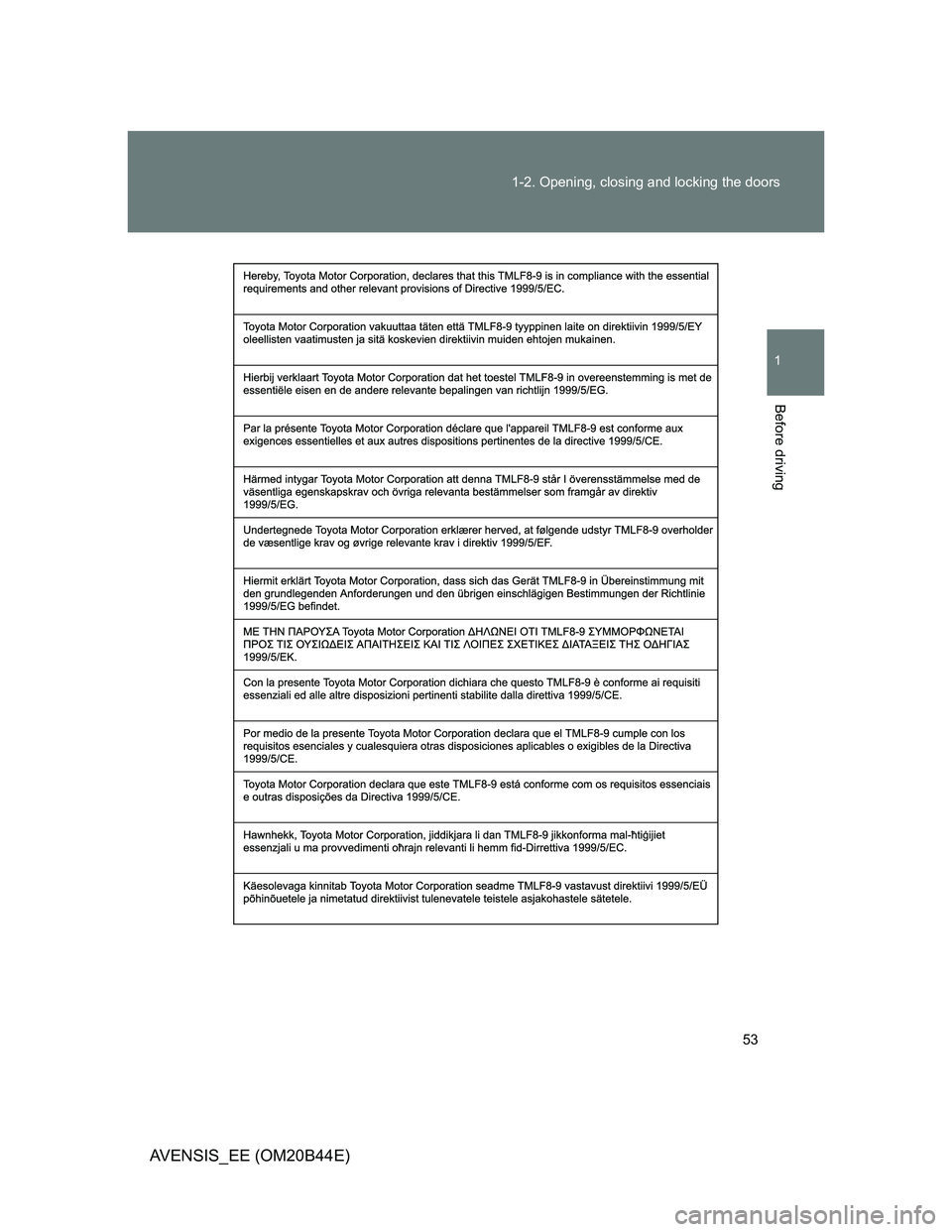

53 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

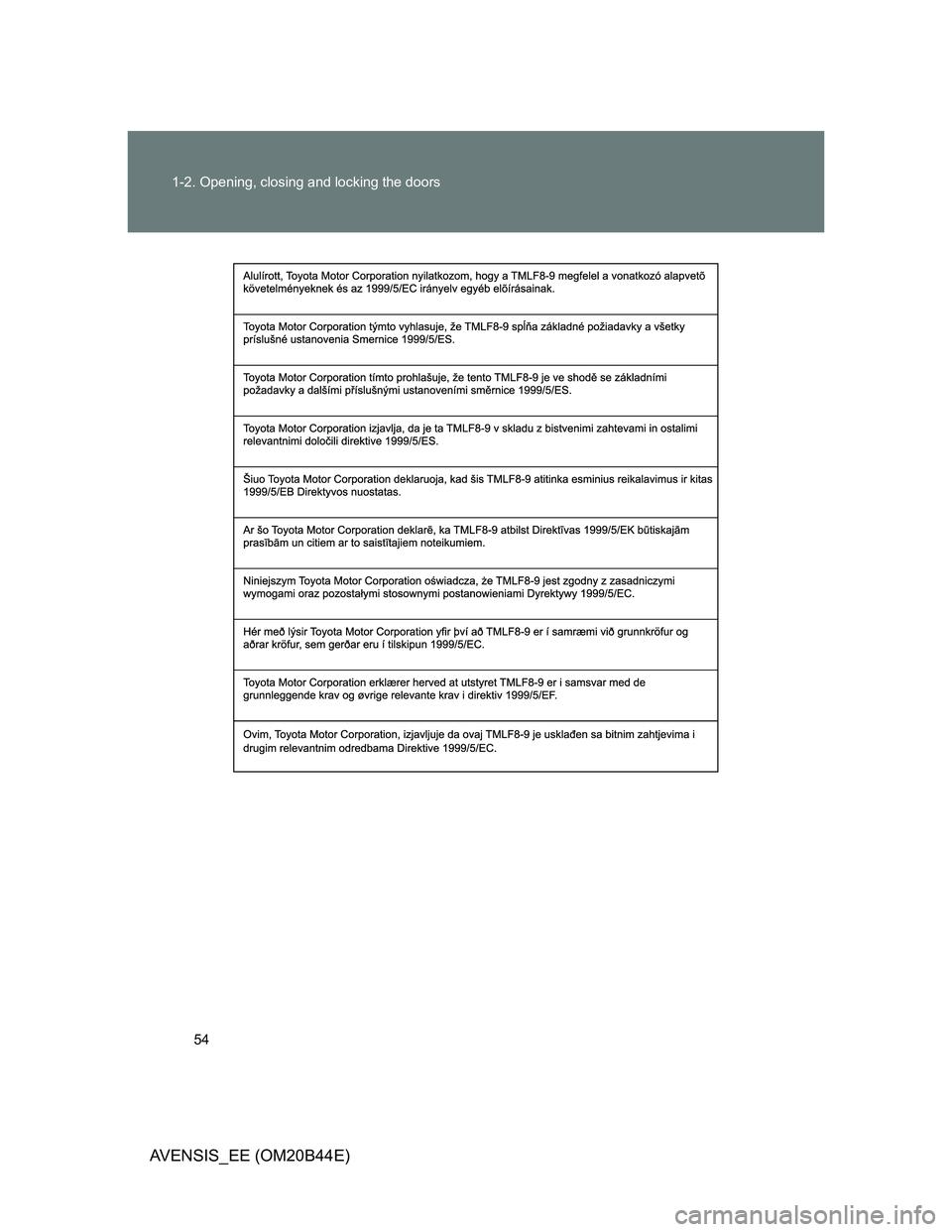

54 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)

55 1-2. Opening, closing and locking the doors
1
Before driving
AVENSIS_EE (OM20B44E)

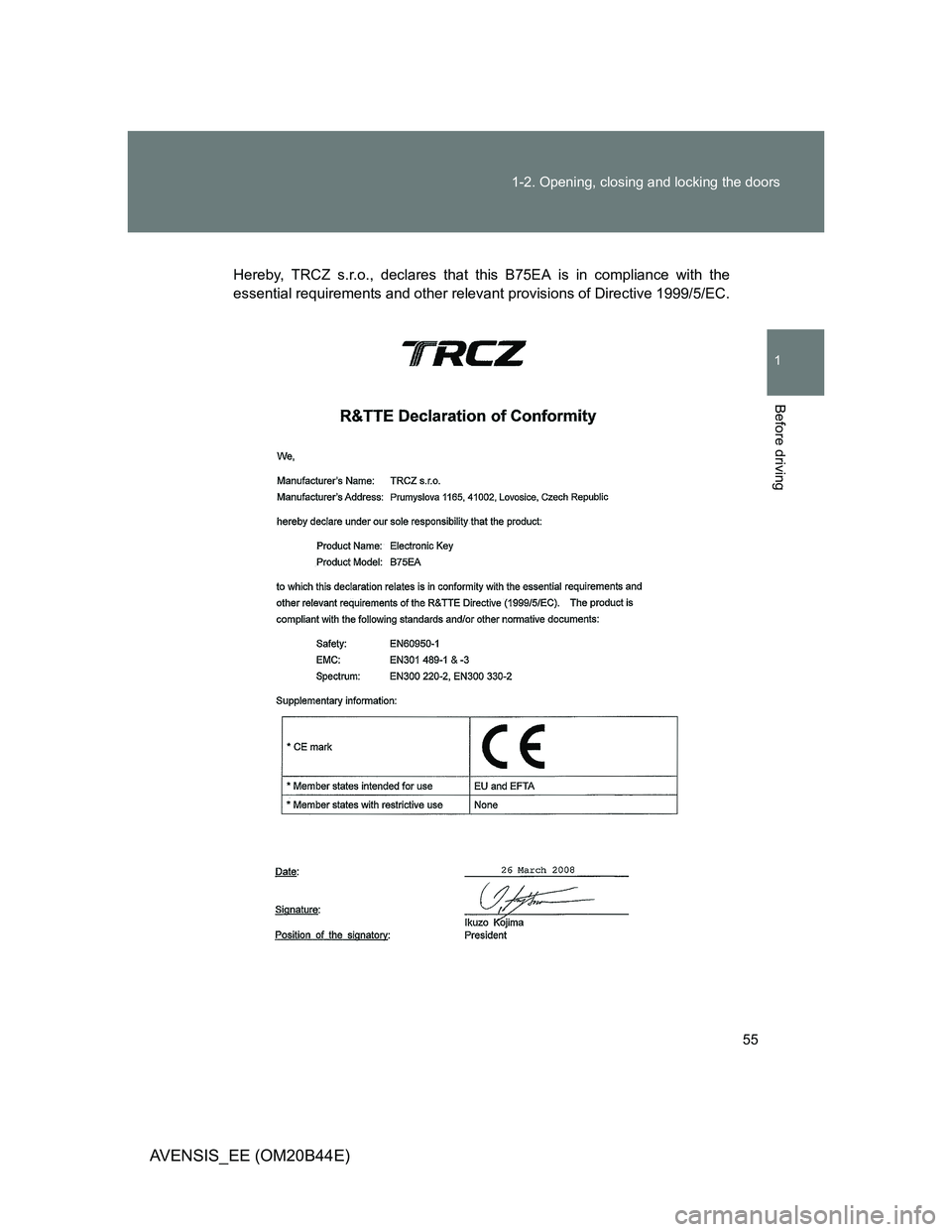

Hereby, TRCZ s.r.o., declares that this B75EA is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.

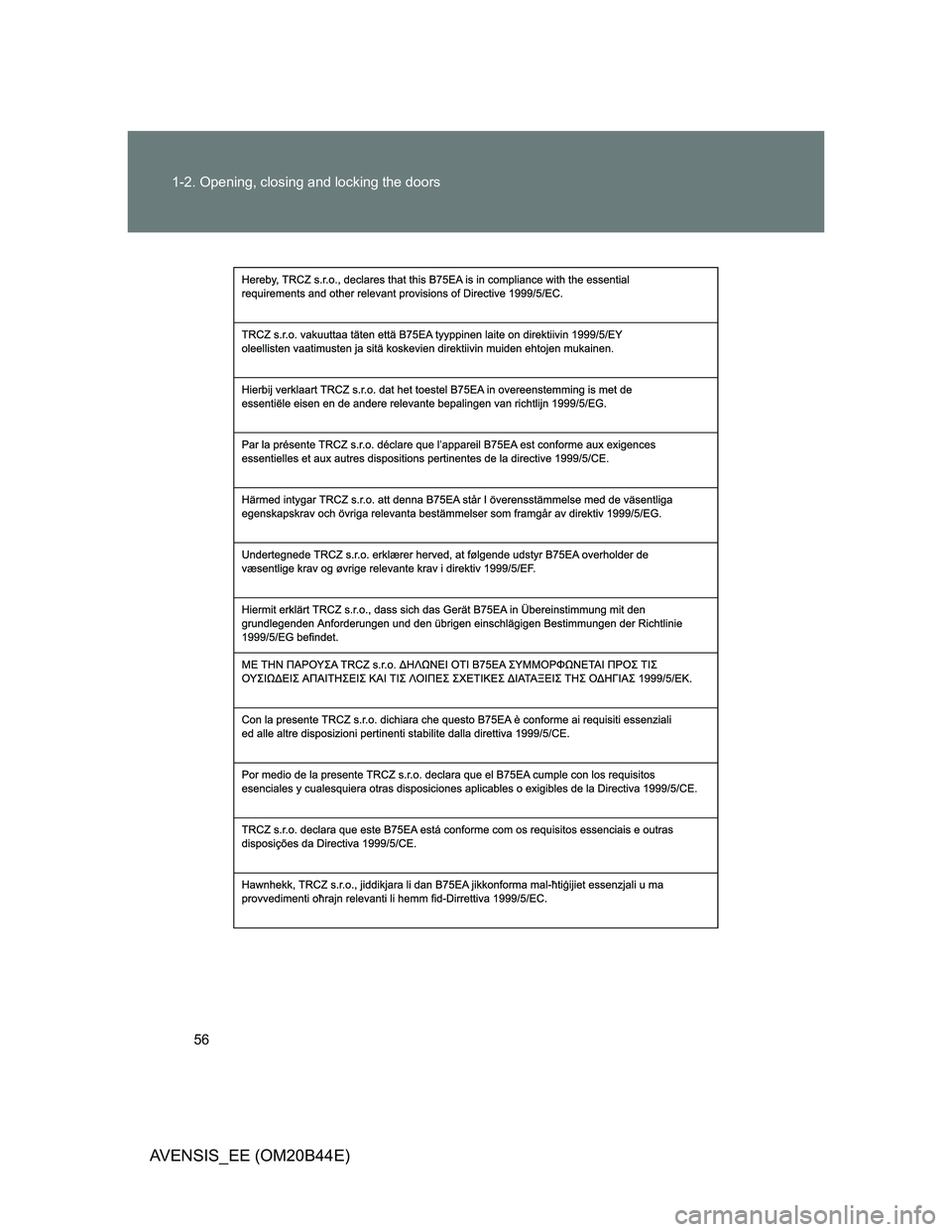

56 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
