2012 TOYOTA AVENSIS Owners Manual

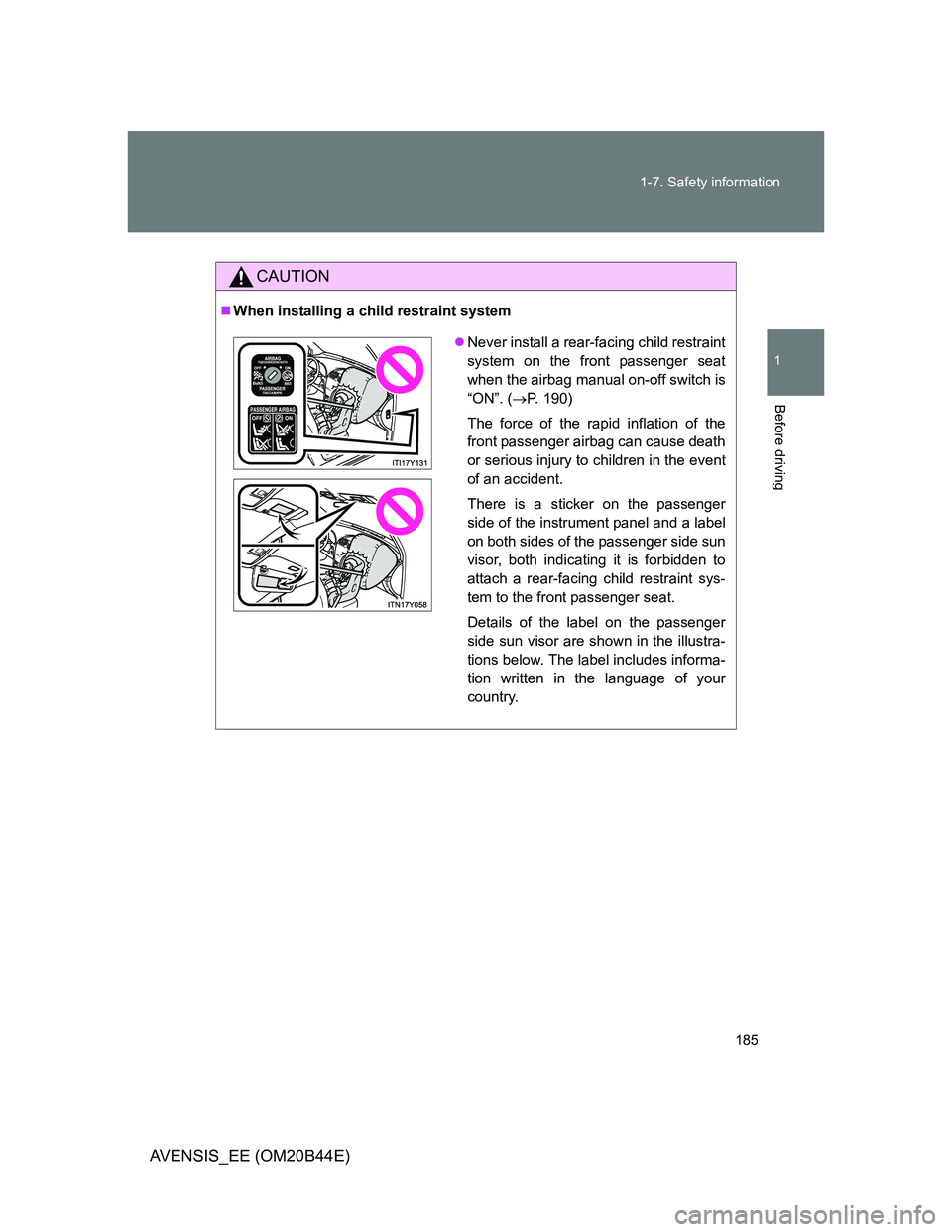

185 1-7. Safety information
1
Before driving
AVENSIS_EE (OM20B44E)
CAUTION
When installing a child restraint system
Never install a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
“ON”. (P. 190)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a sticker on the passenger
side of the instrument panel and a label
on both sides of the passenger side sun
visor, both indicating it is forbidden to
attach a rear-facing child restraint sys-
tem to the front passenger seat.
Details of the label on the passenger
side sun visor are shown in the illustra-
tions below. The label includes informa-
tion written in the language of your
country.

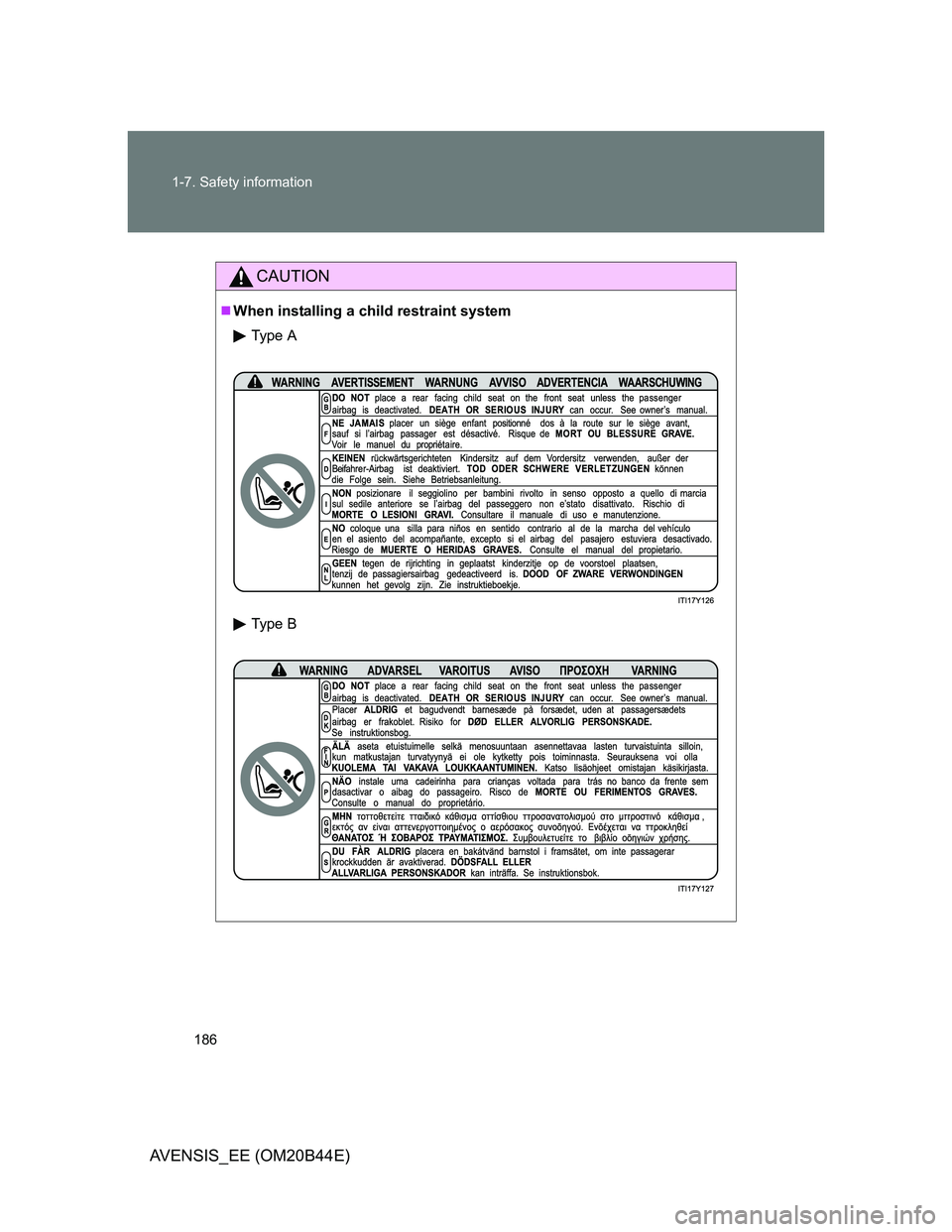

186 1-7. Safety information
AVENSIS_EE (OM20B44E)
CAUTION
When installing a child restraint system
Type A
Type B

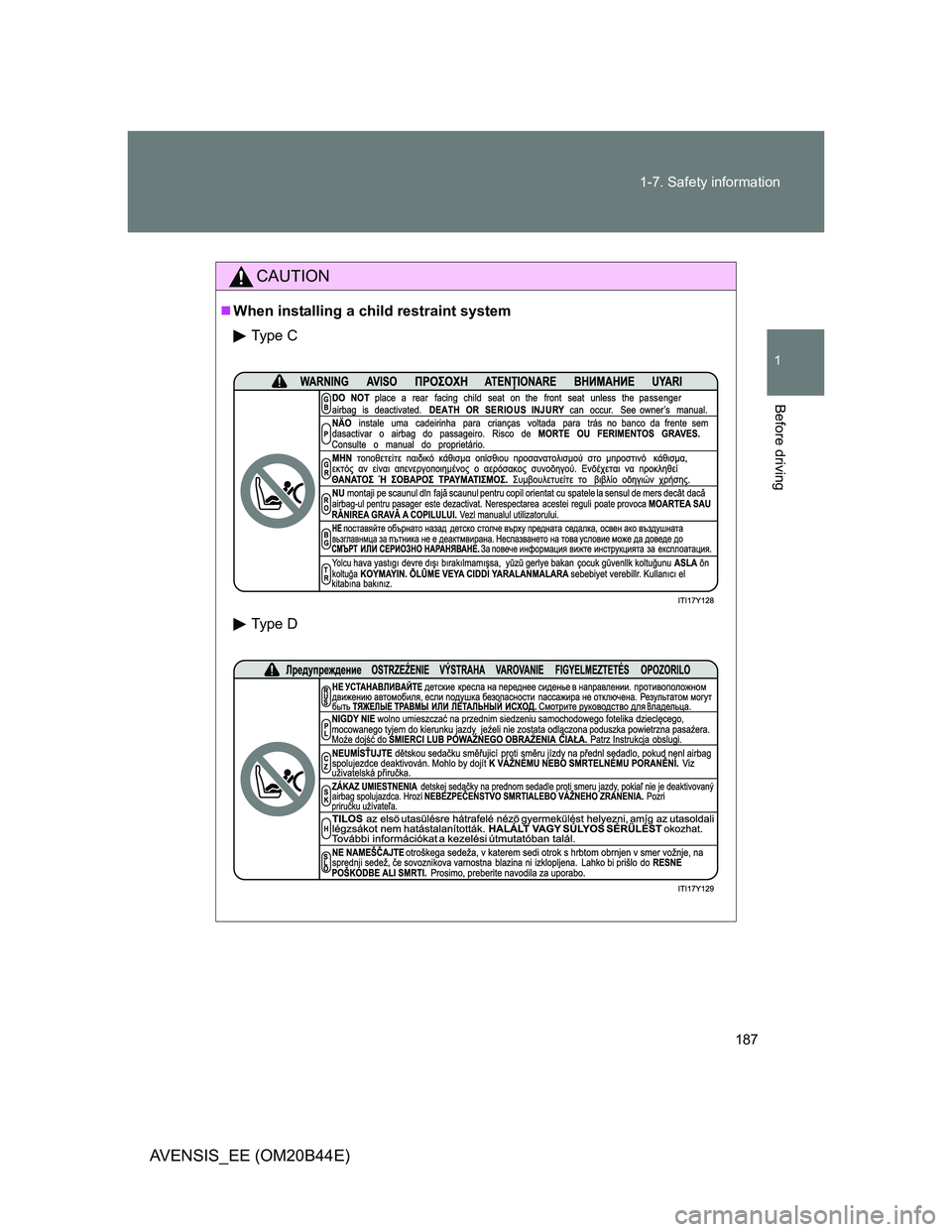

187 1-7. Safety information
1
Before driving
AVENSIS_EE (OM20B44E)
CAUTION
When installing a child restraint system
Type C
Type D

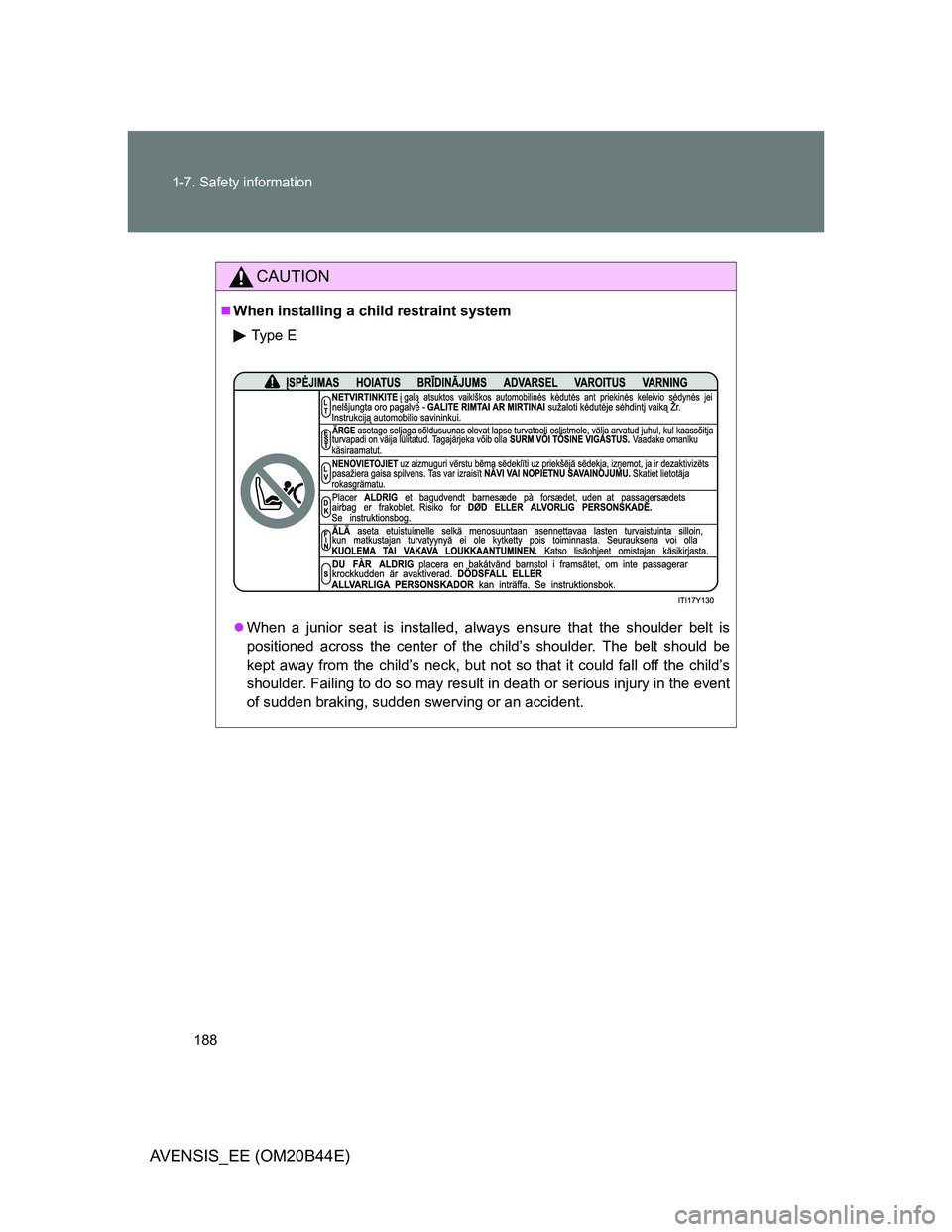

188 1-7. Safety information
AVENSIS_EE (OM20B44E)
CAUTION
When installing a child restraint system
Type E
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
I

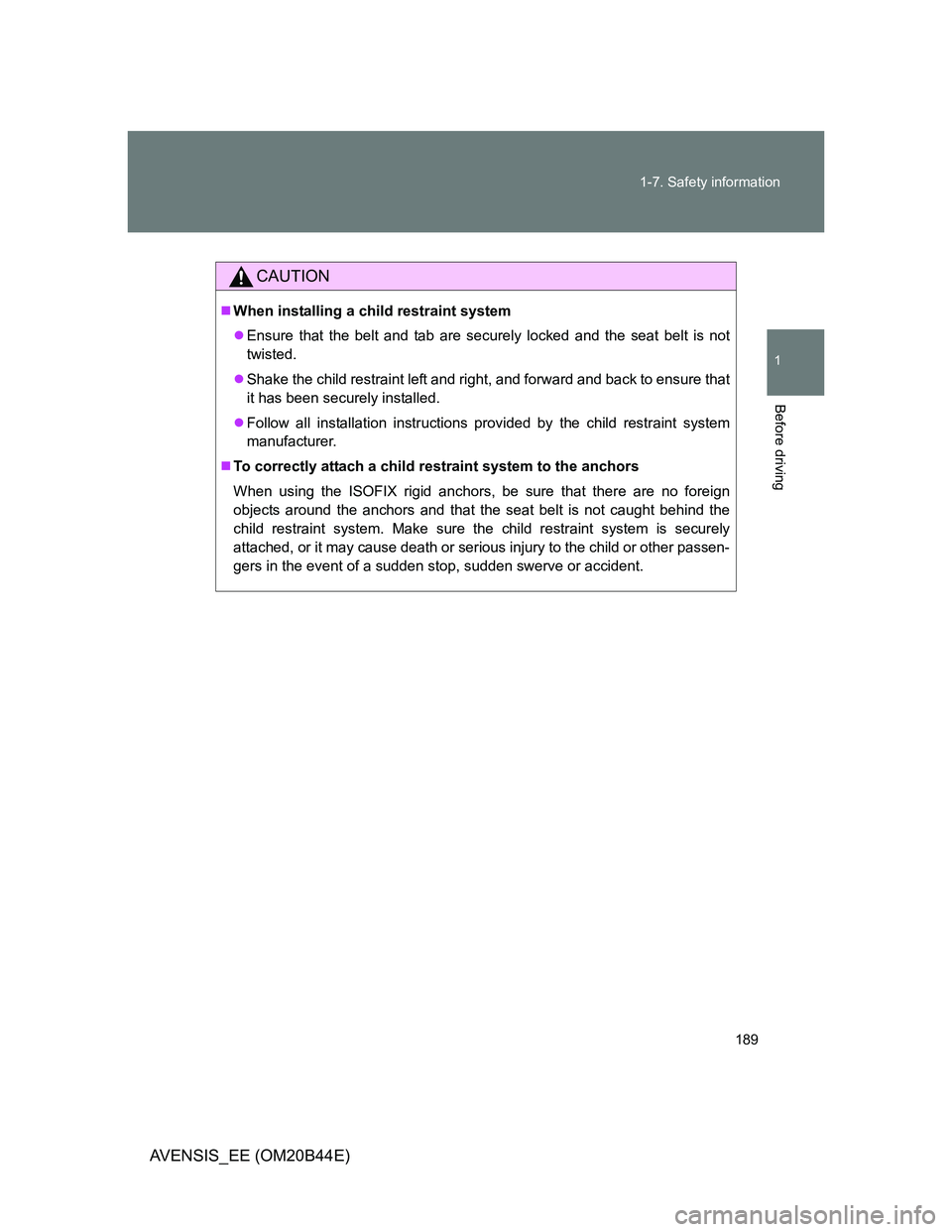

189 1-7. Safety information
1
Before driving
AVENSIS_EE (OM20B44E)
CAUTION
When installing a child restraint system
Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
Shake the child restraint left and right, and forward and back to ensure that
it has been securely installed.
Follow all installation instructions provided by the child restraint system
manufacturer.
To correctly attach a child restraint system to the anchors
When using the ISOFIX rigid anchors, be sure that there are no foreign
objects around the anchors and that the seat belt is not caught behind the
child restraint system. Make sure the child restraint system is securely
attached, or it may cause death or serious injury to the child or other passen-
gers in the event of a sudden stop, sudden swerve or accident.

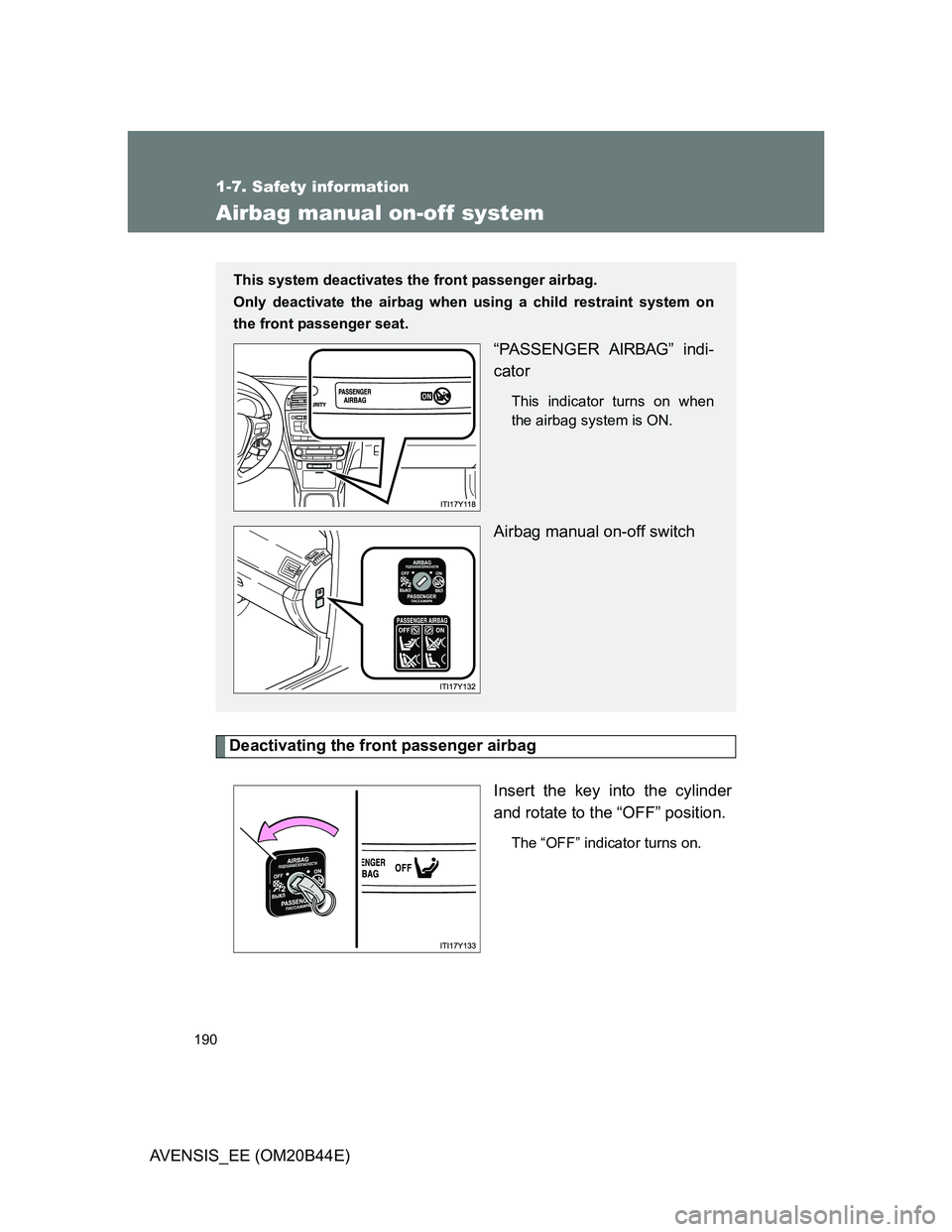

190
1-7. Safety information
AVENSIS_EE (OM20B44E)
Airbag manual on-off system
Deactivating the front passenger airbag
Insert the key into the cylinder
and rotate to the “OFF” position.
The “OFF” indicator turns on.
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system on
the front passenger seat.
“PASSENGER AIRBAG” indi-
cator
This indicator turns on when
the airbag system is ON.
Airbag manual on-off switch

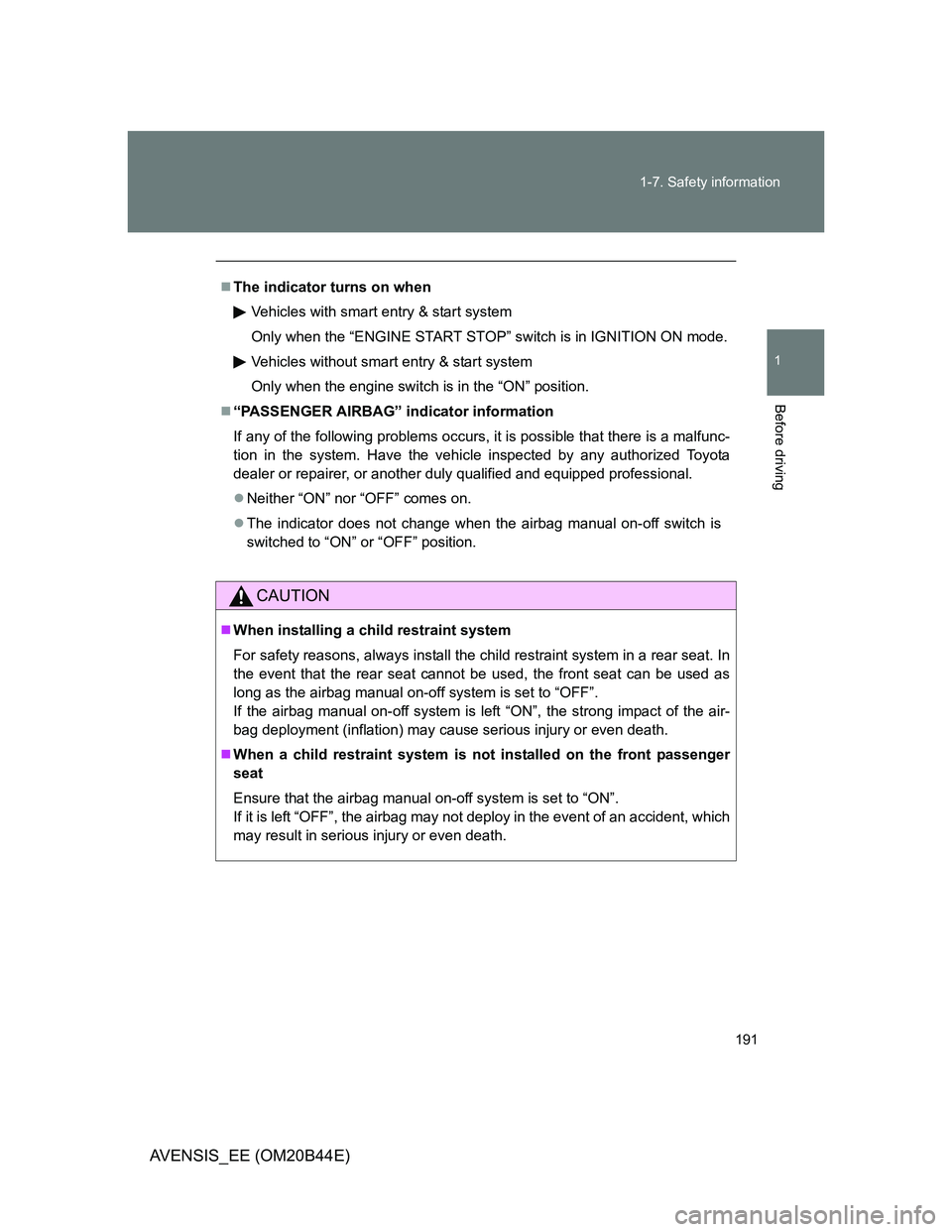

191 1-7. Safety information
1
Before driving
AVENSIS_EE (OM20B44E)
The indicator turns on when
Vehicles with smart entry & start system
Only when the “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart entry & start system
Only when the engine switch is in the “ON” position.
“PASSENGER AIRBAG” indicator information
If any of the following problems occurs, it is possible that there is a malfunc-
tion in the system. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator does not change when the airbag manual on-off switch is
switched to “ON” or “OFF” position.
CAUTION
When installing a child restraint system
For safety reasons, always install the child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the air-
bag deployment (inflation) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left “OFF”, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

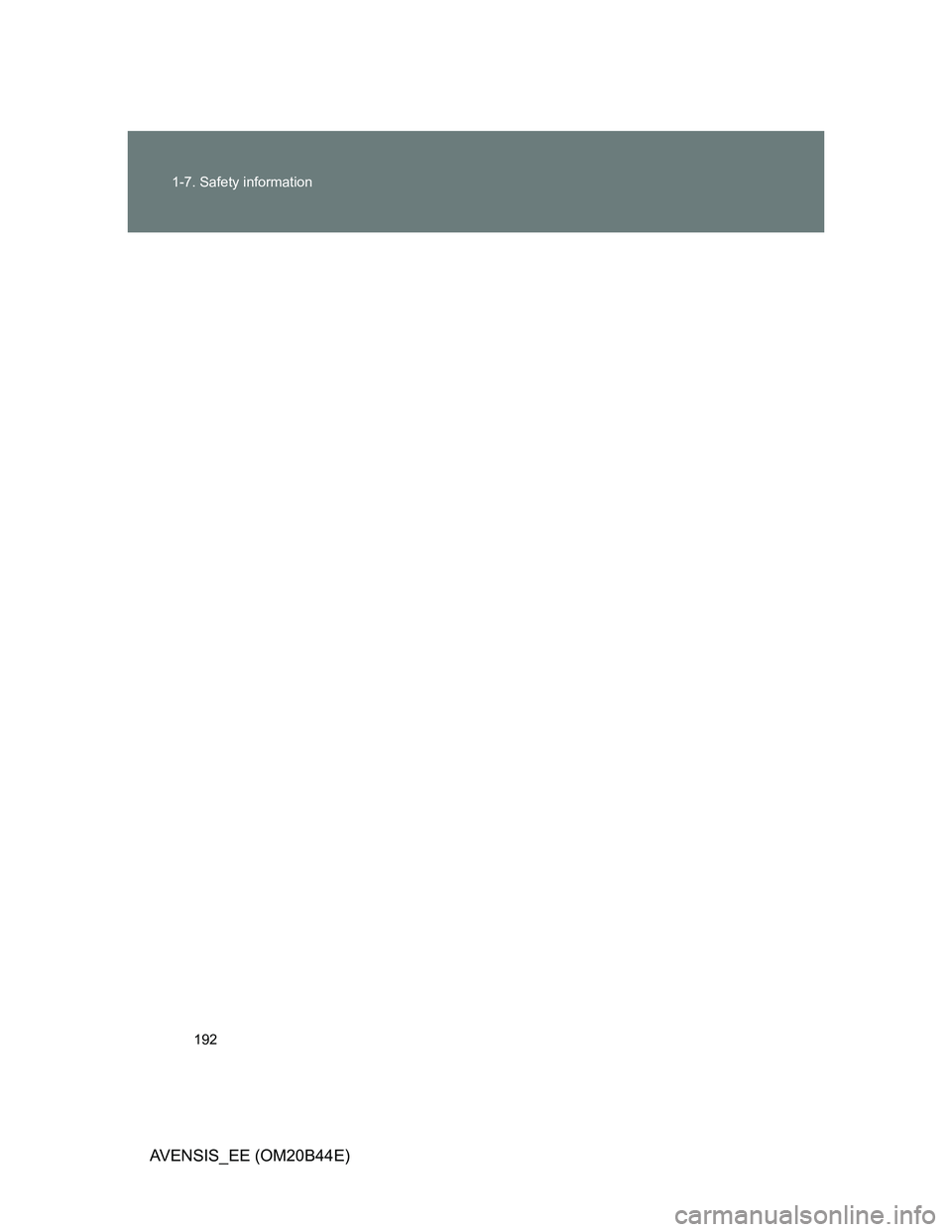

192 1-7. Safety information
AVENSIS_EE (OM20B44E)
