2012 TOYOTA AVENSIS Owners Manual

33
AVENSIS_EE (OM20B44E)
Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).

34
AVENSIS_EE (OM20B44E)

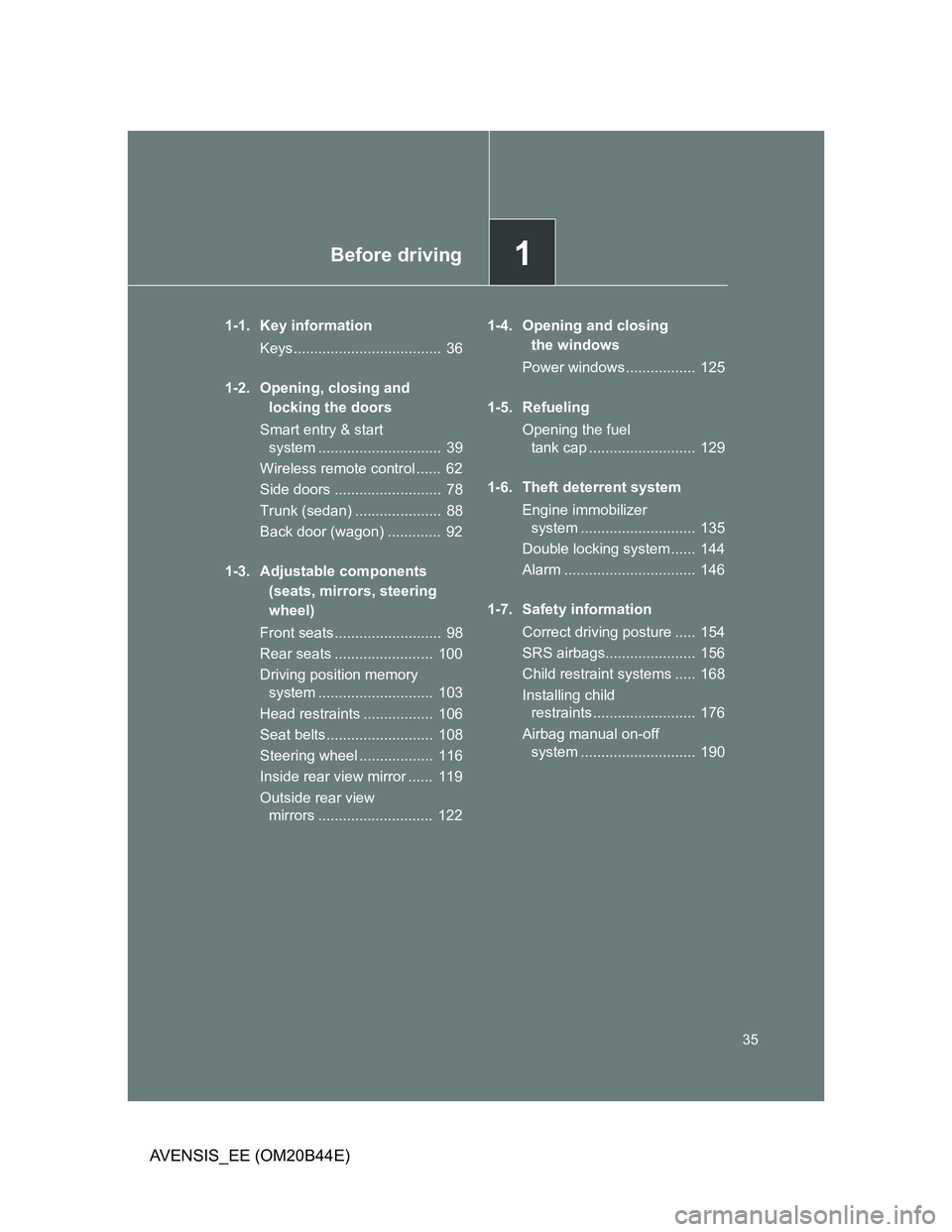

1Before driving
35
AVENSIS_EE (OM20B44E)
1-1. Key information
Keys.................................... 36
1-2. Opening, closing and
locking the doors
Smart entry & start
system .............................. 39
Wireless remote control ...... 62
Side doors .......................... 78
Trunk (sedan) ..................... 88
Back door (wagon) ............. 92
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 98
Rear seats ........................ 100
Driving position memory
system ............................ 103
Head restraints ................. 106
Seat belts.......................... 108
Steering wheel .................. 116
Inside rear view mirror ...... 119
Outside rear view
mirrors ............................ 1221-4. Opening and closing
the windows
Power windows ................. 125
1-5. Refueling
Opening the fuel
tank cap .......................... 129
1-6. Theft deterrent system
Engine immobilizer
system ............................ 135
Double locking system ...... 144
Alarm ................................ 146
1-7. Safety information
Correct driving posture ..... 154
SRS airbags...................... 156
Child restraint systems ..... 168
Installing child
restraints ......................... 176
Airbag manual on-off
system ............................ 190

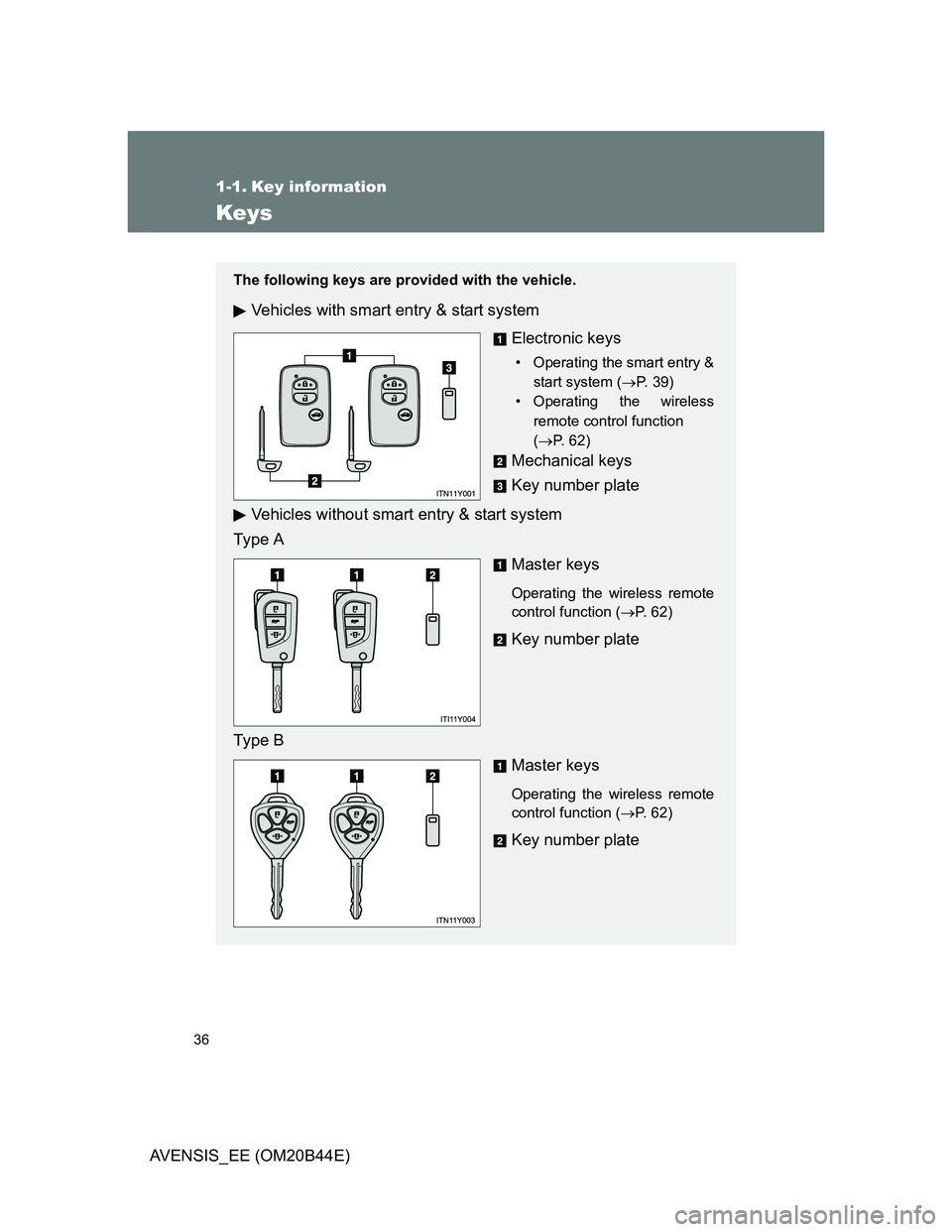

36
AVENSIS_EE (OM20B44E)
1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles with smart entry & start system
Electronic keys
• Operating the smart entry &
start system (P. 39)
• Operating the wireless
remote control function
(P. 62)
Mechanical keys
Key number plate
Vehicles without smart entry & start system
Type A
Master keys
Operating the wireless remote
control function (P. 62)
Key number plate
Type B
Master keys
Operating the wireless remote
control function (P. 62)
Key number plate

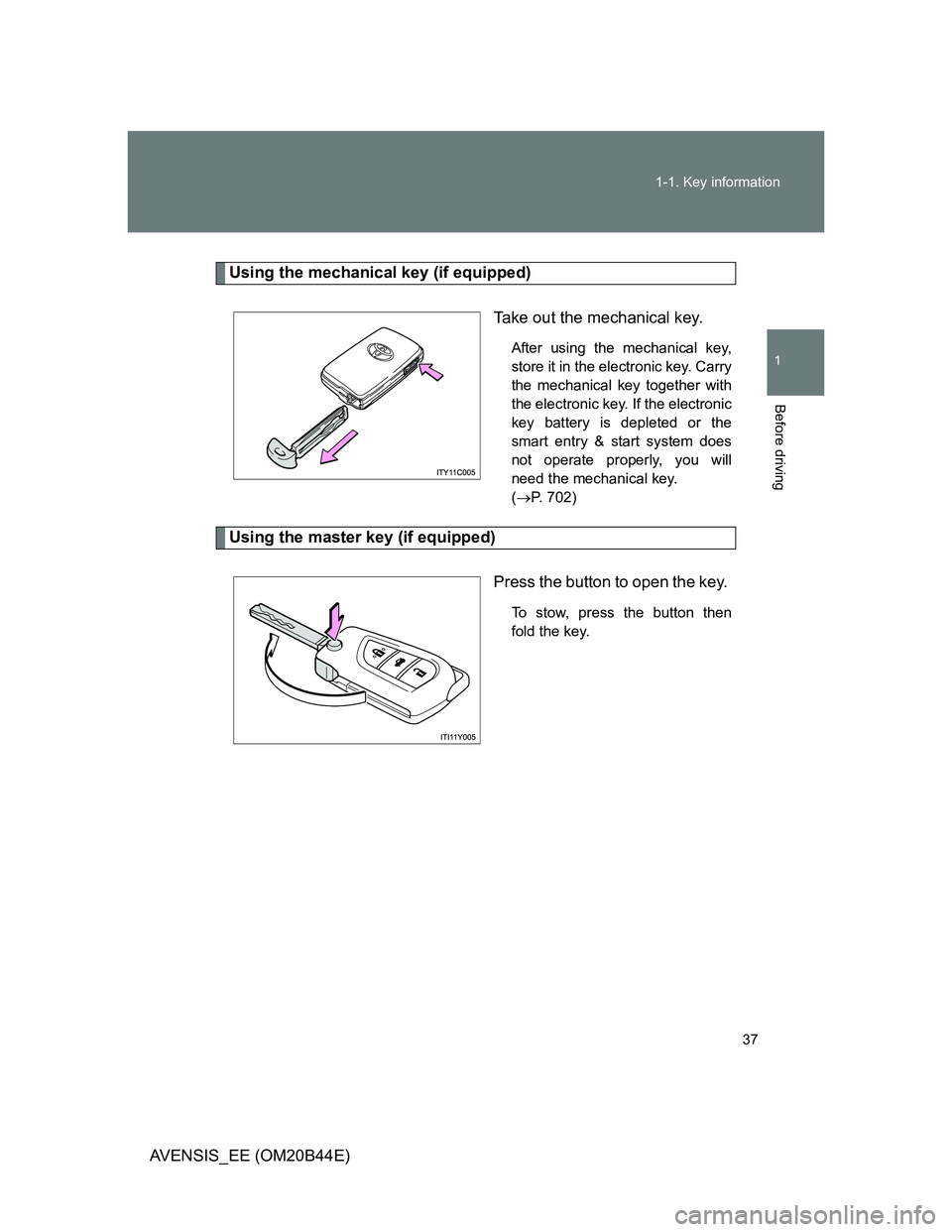

37 1-1. Key information
1
Before driving
AVENSIS_EE (OM20B44E)
Using the mechanical key (if equipped)
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
smart entry & start system does
not operate properly, you will
need the mechanical key.
(P. 702)
Using the master key (if equipped)
Press the button to open the key.
To stow, press the button then
fold the key.

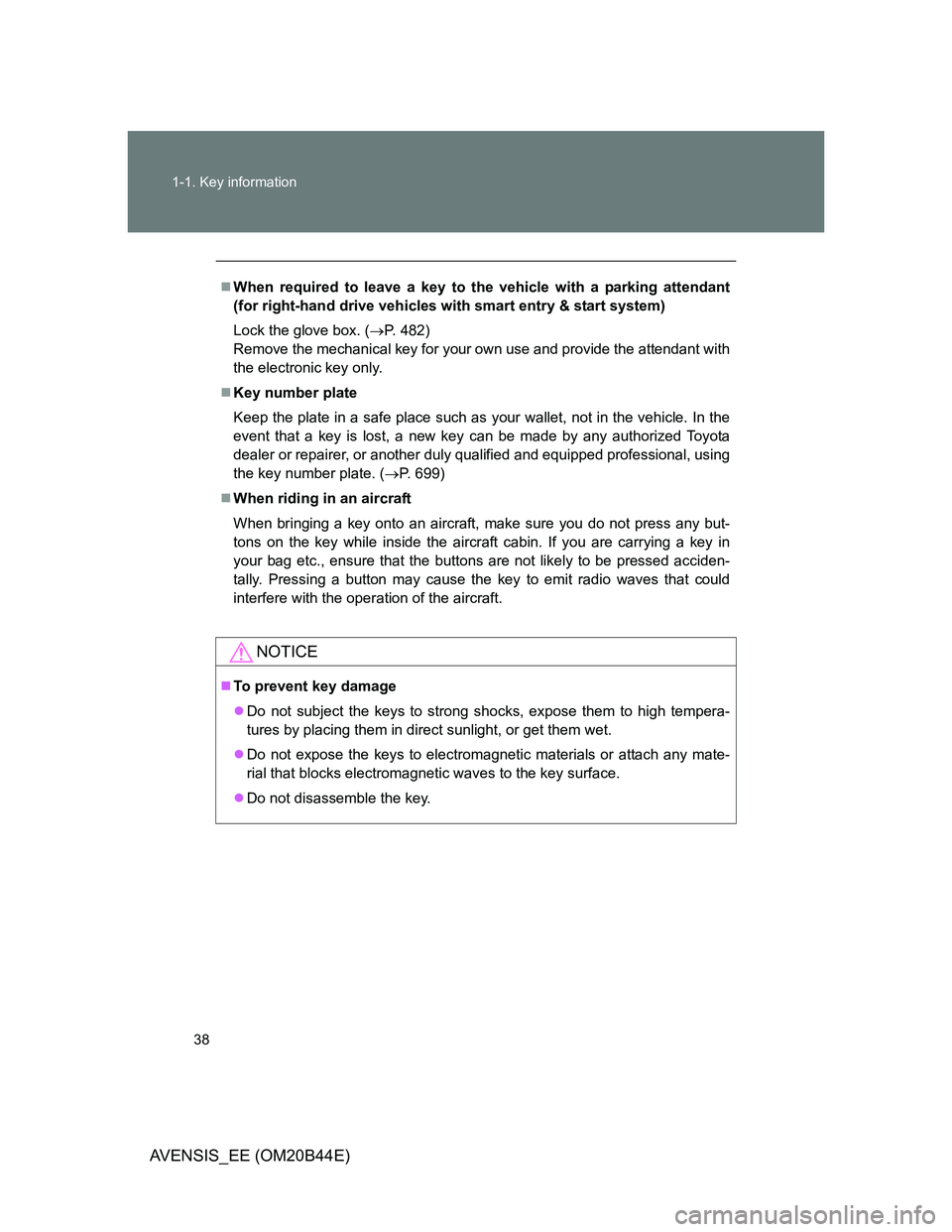

38 1-1. Key information
AVENSIS_EE (OM20B44E)
When required to leave a key to the vehicle with a parking attendant
(for right-hand drive vehicles with smart entry & start system)
Lock the glove box. (P. 482)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, using
the key number plate. (P. 699)
When riding in an aircraft
When bringing a key onto an aircraft, make sure you do not press any but-
tons on the key while inside the aircraft cabin. If you are carrying a key in
your bag etc., ensure that the buttons are not likely to be pressed acciden-
tally. Pressing a button may cause the key to emit radio waves that could
interfere with the operation of the aircraft.
NOTICE
To prevent key damage
Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Do not disassemble the key.

39
1
Before driving
AVENSIS_EE (OM20B44E)

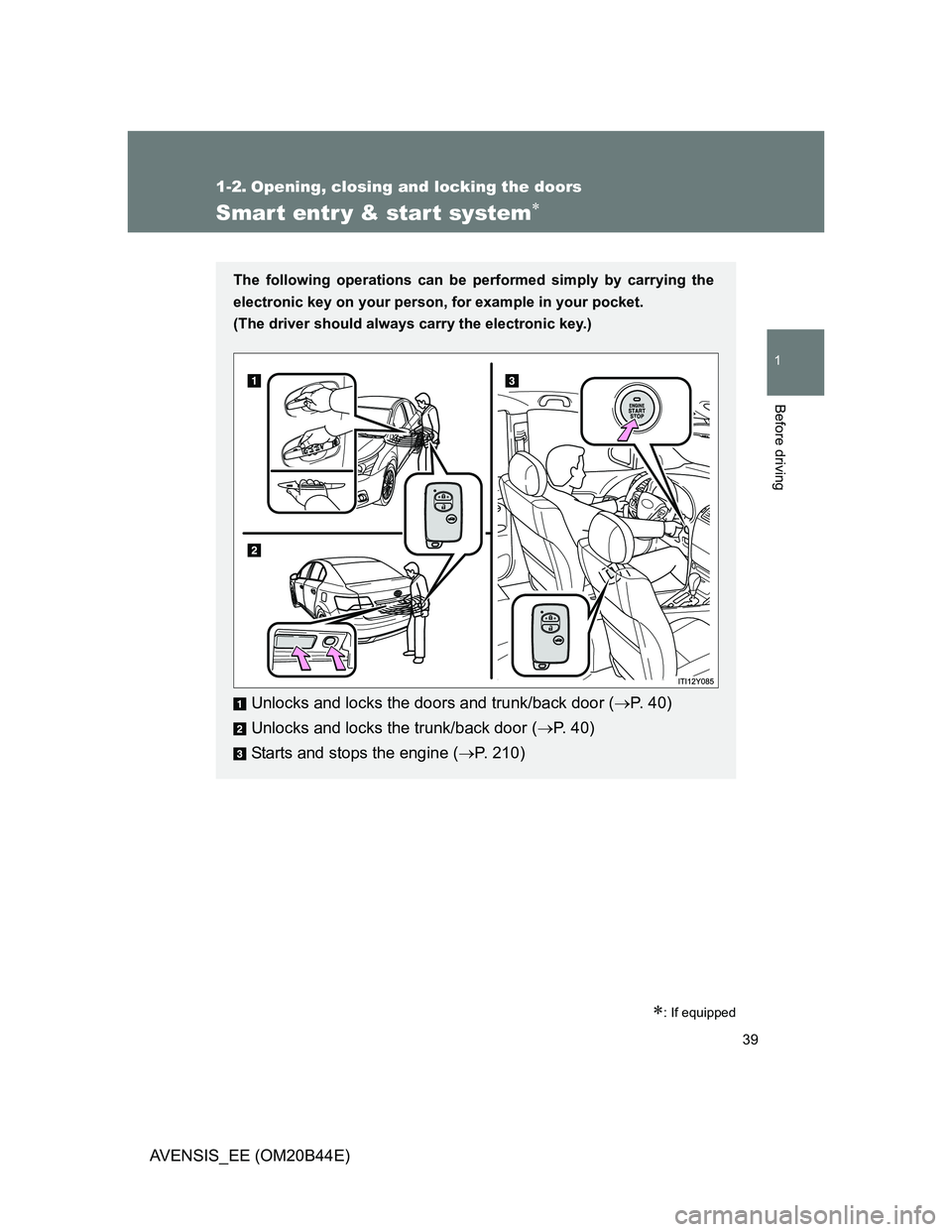

1-2. Opening, closing and locking the doors
Smart entr y & start system
: If equipped
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Unlocks and locks the doors and trunk/back door (P. 40)
Unlocks and locks the trunk/back door (P. 4 0 )
Starts and stops the engine (P. 210)

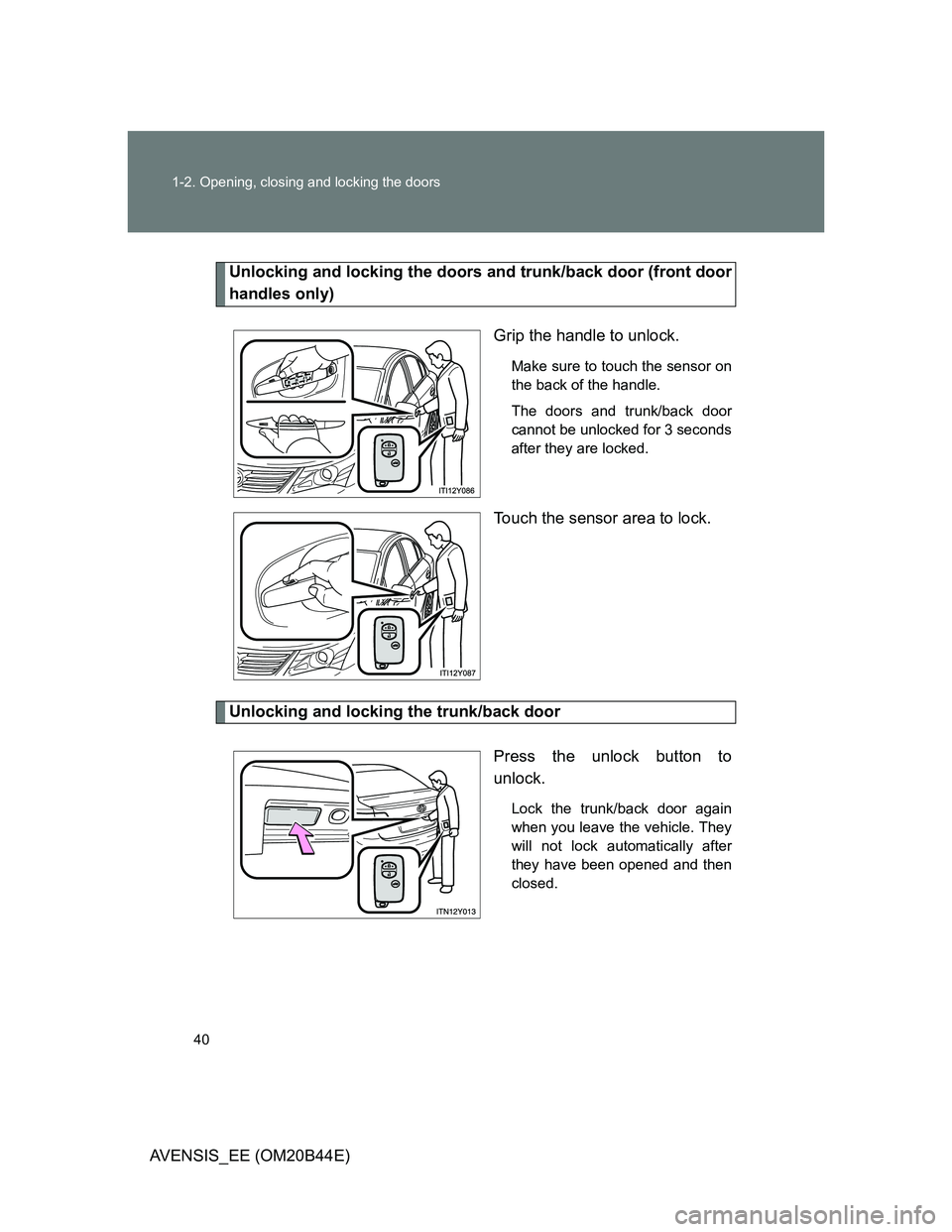

40 1-2. Opening, closing and locking the doors
AVENSIS_EE (OM20B44E)
Unlocking and locking the doors and trunk/back door (front door
handles only)
Grip the handle to unlock.
Make sure to touch the sensor on
the back of the handle.
The doors and trunk/back door
cannot be unlocked for 3 seconds
after they are locked.
Touch the sensor area to lock.
Unlocking and locking the trunk/back door
Press the unlock button to
unlock.
Lock the trunk/back door again
when you leave the vehicle. They
will not lock automatically after
they have been opened and then
closed.
