2012 TOYOTA AVENSIS Owners Manual

25
AVENSIS_EE (OM20B44E)
A
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.

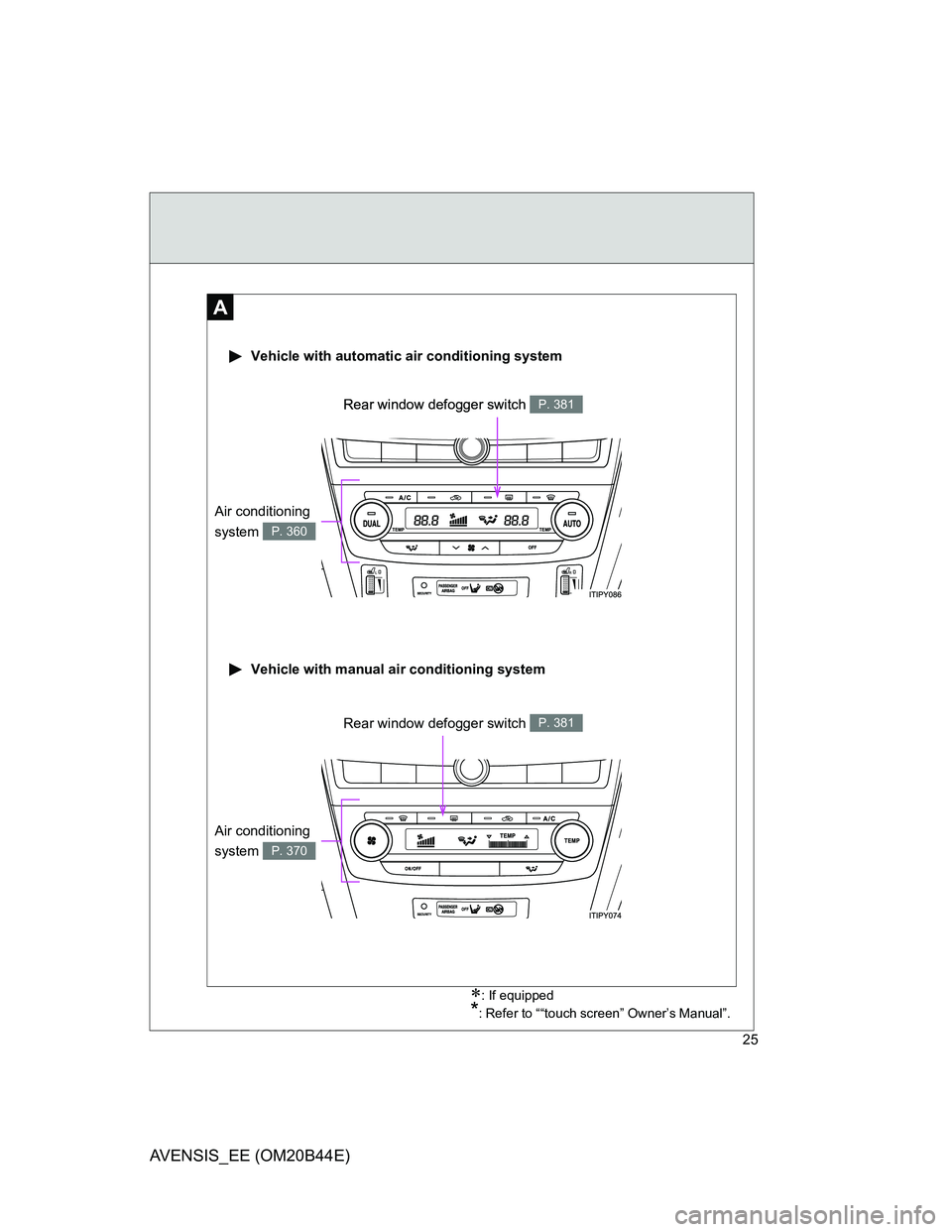

Rear window defogger switch P. 381
Vehicle with automatic air conditioning system
Vehicle with manual air conditioning system
Rear window defogger switch P. 381
Rear window defogger switch P. 381
Air conditioning
system
P. 360
Air conditioning
system
P. 370

26
AVENSIS_EE (OM20B44E)
B

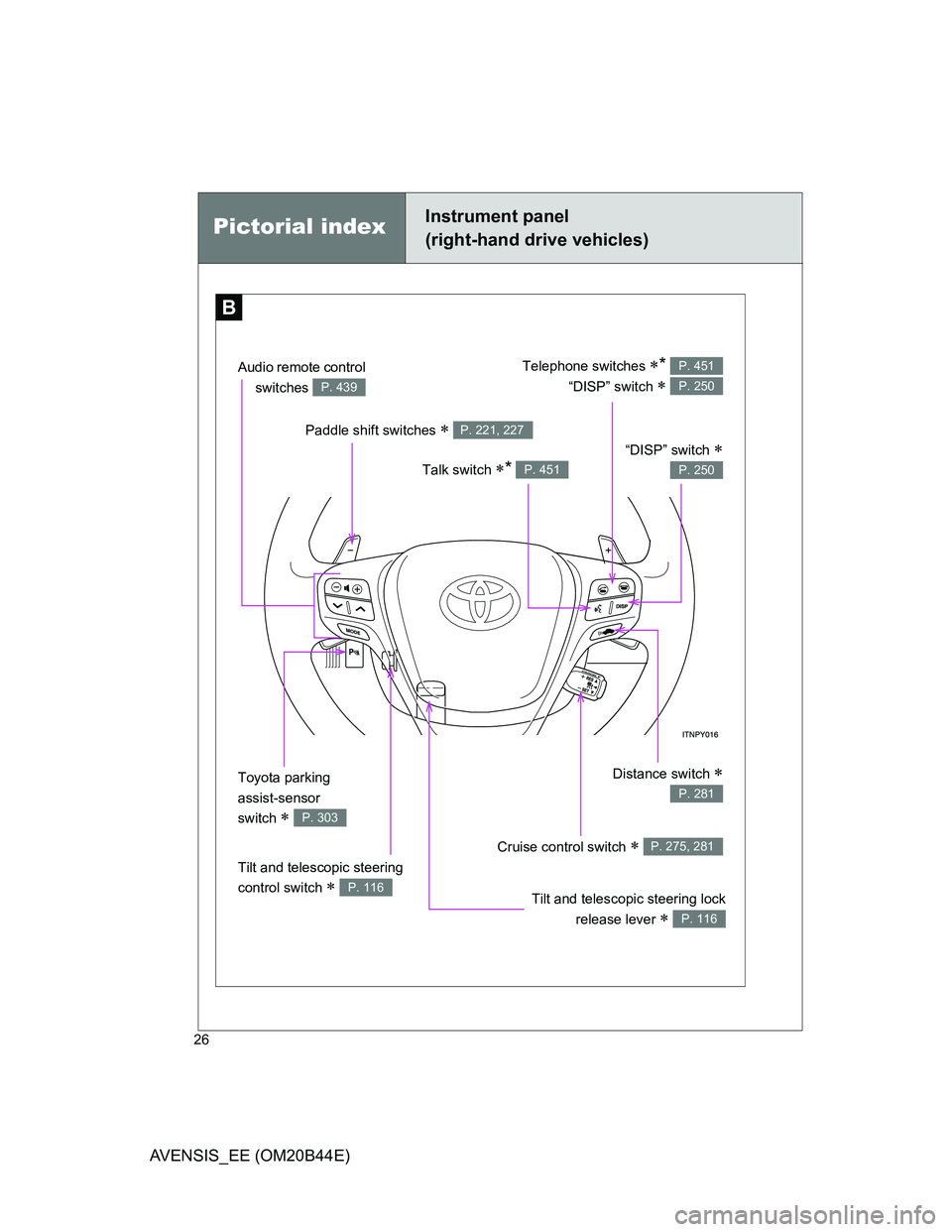

Pictorial indexInstrument panel
(right-hand drive vehicles)
Paddle shift switches  P. 221, 227
Talk switch * P. 451
“DISP” switch 
P. 250
Cruise control switch  P. 275, 281
Audio remote control
switches
P. 439
Telephone switches *
“DISP” switch

P. 451
P. 250
Toyota parking
assist-sensor
switch
 P. 303
Distance switch 
P. 281
Tilt and telescopic steering
control switch
 P. 116Tilt and telescopic steering lock
release lever
 P. 116

27
AVENSIS_EE (OM20B44E)

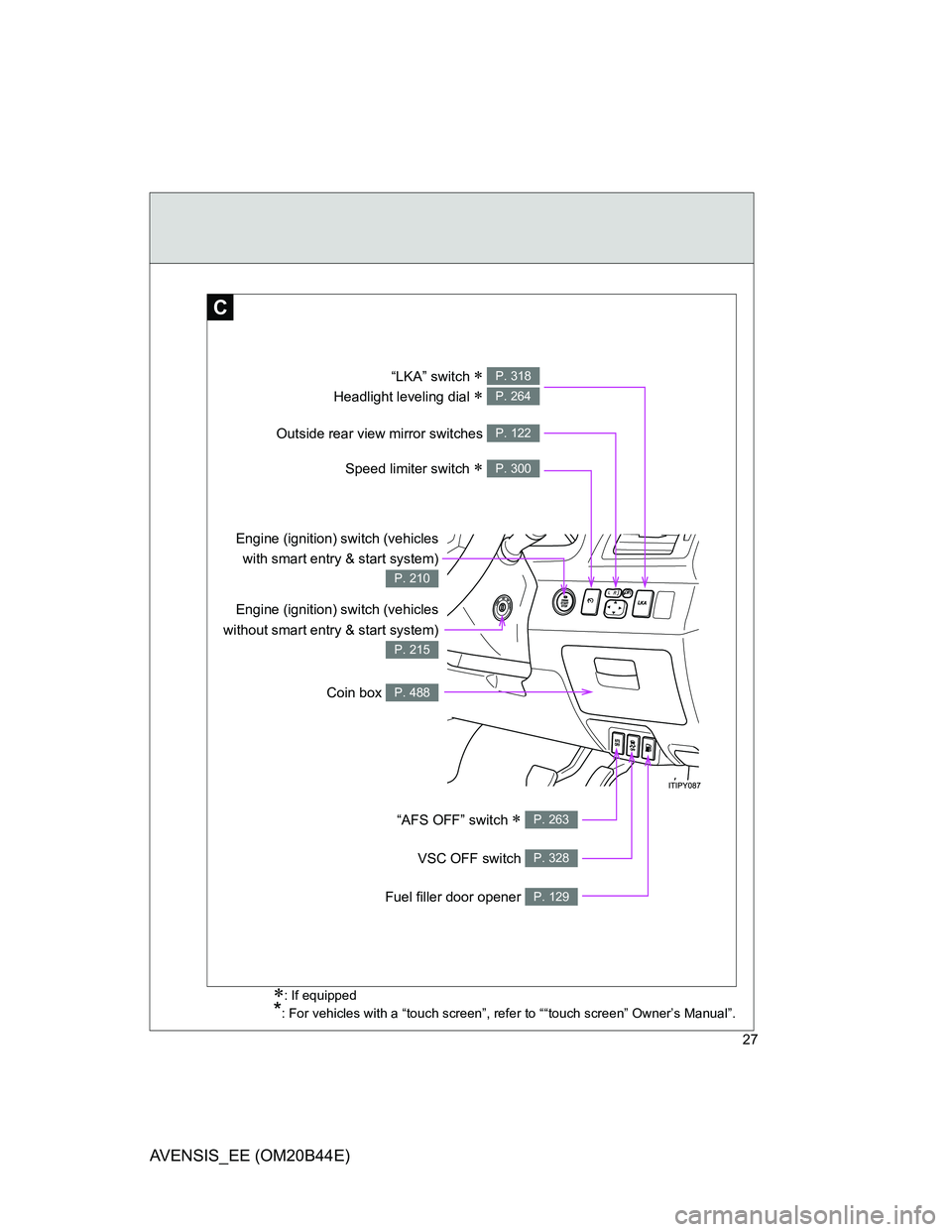

C
Outside rear view mirror switches P. 122
“LKA” switch 
Headlight leveling dial

P. 318
P. 264
Speed limiter switch  P. 300
Coin box P. 488
“AFS OFF” switch  P. 263
VSC OFF switch P. 328
Fuel filler door opener P. 129
Engine (ignition) switch (vehicles
without smart entry & start system)
P. 215
Engine (ignition) switch (vehicles
with smart entry & start system)
P. 210
: If equipped
*: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s Manual”.

28
AVENSIS_EE (OM20B44E)

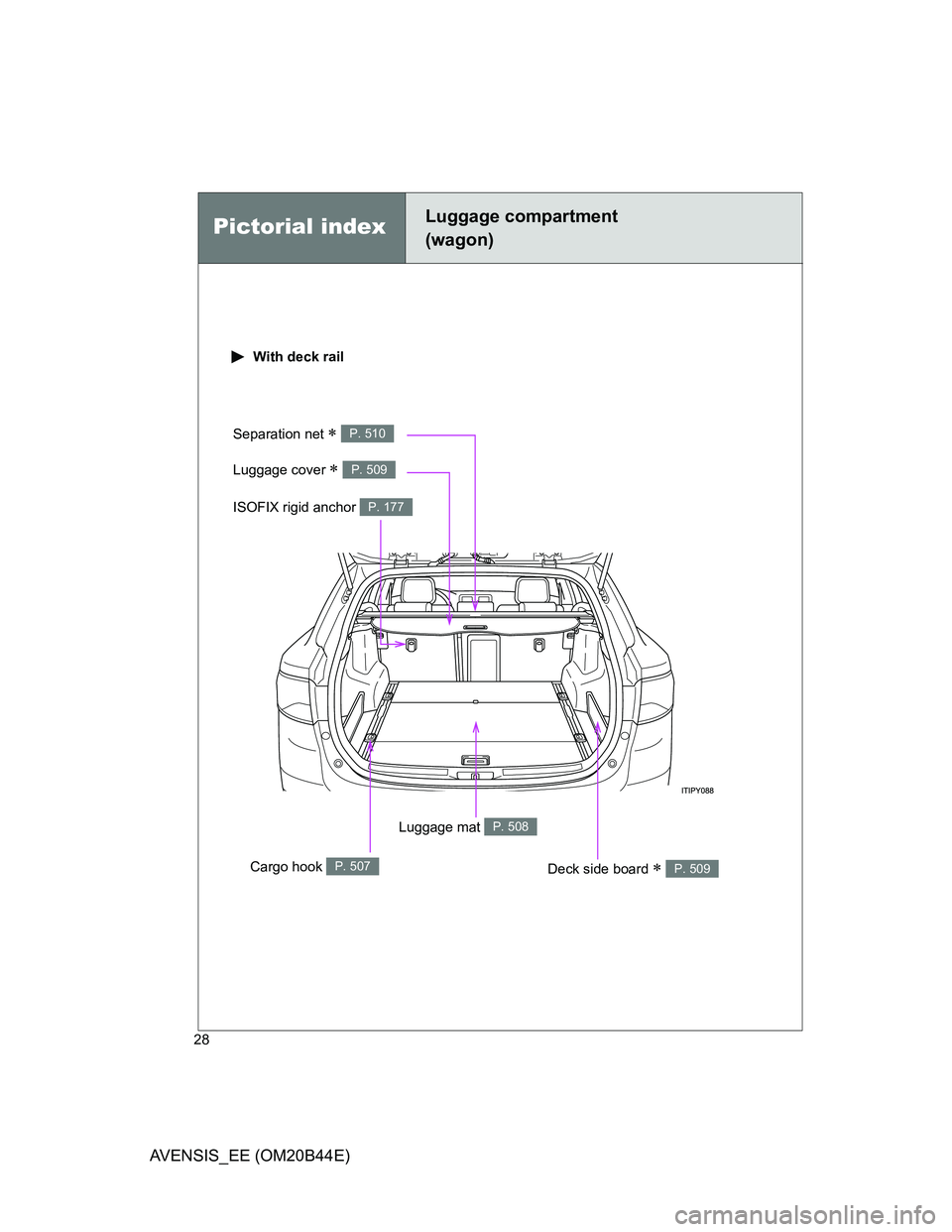

Pictorial indexLuggage compartment
(wagon)
With deck rail
Luggage mat P. 508
Deck side board  P. 509
Separation net  P. 510
Luggage cover  P. 509
Cargo hook P. 507
ISOFIX rigid anchor P. 177

29
AVENSIS_EE (OM20B44E)
: If equipped

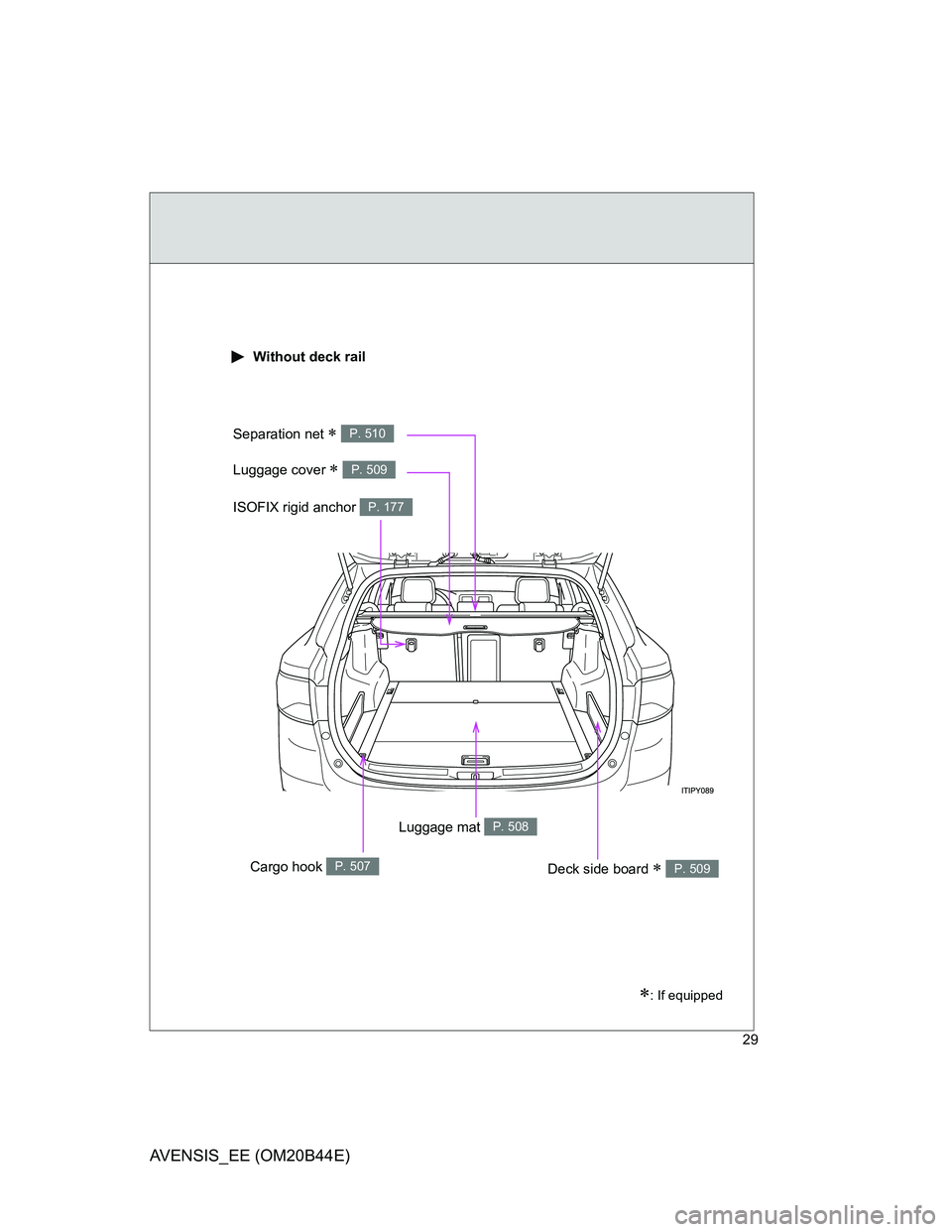

Without deck rail
Luggage mat P. 508
Deck side board  P. 509
Separation net  P. 510
Luggage cover  P. 509
Cargo hook P. 507
ISOFIX rigid anchor P. 177

30
AVENSIS_EE (OM20B44E)

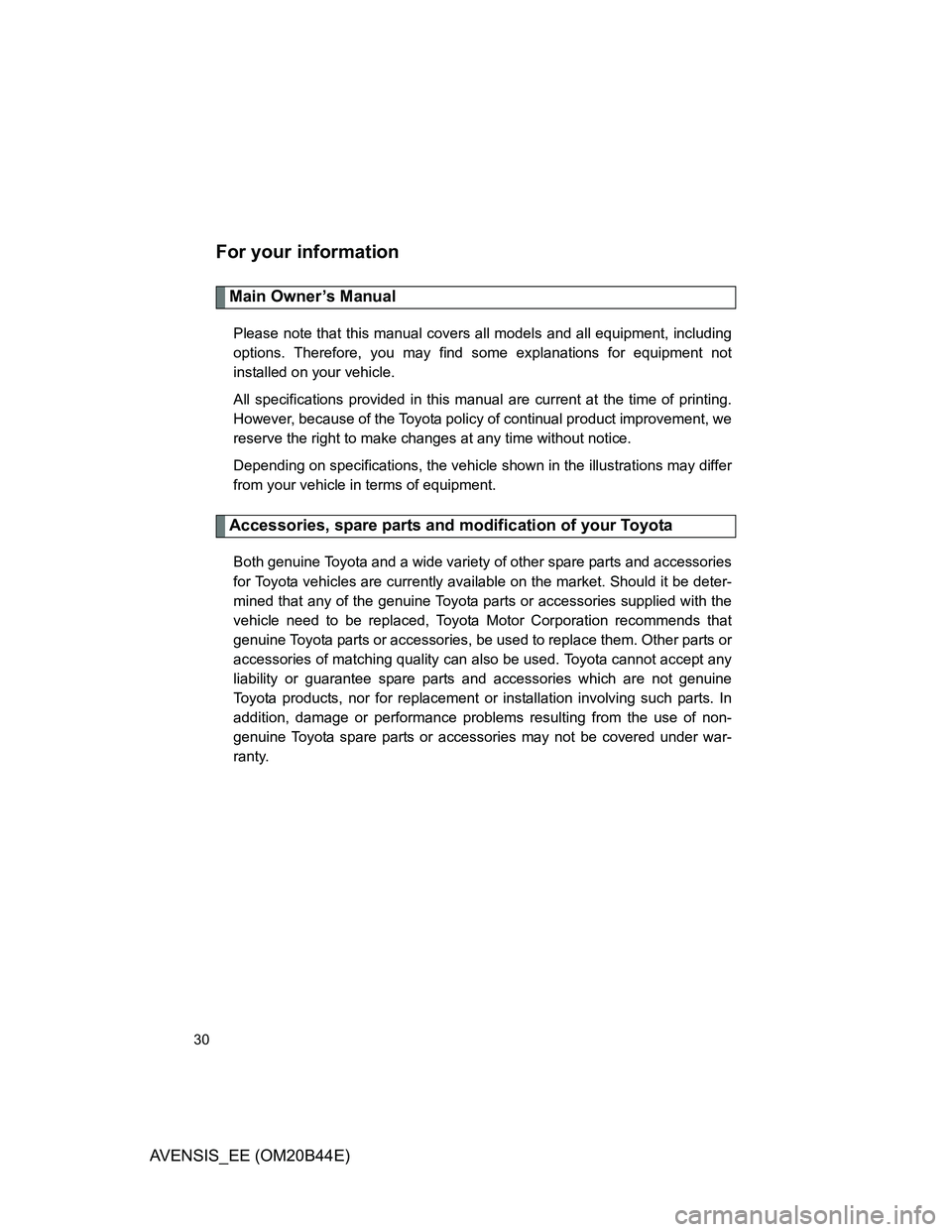

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be deter-
mined that any of the genuine Toyota parts or accessories supplied with the
vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problems resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under war-
ranty.

31
AVENSIS_EE (OM20B44E)

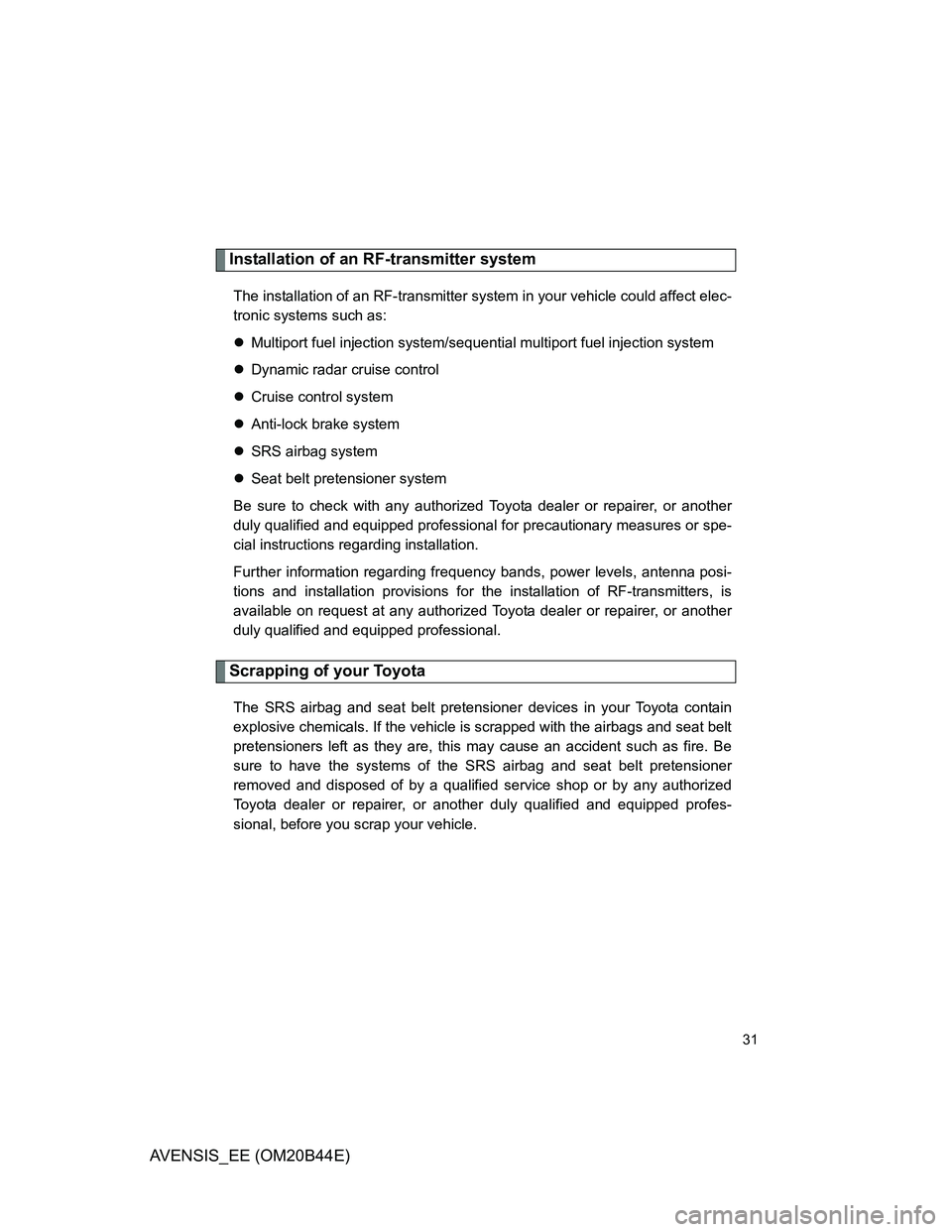

Installation of an RF-transmitter system
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Dynamic radar cruise control
Cruise control system
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.

32
AVENSIS_EE (OM20B44E)

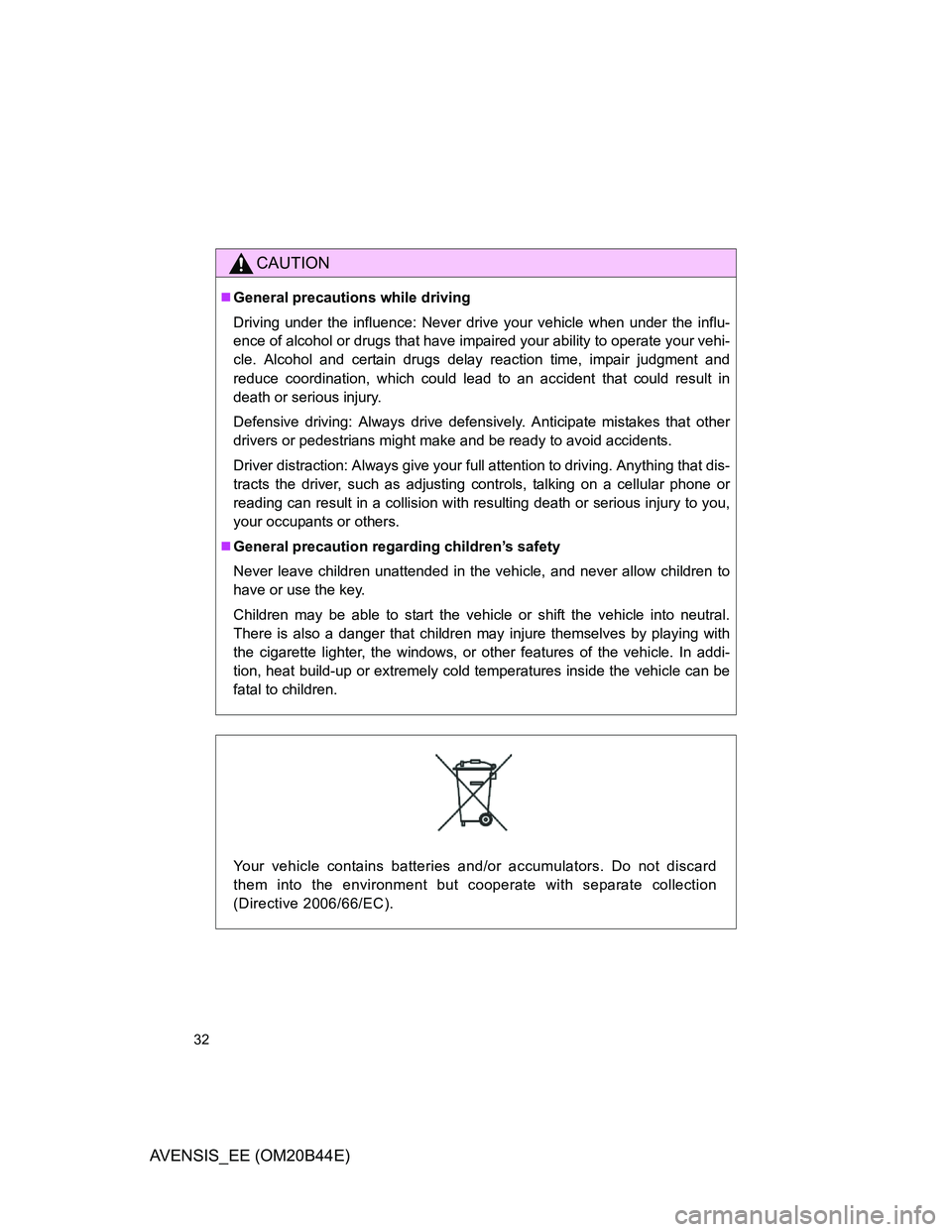

CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.
Your vehicle contains batteries and/or accumulators. Do not discard
them into the environment but cooperate with separate collection
(Directive 2006/66/EC).
