2012 TOYOTA AVALON Owners Manual

57
1-2. Opening, closing and locking the doors and trunk
1
Before driving
CAUTION
■
When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could overheat or suffo-
cate.
● Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing trunk lid.
■ Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.
●Remove any heavy loads, such as snow and ice, from the trunk lid before
opening it. Failure to do so may cause the trunk lid to fall closed again
after it is opened.
● When opening or closing the trunk lid, thoroughly check to make sure the
surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the trunk is about to open or close.
● Use caution when opening or closing the trunk lid in windy weather as it
may move abruptly in strong wind.

58 1-2. Opening, closing and locking the doors and trunk
CAUTION
●Do not attach any accessories other than genuine Toyota parts to the trunk
lid. Such additional weight on the trunk lid may cause the lid to fall closed
again after it is opened.
●The trunk lid may fall if it is not opened
fully. It is more difficult to open or close
the trunk lid on an incline than on a
level surface, so beware of the trunk lid
unexpectedly opening or closing by
itself. Make sure that the trunk lid is fully
open and secure before using the
trunk.
● When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
● When closing the trunk lid, make sure
to press it lightly on its outer surface. If
the trunk handle is used to fully close
the trunk lid, it may result in hands or
arms being caught.

59
1
Before driving
1-3. Adjustable components (seats, steering wheel, mirrors)

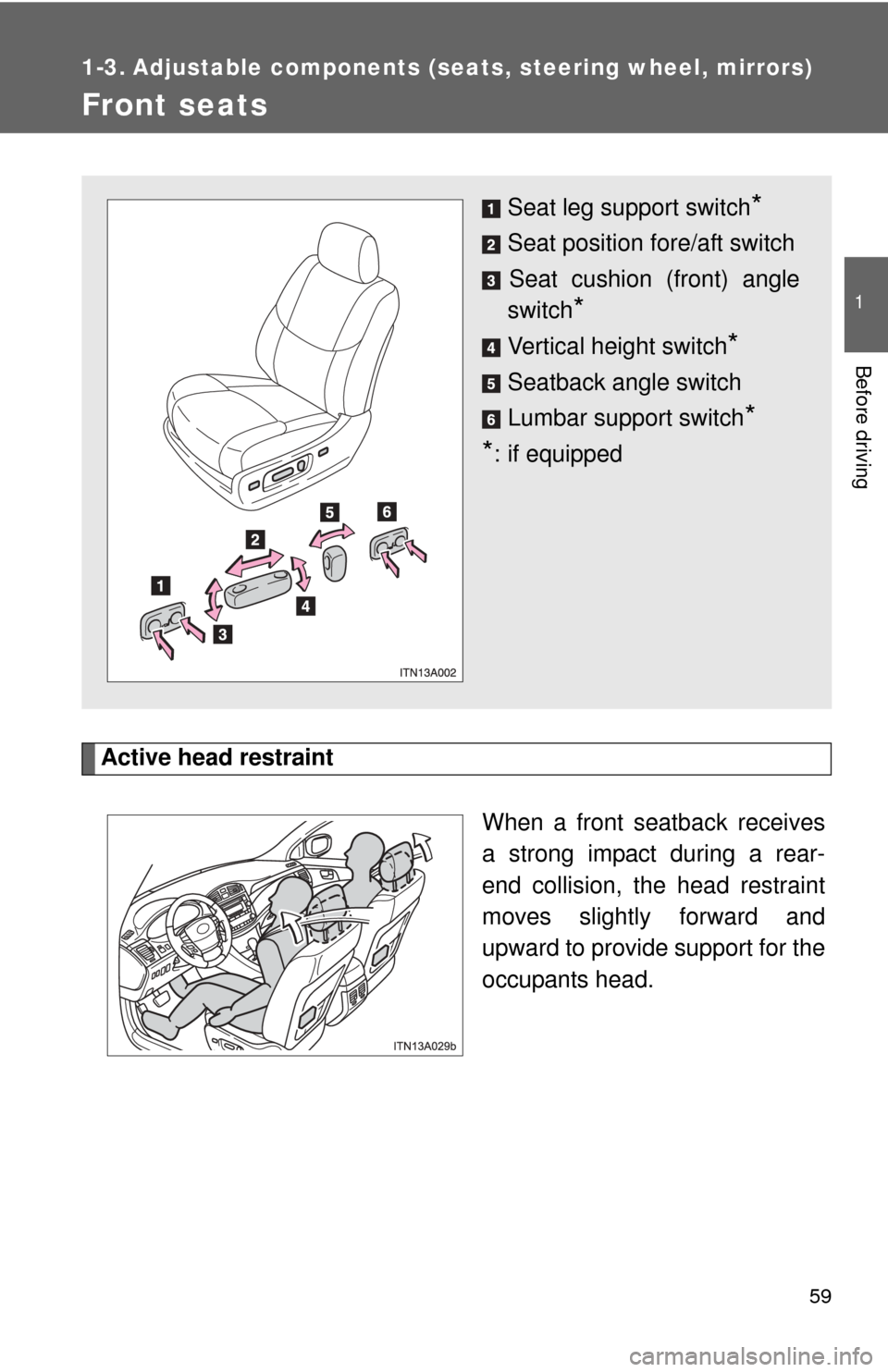

Front seats
Active head restraint
When a front seatback receives
a strong impact during a rear-
end collision, the head restraint
moves slightly forward and
upward to provide support for the
occupants head.
Seat leg support switch*
Seat position fore/aft switchSeat cushion (front) angle
switch
*
Vertical height switch*
Seatback angle switch
Lumbar support switch
*
*
: if equipped

60 1-3. Adjustable components (seats, steering wheel, mirrors)
■Active head restraint
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may cause the head
restraint inner structure to appear. This does not indicate a problem.
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
Inner
structureDuring
rear-end
collision

61
1
1-3. Adjustable components (seats, steering wheel, mirrors)
Before driving

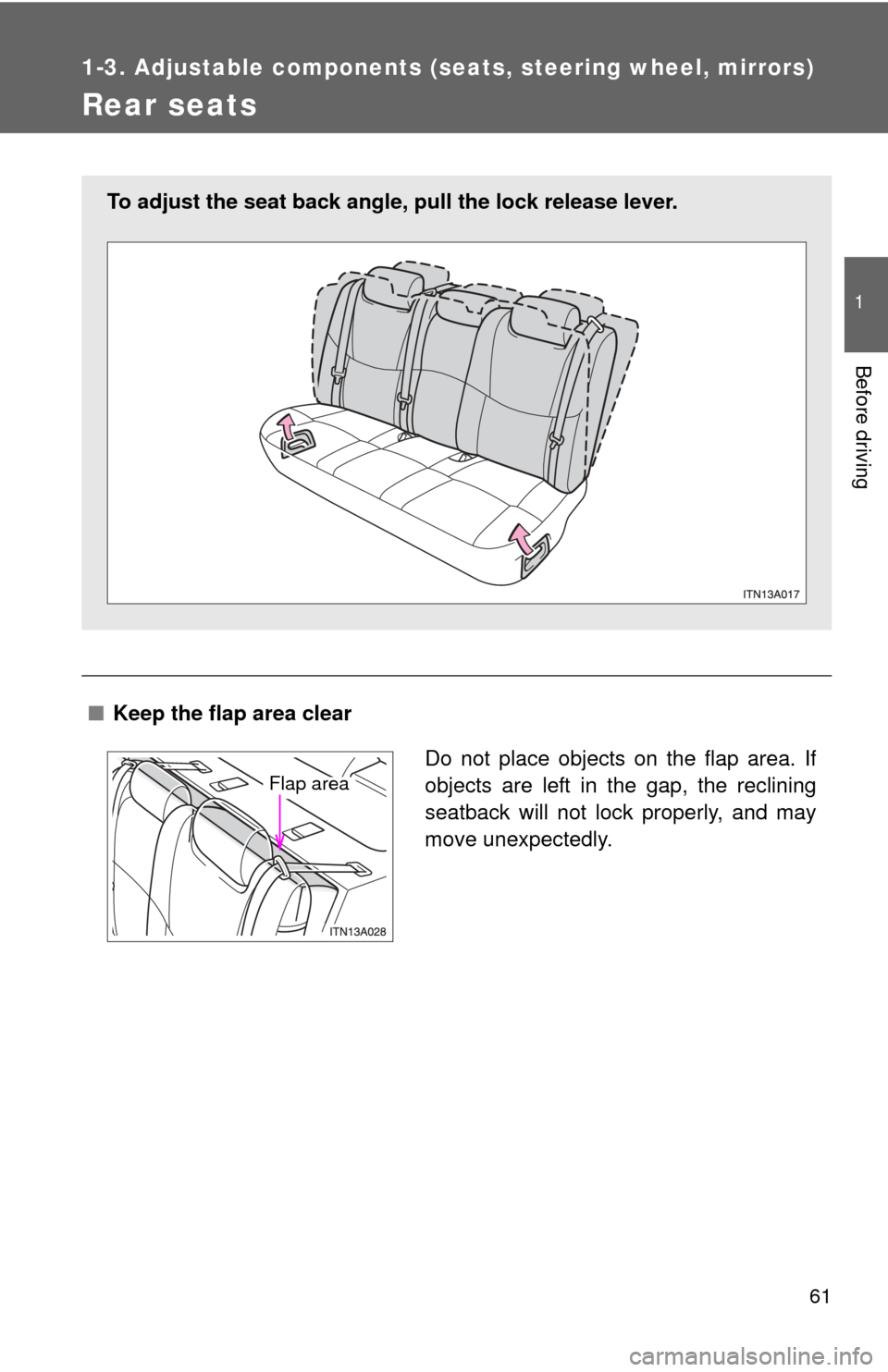

Rear seats
■ Keep the flap area clear
To adjust the seat back angle, pull the lock release lever.
Do not place objects on the flap area. If
objects are left in the gap, the reclining
seatback will not lock properly, and may
move unexpectedly.
Flap area

62 1-3. Adjustable components (seats, steering wheel, mirrors)
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.

63
1
1-3. Adjustable components (seats, steering wheel, mirrors)
Before driving
Driving position memor y system
: If equipped
Your preferred driving position (the position of the driver’s seat and
outside rear view mirrors) can be entered into the computer’s mem-
ory and recalled with the touch of a button. It is also possible to set
this function to activate automati cally when the doors are unlocked.
Two different driving positions can be entered into memory.
■ Entering a position to memory
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch to IGNITION ON mode.
Vehicles without smart key system: Turn the engine switch
to the “ON” position.
Adjust the driver’s seat and outside rear view mirrors to the
desired positions.
Push the “SET” button, then
within 3 seconds, push button
“1” or “2” until the signal
beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3

64 1-3. Adjustable components (seats, steering wheel, mirrors)
■Recalling the memorized position
Vehicles with smart key system: Turn the “ENGINE START
STOP” switch to IGNITION ON mode.
Vehicles without smart key system: Turn the engine switch
to the “ON” position.
Push button “1” or “2” to recall
the memorized position.
STEP1
STEP2
