2012 TOYOTA AVALON Owners Manual

81
1-3. Adjustable components (seat
s, steering wheel, mirrors)
1
Before driving
Adjusting the height of the rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
■To prevent sensor error
CAUTION
■While driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and an accident, or result-
ing in death or serious injury.
To ensure correct functioning of the sen-
sors, do not touch or cover the sensors.

82
1-3. Adjustable components (seats, steering wheel, mirrors)

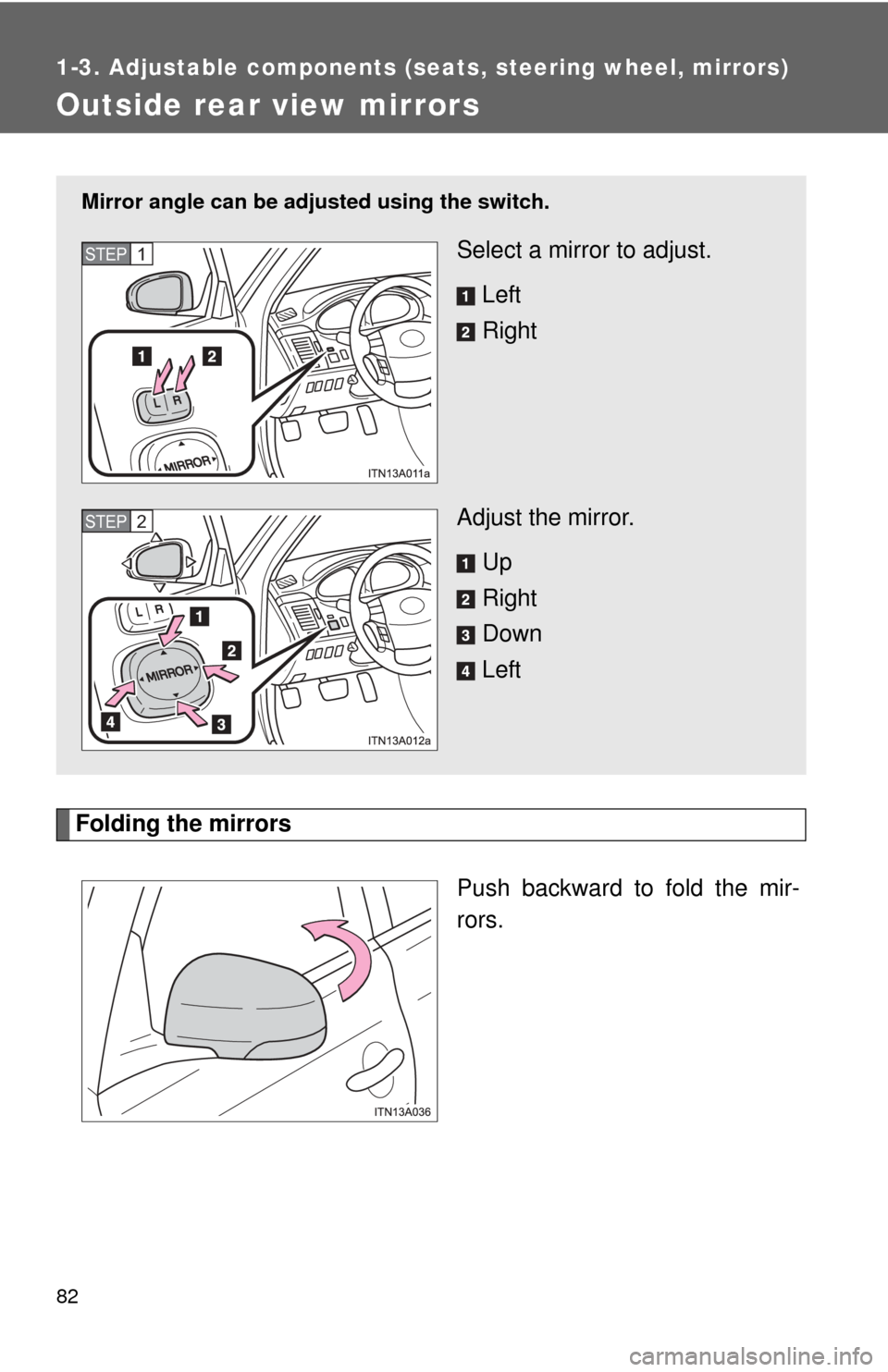

Outside rear view mirrors
Folding the mirrorsPush backward to fold the mir-
rors.
Mirror angle can be adjusted using the switch.
Select a mirror to adjust.
Left
Right
Adjust the mirror. Up
Right
Down
LeftSTEP1
STEP2

83
1-3. Adjustable components (seat
s, steering wheel, mirrors)
1
Before driving
■The outside rear view mirr ors can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in the ACCESSORY or IGNITION
ON mode.
Vehicles without smart key system
The engine switch is in the “ACC” or “ON” position.
■ When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. (P. 237)
■ Auto anti-glare function
When the anti-glare inside rear view mirror is set to auto mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear
view mirror to reduce reflected light. ( P. 80)
■ One touch power adjustment
You can store and recall power adjustments such as the driver’s seat and
the outside rear view mirrors. ( P. 63)

84 1-3. Adjustable components (seats, steering wheel, mirrors)
CAUTION
■While driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
●Do not adjust the mirrors.
● Before driving, be sure to make an adjustment of the driver and passenger
side mirrors properly.
● Do not drive with the mirrors folded.
■ When the mirror h eaters are operating
Do not touch the mirror surface as the mirror surface becomes hot.
NOTICE
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to
free the mirror.

85
1
Before driving
1-4. Opening and closing the windows and moon roof
Power windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
One-touch closing*
Closing
One-touch opening
*
Opening
*: Pressing the switch in the opposite direction will stop win-
dow travel partway.

86 1-4. Opening and closing the windows and moon roof
■The power windows can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
■ Operating the power windows af ter turning the engine off
Vehicles with smart key system
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned to ACCESSORY mode or
turned OFF. They cannot, however, be operated once the driver’s or front
passenger’s door is opened. Vehicles without smart key system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once the driver’s or front passenger’s door is
opened.
■ Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
■ When the battery is disconnected
The power windows must be initialized in order to ensure proper operation.
(Perform for each window with the switch for each seat.)
Open the window halfway.
Fully close the window by pulling the switch up and continue hold-
ing the switch for 1 second.
The indicator on the switch changes from a flashing pattern to being on
when initial settings are complete.
STEP1
STEP2

87
1-4. Opening and closing the windows and moon roof
1
Before driving
CAUTION
■
When closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■ Jam protection function
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

88
1-4. Opening and closing the windows and moon roof
Moon roof
: If equipped
Use the overhead switches to open, close, and tilt the moon roof up
and down.
■Opening and closing
Open
Stops just before it is opened
fully. Press the switch again to
fully open.
Close
To stop partway, press the
switch lightly.
■Tilt up and down
Tilt up
Tilt down
To stop partway, press the
switch lightly.
