Maintenance and care
449
4-3. Do-it-yourself maintenance
■
Driver’s side instrument panel
FuseAmpereCircuit
1RR DOOR20 APower window
2RL DOOR20 APower window
3FR DOOR20 APower window, driving position
memory system
4FOG15 AFront fog lights
5OBD7.5 AOn-board diagnosis system
6MPX-B7.5 AMultiplex communication system
7FL DOOR20 APower window, driving position
memory system
8FUEL OPN7.5 AFuel filler door opener
9AM17.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system, starting system, ignition
system
10A/C7.5 AAir conditioning system
11S-HTR20 AAir conditioning system
12DOOR No.225 AMultiplex communication system
13S/ROOF30 AMoon roof

450 4-3. Do-it-yourself maintenance
FuseAmpereCircuit
14TA I L10 A
Parking lights, license plate lights,
tail lights, front and rear side
marker lights
15PA N E L7.5 A
Seat heaters, navigation system,
emergency flashers,
electronically controlled
automatic transmission system,
glove box light, instrument panel
lights, power outlets
16ECU IG No.110 A
Center display, shift lock control
system, moon roof, multiplex
communication system, tire pres-
sure monitoring (warning) system
17ECU IG No.210 A
Anti-lock brake system, automatic
headlight leveling system, vehicle
stability control system, multiplex
communication system
18HTR7.5 A
Air conditioning system,
instrument panel lights, electric
cooling fan
19A/C COMP7.5 AAir conditioning system
20GAUGE No.110 ABack-up lights, navigation
system, emergency flashers
21WIP30 AWindshield wipers
22RR S/SHADE10 ARear sunshade

4
Maintenance and care
451
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
23IGN10 A
Multiport fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, front
passenger occupant
classification system, smart key
system, starting system, electronic
controlled transmission system
24GAUGE No.27.5 AGauges and meters, center
display
25ECU-ACC7.5 A
Power rear view mirrors, center
display, shift lock system,
multiplex communication system
26CIG15 A
27PWR OUTLET15 APower outlets
28RADIO No.27.5 AAudio system, navigation system
29MIR HTR10 AOutside rear view mirror
defoggers

452 4-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 455)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

453
4-3. Do-it-yourself maintenance
4
Maintenance and care

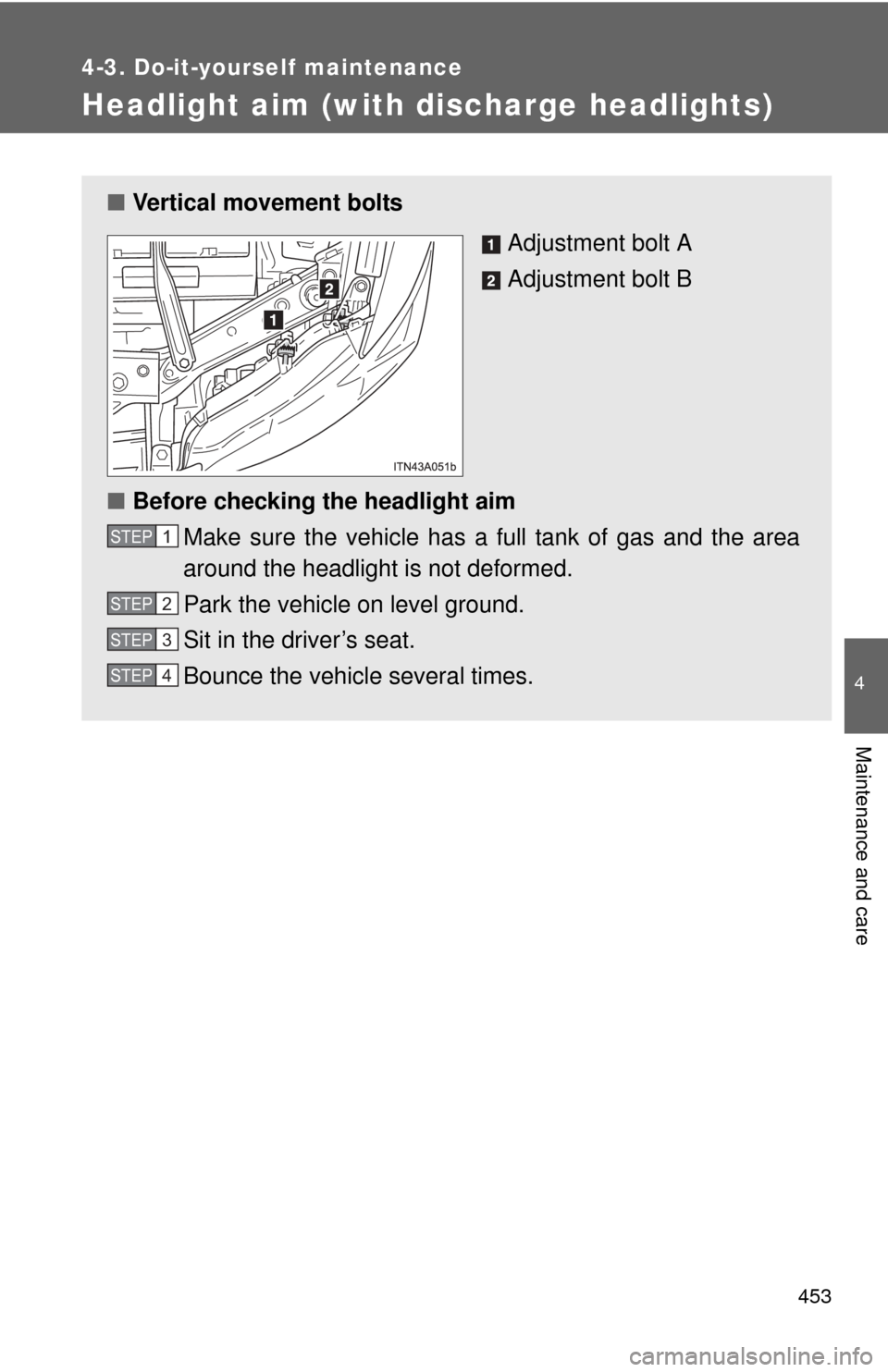

Headlight aim (with discharge headlights)
■Vertical movement bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4

454 4-3. Do-it-yourself maintenance

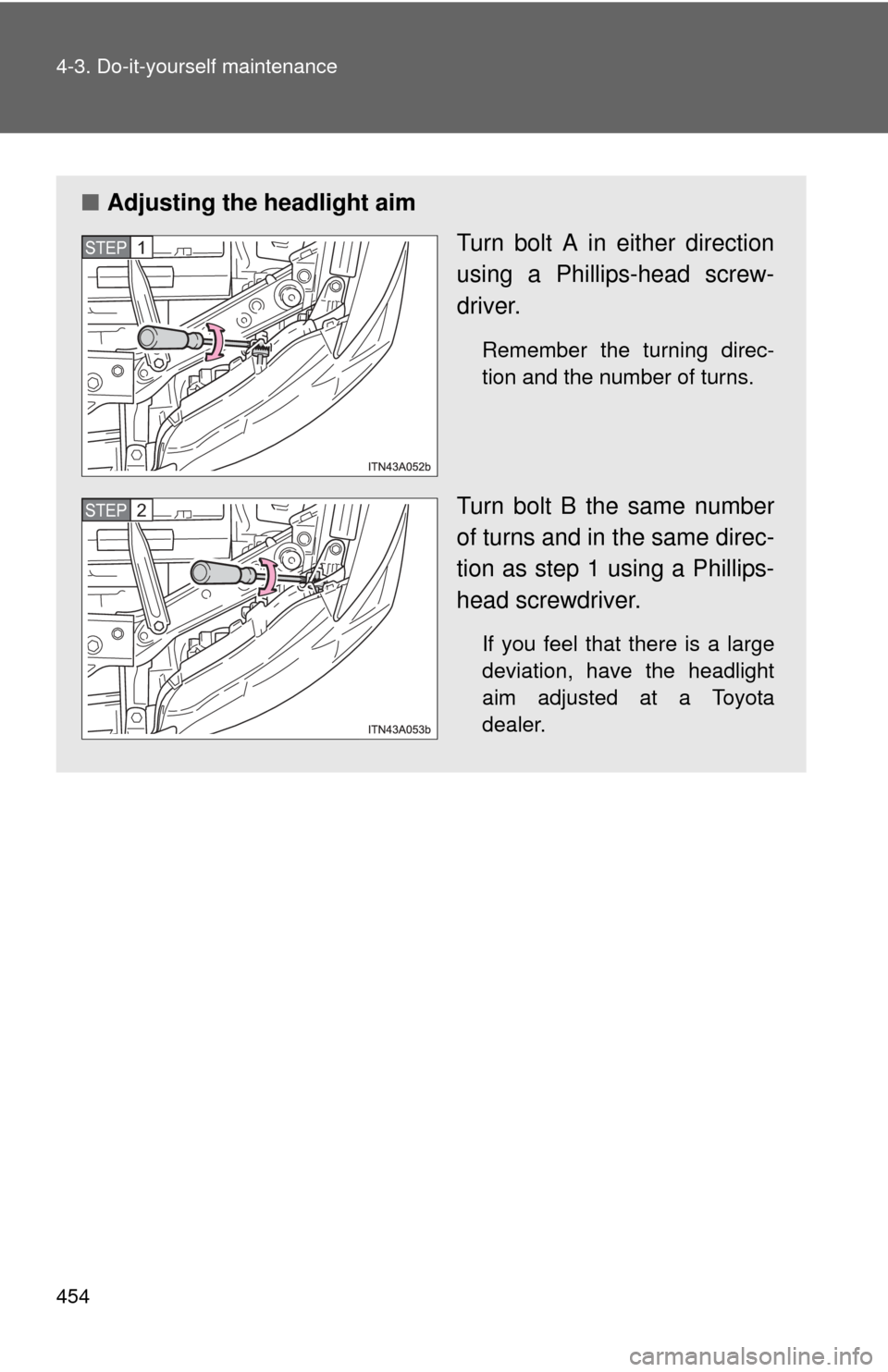

■Adjusting the headlight aim
Turn bolt A in either direction
using a Phillips-head screw-
driver.
Remember the turning direc-
tion and the number of turns.
Turn bolt B the same number
of turns and in the same direc-
tion as step 1 using a Phillips-
head screwdriver.
If you feel that there is a large
deviation, have the headlight
aim adjusted at a Toyota
dealer.
STEP1
STEP2

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 527)
■ Remove the engine compartment cover
P. 407
■ Front bulb locations
Front side marker light
Front turn signal/parking light
Front fog light
Headlight high beam and
daytime running light
Auxiliary light
Headlight low beam

456 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlight low beams (vehicle s with halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.
■ Rear bulb locations
Rear side marker light
Rear turn signal light Back-up light
License plate light
St o p li gh t
STEP1
STEP2
