2012 TOYOTA AVALON Owners Manual

185
2-3. Operating the lights and windshield wipers
2
When driving
Wash/wipe operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.
■
Raindrop detection windshield wipers (if equipped)
With “AUTO” selected, the wi pers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.
Raindrop detection
wiper operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation

186 2-3. Operating the lights and windshield wipers
■The windshield wiper and washer can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
Sensor sensitivity (high)
Sensor sensitivity (low)
Wash/wipe operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

187
2-3. Operating the lights and windshield wipers
2
When driving
■
Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not in “AUTO”
mode.
●Intermittent wiper interval ( mode)
● Wiper operation when the washer is being used
With low speed mode, wiper operation will be switched from low speed to
intermittent wiper operation only when the vehicle is stationary.
■ Rain drop sensor (vehicles equipped with the raindrop detection wind-
shield wipers)
●If the wiper switch is turned to the “AUTO” position while the “ENGINE
START STOP” switch is in ON mode, the wipers will operate once to
show that “AUTO” mode is activated.
● If the temperature of the raindrop sensor is 194 °F (90 °C) or higher, or
14 °F (-10 °C) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. switching operation when the vehicle is stationary) can be
changed. (Customizable features P. 545)
●The sensor judges the amount of rain-
drops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.

188 2-3. Operating the lights and windshield wipers
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpec tedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

189
2-3. Operating the lights and windshield wipers
2
When driving

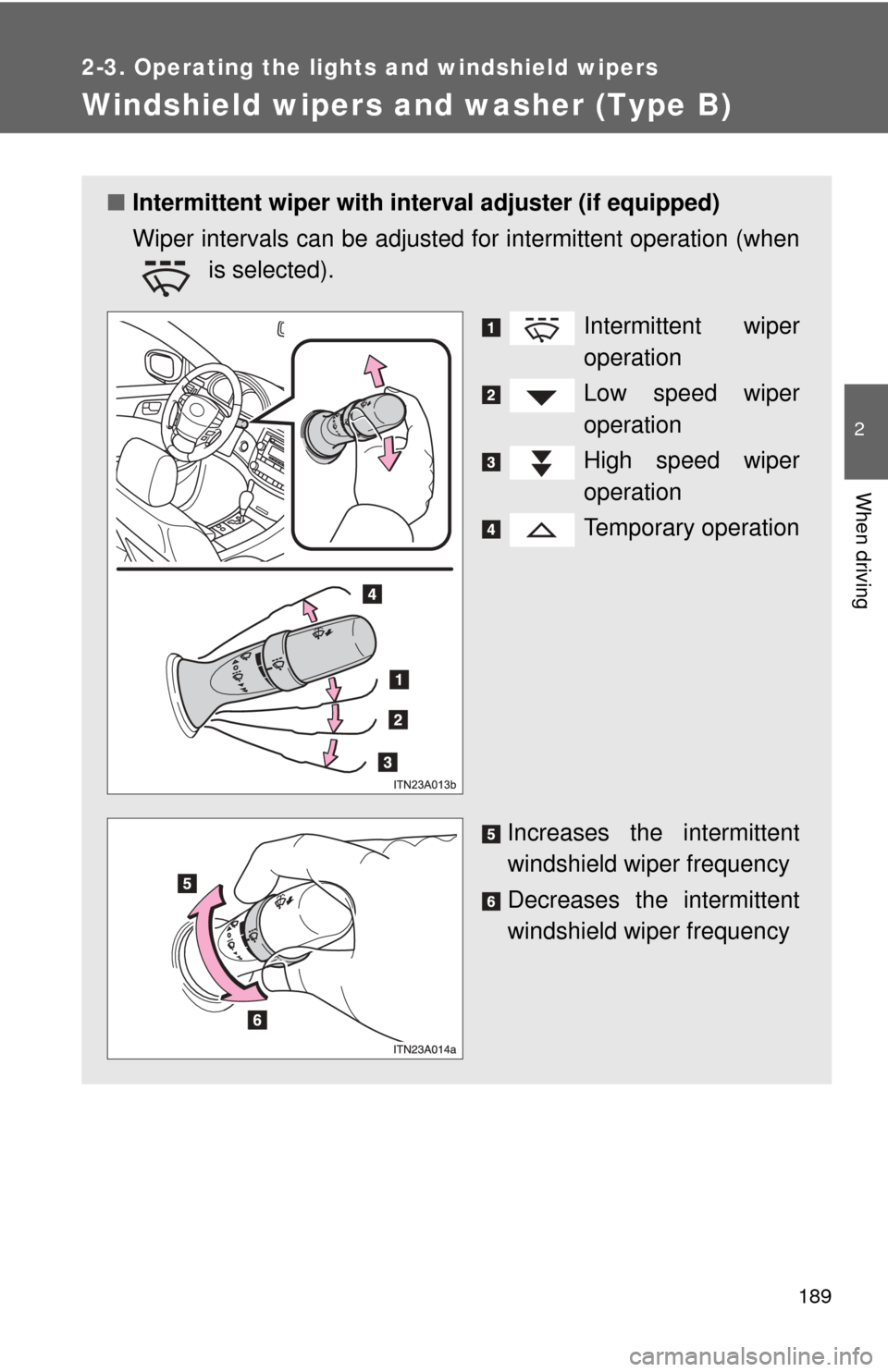

Windshield wipers and washer (Type B)
■Intermittent wiper with inte rval adjuster (if equipped)
Wiper intervals can be adjusted for intermittent operation (when is selected).
Intermittent wiper
operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency

190 2-3. Operating the lights and windshield wipers
Wash/wipe operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.
■Raindrop detection windshield wipers (if equipped)
With “AUTO” selected, the wi pers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.
Raindrop detection
wiper operation
Low speed wiper
operation
High speed wiper
operation
Temporary operation

191
2-3. Operating the lights and windshield wipers
2
When driving
■
The windshield wiper and washer can be operated when
Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
Vehicles without smart key system
The engine switch is in the “ON” position.
Sensor sensitivity (high)
Sensor sensitivity (low)
Wash/wipe operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

192 2-3. Operating the lights and windshield wipers
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not in “AUTO”
mode.
●Intermittent wiper interval ( mode)
● Wiper operation when the washer is being used
With low speed mode, wiper operation will be switched from low speed to
intermittent wiper operation only when the vehicle is stationary.
■ Rain drop sensor (vehicles equipped with the raindrop detection wind-
shield wipers)
● If the wiper switch is turned to the “AUTO” position while the “ENGINE
START STOP” switch is in ON mode, the wipers will operate once to
show that “AUTO” mode is activated.
● If the temperature of the raindrop sensor is 194 °F (90 °C) or higher, or
14 °F (-10 °C) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. switching operation when the vehicle is stationary) can be
changed. (Customizable features P. 545)
●The sensor judges the amount of rain-
drops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc.
are present on the windshield.
