2012 RENAULT KOLEOS Owners Manual

JauneNoirNoir texte
1.35
ENG_UD23487_5
Sécurité enfants : installation du siège enfant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
chILd sAfETY : fitting a child seat (3/3)
(5) RIsK Of dEATh OR sERIOUs INJURY: before fitting a rear-facing child seat in the front passenger seat, check
that the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front pas-
senger air bag” at the end of the paragraph).
The table below summarises the information already shown on the diagram on the previous page, to ensure the regu-
lations in force are respected.
Type of child seat Weight of
the child seat size
IsOfIX passenger front
seat (1) (5) Rear side seats
Rear centre seat
carrycot fitted across the vehicle
Group 0 < 10 kg
F- G XU - IL (2) U
shell seat/rear-facing seat
Group 0, 0+ and 1 < 13 kg and
9 to 18 kg C, D, E
UU - IL (3) U
forward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (4) U
Booster seat
Group 2 and 3 15 to 25 kg and
22 to 36 kg X
U (4) U
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUf/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(2) A carrycot can be installed across the vehicle and will take up two seats. Position the child with his or her feet nearest the
door.
(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat or seats in front in
accordance with the child seat instructions.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary, do not push the seat more than halfway back on its runners and do not re-
cline the seatback more than 25°.

air bagdeactivating the front passenger air bags ........ (current page)
front passenger air bag deactivation ..................... (current page)
1.36
ENG_UD23643_7
Sécurité enfants : désactivation, activation airbag passager avant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Jaune NoirNoir texte
deactivating/activating the front passenger airbags
chILd sAfETY : deactivating, activating the front passenger air bag (1/3)
deactivating the front
passenger airbags
(on equipped vehicles)
You must deactivate the devices in ad-
dition to the front passenger seat belt
before fitting a child seat in the front
passenger seat. To deactivate the air bags: with the
vehicle stationary,
insert the inte-
grated key into the switch 1 then push it
and turn it to the Off position.
With the ignition on, you must check
that the indicator light is lit on the instru-
ment panel 2 or on the central display
and, depending on the vehicle, that the
message “Passenger airbag off” is dis-
played.
This light remains continuously lit to
let you know that you can fit a child
seat.
2
1
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
dANgER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEvER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.

JauneNoirNoir texte
1.37
ENG_UD23643_7
Sécurité enfants : désactivation, activation airbag passager avant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
chILd sAfETY : deactivating, activating the front passenger air bag (2/3)
dANgER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEvER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
The markings on the dashboard and
labels A on each side of the passen -
ger sun visor 3 (example: label shown
above) remind you of these instruc -
tions.
3
A
A

air bagactivating the front passenger air bags ............ (current page)
1.38
ENG_UD23643_7
Sécurité enfants : désactivation, activation airbag passager avant (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
chILd sAfETY : deactivating, activating the front passenger air bag (3/3)
Activating the front
passenger air bags
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of the front passenger in the
event of an impact.
To reactivate the air bags: with the
vehicle stationary, insert the inte-
grated key into the lock 1 then push it
and turn it to the ON position.
With the ignition on, you must check
that the indicator light on the instrument
panel 2 or on the central display is off.
The front passenger seat belt additional
restraint systems are activated.
2
1
Operating faults
In the event of a fault, warning light
å flashes and warning light ©
lights up on the instrument panel ac -
companied by the message “check air
bag”.
Contact your approved dealer as soon
as possible.
The passenger air bag must
only be deactivated or acti-
vated with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
air bag activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.

clock ..................................................... (up to the end of the DU)
clock ..................................................... (up to the end of the DU)
temperature .......................................... (up to the end of the DU)
indicators: exterior temperature indicator ......... (up to the end of the DU)
1.39
ENG_UD20778_4
Heure et temp rature ext rieure (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Clock and exterior temperature
cLOcK ANd EXTERNAL TEMpERATURE
With the ignition on, the clock and the
exterior temperature are displayed.
Resetting clock 1Refer to the specific equipment instruc-
tions (navigation system, radio) for the
particular features.
External temperature
indicator
As ice formation is related
to climatic exposure, local
air humidity and temperature, the
external temperature alone is not
sufficient to detect ice.
External temperature
indicator
special note:
When the outside temperature is –3°C
to +3°C, the °C characters flash (signal -
ling a risk of black ice on the road).
Note: in some cases (vehicle stopped
for less than 3 hrs 30 mins), the infor -
mation displayed on the screen when
the ignition is switched on may be in -
correct.
1
If the power supply is cut (battery
disconnected, supply wire cut, etc.),
the clock must be reset.
We recommend that you do not
adjust these settings while driving.

driver’s position .................................... (up to the end of the DU)
controls ................................................. (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.40
ENG_UD27144_6
Poste de conduite direction gauche (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Jaune NoirNoir texte
Driving position
dRIvINg pOsITION: LEfT -hANd dRIvE (1/2)
86539101112
15
22
20
213
2425292827
21
23
16
4114
17
18
7
19
26

JauneNoirNoir texte
1.41
ENG_UD27144_6
Poste de conduite direction gauche (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
dRIvINg pOsITION: LEfT -hANd dRIvE (2/2)
The equipment fitted, described below, dEpENds ON ThE vERsION ANd cOUNTRY.
9 Display (depending on the vehicle)
of time, temperature, radio informa -
tion, navigation system information,
etc.
10 Hazard warning lights switch.
11 Central door locking switch.
12 Passenger seat belt indicator light.
13 Location for passenger air bag.
14 Vents.
15 Glovebox.
16 Heating and ventilation controls.
17 Audio equipment.
18 Cigar lighter.
19 Gear lever.
20 Navigation system.
21 Manual or electronic parking brake. 22
Switch for:
– Hill Descent Control (HDC);
– Cruise control and speed limiter.
23 Card reader.
24 Ignition switch.
25 Front passenger airbag deactivation
warning light.
26 Cruise control/speed limiter con -
trols.
27 Tailgate release.
28 Bonnet release.
29 Switches:
– Headlight adjustment control knob;
– Instrument panel and dashboard
brightness control knob;
– Parking distance control deactivation
switch;
– Electronic stability control deactiva -
tion switch.
1
Vents
2 Stalk for:
– Direction indicator lights;
– Exterior lights;
– Front fog lights;
– Rear fog light.
3 Location of driver’s air bag and horn.
4 Instrument panel.
5 Stalk for:
– Windscreen and rear screen wash/
wiper;
– Trip computer and warning system
information readout control.
6 Centre air vents.
7 Seat belt unfastened and passenger
air bag deactivated warning lights.
8 Windscreen demister outlet.

1.42
ENG_UD27145_6
Poste de conduite direction droite (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_1
Jaune NoirNoir texte

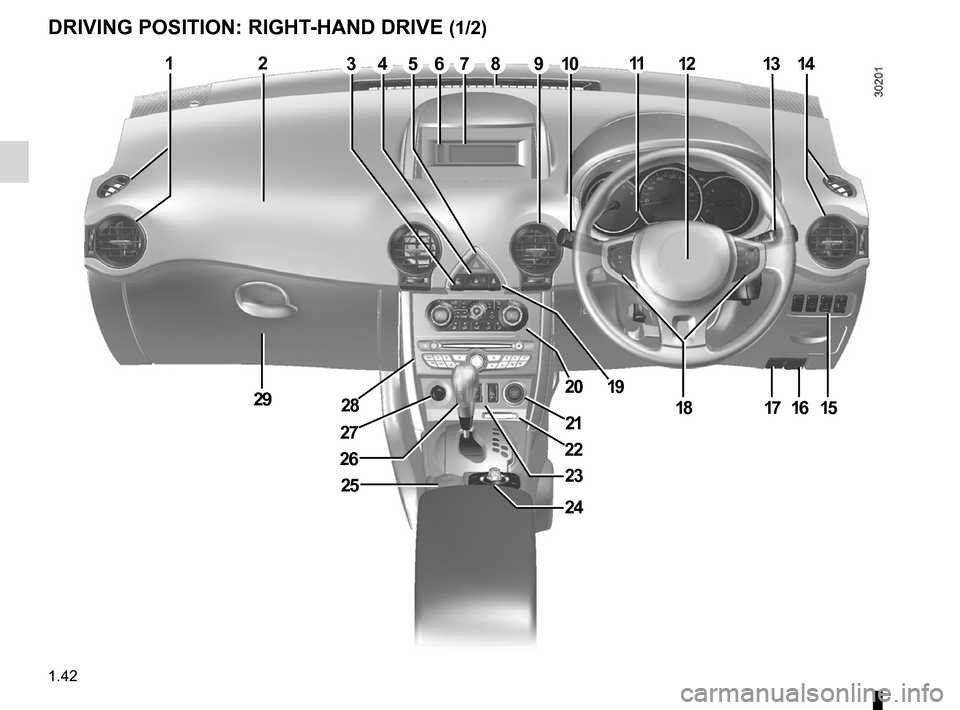

dRIvINg pOsITION: RIghT -hANd dRIvE (1/2)
1097812345
29
25
24
2
19
21
28
272226
151617
13
23
11114
20
18
6
