2012 RENAULT KOLEOS Owners Manual

JauneNoirNoir texte
3.25
ENG_UD23672_6
Rangements, aménagements habitacle (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3

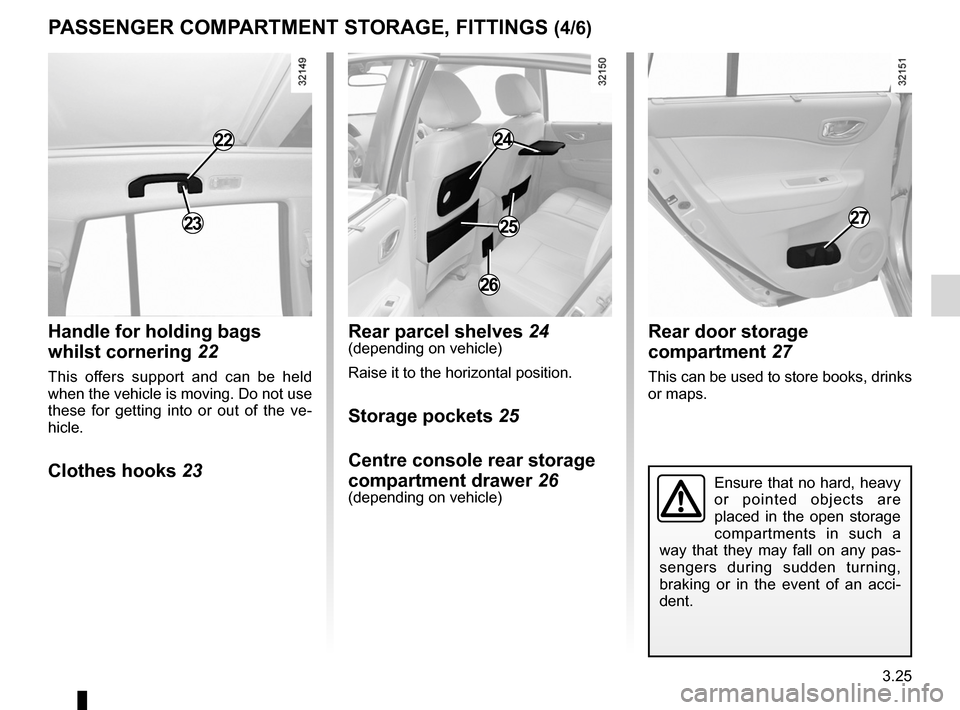

PASSENgER coMPARTMENT ST oRAgE, FITTINgS (4/6)
handle for holding bags
whilst cornering 22
This offers support and can be held
when the vehicle is moving. Do not use
these for getting into or out of the ve -
hicle.
clothes hooks 23 Rear parcel shelves
24
(depending on vehicle)
Raise it to the horizontal position.
Storage pockets 25
centre console rear storage
compartment drawer 26
(depending on vehicle)
Rear door storage
compartment 27
This can be used to store books, drinks
or maps.
23
22
26
27
24
25
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas -
sengers during sudden turning,
braking or in the event of an acci -
dent.

3.26
ENG_UD23672_6
Rangements, aménagements habitacle (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
Jaune NoirNoir texte

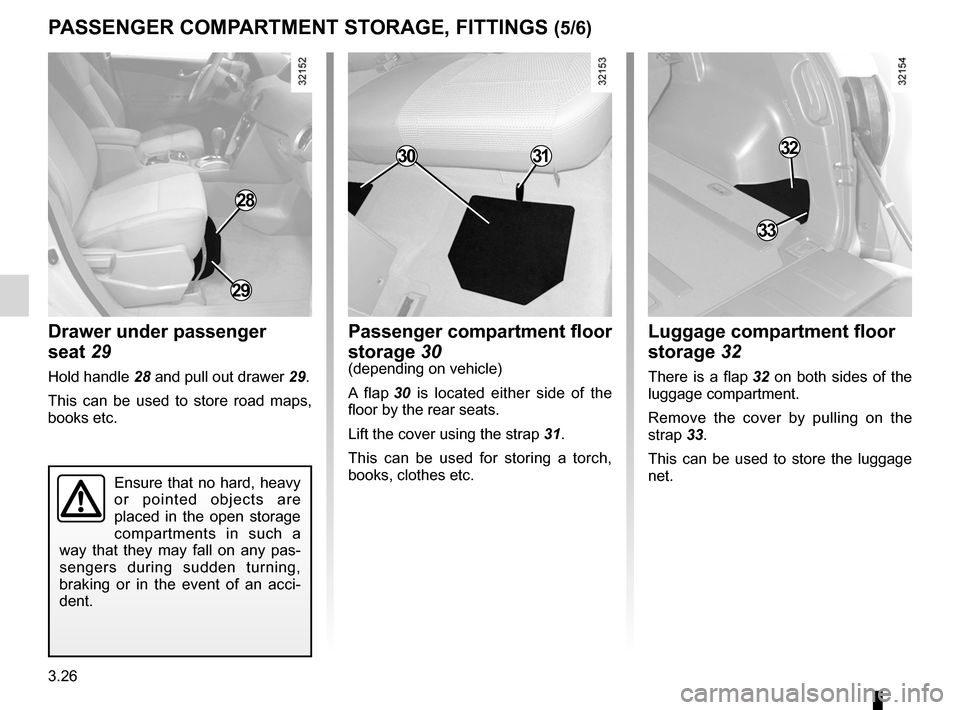

PASSENgER coMPARTMENT ST oRAgE, FITTINgS (5/6)
Drawer under passenger
seat 29
Hold handle 28 and pull out drawer 29.
This can be used to store road maps,
books etc.
Passenger compartment floor
storage 30
(depending on vehicle)
A flap 30 is located either side of the
floor by the rear seats.
Lift the cover using the strap 31.
This can be used for storing a torch,
books, clothes etc.
luggage compartment floor
storage 32
There is a flap 32 on both sides of the
luggage compartment.
Remove the cover by pulling on the
strap 33.
This can be used to store the luggage
net.
28
29
3132
33
30
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas -
sengers during sudden turning,
braking or in the event of an acci -
dent.

JauneNoirNoir texte
3.27
ENG_UD23672_6
Rangements, aménagements habitacle (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3

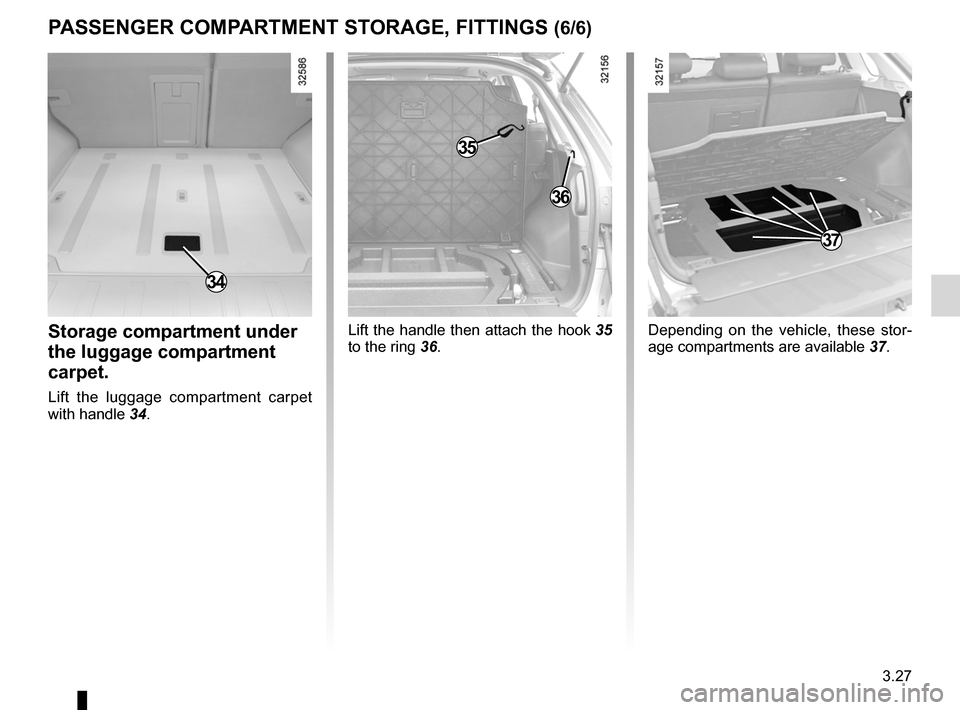

PASSENgER coMPARTMENT ST oRAgE, FITTINgS (6/6)
Storage compartment under
the luggage compartment
carpet.
Lift the luggage compartment carpet
with handle 34.
34
35
36
37
Lift the handle then attach the hook 35
to the ring 36. Depending on the vehicle, these stor
-
age compartments are available 37.

ashtray .................................................. (up to the end of the DU)
cigar lighter ........................................... (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.28
ENG_UD23662_5
Cendrier, allume-cigares, prise accessoires (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
Accessories sockets
Ashtray/cigarette lighter

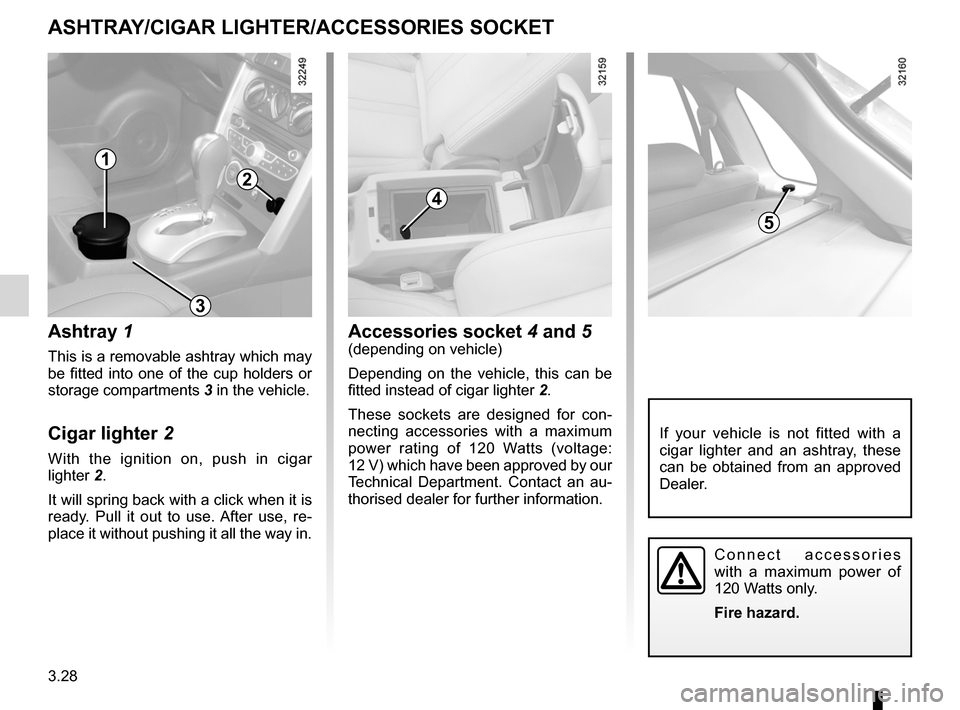

AShTRA y/cIgAR lIghTER/AccESSoRIES SocKET
Ashtray 1
This is a removable ashtray which may
be fitted into one of the cup holders or
storage compartments 3 in the vehicle.
cigar lighter 2
With the ignition on, push in cigar
lighter 2.
It will spring back with a click when it is
ready. Pull it out to use. After use, re -
place it without pushing it all the way in.
Accessories socket 4 and 5(depending on vehicle)
Depending on the vehicle, this can be
fitted instead of cigar lighter 2.
These sockets are designed for con -
necting accessories with a maximum
power rating of 120 Watts (voltage:
12 V) which have been approved by our
Technical Department. Contact an au -
thorised dealer for further information.
1
2
4
5
3
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.

headrest................................................ (up to the end of the DU)
3.29
ENG_UD23933_3
Appuis-tête arrière (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
Rear headrests
REAR hEADRESTS
Position for use
Raise or lower the headrest while pull -
ing it towards the front of the vehicle.
Storage position A
Press tab 1 or 2 and lower the headrest
completely.
w hen the headrest is set at the
lowest position, this is for storage
only: it should not be in this position
when a seat is occupied.To remove the headrest
Press tabs 1 and 2 simultaneously and
remove the headrest.
To refit the headrest
Slide the headrest rods into the holes,
press tabs 1 and 2 simultaneously and
lower the headrest.
Note: to remove or refit the headrest,
the seatback must be tilted. Refer to
“Rear bench seat” in Section 3.
The headrest is an impor -
tant safety component.
Ensure that it is fitted and
positioned correctly.
AA
12

rear seatsfunctions ......................................... (up to the end of the DU)
rear bench seat ..................................... (up to the end of the DU)
3.30
ENG_UD8576_2
Banquette arri re (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
Jaune NoirNoir texte
Rear bench seat functions
REAR BENch SEAT FuNcTIoNS (1/2)
When adjusting the seat, always ensure that the seat belt can return to
its original position.
When refitting the seatback, make sure it is correctly locked in place.
2
3
4
5
1
To fold down the rear seats
from inside the passenger
compartment
– lower the headrest;
– move the front seat as far forward as
necessary;
– feed the seat belt into the clip 5;
– pull lever 3: the seat base is raised;
– pull handle 4 and fold down the seat-
back.
Check that no-one, includ -
ing animals, is in the vicin -
ity of the rear bench seat
before pulling handle 1.
Risk of injury.
To fold down the rear
seats from the luggage
compartment
(depending on vehicle)
– lower the headrests;
– move the front seat as far forward as
necessary;
– feed the seat belt into the clip 5;
– use the controls 1.
To return the seat to its
original position
– lift the seatback and return it to its
original position;
– fold down the seat base 2;
– ensure that the seat is correctly
locked in position.
When the seat belt is not being used,
attach it to hook 5.

JauneNoirNoir texte
3.31
ENG_UD8576_2
Banquette arri re (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
REAR BENch SEAT FuNcTIoNS (2/2)
To adjust the seatback on the
rear seat
(depending on vehicle)
There are 5 position settings for the
rear seatback inclination. Tilt it while
raising the lever 6.
6
When adjusting the seat,
always ensure that the seat
belt can return to its original
position.
When moving the rear bench seat,
make sure the bench seat anchor -
age points are clean (they should be
free from grit, cloths etc.).
When refitting the seatback, make
sure it is correctly locked in place.
If seat covers are fitted, make sure
these do not prevent the seatback
latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.

tailgate .................................................. (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
3.32
ENG_UD23903_4
Coffre à bagages (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_3
Jaune NoirNoir texte
Boot
luggAgE coMPARTMENT (1/2)
Double opening tailgate
opening
Quick access: press switch 1 and lift
the upper section A.
1
Max 200 Kg
2
Full access: when the upper section is
open, pull handle 2 and guide the lower
section B fully downwards.
Driving with the rear screen open may be unpleasant for passengers as
exhaust gases may enter the passenger compartment. This use is solely
for short distances, whilst transporting bulky objects without having
to open the tailgate. In that case, close the other windows and the sun-
roof and switch the ventilation to medium or maximum power, as this will help
to prevent exhaust gas from entering the passenger compartment.
Do not drive the vehicle
when the lower section of
the tailgate is open.
The maximum authorised
weight on the lower sec -
tion of the boot when open:
200 kg, and this weight
must be evenly distributed (even
when loading).
Ensure that any objects being trans-
ported cannot fall out when the
lower section of the boot is opened.
Hold onto the lower section of the
tailgate while opening it. Do not let
it fly open.
A
B
A
B
