2012 RENAULT KOLEOS Owners Manual

bulbschanging ......................................... (up to the end of the DU)
fog lights ............................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
lights fog lights ......................................... (up to the end of the DU)
5.11
ENG_UD25389_5
Projecteurs avant : feux de brouillard avant, additionnels (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
heaDlIghts: additional/front fog lights
Front fog lights 1
changing a bulb:
Contact an approved dealer.
additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved dealer.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: side lights ......................................................... (current page)
lights: brake lights ...................................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
lights: direction indicators ........................................... (current page)
5.12
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Jaune NoirNoir texte
Rear lights and side lights (changing bulbs)
rear lIghts anD sIDe lIghts: changing bulbs (1/3)
However, because bodywork compo -
nents need to be removed, you are ad-
vised to have your bulbs replaced by
an approved dealer.
removing the bulbs
Open the tailgate then unclip cover 1
using a flat blade screwdriver or simi -
lar tool.
Remove the cover 2 then remove the
nut behind.
When changing the bulb, do
not touch the electrical cir -
cuit in which the new bulb is
to be inserted.
You could damage the light.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Release the light unit by pulling it back-
wards.
Undo bulb holder 3, 4 or 5 a quarter of
a turn then replace the bulb.
n ote: Ensure that the lead is in place
before inserting the light unit.
side light 3
Bulb type: w5w .
Indicator light 4
Bulb type: Py21w .
Brake light 5
Bulb type: P21w .
1
2
43
5

lights:side lights ......................................................... (current page)
lights: reversing lights ................................................. (current page)
JauneNoirNoir texte
5.13
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
rear lIghts anD sIDe lIghts: changing bulbs (2/3)
side lights and tailgate
reversing light
Remove the screws 7 on the tailgate
before removing the light unit 6 by
pushing it outwards.
Undo bulb holder 8 or 9 a quarter of a
turn then replace the bulb.
n ote: Ensure that the lead is in place
before inserting the light unit.
reversing light 8
Bulb type: w16w .
side light 9
Bulb type: w5w .
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
8
9
7
6
high-level brake light 10
Consult an approved Dealer.
rear fog light 11(depending on vehicle)
Consult an approved Dealer.
Do not raise your vehicle
with the jack to change the
bulbs.
Risk of injury.
10
11

lights:brake lights ...................................................... (current page)
side and number plate lighting changing bulbs ................................................. (current page)
side indicator lights changing bulbs ................................................. (current page)
lights: number plate lights .......................................... (current page)
5.14
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5

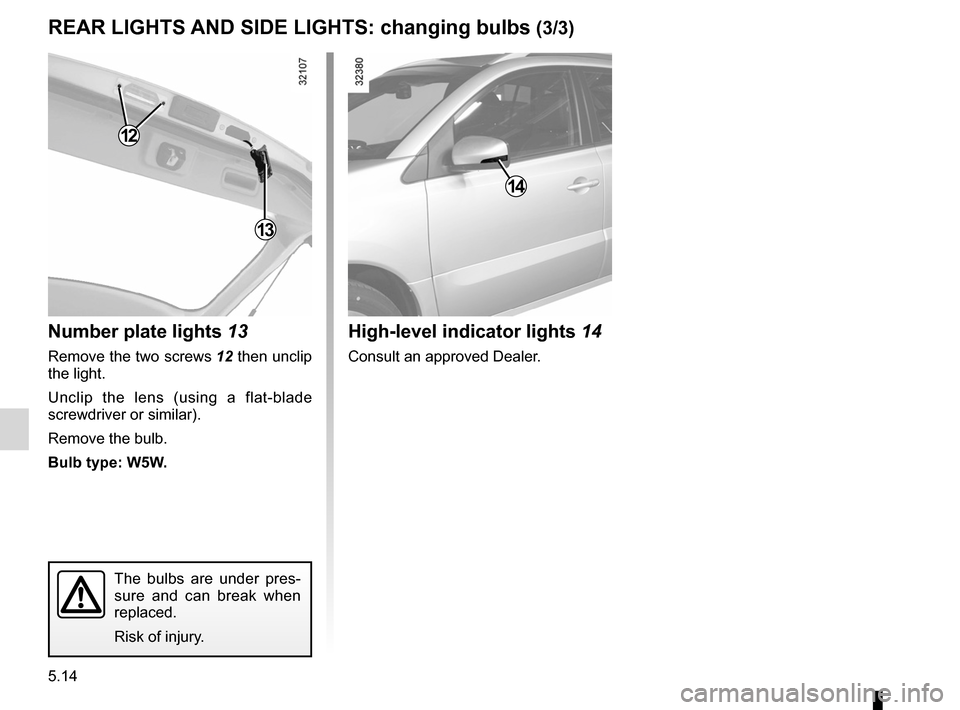

rear lIghts anD sIDe lIghts: changing bulbs (3/3)
number plate lights 13
Remove the two screws 12 then unclip
the light.
Unclip the lens (using a flat-blade
screwdriver or similar).
Remove the bulb.
Bulb type: w5w.
high-level indicator lights 14
Consult an approved Dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
13
14
12

courtesy light ........................................ (up to the end of the DU)
lighting: interior ............................................. (up to the end of the DU)
5.15
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Interior lights (changing bulbs)

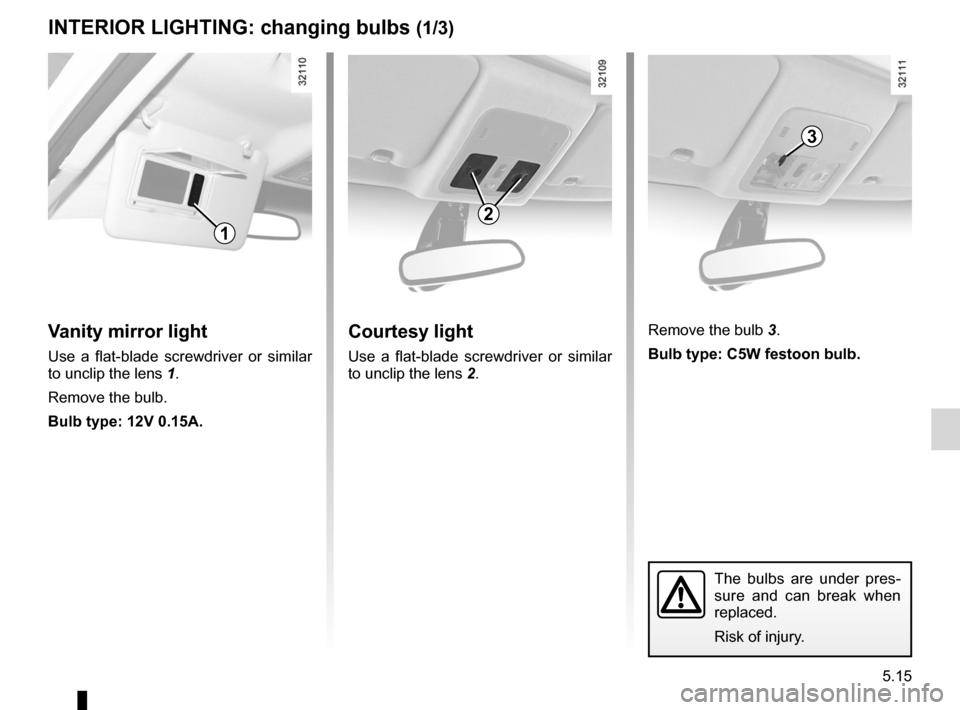

InterIOr lIghtIng: changing bulbs (1/3)
Vanity mirror light
Use a flat-blade screwdriver or similar
to unclip the lens 1.
Remove the bulb.
Bulb type: 12V 0.15a.
courtesy light
Use a flat-blade screwdriver or similar
to unclip the lens 2. Remove the bulb
3.
Bulb type: c5w festoon bulb.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1
2
3

5.16
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Jaune NoirNoir texte
InterIOr lIghtIng: changing bulbs (2/3)
Passenger storage
compartment light 4
Consult an approved Dealer.
Door lights
Unclip light 5 (using a flat-blade screw-
driver or similar). Unclip the lens then
remove the bulb.
Bulb type: w5w.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
5
4

JauneNoirNoir texte
5.17
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5

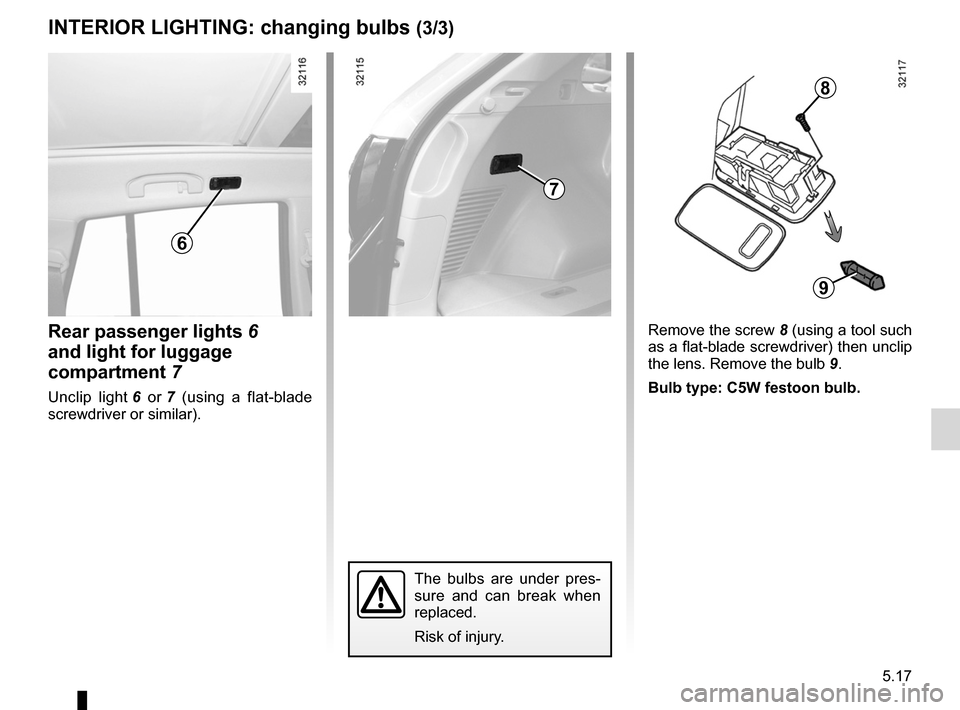

InterIOr lIghtIng: changing bulbs (3/3)
rear passenger lights 6
and light for luggage
compartment 7
Unclip light 6 or 7 (using a flat-blade
screwdriver or similar).
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Remove the screw 8 (using a tool such
as a flat-blade screwdriver) then unclip
the lens. Remove the bulb 9.
Bulb type: c5w festoon bulb.
7
8
9
6

fuses ..................................................... (up to the end of the DU)
5.18
ENG_UD21012_4
Fusibles (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Jaune NoirNoir texte
Fuses
Fuses (1/2)
32119
Disconnect the fuse using tweezers 2.
Slide the fuse backwards to remove it
from the tweezers.
Do not reuse the fuse.
1
2
CORRECT INCORRECT
Fuse box
1
If any electrical component does not
work, check the condition of the fuses.
Open the cover.
To identify the fuses, refer to the fuse
allocation label (shown on the following
page).
Check the fuse in question
and replace it, if neces-
sary, by a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
In accordance with local legislation
or as a precautionary measure:
Obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
