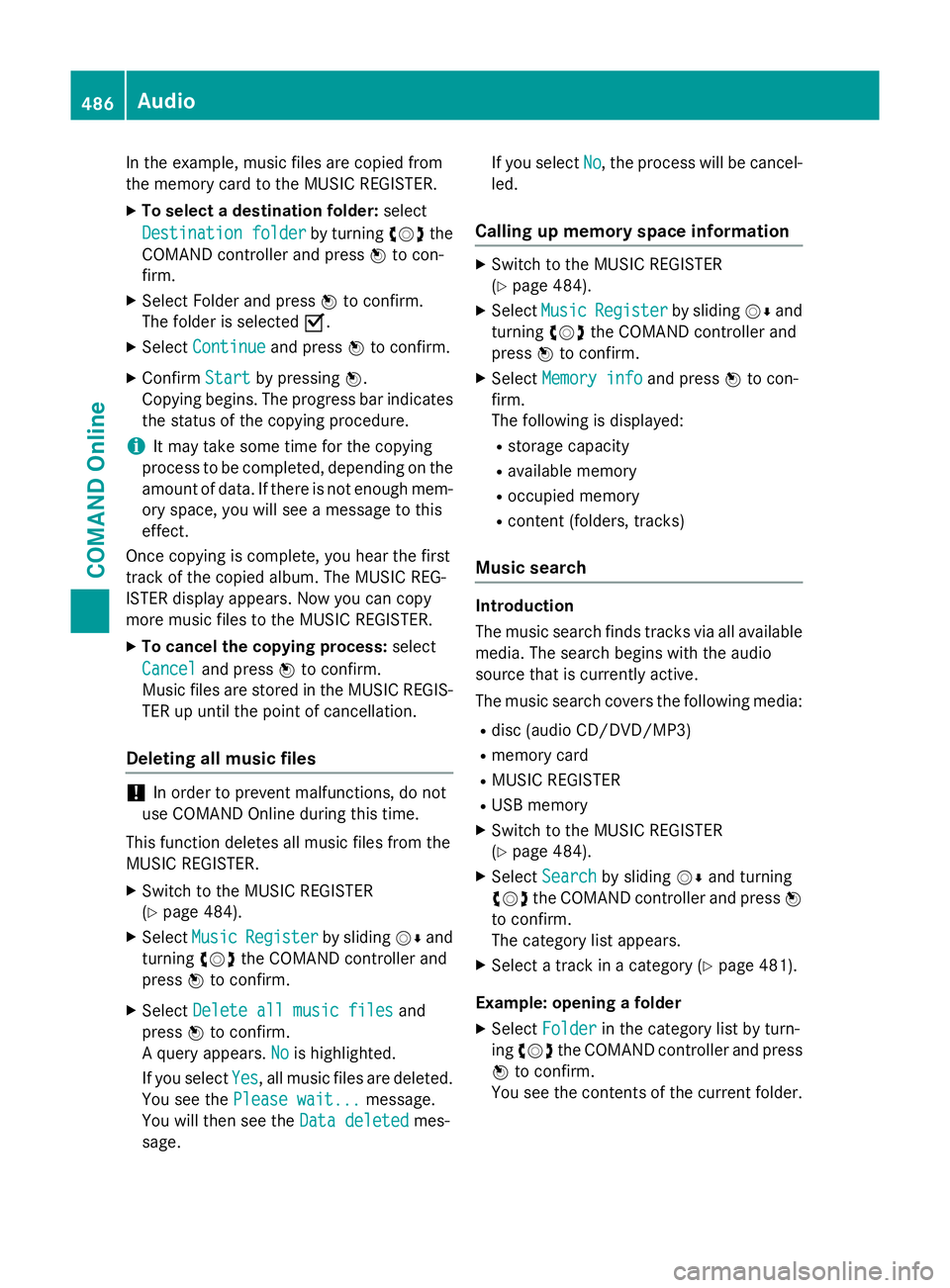

In the example, music files are copied from
the memory card to the MUSIC REGISTER.
X To select a destination folder: select
Destination folder
Destination folder by turningcVdthe
COMAND controller and press Wto con-
firm.
X Select Folder and press Wto confirm.
The folder is selected O.
X Select Continue
Continue and pressWto confirm.
X Confirm Start
Start by pressing W.
Copying begins. The progress bar indicates the status of the copying procedure.
i It may take some time for the copying
process to be completed, depending on the
amount of data. If there is not enough mem-
ory space, you will see a message to this
effect.
Once copying is complete, you hear the first
track of the copied album. The MUSIC REG-
ISTER display appears. Now you can copy
more music files to the MUSIC REGISTER.
X To cancel the copying process: select
Cancel Cancel and press Wto confirm.
Music files are stored in the MUSIC REGIS-
TER up until the point of cancellation.
Deleting all music files !
In order to prevent malfunctions, do not
use COMAND Online during this time.
This function deletes all music files from the
MUSIC REGISTER.
X Switch to the MUSIC REGISTER
(Y page 484).
X Select Music
Music Register
Register by slidingVÆand
turning cVdthe COMAND controller and
press Wto confirm.
X Select Delete all music files
Delete all music files and
press Wto confirm.
A query appears. No
No is highlighted.
If you select Yes
Yes, all music files are deleted.
You see the Please wait...
Please wait... message.
You will then see the Data deleted
Data deletedmes-
sage. If you select
No
No, the process will be cancel-
led.
Calling up memory space information X
Switch to the MUSIC REGISTER
(Y page 484).
X Select Music Music Register
Register by slidingVÆand
turning cVdthe COMAND controller and
press Wto confirm.
X Select Memory info
Memory info and pressWto con-
firm.
The following is displayed:
R storage capacity
R available memory
R occupied memory
R content (folders, tracks)
Music search Introduction
The music search finds tracks via all available
media. The search begins with the audio
source that is currently active.
The music search covers the following media:
R disc (audio CD/DVD/MP3)
R memory card
R MUSIC REGISTER
R USB memory
X Switch to the MUSIC REGISTER
(Y page 484).
X Select Search Search by sliding VÆand turning
cVd the COMAND controller and press W
to confirm.
The category list appears.
X Select a track in a category (Y page 481).
Example: opening a folder X Select Folder Folder in the category list by turn-
ing cVd the COMAND controller and press
W to confirm.
You see the contents of the current folder. 486
AudioCOMAND Online

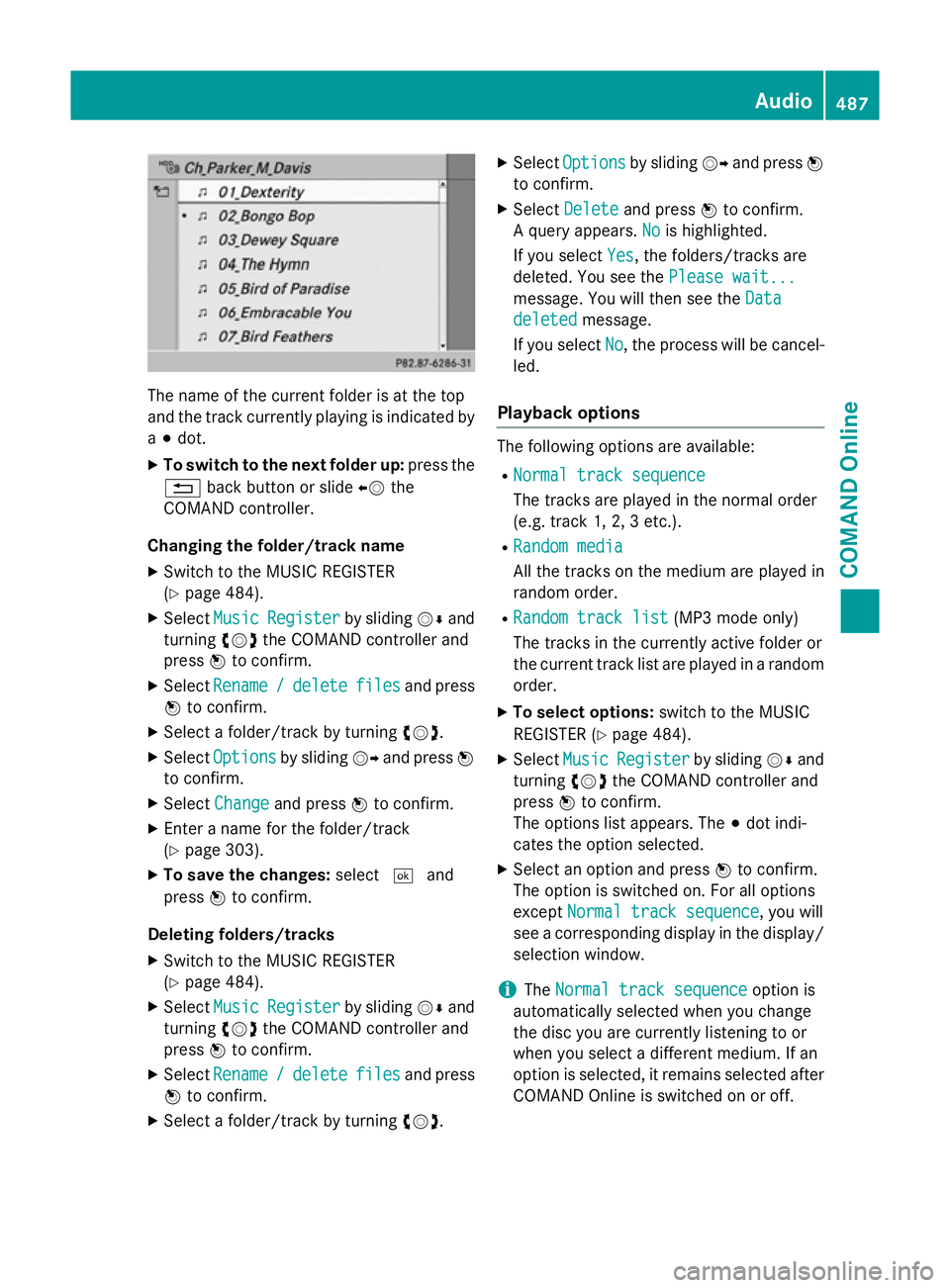

The name of the current folder is at the top
and the track currently playing is indicated by
a # dot.
X To switch to the next folder up: press the
% back button or slide XVthe
COMAND controller.
Changing the folder/track name X Switch to the MUSIC REGISTER
(Y page 484).
X Select Music
Music Register Register by slidingVÆand
turning cVdthe COMAND controller and
press Wto confirm.
X Select Rename
Rename /
/delete
delete files
filesand press
W to confirm.
X Select a folder/track by turning cVd.
X Select Options
Options by sliding VYand press W
to confirm.
X Select Change
Change and press Wto confirm.
X Enter a name for the folder/track
(Y page 303).
X To save the changes: select¬and
press Wto confirm.
Deleting folders/tracks
X Switch to the MUSIC REGISTER
(Y page 484).
X Select Music
Music Register Register by slidingVÆand
turning cVdthe COMAND controller and
press Wto confirm.
X Select Rename
Rename /
/delete
delete files
filesand press
W to confirm.
X Select a folder/track by turning cVd.X
Select Options
Options by sliding VYand press W
to confirm.
X Select Delete
Delete and press Wto confirm.
A query appears. No
No is highlighted.
If you select Yes
Yes, the folders/tracks are
deleted. You see the Please wait...
Please wait...
message. You will then see the Data
Data
deleted
deleted message.
If you select No
No, the process will be cancel-
led.
Playback options The following options are available:
R Normal track sequence
Normal track sequence
The tracks are played in the normal order
(e.g. track 1, 2, 3 etc.).
R Random media Random media
All the tracks on the medium are played in
random order.
R Random track list Random track list (MP3 mode only)
The tracks in the currently active folder or
the current track list are played in a random
order.
X To select options: switch to the MUSIC
REGISTER (Y page 484).
X Select Music Music Register
Register by slidingVÆand
turning cVdthe COMAND controller and
press Wto confirm.
The options list appears. The #dot indi-
cates the option selected.
X Select an option and press Wto confirm.
The option is switched on. For all options
except Normal track sequence
Normal track sequence, you will
see a corresponding display in the display/ selection window.
i The
Normal track sequence
Normal track sequence option is
automatically selected when you change
the disc you are currently listening to or
when you select a different medium. If an
option is selected, it remains selected after COMAND Online is switched on or off. Audio
487COMAND Online Z

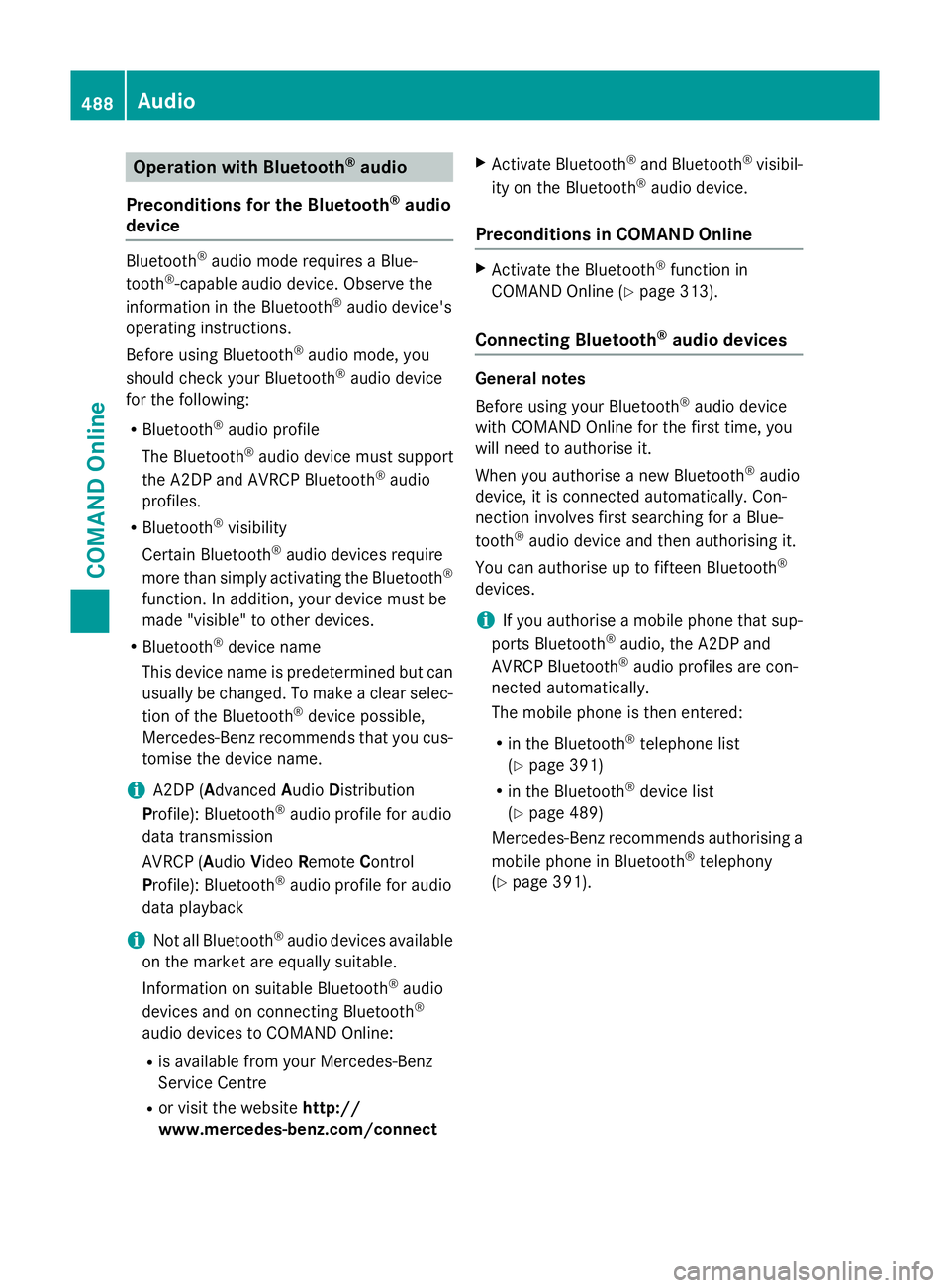

Operation with Bluetooth
®
audio
Preconditions for the Bluetooth ®
audio
device Bluetooth
®
audio mode requires a Blue-
tooth ®
-capable audio device. Observe the
information in the Bluetooth ®
audio device's
operating instructions.
Before using Bluetooth ®
audio mode, you
should check your Bluetooth ®
audio device
for the following:
R Bluetooth ®
audio profile
The Bluetooth ®
audio device must support
the A2DP and AVRCP Bluetooth ®
audio
profiles.
R Bluetooth ®
visibility
Certain Bluetooth ®
audio devices require
more than simply activating the Bluetooth ®
function. In addition, your device must be
made "visible" to other devices.
R Bluetooth ®
device name
This device name is predetermined but can
usually be changed. To make a clear selec-
tion of the Bluetooth ®
device possible,
Mercedes-Benz recommends that you cus-
tomise the device name.
i A2DP (
Advanced AudioDistribution
Profile): Bluetooth ®
audio profile for audio
data transmission
AVRCP (Audio VideoRemote Control
Profile): Bluetooth ®
audio profile for audio
data playback
i Not all Bluetooth ®
audio devices available
on the market are equally suitable.
Information on suitable Bluetooth ®
audio
devices and on connecting Bluetooth ®
audio devices to COMAND Online:
R is available from your Mercedes-Benz
Service Centre
R or visit the website http://
www.mercedes-benz.com/connect X
Activate Bluetooth ®
and Bluetooth ®
visibil-
ity on the Bluetooth ®
audio device.
Preconditions in COMAND Online X
Activate the Bluetooth ®
function in
COMAND Online (Y page 313).
Connecting Bluetooth ®
audio devices General notes
Before using your Bluetooth
®
audio device
with COMAND Online for the first time, you
will need to authorise it.
When you authorise a new Bluetooth ®
audio
device, it is connected automatically. Con-
nection involves first searching for a Blue-
tooth ®
audio device and then authorising it.
You can authorise up to fifteen Bluetooth ®
devices.
i If you authorise a mobile phone that sup-
ports Bluetooth ®
audio, the A2DP and
AVRCP Bluetooth ®
audio profiles are con-
nected automatically.
The mobile phone is then entered:
R in the Bluetooth ®
telephone list
(Y page 391)
R in the Bluetooth ®
device list
(Y page 489)
Mercedes-Benz recommends authorising a mobile phone in Bluetooth ®
telephony
(Y page 391). 488
AudioCOMAND Online

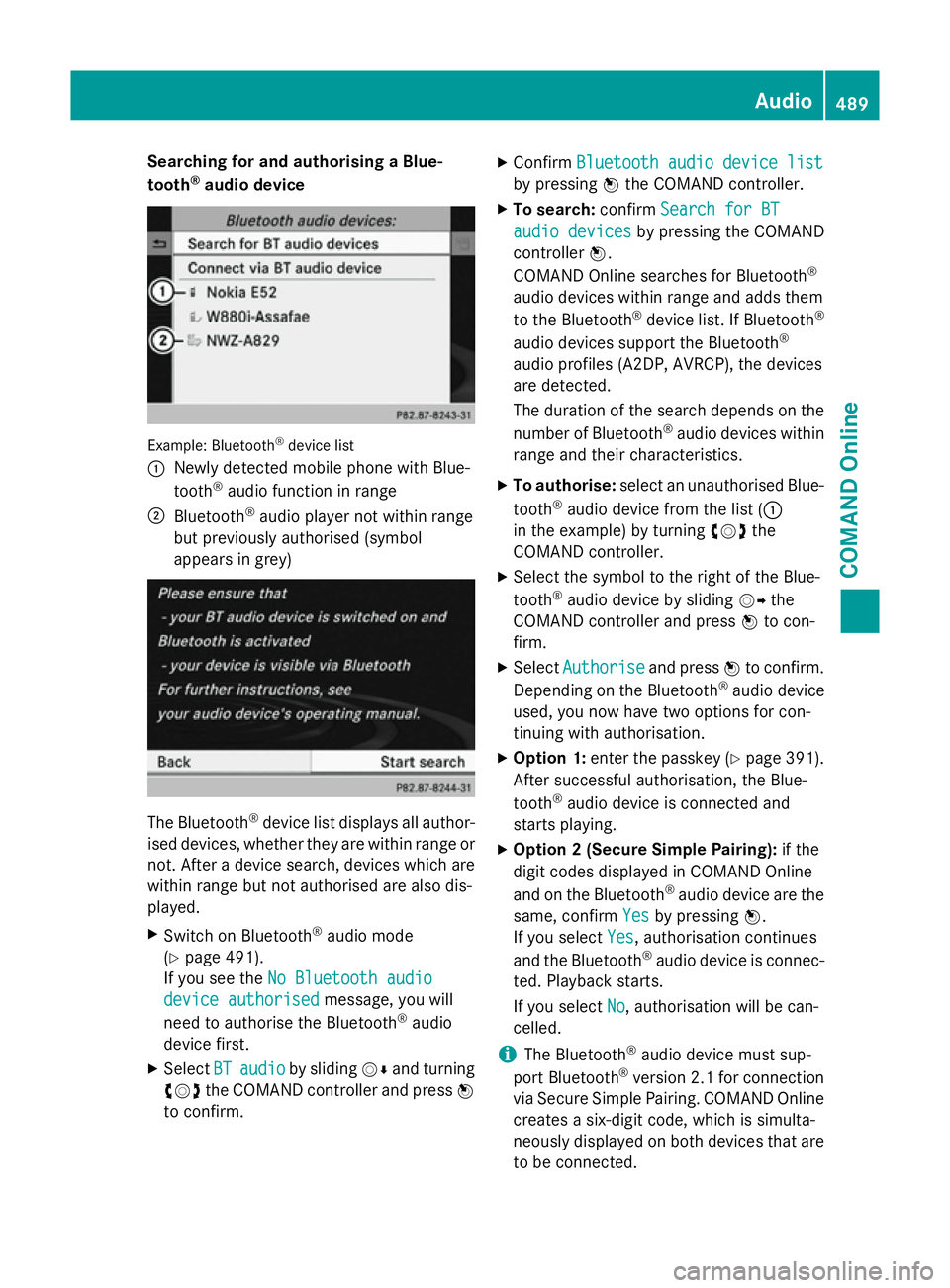

Searching for and authorising a Blue-
tooth ®
audio device Example: Bluetooth
®
device list
: Newly detected mobile phone with Blue-
tooth ®
audio function in range
; Bluetooth ®
audio player not within range
but previously authorised (symbol
appears in grey) The Bluetooth
®
device list displays all author-
ised devices, whether they are within range or not. After a device search, devices which arewithin range but not authorised are also dis-
played.
X Switch on Bluetooth ®
audio mode
(Y page 491).
If you see the No Bluetooth audio No Bluetooth audio
device authorised
device authorised message, you will
need to authorise the Bluetooth ®
audio
device first.
X Select BT
BTaudio
audio by sliding VÆand turning
cVd the COMAND controller and press W
to confirm. X
Confirm Bluetooth audio device list Bluetooth audio device list
by pressing Wthe COMAND controller.
X To search: confirmSearch for BT Search for BT
audio devices
audio devices by pressing the COMAND
controller W.
COMAND Online searches for Bluetooth ®
audio devices within range and adds them
to the Bluetooth ®
device list. If Bluetooth ®
audio devices support the Bluetooth ®
audio profiles (A2DP, AVRCP), the devices
are detected.
The duration of the search depends on the
number of Bluetooth ®
audio devices within
range and their characteristics.
X To authorise: select an unauthorised Blue-
tooth ®
audio device from the list (:
in the example) by turning cVdthe
COMAND controller.
X Select the symbol to the right of the Blue-
tooth ®
audio device by sliding VYthe
COMAND controller and press Wto con-
firm.
X Select Authorise Authorise and pressWto confirm.
Depending on the Bluetooth ®
audio device
used, you now have two options for con-
tinuing with authorisation.
X Option 1: enter the passkey (Y page 391).
After successful authorisation, the Blue-
tooth ®
audio device is connected and
starts playing.
X Option 2 (Secure Simple Pairing): if the
digit codes displayed in COMAND Online
and on the Bluetooth ®
audio device are the
same, confirm Yes Yesby pressing W.
If you select Yes Yes, authorisation continues
and the Bluetooth ®
audio device is connec-
ted. Playback starts.
If you select No
No, authorisation will be can-
celled.
i The Bluetooth ®
audio device must sup-
port Bluetooth ®
version 2.1 for connection
via Secure Simple Pairing. COMAND Online creates a six-digit code, which is simulta-
neously displayed on both devices that are
to be connected. Audio
489COMAND Online Z

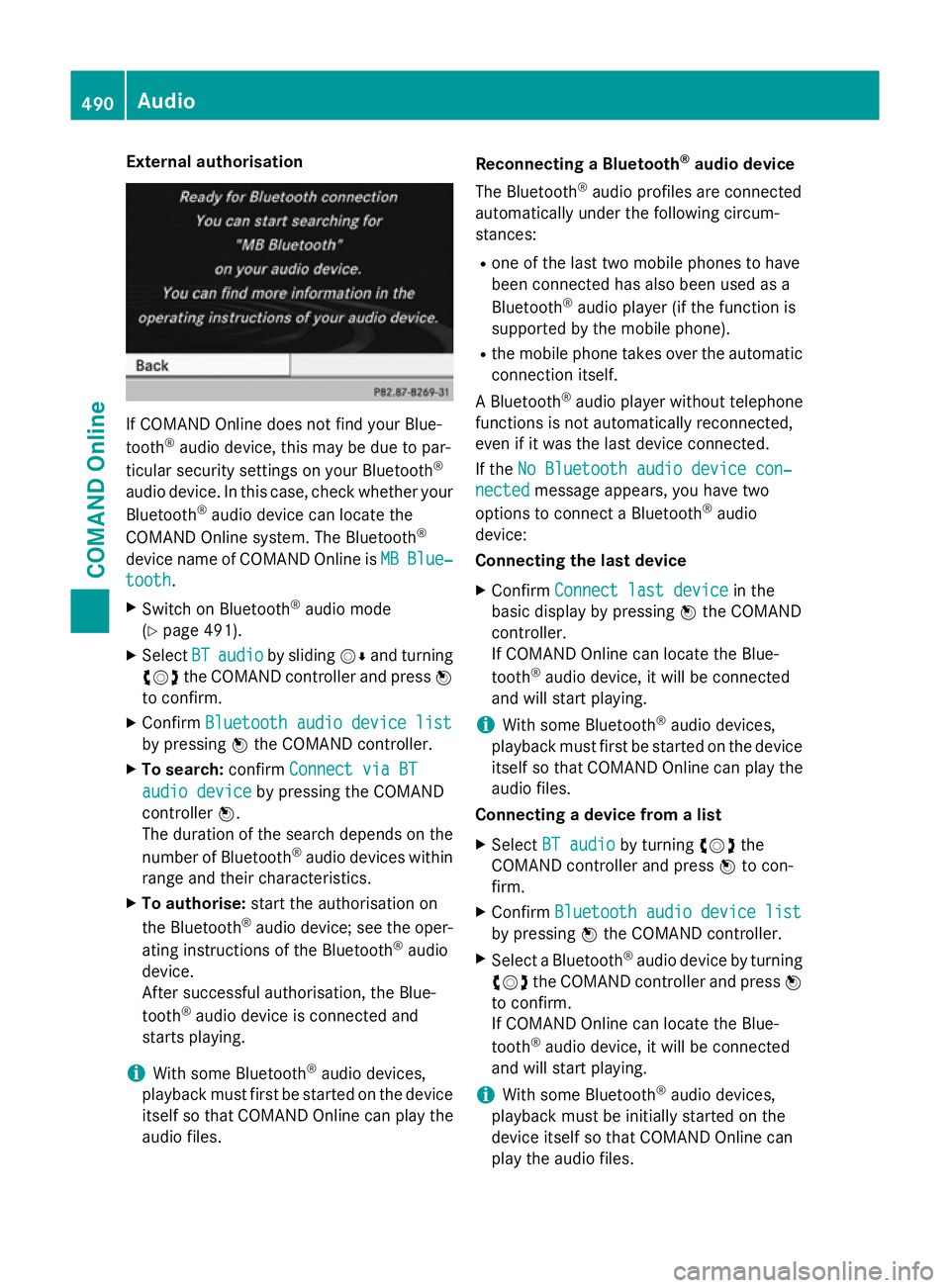

External authorisation
If COMAND Online does not find your Blue-
tooth ®
audio device, this may be due to par-
ticular security settings on your Bluetooth ®
audio device. In this case, check whether your Bluetooth ®
audio device can locate the
COMAND Online system. The Bluetooth ®
device name of COMAND Online is MB
MB Blue‐
Blue‐
tooth
tooth.
X Switch on Bluetooth ®
audio mode
(Y page 491).
X Select BT
BT audio
audio by sliding VÆand turning
cVd the COMAND controller and press W
to confirm.
X Confirm Bluetooth audio device list
Bluetooth audio device list
by pressing Wthe COMAND controller.
X To search: confirmConnect via BT
Connect via BT
audio device
audio device by pressing the COMAND
controller W.
The duration of the search depends on the
number of Bluetooth ®
audio devices within
range and their characteristics.
X To authorise: start the authorisation on
the Bluetooth ®
audio device; see the oper-
ating instructions of the Bluetooth ®
audio
device.
After successful authorisation, the Blue-
tooth ®
audio device is connected and
starts playing.
i With some Bluetooth ®
audio devices,
playback must first be started on the device itself so that COMAND Online can play the
audio files. Reconnecting a Bluetooth
®
audio device
The Bluetooth ®
audio profiles are connected
automatically under the following circum-
stances:
R one of the last two mobile phones to have
been connected has also been used as a
Bluetooth ®
audio player (if the function is
supported by the mobile phone).
R the mobile phone takes over the automatic
connection itself.
A Bluetooth ®
audio player without telephone
functions is not automatically reconnected,
even if it was the last device connected.
If the No Bluetooth audio device con‐
No Bluetooth audio device con‐
nected nected message appears, you have two
options to connect a Bluetooth ®
audio
device:
Connecting the last device
X Confirm Connect last device
Connect last device in the
basic display by pressing Wthe COMAND
controller.
If COMAND Online can locate the Blue-
tooth ®
audio device, it will be connected
and will start playing.
i With some Bluetooth ®
audio devices,
playback must first be started on the device itself so that COMAND Online can play the
audio files.
Connecting a device from a list
X Select BT audio BT audio by turning cVdthe
COMAND controller and press Wto con-
firm.
X Confirm Bluetooth audio device list Bluetooth audio device list
by pressing Wthe COMAND controller.
X Select a Bluetooth ®
audio device by turning
cVd the COMAND controller and press W
to confirm.
If COMAND Online can locate the Blue-
tooth ®
audio device, it will be connected
and will start playing.
i With some Bluetooth ®
audio devices,
playback must be initially started on the
device itself so that COMAND Online can
play the audio files. 490

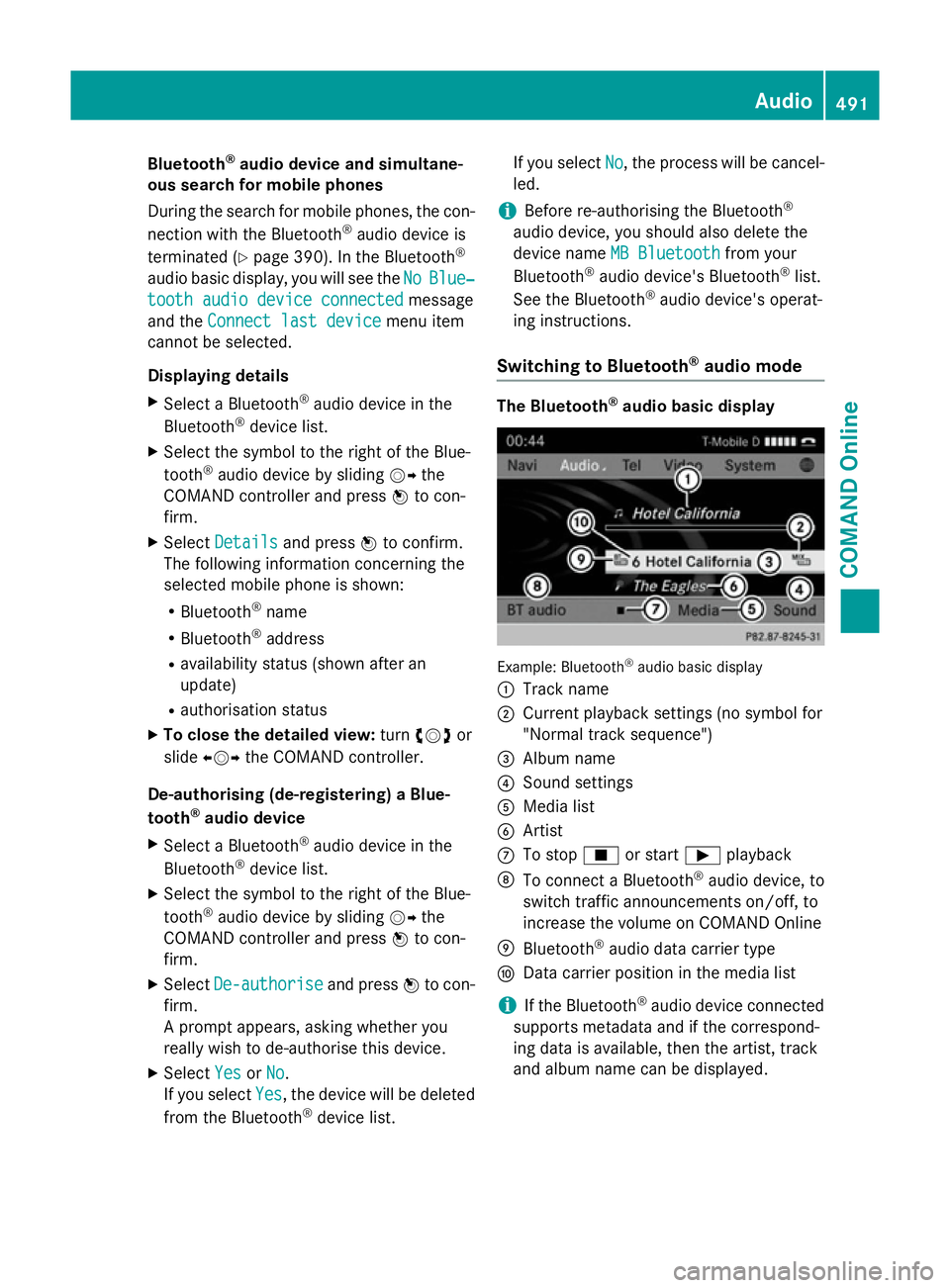

AudioCOMAND Online

Bluetooth
®
audio device and simultane-
ous search for mobile phones
During the search for mobile phones, the con-
nection with the Bluetooth ®
audio device is
terminated (Y page 390). In the Bluetooth ®
audio basic display, you will see the No NoBlue‐
Blue‐
tooth audio device connected
tooth audio device connected message
and the Connect last device Connect last device menu item
cannot be selected.
Displaying details X Select a Bluetooth ®
audio device in the
Bluetooth ®
device list.
X Select the symbol to the right of the Blue-
tooth ®
audio device by sliding VYthe
COMAND controller and press Wto con-
firm.
X Select Details
Details and press Wto confirm.
The following information concerning the
selected mobile phone is shown:
R Bluetooth ®
name
R Bluetooth ®
address
R availability status (shown after an
update)
R authorisation status
X To close the detailed view: turncVd or
slide XVY the COMAND controller.
De-authorising (de-registering) a Blue-
tooth ®
audio device
X Select a Bluetooth ®
audio device in the
Bluetooth ®
device list.
X Select the symbol to the right of the Blue-
tooth ®
audio device by sliding VYthe
COMAND controller and press Wto con-
firm.
X Select De-authorise
De-authorise and pressWto con-
firm.
A prompt appears, asking whether you
really wish to de-authorise this device.
X Select Yes YesorNo
No.
If you select Yes
Yes, the device will be deleted
from the Bluetooth ®
device list. If you select
No
No, the process will be cancel-
led.
i Before re-authorising the Bluetooth ®
audio device, you should also delete the
device name MB Bluetooth
MB Bluetooth from your
Bluetooth ®
audio device's Bluetooth ®
list.
See the Bluetooth ®
audio device's operat-
ing instructions.
Switching to Bluetooth ®
audio mode The Bluetooth
®
audio basic display Example: Bluetooth
®
audio basic display
: Track name
; Current playback settings (no symbol for
"Normal track sequence")
= Album name
? Sound settings
A Media list
B Artist
C To stop Éor start Ìplayback
D To connect a Bluetooth ®
audio device, to
switch traffic announcements on/off, to
increase the volume on COMAND Online
E Bluetooth ®
audio data carrier type
F Data carrier position in the media list
i If the Bluetooth ®
audio device connected
supports metadata and if the correspond-
ing data is available, then the artist, track
and album name can be displayed. Audio

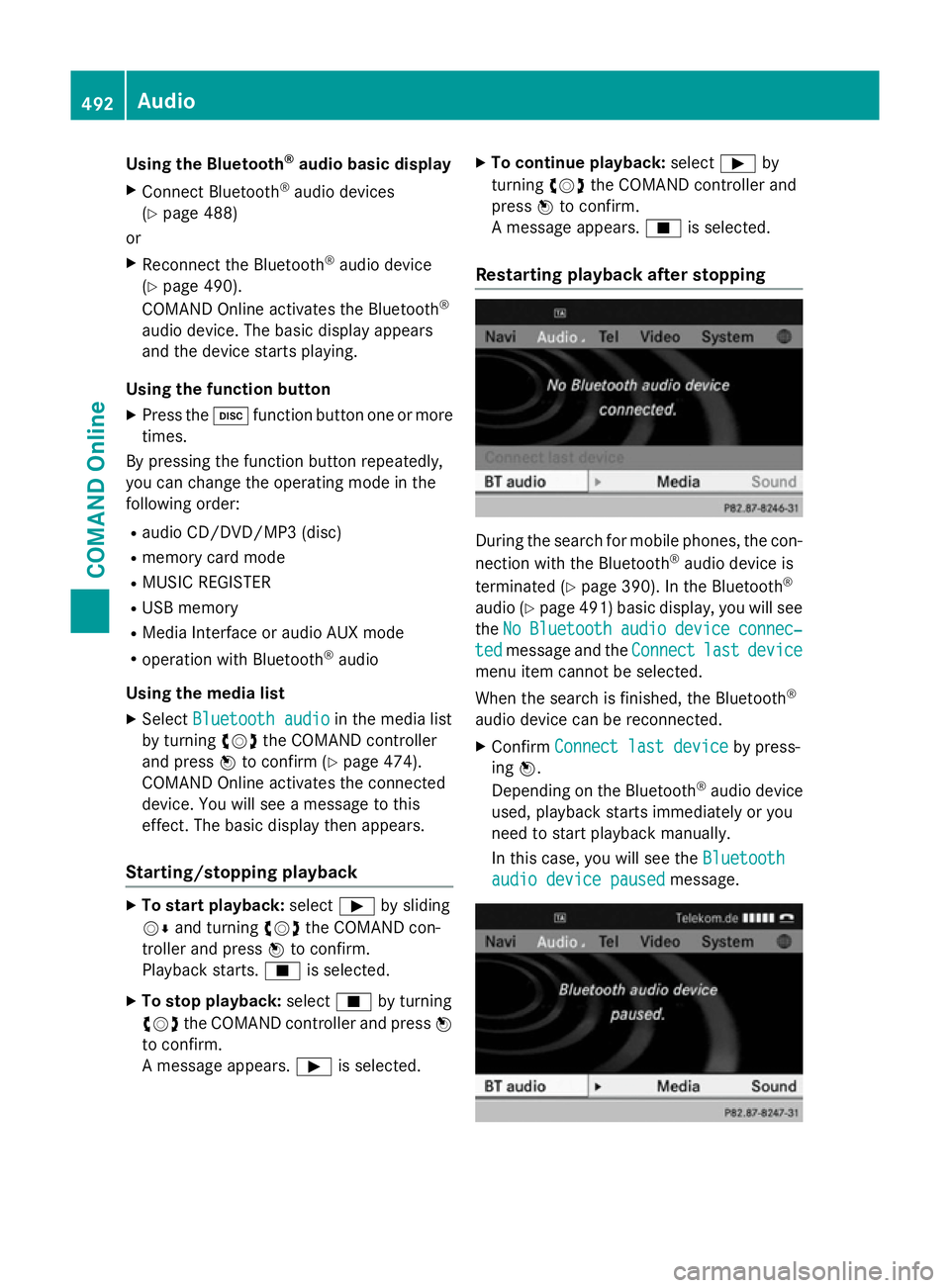

491COMAND Online Z

Using the Bluetooth
®
audio basic display
X Connect Bluetooth ®
audio devices
(Y page 488)
or
X Reconnect the Bluetooth ®
audio device
(Y page 490).
COMAND Online activates the Bluetooth ®
audio device. The basic display appears
and the device starts playing.
Using the function button
X Press the hfunction button one or more
times.
By pressing the function button repeatedly,
you can change the operating mode in the
following order:
R audio CD/DVD/MP3 (disc)
R memory card mode
R MUSIC REGISTER
R USB memory
R Media Interface or audio AUX mode
R operation with Bluetooth ®
audio
Using the media list X Select Bluetooth audio
Bluetooth audio in the media list
by turning cVdthe COMAND controller
and press Wto confirm (Y page 474).
COMAND Online activates the connected
device. You will see a message to this
effect. The basic display then appears.
Starting/stopping playback X
To start playback: selectÌby sliding
VÆ and turning cVdthe COMAND con-
troller and press Wto confirm.
Playback starts. Éis selected.
X To stop playback: selectÉby turning
cVd the COMAND controller and press W
to confirm.
A message appears. Ìis selected. X
To continue playback: selectÌby
turning cVdthe COMAND controller and
press Wto confirm.
A message appears. Éis selected.
Restarting playback after stopping During the search for mobile phones, the con-
nection with the Bluetooth ®
audio device is
terminated (Y page 390). In the Bluetooth ®
audio (Y page 491) basic display, you will see
the No NoBluetooth
Bluetooth audio
audiodevice
device connec‐
connec‐
ted
ted message and the Connect
Connectlast
lastdevice
device
menu item cannot be selected.
When the search is finished, the Bluetooth ®
audio device can be reconnected. X Confirm Connect last device
Connect last device by press-
ing W.
Depending on the Bluetooth ®
audio device
used, playback starts immediately or you
need to start playback manually.
In this case, you will see the Bluetooth Bluetooth
audio device paused

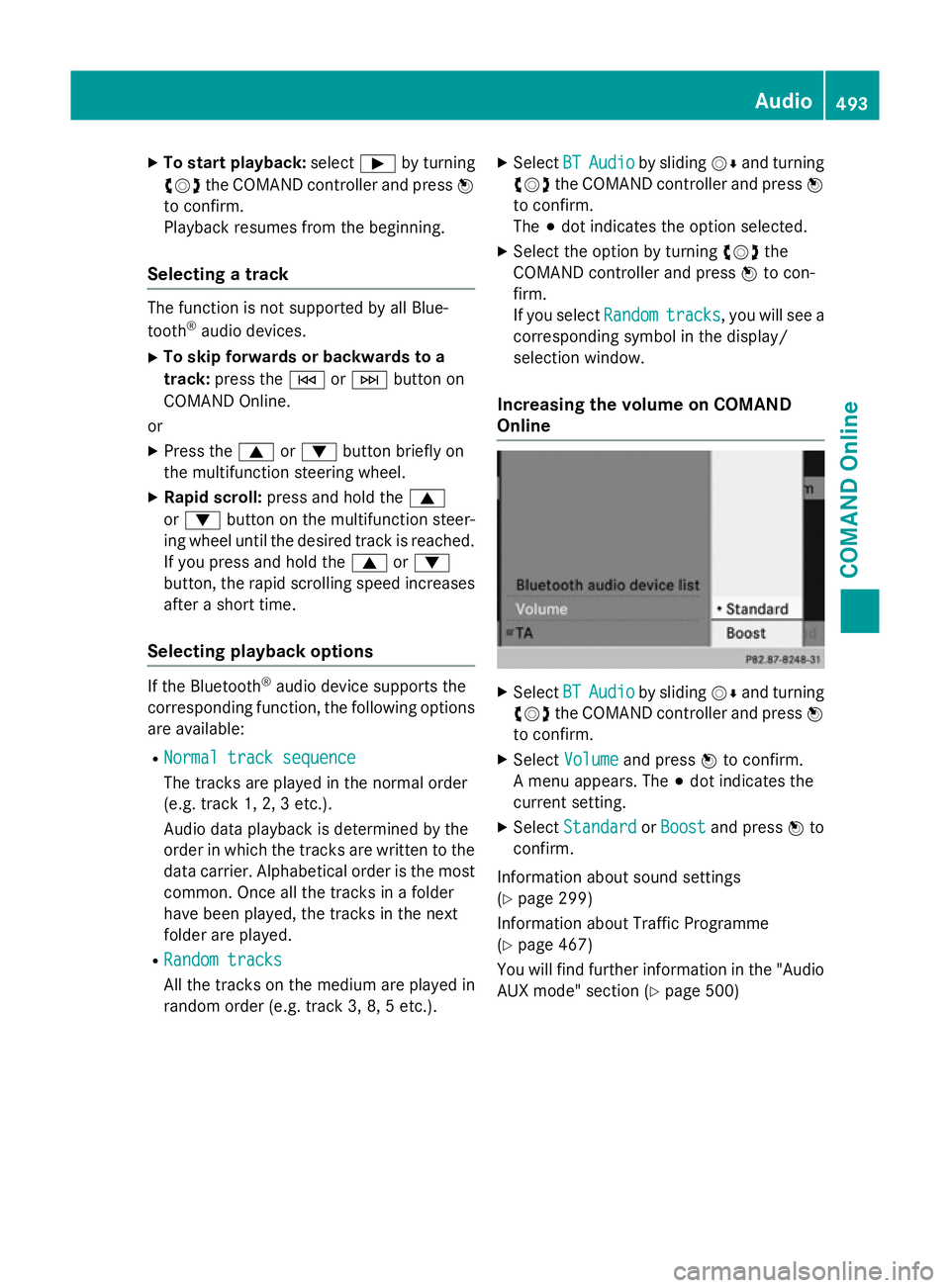

audio device paused message.492
AudioCOMAND Online

X
To start playback: selectÌby turning
cVd the COMAND controller and press W
to confirm.
Playback resumes from the beginning.
Selecting a track The function is not supported by all Blue-
tooth ®
audio devices.
X To skip forwards or backwards to a
track: press the EorF button on
COMAND Online.
or X Press the 9or: button briefly on
the multifunction steering wheel.
X Rapid scroll: press and hold the 9
or : button on the multifunction steer-
ing wheel until the desired track is reached.
If you press and hold the 9or:
button, the rapid scrolling speed increases
after a short time.
Selecting playback options If the Bluetooth
®
audio device supports the
corresponding function, the following options are available:
R Normal track sequence Normal track sequence
The tracks are played in the normal order
(e.g. track 1, 2, 3 etc.).
Audio data playback is determined by the
order in which the tracks are written to the data carrier. Alphabetical order is the most
common. Once all the tracks in a folder
have been played, the tracks in the next
folder are played.
R Random tracks Random tracks
All the tracks on the medium are played in
random order (e.g. track 3, 8, 5 etc.). X
Select BT BTAudio
Audio by sliding VÆand turning
cVd the COMAND controller and press W
to confirm.
The #dot indicates the option selected.
X Select the option by turning cVdthe
COMAND controller and press Wto con-
firm.
If you select Random Randomtracks
tracks, you will see a
corresponding symbol in the display/
selection window.
Increasing the volume on COMAND
Online X
Select BT BTAudio
Audio by sliding VÆand turning
cVd the COMAND controller and press W
to confirm.
X Select Volume
Volume and press Wto confirm.
A menu appears. The #dot indicates the
current setting.
X Select Standard
Standard orBoost
Boost and press Wto
confirm.
Information about sound settings
(Y page 299)
Information about Traffic Programme
(Y page 467)
You will find further information in the "Audio
AUX mode" section (Y page 500) Audio
493COMAND Online Z
